Default Dyno tuned today.

Well finally got the car on the rollers today. And good news it made it home under its own power, alot more of its own power.

Setup:

1992 1.6 5spd
150K stock motor
Greddy kit with the only remaining part not upgraded being the turbo
ETD manifold
Tony's 2.5" DP to 3" cat to 2.5" exhaust straight through muffler
Stripes intercooler kit
460cc inj
Braineack MS with EBC boomslang
CLutchnet 3X PP and 4 puck sprung disk
Godspeed rad

Had a hell of a time making the EBC work smoothly but we got it. Added spring to help the WG. Got it to make 12-14 psi steady. After 20 or so pulls on the dyno made best of 189 Hp, not to bad but I was really hopeing for over 200. Its got a hickup at about 4500 rpm that we could not iron out, popular answer was that it was an ignition miss and would be solved by closing up spark plug gap or new coils. I'm open to ideas. The tach jumps when it happins.

But I got to tell you 189 hp in this light of a car really felt great driving home. I'm sure its faster than my mildly modded 5.0 DD.

I have a graph and I'll get it scanned in the AM and post it.

Anyone want my datalog let me know I'd be happy to let some if you experienced guys look it over.

Any bets on low long the rear lasts? Auto-x Sunday!

Thanks for all the help getting this project going!
IcantDo55 is offline   Reply With Quote
Old 03-14-2008, 01:51 AM   #2
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Post a screenshot of your timing map when you get a chance. Interested in seeing what you guys came up with. Considering Ben made close to 250 on the greddy kit, maybe that was 17 psi though. I still think you should be at 200 at 14 psi.
Have the dyno plots to load up?
cjernigan is offline   Reply With Quote
Old 03-14-2008, 01:53 AM   #3
Junior Member

Join Date: Jan 2008
Posts: 208
Total Cats: 0
Default

I was thinking the same thing. With those mods you should at least be at the 200 mark
driftbandito is offline   Reply With Quote
Old 03-14-2008, 01:58 AM   #4
I'm Miserable!
iTrader: (1)

Join Date: Oct 2007
Location: Niagara Falls, On, CANADA
Posts: 979
Total Cats: 0
Default

Thats ****** good hp goal for that psi dammm son lol nice
miataz is offline   Reply With Quote
Old 03-14-2008, 02:02 AM   #5
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,366
Total Cats: 1,326
Default

190 at 14psi is pretty low, but it may be the dyno. What dyno, what gas?
Savington is online now   Reply With Quote
Old 03-14-2008, 02:04 AM   #6
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,764
Total Cats: 18
Default

Was on a dyno dynamics dyno. 93 pump gas

http://www.dyno.com.au/dyno/controller
IcantDo55 is offline   Reply With Quote
Old 03-14-2008, 02:11 AM   #7
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,764
Total Cats: 18
Default

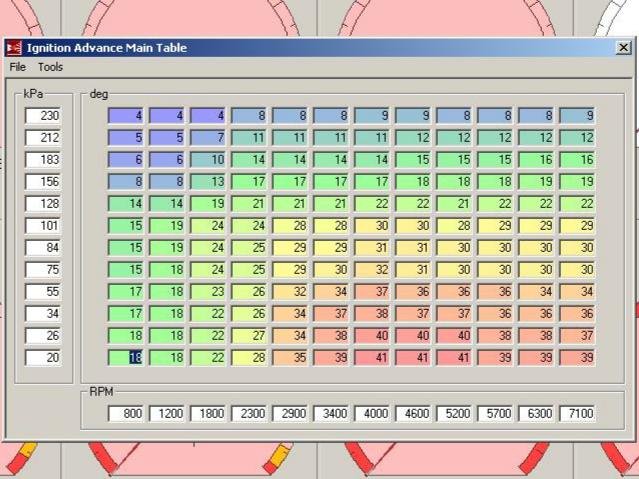

Spark map
Attached Thumbnails
Dyno tuned today.-spark-map.jpg
IcantDo55 is offline   Reply With Quote
Old 03-14-2008, 02:17 AM   #8
Elite Member
iTrader: (11)

Trent's Avatar

Join Date: Feb 2006
Location: Louisiana
Posts: 1,625
Total Cats: 5
Default

that's about right on a dyno dynamics dyno. Add 17% to that to get equivalent dynojet numbers.

FWIW, that's exactly the same horsepower i got on my modified greddy kit on a dyno dynamics dyno at the same PSI. I had an emanage blue, Vortech FMU, and 1.8 tantops though.
Trent is offline   Reply With Quote
Old 03-14-2008, 02:24 AM   #9
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,764
Total Cats: 18
Default

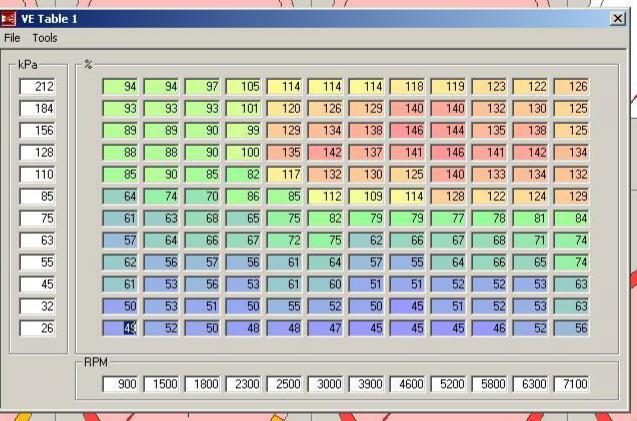

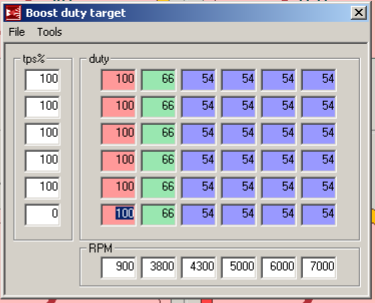

VE and EBC map
Attached Thumbnails
Dyno tuned today.-ve-table.jpg
Attached Images
File Type: bmp ebc table.bmp (333.8 KB, 349 views)
IcantDo55 is offline   Reply With Quote
Old 03-14-2008, 02:28 AM   #10
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,764
Total Cats: 18
Default

Question, what are you guys using for a Rev limit?
And what type of limiter are you using, Fuel cut, spark cut, or both?
IcantDo55 is offline   Reply With Quote
Old 03-14-2008, 02:47 AM   #11
Senior Member
iTrader: (13)

Join Date: Sep 2006
Location: San Diego
Posts: 606
Total Cats: 0
Default

Quote:
Originally Posted by IcantDo55 View Post
Question, what are you guys using for a Rev limit?
And what type of limiter are you using, Fuel cut, spark cut, or both?
If you're running a cat, you want to cut fuel for sure because raw fuel destroys the cat. The MSPNP base map has a 7000 soft cut and 7200 hard cut rev limiter with fuel only cut I believe.
jasonrobo02 is offline   Reply With Quote
Old 03-14-2008, 04:12 AM   #12
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,366
Total Cats: 1,326
Default

7100 soft cut to 10 degrees
7200 spark+fuel cut

I NEVER hit the hard cut. It usually just sits there and howls away at like 7150rpm. Only times I ever hit the hard cut is on autocross courses where I stay WOT in 2nd gear all the way up to it.
Savington is online now   Reply With Quote
Old 03-14-2008, 07:00 AM   #13
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

Mike, nice numbers... we can get that EBC working, I know it.
Also, what exhaust are you running?

AND NEXT TIME TELL ME WHEN YOU'RE GOING TO THE DYNO!!!! I WANT TO PLAY TOO!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
samnavy is offline   Reply With Quote
Old 03-14-2008, 09:13 AM   #14
Junior Member
iTrader: (34)

Join Date: Oct 2007
Location: Garner, NC
Posts: 269
Total Cats: 0
Default

Any restriction being created in the exhaust stream from going 2.5 to 3" and back down to 2.5?
harleybutter is offline   Reply With Quote
Old 03-14-2008, 10:34 AM   #15
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,764
Total Cats: 18
Default

Quote:
Originally Posted by harleybutter View Post
Any restriction being created in the exhaust stream from going 2.5 to 3" and back down to 2.5?

The only thing 3" is the cat, figures that would help flow.


Sam Its working on the EBc with the values I posted. There just way off the maps you posted and I thought that was strange. Guess all cars are really different.

You get to see get on a dyon with it next weekend. By then the cat will be a pile of dust on the floor. Well see if that helps.
IcantDo55 is offline   Reply With Quote
Old 03-14-2008, 10:40 AM   #16
Junior Member
iTrader: (34)

Join Date: Oct 2007
Location: Garner, NC
Posts: 269
Total Cats: 0
Default

Quote:
Originally Posted by IcantDo55 View Post
The only thing 3" is the cat, figures that would help flow.
My concern is the turbulance caused in the exhaust stream by the abrupt change in exhaust diameter. May not have as much factor as I think, but it was good for a few hp on an NA honda/acura motor.
Look at the exhaust stream as fliud, that fluid will most likely follow the bottom of the pipes. As it hits the lip going from 3" to 2.5" it can cause a swirl effect, but not a good one.
I understand your thinking, and I would not say anything unless I had seen it myself before.
harleybutter is offline   Reply With Quote
Old 03-14-2008, 10:44 AM   #17
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

Quote:
Originally Posted by IcantDo55 View Post
Its got a hickup at about 4500 rpm that we could not iron out, popular answer was that it was an ignition miss and would be solved by closing up spark plug gap or new coils. I'm open to ideas. The tach jumps when it happins.

add a .1uF cap from js8 to ground. gap plugs at .30"


<-dyno plots that is.
Braineack is offline   Reply With Quote
Old 03-14-2008, 10:47 AM   #18
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,764
Total Cats: 18
Default

Quote:
Originally Posted by Braineack View Post
add a .1uF cap from js8 to ground. gap plugs at .30"


<-dyno plots that is.
I think .3" is a bit big

Plugs are gaped @ .030"

Whats the cap going to do?
IcantDo55 is offline   Reply With Quote
Old 03-14-2008, 10:52 AM   #19
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

filter the tach signal a bit, it's all the rage.
Braineack is offline   Reply With Quote
Old 03-14-2008, 11:14 AM   #20
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,764
Total Cats: 18
Default

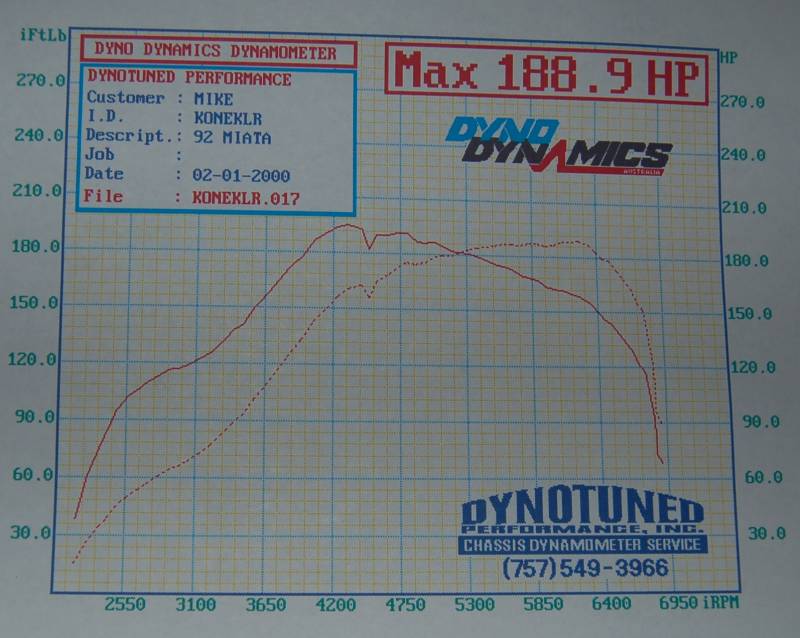

Gave up on the scanner, how bout a photo?
Attached Thumbnails
Dyno tuned today.-dyno.jpg
IcantDo55 is offline   Reply With Quote
