Old 03-14-2008, 11:24 AM   #21
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,052
Total Cats: 7
Default

Your torque curve falls off quite a bit those last 2000rpms, if you could flatten it out you could find some more HP. Maybe a full 3" exhaust would help with that.
Efini~FC3S is offline   Reply With Quote
Old 03-14-2008, 11:29 AM   #22
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

yep, greddy kit alright.


did you log the pulls? betcha anything the boost dropped a few pounds by redline....you should look for Ben's EBC table and see what he has to do....iirc redline goes to 100%DC.
Braineack is offline   Reply With Quote
Old 03-14-2008, 01:20 PM   #23
Elite Member
iTrader: (3)

Mach929's Avatar

Join Date: Oct 2004
Location: lansdale PA
Posts: 2,500
Total Cats: 0
Default

looks like you're probably losing boost by redline, try a helper spring it helped me
Mach929 is offline   Reply With Quote
Old 03-14-2008, 01:27 PM   #24
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

Same here. The helper spring would hold 9psi with no boot controller.
jayc72 is offline   Reply With Quote
Old 03-14-2008, 01:32 PM   #25
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,768
Total Cats: 18
Default

Think the 3" cat is a restriction?
IcantDo55 is offline   Reply With Quote
Old 03-14-2008, 01:52 PM   #26
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

you timming is killing you man
magnamx-5 is offline   Reply With Quote
Old 03-14-2008, 01:56 PM   #27
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

Quote:
Originally Posted by magnamx-5 View Post
you timming is killing you man
maybe a little, but the boost loss is worse.


even if he held 200rwtq to just 5300RPM which it should in the least....peak HP would jump +20 to 200rwhp.
Braineack is offline   Reply With Quote
Old 03-14-2008, 02:38 PM   #28
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,768
Total Cats: 18
Default

So anyone have pics of there spring setup? How many lb spring? I have one but I guess its not strong enough. I just don't want it to be too tight.

How much more timing you think is safe before destination?
IcantDo55 is offline   Reply With Quote
Old 03-14-2008, 02:57 PM   #29
I'm Miserable!

Join Date: May 2007
Posts: 589
Total Cats: 0
Default

Quote:
Originally Posted by IcantDo55 View Post
How much more timing you think is safe before destination?
I'm leaving now.. i should be there in about 30 minutes..
MX5-4me is offline   Reply With Quote
Old 03-14-2008, 03:25 PM   #30
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

Quote:
Originally Posted by IcantDo55 View Post
So anyone have pics of there spring setup? How many lb spring? I have one but I guess its not strong enough. I just don't want it to be too tight.

How much more timing you think is safe before destination?
Make the spring adjustable so you can dial it up or down a bit.
jayc72 is offline   Reply With Quote
Old 03-25-2008, 09:13 PM   #31
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,768
Total Cats: 18
Default

Well dialed in the boost with a MBC and got it stable @ 13-14psi. Thats about 4-5psi higher than the 1st time on the dyno. Went to a different dyno and guess what?

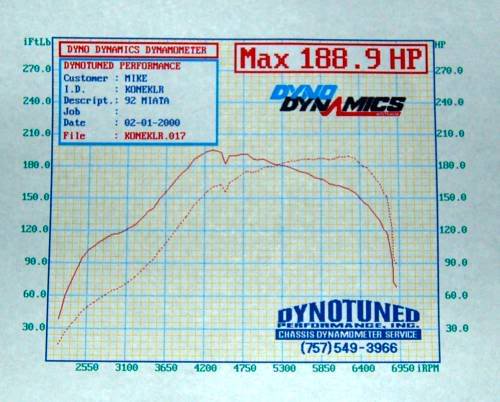

Old #'s

Name:  dynoDTP.jpg
Views: 0
Size:  36.2 KB

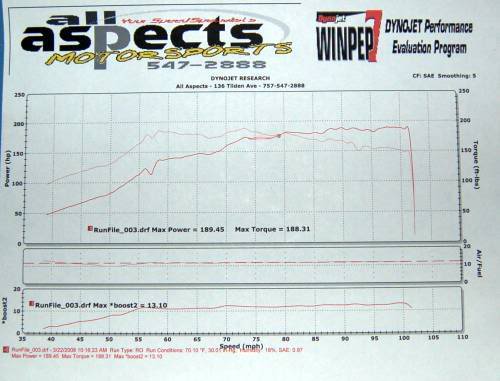

New dyno with 5psi more???

Name:  DynoALL.jpg
Views: 2
Size:  29.1 KB

So why is most others with the same setup putting down 230-250 whp?? Where is it? I'm getting frustrated.

I still thinking the "burp" @ 4500 RPM is ignition related. Ordering new coils this week.

HELP!
IcantDo55 is offline   Reply With Quote
Old 03-25-2008, 09:45 PM   #32
I'm Miserable!

Join Date: May 2007
Posts: 589
Total Cats: 0
Default

Dyno Dynamics dynamometers (say that ten times fast) are notoriously brutal on the numbers.. Do you have any other logs.. like AFR ?
MX5-4me is offline   Reply With Quote
Old 03-25-2008, 09:47 PM   #33
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

His second plot showed a max of only 189.45hp on a DYNOJET.
Bryce is offline   Reply With Quote
Old 03-25-2008, 09:49 PM   #34
I'm Miserable!

Join Date: May 2007
Posts: 589
Total Cats: 0
Default

it's hard to compare numbers on different Dynos is what i'm tying to say but not doing very well.
MX5-4me is offline   Reply With Quote
Old 03-25-2008, 09:50 PM   #35
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,768
Total Cats: 18
Default

Quote:
Originally Posted by Bryce View Post
His second plot showed a max of only 189.45hp on a DYNOJET.

and the 2nd graph has AF and Boost.
IcantDo55 is offline   Reply With Quote
Old 03-25-2008, 09:54 PM   #36
I'm Miserable!

Join Date: May 2007
Posts: 589
Total Cats: 0
Default

I'll just duck out now maybe no one will notice.

MX5-4me is offline   Reply With Quote
Old 03-25-2008, 09:57 PM   #37
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

Quote:
Originally Posted by MX5-4me View Post
I'll just duck out now maybe no one will notice.

Lol. His numbers should've been higher on the second dyno chart even at the same boost level. 17 percent higher according to Supersaiyan.
Bryce is offline   Reply With Quote
Old 03-25-2008, 10:01 PM   #38
Elite Member
iTrader: (3)

Mach929's Avatar

Join Date: Oct 2004
Location: lansdale PA
Posts: 2,500
Total Cats: 0
Default

you guys seem to have really low timing adavance and on the top end. here's my map last time i was on the dyno with my greddy, put down like 244whp uncorrected
Attached Files
File Type: zip mach929sparkmap.zip (595 Bytes, 42 views)
Mach929 is offline   Reply With Quote
Old 03-25-2008, 10:07 PM   #39
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,768
Total Cats: 18
Default

Quote:
Originally Posted by Mach929 View Post
you guys seem to have really low timing adavance and on the top end. here's my map last time i was on the dyno with my greddy, put down like 244whp uncorrected
I may be stupid but it downloaded as a ".vex" file what opens that? Got a screen shot?
IcantDo55 is offline   Reply With Quote
Old 03-25-2008, 10:12 PM   #40
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

I think you open a vex with megasquirt. It'll import only the timing table versus importing an entire .msq with all the settings that may not be right for you application.

I love you Mach929.
Bryce is offline   Reply With Quote
