Old 09-26-2006, 03:36 PM   #1
Senior Member
Thread Starter
iTrader: (14)

brgracer's Avatar

Join Date: Nov 2004
Location: Ambler, PA
Posts: 1,275
Total Cats: 1
Default GReddy @ 15psi

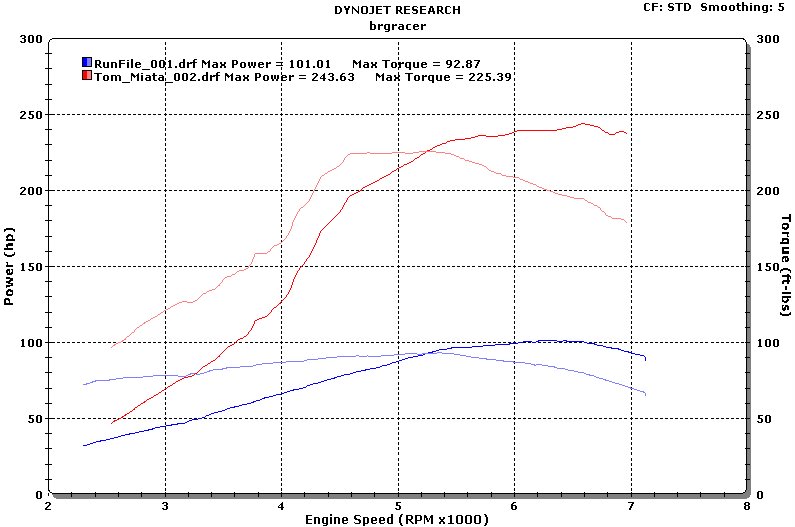

Finally got the run files. Before the turbo and at 15psi. Enjoy!
Attached Thumbnails
GReddy @ 15psi-tom.jpg
brgracer is offline   Reply With Quote
Old 09-26-2006, 04:06 PM   #2
Junior Member
iTrader: (8)

Join Date: Jun 2005
Location: Lansdale, PA
Posts: 426
Total Cats: 0
Default

I must say, I'm very impressed every time I read about your dyno run. Great job! You may have the fastest Greddy miata period.
Stripes is offline   Reply With Quote
Old 09-26-2006, 04:49 PM   #3
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

Those are impressive numbers considering you aren't using a more capable ECU. You dyno plot goes against the common opinion that you can't get these kinds of power levels with an AFPR based system!

There is a dyno plot at FM's webpage of a greddy setup w/link doing over 260. In the description it says "It takes a little while for that turbo to spool..." Ironically it seems to get to peak tq as fast or faster than their 1.6 FM based setups.

Good job!

Last edited by jayc72; 09-26-2006 at 07:03 PM.
jayc72 is offline   Reply With Quote
Old 09-26-2006, 06:56 PM   #4
Junior Member

Join Date: Jan 2005
Location: United Kingdom
Posts: 255
Total Cats: 0
Default

I dont get it..how is it possible to run those figures with emanage and 1.8 injectors.

Am I missing somthing here????
tabs604 is offline   Reply With Quote
Old 09-26-2006, 07:02 PM   #5
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

Lots of fuel pressure! And voodoo, don't forget the voodoo.
jayc72 is offline   Reply With Quote
Old 09-26-2006, 08:42 PM   #6
Senior Member
Thread Starter
iTrader: (14)

brgracer's Avatar

Join Date: Nov 2004
Location: Ambler, PA
Posts: 1,275
Total Cats: 1
Default

Quote:
Originally Posted by tabs604 View Post
I dont get it..how is it possible to run those figures with emanage and 1.8 injectors.

Am I missing somthing here????
It's more than just 1.8 injectors and emanage. I also have a Begi AFPR and Pierburg inline fuel pump as well as an RX-7 AFM and olderguy's autotune. While I agree that "technically" the 1.8 injectors shouldn't be able to support those #, well...they do, and both the tailpipe sniffer and my pre-cat WB show that I am not running lean.

As I've posted in the past, many of the miata gurus (Keith from FM, Brant from BRP, markp, RodH) have said that the 99-00 1.8 injectors have lots of "headroom" for FI whatever that means. Maybe b/c they were designed around a returnless fuel rail that runs at 60psi they are more tolerant of higher pressures. Not sure.

Granted, they "technically" shouldn't work, but they do. That said, I have a spare set of 310cc injectors in my garage should my WB or other data ever show that I am running lean or too high fuel pressures. FWIW, olderguy also runs 1.8 injectors at 15psi and has not had fueling issues either.

Oh yeah, and I forgot....the special boost voodoo dance before I get on the dyno....haha
brgracer is offline   Reply With Quote
Old 09-27-2006, 02:09 AM   #7
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

makes me wonder what a peiburg can do for me.
magnamx-5 is offline   Reply With Quote
Old 09-27-2006, 10:58 AM   #8
Senior Member

Join Date: Jan 2005
Posts: 737
Total Cats: 0
Default

Quote:
Originally Posted by magnamx-5 View Post
makes me wonder what a peiburg can do for me.
I love that damn fuel pump, LOVE IT!
F20turbo is offline   Reply With Quote
Old 09-27-2006, 10:59 AM   #9
Senior Member

Join Date: Jan 2005
Posts: 737
Total Cats: 0
Default

Quote:
Originally Posted by brgracer View Post
It's more than just 1.8 injectors and emanage. I also have a Begi AFPR and Pierburg inline fuel pump as well as an RX-7 AFM and olderguy's autotune. While I agree that "technically" the 1.8 injectors shouldn't be able to support those #, well...they do, and both the tailpipe sniffer and my pre-cat WB show that I am not running lean.

As I've posted in the past, many of the miata gurus (Keith from FM, Brant from BRP, markp, RodH) have said that the 99-00 1.8 injectors have lots of "headroom" for FI whatever that means. Maybe b/c they were designed around a returnless fuel rail that runs at 60psi they are more tolerant of higher pressures. Not sure.

Granted, they "technically" shouldn't work, but they do. That said, I have a spare set of 310cc injectors in my garage should my WB or other data ever show that I am running lean or too high fuel pressures. FWIW, olderguy also runs 1.8 injectors at 15psi and has not had fueling issues either.

Oh yeah, and I forgot....the special boost voodoo dance before I get on the dyno....haha

What kinda fuel pressure are you seeing at 15psi? I used to run about 110psi or so on 270's ( I know I was rich like Bill Gates )....just wondering
F20turbo is offline   Reply With Quote
Old 09-27-2006, 11:04 AM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,854
Total Cats: 1,788
Default

I think he said he was around 100psi or so.
Braineack is offline   Reply With Quote
Old 09-27-2006, 11:05 AM   #11
Senior Member
Thread Starter
iTrader: (14)

brgracer's Avatar

Join Date: Nov 2004
Location: Ambler, PA
Posts: 1,275
Total Cats: 1
Default

Quote:
Originally Posted by AndyFloyd View Post
What kinda fuel pressure are you seeing at 15psi? I used to run about 110psi or so on 270's ( I know I was rich like Bill Gates )....just wondering
Right around 90-100psi last I checked.
brgracer is offline   Reply With Quote
Old 09-27-2006, 11:15 AM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,854
Total Cats: 1,788
Default

Quote:
Originally Posted by brgracer View Post
Oh yeah, and I forgot....the special boost voodoo dance before I get on the dyno....haha
I wondered what you were doing! I thought you had to pee.
Braineack is offline   Reply With Quote
Old 09-27-2006, 11:20 AM   #13
Senior Member

Join Date: Jan 2005
Posts: 737
Total Cats: 0
Default

Quote:
Originally Posted by brgracer View Post
Right around 90-100psi last I checked.
wow, I need to lay off my fuel then. LOL. I think Im gonna run out to the car and put a restrictor in my AFPR.
F20turbo is offline   Reply With Quote
Old 09-27-2006, 11:26 AM   #14
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,854
Total Cats: 1,788
Default

I'm feeding my 305s 100psi of fuel at 9psi of boost. I'm recording 12:1 and slowly getting richer nearing redline.

330s at 100psi are good for about 275 BHP
Braineack is offline   Reply With Quote
Old 09-27-2006, 12:12 PM   #15
Senior Member

Join Date: Jan 2005
Posts: 737
Total Cats: 0
Default

Quote:
Originally Posted by braineack View Post
I'm feeding my 305s 100psi of fuel at 9psi of boost. I'm recording 12:1 and slowly getting richer nearing redline.

330s at 100psi are good for about 275 BHP
Yeah, see I run about 110psi for 12psi on pumpgas. Its around 10.5:1 AFR's. I would prefer to be around 11.5 :1 but I run rich just to keep things safe. I was gonna add a resitrictor and try to get around 95-100psi and lean it out just a little to gain some free HP. Anyone use the wd-40 restrictor mod?
F20turbo is offline   Reply With Quote
Old 09-27-2006, 02:07 PM   #16
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,854
Total Cats: 1,788
Default

POP and a few others suggested it to me. But Corky was nice enough to send me one of his.
Braineack is offline   Reply With Quote
Old 09-28-2006, 09:35 AM   #17
cccpull
Guest

Posts: n/a
Total Cats: 0
Default

What injector duty cycles are you guys running?
I only had fuel for 13psi with 440's at a static 80 psi.
  Reply With Quote
Old 09-28-2006, 09:54 AM   #18
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

The highest that was logged by the Emanage was 91 just at the end of the run, but there was no additional injection at that time. The highest I can read in fuel pressure that logs is 97psi(so it could have gone over 100), but that only held for about 1/10th of a second.

I don't fully trust the Emanage logging 'cause it is only picking off in 1/10 seconds. The control factor is happening much more quickly.
olderguy is offline   Reply With Quote
Old 09-28-2006, 01:53 PM   #19
Senior Member
Thread Starter
iTrader: (14)

brgracer's Avatar

Join Date: Nov 2004
Location: Ambler, PA
Posts: 1,275
Total Cats: 1
Default

My highest logged duty cycle was 92-93 very briefly as well toward the end. No additional injection at that point as well.

Also agree with the emanage logging as some numbers do not correlate with the LC-1 numbers that logs much faster.
brgracer is offline   Reply With Quote
Old 09-30-2006, 01:31 PM   #20
Junior Member

Join Date: Oct 2004
Location: Windsor, Canada
Posts: 191
Total Cats: -2
Default

You guys have to remember at those high pressures that the internal injector "needle" has to close against those pressures in 1 complete duty cycle. So even though your around a 85-90% duty cycle, the injector may still lag due to the increased pressure it sees when the needle is open. I can't see this being good for injectors over the long run.
MiataNuTca is offline   Reply With Quote
