Default GT2554 / AVO / stock 2000 / custom 2.5 exhaust + cat

this is from 2001

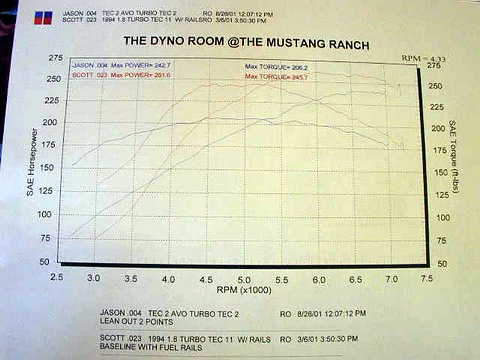

The blue trace is my car / 167 kPa boost
The red trace is a GT2560 on a gen 1 FM2 / NA 1.8 / 13 psi.
Attached Thumbnails
GT2554 / AVO / stock 2000 / custom 2.5 exhaust + cat-gt2554-gt2560-2001.jpg
JasonC SBB is offline   Reply With Quote
Old 10-07-2008, 07:49 PM   #2
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

242 is really impressive for a 2554.


HOLY ****! Only 167kpa??>?!>!!>#[email protected]
paul is offline   Reply With Quote
Old 10-07-2008, 08:04 PM   #3
Junior Member
iTrader: (1)

Join Date: Mar 2008
Location: Columbus, Ohio
Posts: 73
Total Cats: -3
Default

I realize the turbo is different now but how do you think the ETD shorty compares to the AVO flow wise? The AVO appears to be the best flowing cast mani available.
JTod is offline   Reply With Quote
Old 10-07-2008, 09:48 PM   #4
Elite Member
Thread Starter

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Better.
JasonC SBB is offline   Reply With Quote
Old 10-07-2008, 09:53 PM   #5
Elite Member
Thread Starter

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

I've said all along.

67 (dynojet) ft-lbs per liter per atmo of MAP is what you can get with good tuning and an efficient setup. Maybe as high as 71-72.

Power is just then a function of how little your torque droops at high RPM.
JasonC SBB is offline   Reply With Quote
Old 10-07-2008, 10:15 PM   #6
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Assuming 67 kPa boost, 167 kPA Absolute.

Nice num-bars.
patsmx5 is offline   Reply With Quote
Old 10-07-2008, 10:33 PM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

Quote:
Originally Posted by JasonC SBB View Post
67 (dynojet) ft-lbs per liter per atmo of MAP is what you can get with good tuning and an efficient setup. Maybe as high as 71-72.

formula is spot on to my last good dyno run. 205 rwtq @ 13psi.

67 * 1.6 * 1.884 = 202rwtq
Braineack is offline   Reply With Quote
Old 10-07-2008, 10:51 PM   #8
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

hmm, not for me

67 * 1.8 * 2 != 300

x * 1.8 * 2 = 300

x = 83
paul is offline   Reply With Quote
Old 10-07-2008, 10:53 PM   #9
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

****, i did hp, not torque. FAIL!

that actually ends up spot on

67 * 1.8 * 2 = 241

I rounded the 14psi up to 2bar just for the hell of it. Car did make 242. Without rounding that puts me at 68.
paul is offline   Reply With Quote
Old 10-07-2008, 10:56 PM   #10
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by paul View Post
****, i did hp, not torque. FAIL!
A mistake you see and more importantly you understand. Fail is how many don't understand the difference.
patsmx5 is offline   Reply With Quote
Old 10-08-2008, 12:35 AM   #11
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

Man, I have been hoping to break 250 on Friday when I go to the dyno.

Looking at my last plot (with the bad turbine), I was holding torque flat till 6500.

Based off these numbers I should be close to 268rwhp at 15 pounds.
Braineack is offline   Reply With Quote
Old 10-08-2008, 12:49 AM   #12
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by paul View Post
****, i did hp, not torque. FAIL!

that actually ends up spot on

67 * 1.8 * 2 = 241

I rounded the 14psi up to 2bar just for the hell of it. Car did make 242. Without rounding that puts me at 68.
actually you only fail because 1 bar = 14.5 psi...

1 atm = 14.7psi (101.3 kpa)



lets see...based on my last dyno @9.5psi 211 ft-lb / (1.8L * 1.646) = 71.2 ft-lb/L
y8s is offline   Reply With Quote
Old 10-08-2008, 12:28 PM   #13
Elite Member
Thread Starter

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Looks like perhaps y8s is getting 71 because his giant turbo is operating at crossover (TIP < MAP)
JasonC SBB is offline   Reply With Quote
Old 10-08-2008, 01:23 PM   #14
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
Originally Posted by paul View Post
242 is really impressive for a 2554.
HOLY ****! Only 167kpa??>?!>!!>#[email protected]
This SAE 242 number is at the flywheel right? Not the wheels... otherwise my plot really sucks at 215wheel, 250flywheel (14psi, GT2560R).
Laur3ns is offline   Reply With Quote
Old 10-08-2008, 01:37 PM   #15
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by JasonC SBB View Post
Looks like perhaps y8s is getting 71 because his giant turbo is operating at crossover (TIP < MAP)
someone should tell the guy with the dyno dynamics setup. i made 226 ft-lbs there--at the same boost.

tell me more about this "crossover" region and how I can use it to make my car more awesome.
y8s is offline   Reply With Quote
Old 10-08-2008, 04:08 PM   #16
Elite Member
Thread Starter

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

In a street car being in crossover sacrifices spoolup.

Spookyfish those are dynojet numbers ergo whp.
JasonC SBB is offline   Reply With Quote
