Old 08-13-2012, 03:23 PM   #81
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by y8s View Post
1. I bet Phil Tobin would be amenable to creating a histogram function for MLV or TS. Data is all there, it's just a different way to display it.
The MLV Beta version displays histograms. It's pretty awesome.

MegaLogViewer Download
Ben is offline   Reply With Quote
Old 08-13-2012, 03:25 PM   #82
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

Quote:
Originally Posted by Techsalvager View Post
Just learned the word wrong?

There are features of MS that are poorly implemented, implemented wrong or touted as a feature when they shouldn't be.

AEM ems 4 with small harness
AEM SERIES 2 EMS-4 UNIVERSAL PROGRAMMABLE ENGINE MANAGEMENT SYSTEM 30-6905 | eBay

759$ total for AEM EMS4 with small harness

MS3x
MegaSquirt-III EMS System with MS3X Expansion V3.57 - Assembled, Brushed Case DIYAutoTune.com
640$
required harnesses

8' MegaSquirt Electronic Fuel Injection Wiring Harness (MS1 / MS2 / MS3 Ready DIYAutoTune.com
8' MegaSquirt Wiring Harness for MS3X DIYAutoTune.com

779$ total for ms3x assembled with both required harnesses
*noted I used both the small 8" harnessed for the ms3/x

I guess the price difference between the two has shrunk now.

The EMS4 can HARDLY be considered to be on the same level as MS3X. Get real. The EMS4 is an entry level bare bones standalone.

The MS3X is entry level in cost ONLY.

Put it this way, i was actually looking into the EMS4 because i was impressed with the price, and AEM generally has a good reputation/lots of tuners around here.

My tuner specifically steered me AWAY from it because it wasn't going to deal with my motor as well as he liked. (Lack of full sequential injection is just one of the many things he had to say)
concealer404 is offline   Reply With Quote
Old 08-13-2012, 03:29 PM   #83
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Well the EMS4 has 4 injector drivers so it had better be able to do full sequential on a 4 cylinder or someone needs to get smacked at AEM.
Leafy is offline   Reply With Quote
Old 08-16-2012, 12:42 PM   #84
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

EMS4 does full sequential. concealer's tuner is a liar.
JasonC SBB is offline   Reply With Quote
Old 08-16-2012, 12:53 PM   #85
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

I said "my motor."


I can't think of many standalones period that CAN'T handle full sequential on a 4 cylinder, entry level or not.
concealer404 is offline   Reply With Quote
Old 08-16-2012, 01:00 PM   #86
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

What is your motor?
JasonC SBB is offline   Reply With Quote
Old 08-16-2012, 01:07 PM   #87
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

Quote:
Originally Posted by JasonC SBB View Post
What is your motor?
Well in the example given, it's a KLZE. Kindof. Sortof.

My MSM has a Hydra.

I thought i outlined why i was going Haltech earlier in this thread, might have been another thread though.
concealer404 is offline   Reply With Quote
Old 08-16-2012, 01:26 PM   #88
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

Quote:
Originally Posted by concealer404 View Post
My MSM has a Hydra.

I thought i outlined why i was going Haltech earlier in this thread, might have been another thread though.
I'm very interested in listening why you are going to switch to a Haltech.
Reverant is offline   Reply With Quote
Old 08-16-2012, 01:43 PM   #89
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,372
Total Cats: 1,332
Default

Quote:
Originally Posted by concealer404 View Post
The EMS4 can HARDLY be considered to be on the same level as MS3X. Get real. The EMS4 is an entry level bare bones standalone.
Care to expound on this? I disagree strongly so I'd like to hear why you think the MS3X is that much better.
Savington is online now   Reply With Quote
Old 08-16-2012, 01:43 PM   #90
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

Quote:
Originally Posted by Reverant View Post
I'm very interested in listening why you are going to switch to a Haltech.
I'm not, yet. Haven't made that decision.

The car that has the "KLZE" is going Haltech. (Not switching from anything besides the BP05 ECU that was originally in it) The MSM remains Hydra for now. Thinking about doing a "test run" of MS3X on the MX6 next summer, and the winner between MS and Haltech goes on the Celica. (Although, there's a PNP Hydra available for engine in Celica, amusingly...)

Confused yet?
concealer404 is offline   Reply With Quote
Old 08-16-2012, 01:46 PM   #91
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

Quote:
Originally Posted by Savington View Post
I'd like to hear you back this up with some actual fact. I've played with both and I vastly prefer the AEM.
You're misunderstanding what i'm saying.

EMS4 is AEM's entry level offering.

MS3X is the top dog MS offering.

They're similar prices, and overall, it's hard to argue that MS3X isn't more powerful.

I didn't say that one was better for a certain situation or easier to use than the other. I can't speak to those things as i haven't had hands on experience with either.

My post was absolutely not mean to bash or put down EMS4. Looking back, i can see how it might have looked that way, and i apologize for the confusion.
concealer404 is offline   Reply With Quote
Old 08-17-2012, 12:27 AM   #92
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,372
Total Cats: 1,332
Default

Quote:
Originally Posted by concealer404 View Post
They're similar prices, and overall, it's hard to argue that MS3X isn't more powerful.
I sincerely doubt I'm misunderstanding, since you just repeated the same thing again.

I'd like you to provide specific examples of why the MS3X is more powerful than the EMS-4 for a 4-cylinder forced induction application (i.e. the relevant application for this thread and this forum in general).

I'm not crass enough to refuse to tune Megasquirts like some idiots across the country, but I do think that it lacks a couple of major features that the AEM supports. I've played with both and I think the EMS-4 is the superior ECU for our application.
Savington is online now   Reply With Quote
Old 08-17-2012, 05:22 AM   #93
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by Savington View Post
I'm not crass enough to refuse to tune Megasquirts like some idiots across the country, but I do think that it lacks a couple of major features that the AEM supports. I've played with both and I think the EMS-4 is the superior ECU for our application.
What does it lack that the EMS-4 does?

It's likely these missing features could be added - the beauty of MegaSquirt!
richyvrlimited is offline   Reply With Quote
Old 08-17-2012, 06:22 AM   #94
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

It's buried in his build thread, but last I heard it was individual cylinder trim, multiple egt inputs (at least four for his application), and something to do with spark. I forget what complaint he had about spark.
curly is offline   Reply With Quote
Old 08-17-2012, 07:11 AM   #95
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by curly View Post
It's buried in his build thread, but last I heard it was individual cylinder trim,
Does it, and has done since MSII sequential

Quote:
multiple egt inputs (at least four for his application),
MS3X has multiple I/O's available which can be used for this if you want.
richyvrlimited is offline   Reply With Quote
Old 08-17-2012, 07:16 AM   #96
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

Well then I could be wrong. I know either the ms3 or ms3x wasn't out/proven when he made the switch.
curly is offline   Reply With Quote
Old 08-17-2012, 11:26 AM   #97
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

providing evidence:






Just to play devil's advocate a bit here, the MS does have fairly random and sporadic feature updates. If you had looked at its specs 18 months ago, you'd have thought it was mediocre and missing a lot of features.

today it's a different beast.

the firmware is always being updated. some future updates will include the use of an angle clock for scheduling engine events. but that might be a year away.

I'm not sure how many features the "other guys" add after the fact for the average released product. Sav, care to address?
Attached Thumbnails

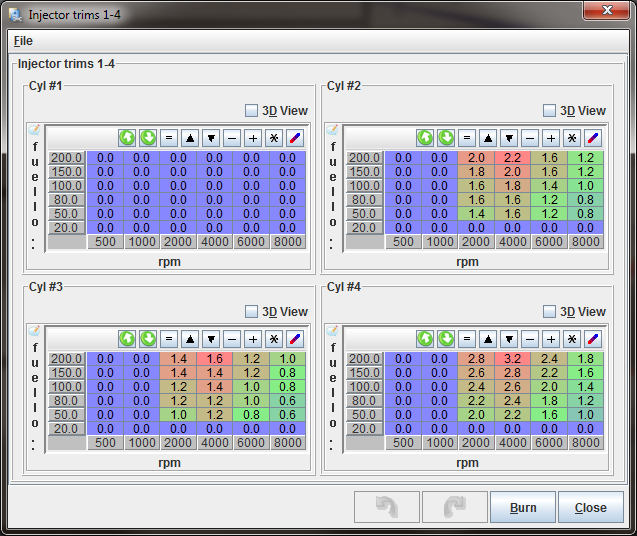

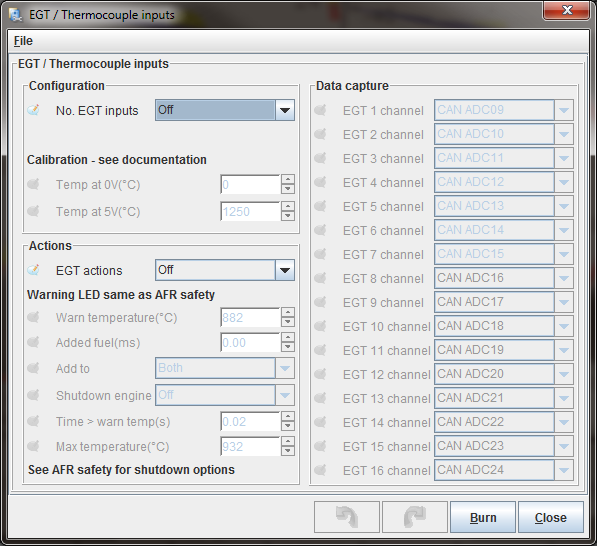

Cost Effectiveness of different ECUs-ms3x_egtinput.png   Cost Effectiveness of different ECUs-ms3x_injtrim.png
y8s is offline   Reply With Quote
Old 08-17-2012, 02:32 PM   #98
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,372
Total Cats: 1,332
Default

Does MS3X have native high-grade knock control yet? That's always been my primary gripe. AEM offers the occasional update, but most of their stuff is done when the ECU is released (case in point - AEMs have had native VVT control since ~2002). The AEM also has one of the most customization-friendly cam/crank setup screens I've ever seen - annoying for the end user but pure power for the guy setting up the basemaps.

I don't want to rag on it too hard because I used to use one (granted it was an archaic MS1) and I liked it just fine, but I do think the AEM is just a little bit better.
Savington is online now   Reply With Quote
Old 08-17-2012, 02:42 PM   #99
Elite Member
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Quote:
Originally Posted by Savington View Post
Does MS3X have native high-grade knock control yet? That's always been my primary gripe.
Yes. Or so the MS3 forums say - it's one of the reasons I've been wanting to upgrade to Ms3 for awhile.
blaen99 is offline   Reply With Quote
Old 08-17-2012, 02:49 PM   #100
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Theres a difference between closed loop knock, and OEM like closed loop knock. Up until the series 2 aem there was nothing affordable that had actual good closed loop knock. I didnt think the MS did, though it was coming out with a daughter board soon.
Leafy is offline   Reply With Quote
