Default Crimp Connectors (ECU wiring)

Hello,

I have a problem installing my new ECU. I need wiring new sensors (tps, ebc, Knock sensor) my car is 1.6 91 and some connector slots are empty my ecu. I need to purchase terminals that fit with the spades and my connector (harness)

I have searched this topic in the forum, but have not found any serial number or link.



My ECU has two measures of spades, wide and narrow. I think you need the Connector that are on this list, but I can not identify.

http://es.rs-online.com/web/c/?searc...tilock&sra=oss

Anyone know the reference or where I can buy the terminals?

Thanks!
Attached Thumbnails

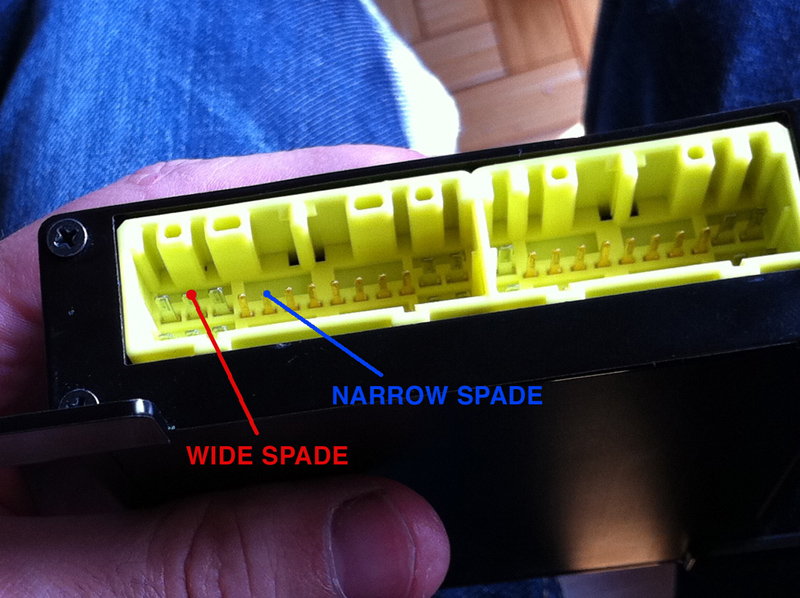

Crimp Connectors (ECU wiring)-ecuterminals.jpg
Abe is offline   Reply With Quote
Old 08-02-2011, 05:15 PM   #2
Junior Member
iTrader: (4)

Join Date: May 2009
Location: Athens GA
Posts: 434
Total Cats: 3
Default

Check out the FAQ wiki at: http://miataturbo.wikidot.com/harness-assembly

First, being a boomslang. This allows you to plug your MS wiring in between the ecu and factory wiring so the installation can be completely reversible without damage to the factory harness. This method should stop being utilized.

to build yours you'll need to follow parts:

(1) 64 Pin Male connector (174518-7)
(1) 26 Pin Female connector (174516-6)
(1) 22 Pin Female connector (174515-6)
(32) .040" Contacts (175061-1)
(16) .070" Contacts (173631-6)
96-97 add:

(16) .040" Contacts (175061-1)
(1) 16 Pin Female connector (174514-6)
all part numbers are tyco / amp, and can be purchased at places like onlinecomponents.com. See tycoelectronics.com for more vendors and availability. this should run you $20-$30.
redrider706 is offline   Reply With Quote
Old 08-02-2011, 05:17 PM   #3
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,158
Total Cats: 131
Default

Quote:
Originally Posted by redrider706 View Post
Check out the FAQ wiki at: http://miataturbo.wikidot.com/harness-assembly

First, being a boomslang. This allows you to plug your MS wiring in between the ecu and factory wiring so the installation can be completely reversible without damage to the factory harness. This method should stop being utilized.
Are you saying we should stop buying the boomslang and just build our own, or we should stop trying to fabricate our own connectors with spade terminals etc?

I am missing you here...

EDIT: I see, you just quoted the wiki. Does anyone have any idea of what part number the ECU connector is for 2001-2005?
Chiburbian is online now   Reply With Quote
Old 08-02-2011, 05:42 PM   #4
Abe
Newb
Thread Starter

Join Date: Jul 2010
Posts: 4
Total Cats: 0
Default

Quote:
Originally Posted by redrider706 View Post
Check out the FAQ wiki at: http://miataturbo.wikidot.com/harness-assembly

First, being a boomslang. This allows you to plug your MS wiring in between the ecu and factory wiring so the installation can be completely reversible without damage to the factory harness. This method should stop being utilized.

to build yours you'll need to follow parts:

(1) 64 Pin Male connector (174518-7)
(1) 26 Pin Female connector (174516-6)
(1) 22 Pin Female connector (174515-6)
(32) .040" Contacts (175061-1)
(16) .070" Contacts (173631-6)
96-97 add:

(16) .040" Contacts (175061-1)
(1) 16 Pin Female connector (174514-6)
all part numbers are tyco / amp, and can be purchased at places like onlinecomponents.com. See tycoelectronics.com for more vendors and availability. this should run you $20-$30.
Thank you!!!!

Sorry, I searched the forum ... but forget to check out the FAQ
Abe is offline   Reply With Quote
