Default Is ms w/wonky wideband dangerous?

The crap wideband lc1 I have keeps loosing its calibration and I am needing to recalibrate it often. I thought maybe I fixed it but still is giving me issues. I read that auto tune requires the wide band. Now I just started wondering, if at some point when i'm driving the car, if the wideband goes wonky, can it hurt my motor because ms tries to compensate?
Hinano is offline   Reply With Quote
Old 03-24-2015, 03:20 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,827
Total Cats: 1,785
Default

How do you know the LC1 is losing its calibration?
Braineack is offline   Reply With Quote
Old 03-24-2015, 03:24 PM   #3
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,790
Total Cats: 128
Default

If you're allowing an inaccurate wideband to autotune your car you could definitely blow it up.

If you've already got a solid tune and you're not actively autotuning the car, then your probably ok. Depending on how severe and frequent the loss of calibration you probably want to decrease the EGO correction limits or turn EGO off completely so it won't throw the tune off when you're in closed loop.
pdexta is offline   Reply With Quote
Old 03-24-2015, 03:48 PM   #4
Junior Member
Thread Starter

Join Date: Dec 2013
Posts: 217
Total Cats: -283
Default

Quote:
Originally Posted by Braineack View Post
How do you know the LC1 is losing its calibration?
I don't know the terminology but all of a sudden the afrs jump around and maxs out at bottom and top and blinks 7.4. Then after I redue the free air calibration it seems to work perfectly. It looses calibration randomly when off and when running. I Guess I can try to run a separate line from the battery with a relay.

Quote:
Originally Posted by pdexta View Post
If you're allowing an inaccurate wideband to autotune your car you could definitely blow it up.

If you've already got a solid tune and you're not actively autotuning the car, then your probably ok. Depending on how severe and frequent the loss of calibration you probably want to decrease the EGO correction limits or turn EGO off completely so it won't throw the tune off when you're in closed loop.
I was planning to install my msp today so I was planning to use autotune. The msp does come with a base tune so I can still hook it up and get the base timing set up. Shouod I hook up the wideband and just disable it like you said? It's a innovate btw
Hinano is offline   Reply With Quote
Old 03-24-2015, 03:52 PM   #5
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

Have you fixed your wideband install or is it still chucked in there with a dozen butt connectors?
concealer404 is offline   Reply With Quote
Old 03-24-2015, 04:05 PM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,827
Total Cats: 1,785
Default

its either a bad install or the sensor is dead.
Braineack is offline   Reply With Quote
Old 03-24-2015, 04:06 PM   #7
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

Could be both, but i'm 99% sure that the install is bad. It looks bad. He should feel bad.
concealer404 is offline   Reply With Quote
Old 03-24-2015, 04:48 PM   #8
Junior Member
Thread Starter

Join Date: Dec 2013
Posts: 217
Total Cats: -283
Default

I cleaned it up a little bit and relocated the unit to under the radio area but yes, I still have the butt lines. But I'm getting good voltage.. My electrician friend who also has a wideband said it should be fine and that the 12v is solid and that adding a line from the battery is a unneeded complexity.
Hinano is offline   Reply With Quote
Old 03-24-2015, 04:56 PM   #9
Elite Member
iTrader: (7)

bahurd's Avatar

Join Date: Apr 2013
Location: Ohio
Posts: 2,123
Total Cats: 144
Default

Quote:
Originally Posted by Hinano View Post
I cleaned it up a little bit and relocated the unit to under the radio area but yes, I still have the butt lines. But I'm getting good voltage.. My electrician friend who also has a wideband said it should be fine and that the 12v is solid and that adding a line from the battery is a unneeded complexity.
I'm guessing your electrician friend wires houses? Your wiring sucks big time... Why not do a proper wiring job then ask.

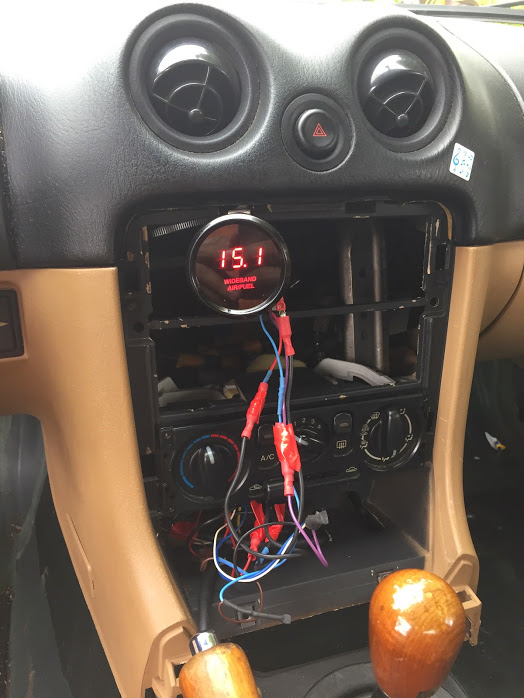

Your's for reference

Attached Thumbnails
Is ms w/wonky wideband dangerous?-135544-help-me-lc1-wideband-install-plzzz-img_0080.jpg
bahurd is online now   Reply With Quote
Old 03-24-2015, 05:03 PM   #10
Junior Member
Thread Starter

Join Date: Dec 2013
Posts: 217
Total Cats: -283
Default

Quote:
Originally Posted by bahurd View Post
I'm guessing your electrician friend wires houses? Your wiring sucks big time... Why not do a proper wiring job then ask.

Your's for reference

It's ugly yes, but is my racer friend wrong when he says the butt connectors are sufficient? Is he also wrong about using the snap in wire taps? I used the snap wire tap things to power from the cigarette lighter.
Hinano is offline   Reply With Quote
Old 03-24-2015, 05:13 PM   #11
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

Just to clarify... you're using "vamp clamps" to power your wideband from the cigarette lighter?
concealer404 is offline   Reply With Quote
Old 03-24-2015, 05:15 PM   #12
Elite Member
iTrader: (7)

bahurd's Avatar

Join Date: Apr 2013
Location: Ohio
Posts: 2,123
Total Cats: 144
Default

Quote:
Originally Posted by Hinano View Post
It's ugly yes, but is my racer friend wrong when he says the butt connectors are sufficient? Is he also wrong about using the snap in wire taps? I used the snap wire tap things to power from the cigarette lighter.
Then get your racer friend to fix it and stop wasting our time. If your going to do things, do them right or expect to get butt hurt here.

And to your question #2 & 3 no they aren't. You seem to want to do things 'temporary' then ask why **** doesn't work after. Then argue with everyone about it after the fact.
bahurd is online now   Reply With Quote
Old 03-24-2015, 07:34 PM   #13
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,924
Total Cats: 526
Default

Quote:
Originally Posted by concealer404 View Post
Just to clarify... you're using "vamp clamps" to power your wideband from the cigarette lighter?
The is strong with this one.
turbofan is offline   Reply With Quote
Old 03-24-2015, 07:38 PM   #14
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,168
Total Cats: 2,573
Default

Attached Thumbnails
Is ms w/wonky wideband dangerous?-complex-wiring.png
18psi is offline   Reply With Quote
Old 03-24-2015, 07:42 PM   #15
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,355
Total Cats: 1,322
Default

Your wideband will never work if you leave it wired like that. The LC-1 is highly sensitive to poor grounding, and you have it teed off the radio or something equally kludged. Did you read the directions that came with it?
Savington is offline   Reply With Quote
Old 03-24-2015, 07:44 PM   #16
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,648
Total Cats: 1,559
Default

A wideband controller is influenced significantly by minor differences in electricity. Butt connectors and vampire connectors can offer a greater resistance than soldering the connection. Choosing a circuit for powering the unit that will not fluctuate by having a load variation is important.
sixshooter is offline   Reply With Quote
Old 03-24-2015, 07:55 PM   #17
Junior Member
Thread Starter

Join Date: Dec 2013
Posts: 217
Total Cats: -283
Default

Quote:
Originally Posted by Savington View Post
Your wideband will never work if you leave it wired like that. The LC-1 is highly sensitive to poor grounding, and you have it teed off the radio or something equally kludged. Did you read the directions that came with it?
It didn't come with directions, I bought it used. And the wires were a mess when I was shipped the part.

Quote:
Originally Posted by sixshooter View Post
A wideband controller is influenced significantly by minor differences in electricity. Butt connectors and vampire connectors can offer a greater resistance than soldering the connection. Choosing a circuit for powering the unit that will not fluctuate by having a load variation is important.
Okay well I'll have to do a thorough rewiring. As of right now, I have the ms all hooked up and in but now the damn junker laptop is not recognizing the connection to the ms I'm setting it for narrow band for now. So now i gotta figure out the syncing problem
Hinano is offline   Reply With Quote
Old 03-24-2015, 07:56 PM   #18
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

You are wrong, as in without a doubt wrong. If you were to complete the simple task of downloading the user manual for your wideband you would see how wrong you are.

And you are dumb as hell for what you are doing to the poor car.
deezums is offline   Reply With Quote
Old 03-24-2015, 07:56 PM   #19
Junior Member
iTrader: (1)

Join Date: Jun 2014
Location: Metro Detroit
Posts: 270
Total Cats: 26
Default

That **** it terrible. Fix the ghetto spaghetti. Put the wideband on the same power supply at the ECU so you have no ground offset.

If it still acts flaky once you've fixed the half-assery then we'll go from there.
Ryephile is offline   Reply With Quote
Old 03-24-2015, 08:06 PM   #20
Junior Member
Thread Starter

Join Date: Dec 2013
Posts: 217
Total Cats: -283
Default

Quote:
Originally Posted by deezums View Post
You are wrong, as in without a doubt wrong. If you were to complete the simple task of downloading the user manual for your wideband you would see how wrong you are.

And you are dumb as hell for what you are doing to the poor car.
I did download various install manuals but they did not match what I had. The colors were different or had other stuff. The thing also was missing two parts. I didn't think it was going to come all fucked up. I actually found the diagram off of here. In terms of what wire is going where, it's going to the right places but yeah, ill clean it up.

Quote:
Originally Posted by Ryephile View Post
That **** it terrible. Fix the ghetto spaghetti. Put the wideband on the same power supply at the ECU so you have no ground offset.

If it still acts flaky once you've fixed the half-assery then we'll go from there.
raja
