Old 03-21-2015, 11:43 AM   #21
Elite Member
iTrader: (8)

bahurd's Avatar

Join Date: Apr 2013
Location: Ohio
Posts: 2,132
Total Cats: 145
Default

^ Nice reading. Props!

I'm looking at my recently made injector harness and feeling like a lackey now....
bahurd is offline   Reply With Quote
Old 03-21-2015, 04:33 PM   #22
Senior Member
iTrader: (8)

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,376
Total Cats: 80
Default

@cardriverx

good info in that post. Thanks for taking the time to share it.
cyotani is offline   Reply With Quote
Old 03-21-2015, 09:39 PM   #23
Junior Member

Join Date: Dec 2014
Location: Boston, MA
Posts: 143
Total Cats: 8
Default

Any recommendations on documentation on wire twisting? I've guessed but doing it right would be nice.
PatCleary is offline   Reply With Quote
Old 03-21-2015, 09:42 PM   #24
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

aidandj is offline   Reply With Quote
Old 03-23-2015, 07:38 PM   #25
Elite Member
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

Quote:
Originally Posted by bahurd View Post
^ Nice reading. Props!

I'm looking at my recently made injector harness and feeling like a lackey now....
Thanks! Looking back on pictures of the wiring I did on my miata in High School gives me anxiety haha. It's just that most people don't know how to properly wire.
cardriverx is offline   Reply With Quote
Old 03-23-2015, 07:40 PM   #26
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by cardriverx View Post
Thanks! Looking back on pictures of the wiring I did on my miata in High School gives me anxiety haha. It's just that most people don't know how to properly wire.
You should have seen one of our old fsae cars that was wired by an EE. Lamp cord is good for wideband wiring right?
Leafy is offline   Reply With Quote
Old 03-24-2015, 04:04 AM   #27
Elite Member
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

Quote:
Originally Posted by Leafy View Post
You should have seen one of our old fsae cars that was wired by an EE. Lamp cord is good for wideband wiring right?

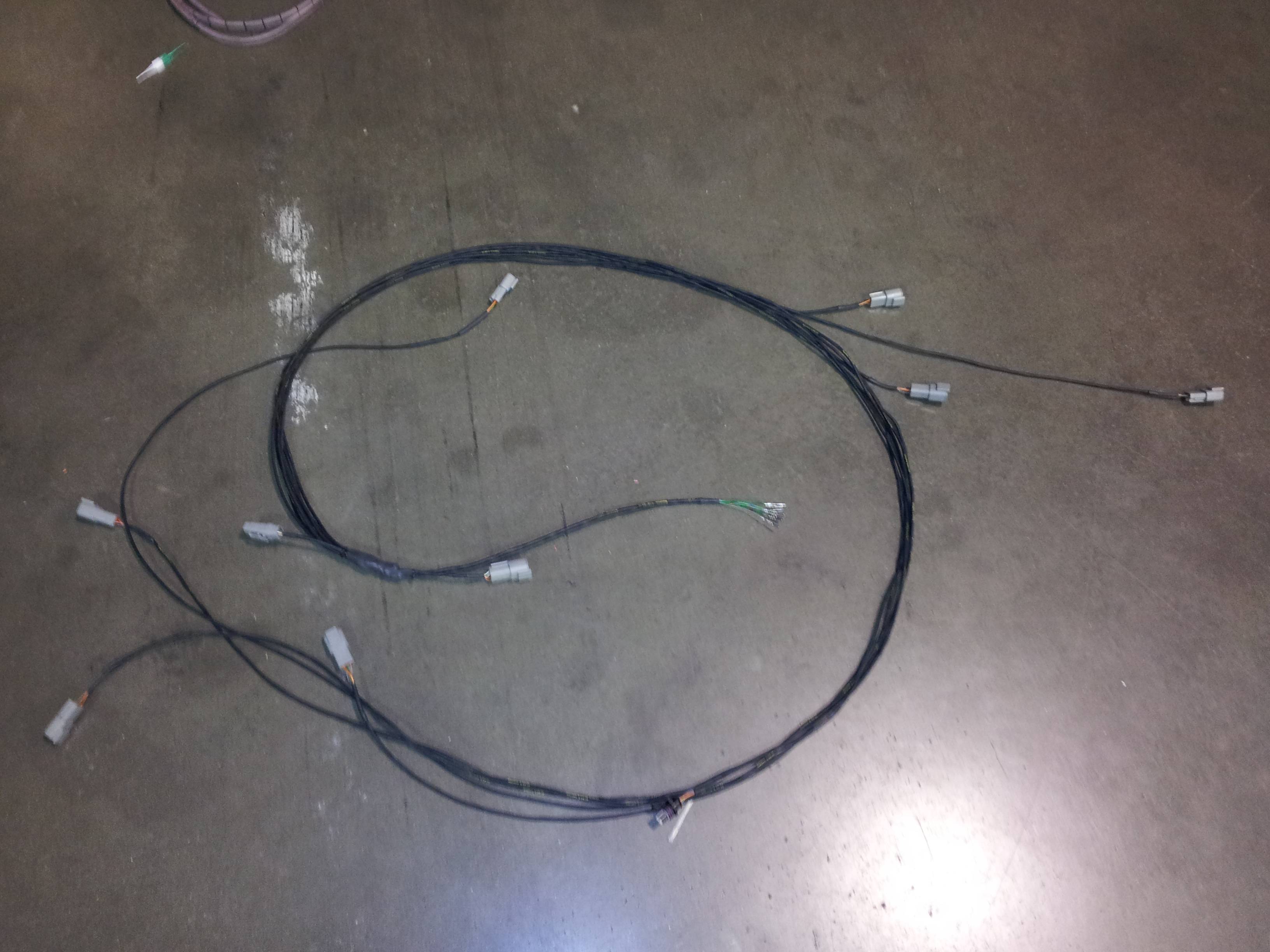

Heh, in my old miata I used speaker cable :O. The first FSAE car I wired was a rats nest, then got better and better as I did 4 cars and worked at MoTeC. Then I was making stuff like this (it was for a micro sprint car):

cardriverx is offline   Reply With Quote
Old 03-30-2015, 07:53 PM   #28
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Quote:
Originally Posted by aidandj View Post
Nice. I've been doing it this way for years, good to see some independent confirmation.

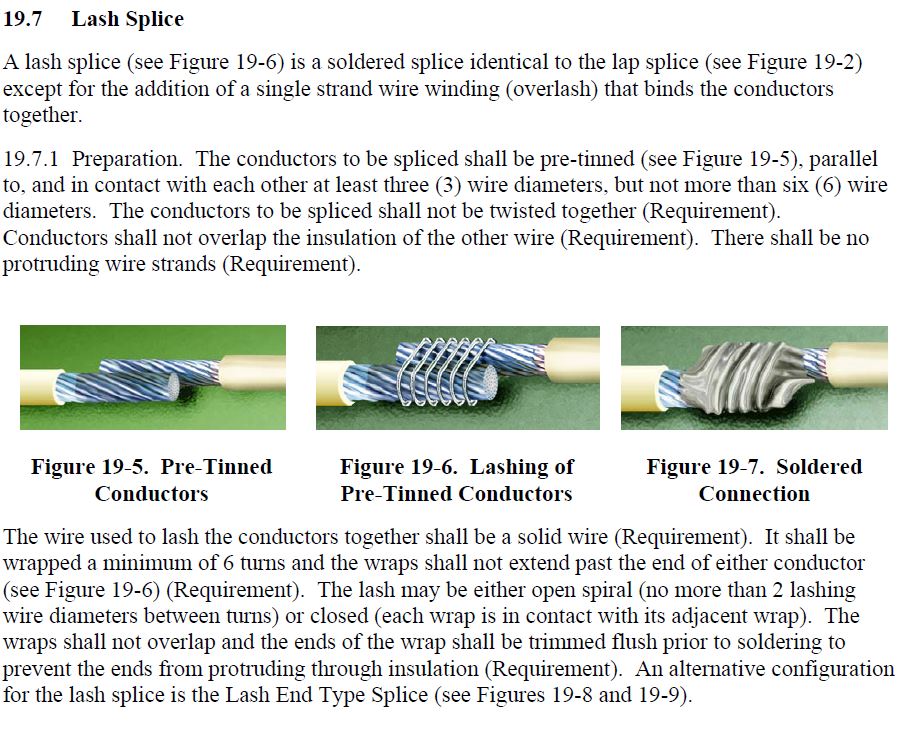

I also enjoy the lash



This whole document is aweseome, I'd not seen it before: http://www.hq.nasa.gov/office/codeq/doctree/87394.pdf
Attached Thumbnails
Recommend me some electrical connectors-lash.jpg
EO2K is offline   Reply With Quote
