I have a 92 with manual windows, and am looking for the power steering harness so that I can wire my LC-1 to it's switched +12v. I pulled the carpet out, expecting it to be near the rear console... but nothing. I understand that the +12v is black/white, but I don't see it anywhere.

Any idea where it is?

Justin
JustinHoMi is offline   Reply With Quote
Old 05-26-2010, 03:33 PM   #2
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

Wiring only goes to the door jam on a manual window model, not the console.
olderguy is offline   Reply With Quote
Old 05-26-2010, 03:34 PM   #3
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,240
Total Cats: 290
Default

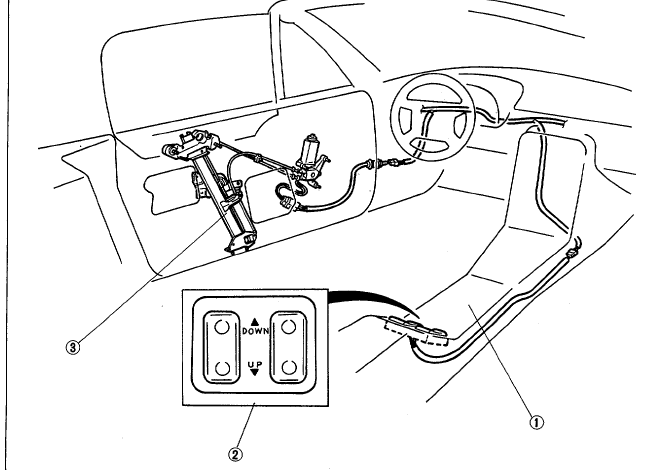

Fsm:
Attached Thumbnails
where is the power window wiring?-screen-shot-2010-05-26-2.32.42-pm.png
m2cupcar is offline   Reply With Quote
Old 05-26-2010, 03:46 PM   #4
Junior Member
Thread Starter

Join Date: Jul 2005
Location: Hillsborough, NC
Posts: 273
Total Cats: 0
Default

Ah I need an FSM! Looks like the harness ends behind the center console. I'll take another look there.
JustinHoMi is offline   Reply With Quote
Old 05-26-2010, 04:01 PM   #5
Junior Member
Thread Starter

Join Date: Jul 2005
Location: Hillsborough, NC
Posts: 273
Total Cats: 0
Default

Still not seeing it. I would have expected it to be wound up in the same bundle that carries the wiring for the radio, heater, emergency brake, etc. But I don't see any extra connectors there that have a black/white wire.
JustinHoMi is offline   Reply With Quote
Old 05-26-2010, 04:10 PM   #6
Senior Member
iTrader: (4)

Join Date: Jan 2008
Location: Falls Church, VA
Posts: 1,367
Total Cats: 16
Default

My 94 has manual windows but has the power window harness plug under the center console right next to the shifter. It's not behind the stereo/dash if that's where you've been looking. I'm using its +12V and GND to power a dual oil & water temp gauge.

I power the LC-1 from the same wire that powers MS, and they are grounded at the same point (by the TB). It's a good idea to minimize any differences in voltage between your ECU and WBO2.
