Old 07-23-2014, 11:13 PM   #121
Senior Member
iTrader: (3)

Join Date: Dec 2011
Location: Tucson, Az
Posts: 514
Total Cats: 33
Default

If anyone wants to sink their own teeth into this, I have a set of the coils Fab9 uses, as well as a hitachi variant of the module, also harness connectors, etc. I also have a second set of the Denso coils from a different application. Other than overall length, I don't know what the difference is. As Fab9 has been saying, Denso is extremely tight lipped about these.

If you'd promise to send them back when you were done, I'd send them out to an interested party for science.
TheScaryOne is offline   Reply With Quote
Old 07-24-2014, 10:09 AM   #122
Junior Member

Join Date: Sep 2011
Location: finger lakes NY
Posts: 444
Total Cats: 17
Default

I'll take 'em Tyler, and return them in a reasonable amount of time.

I just want to figure out what it takes to make these coils and modules work. I don't claim to be an expert on ignitions, but I understand the physics and can make precise and reliable measurements of all kinds. The results of the measurements will be for all.

It's too bad this thread turned sour. I don't blame anyone (maybe Impuls, jk!) It can be difficult when people's livelihoods are involved; it's almost impossible for it not to seem personal. I've seen it many times in many forums and many contexts. To the people that feel involved: maybe chill for a day or two before posting again?
DaveC is offline   Reply With Quote
Old 07-24-2014, 10:25 AM   #123
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,206
Total Cats: 2,587
Default

Quote:
Originally Posted by DaveC View Post
It's too bad this thread turned sour. I don't blame anyone (maybe Impuls, jk!) It can be difficult when people's livelihoods are involved; it's almost impossible for it not to seem personal. I've seen it many times in many forums and many contexts. To the people that feel involved: maybe chill for a day or two before posting again?
I just wanted to say - though you're just joking there really is a bit of truth in there. This car has had weird electrical gremlins since as long as I can remember. Jumpy tach, radio not turning off, etc etc etc. Its all in his biuld thread I think, and in the videos he took of this car way back when.

So I think there's a good chance that other issues may be the root cause of this, and its not as specific to these cops and this megasquirt.

But who knows, I'm just watching this from the sidelines.
18psi is offline   Reply With Quote
Old 07-24-2014, 12:27 PM   #124
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,695
Total Cats: 1,562
Default

I have seen the Impuls car in person and there has been an engine swap to an MSM motor and there are unused wires dangling all over the place underhood from the two harnesses being mated together. It is less than ideal for troubleshooting.
sixshooter is online now   Reply With Quote
Old 07-24-2014, 01:21 PM   #125
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Quote:
Originally Posted by sixshooter View Post
I have seen the Impuls car in person and there has been an engine swap to an MSM motor and there are unused wires dangling all over the place underhood from the two harnesses being mated together. It is less than ideal for troubleshooting.
Hey hey now :P the only harness being used from the MSM is for its COP everything else is 99. Writing isn't THAT bad. I do hate worrying though, so when it works it stays. Unless I pull the engine and have the time to work and make a nice wiring harness, I don't have time for dat.

I only have 10afr @ WOT because the crazy MAT correction I have to run makes it hard to tune sometimes and I haven't been able to tune 5th gear because of blowout.
I lowered dwell to 1.5ms and seems to be running very well. I only got blowout from the module getting hot. So lower the dwell seemed wise.

I have a replacement Bosch 211(from O'reilly auto parts) I might give a shot.

I looked at the logic driver mod for microsquirt linked from the bosch 211 microsquirt website. I dunno if ms2pnp already has it done or not.
Impuls is offline   Reply With Quote
Old 07-24-2014, 01:34 PM   #126
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Quote:
Originally Posted by 18psi View Post
I just wanted to say - though you're just joking there really is a bit of truth in there. This car has had weird electrical gremlins since as long as I can remember. Jumpy tach, radio not turning off, etc etc etc. Its all in his biuld thread I think, and in the videos he took of this car way back when.

So I think there's a good chance that other issues may be the root cause of this, and its not as specific to these cops and this megasquirt.

But who knows, I'm just watching this from the sidelines.
Jumping gauges - water/humidity damage from the common problem of leaking window seals

Radio staying on - Power loop because my 12v ignition on signal comes from radio to turn fans on (being powered from battery)

I agree though my car seems to be an electrical nightmare or just tends to have gremlins.
Impuls is offline   Reply With Quote
Old 07-24-2014, 01:37 PM   #127
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 943
Total Cats: 394
Default

Also in full disclosure - that module is not mounted in Impuls car, it's just hanging out. Even the Bosch 211 data sheet states that it must be mounted to a metal surface to properly dissipate the heat it produces. The 211 modules are usually attached using thermal paste too.

If I had to guess it's related to the thermal properties of that module. The car fires strong until that module starts to cook. Florida weather and a boosted Miata engine bay doesn't provide the most ideal environment, especially when it's not mounted.
FAB is offline   Reply With Quote
Old 07-24-2014, 01:43 PM   #128
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,904
Total Cats: 1,793
Default

so impuls is pretty much a horrible person
Braineack is online now   Reply With Quote
Old 07-24-2014, 01:54 PM   #129
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Come to think of it, this is starting to sound exactly like the same exact problem you get when using a GM HEI module as a ignition driver and not using the proper heatsink/grounding.

Bolt that thing to a sizeable block of aluminum and then bolt that block to the firewall or something. I bet your **** stops freaking out.
EO2K is offline   Reply With Quote
Old 07-24-2014, 01:59 PM   #130
Senior Member
iTrader: (3)

Join Date: Dec 2011
Location: Tucson, Az
Posts: 514
Total Cats: 33
Default

I have a GM vehicle that uses said GM HEI module. It can cook itself while mounted on the dizzy on a nice hot day here in AZ on a bone stock 350.
TheScaryOne is offline   Reply With Quote
Old 07-24-2014, 02:03 PM   #131
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 943
Total Cats: 394
Default

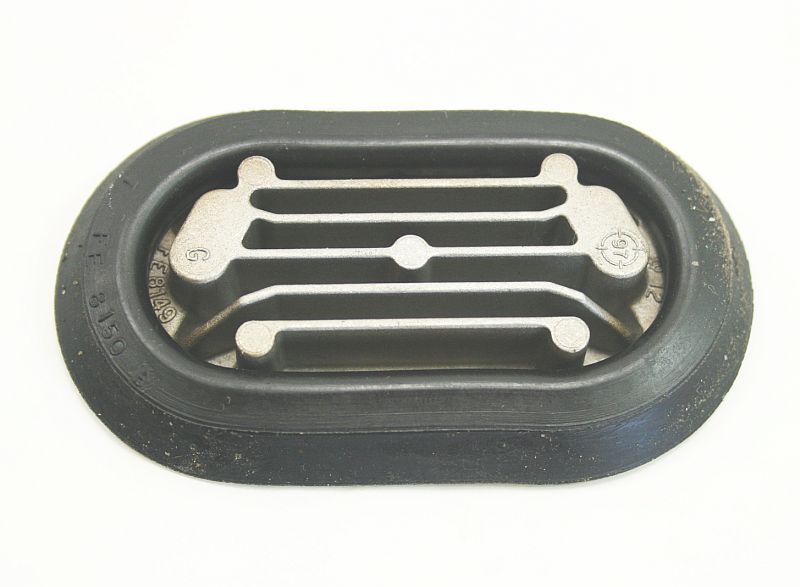

Some vehicles that use the Bosch modules actually use a dedicated heat sink.

This is mounted to a punched out piece of metal in the engine bay. The 211 module mounts to the other side.

Attached Thumbnails
[Solved] FAB9 CoP spark blowout-cp008743-ignition-module-heat-sink-grommet-audi-a4-vw-passat.jpg
FAB is offline   Reply With Quote
Old 07-24-2014, 02:10 PM   #132
Senior Member
iTrader: (3)

Join Date: Dec 2011
Location: Tucson, Az
Posts: 514
Total Cats: 33
Default

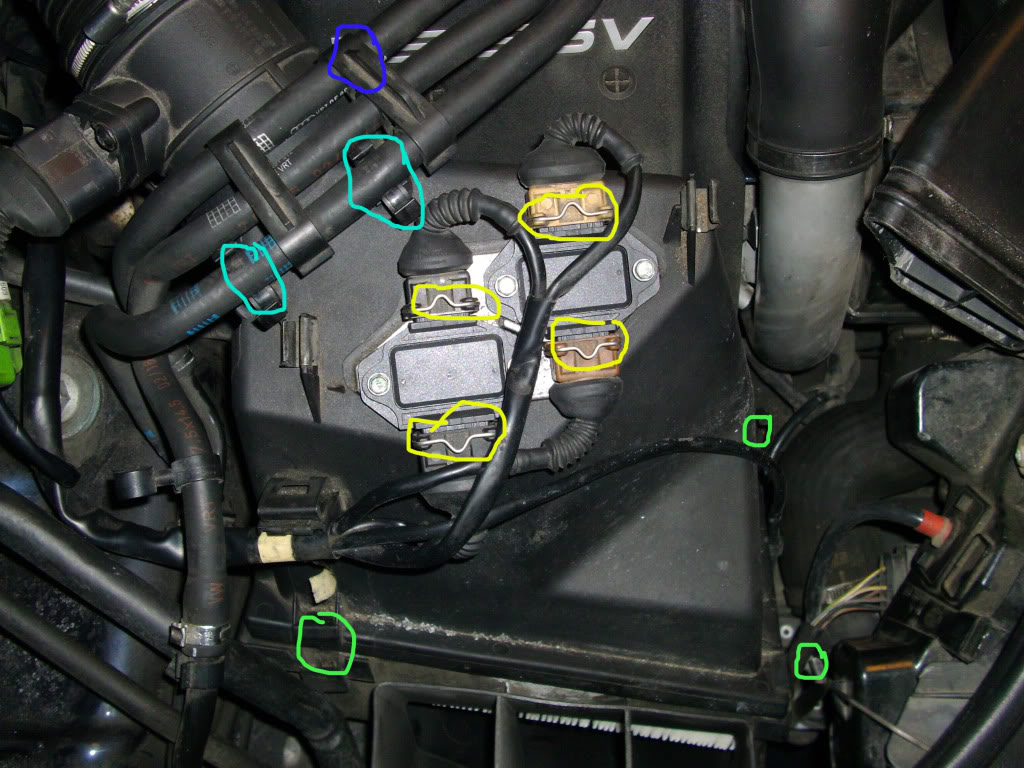

Not just mounted in the engine bay. The heatsink is mounted in the airbox, to constantly have air moving over it. I was going to screw it to the firewall, and then use some heatsink glue to glue a heatsink in the cowl behind it.
Attached Thumbnails
[Solved] FAB9 CoP spark blowout-5-airbox.jpg
TheScaryOne is offline   Reply With Quote
Old 07-24-2014, 04:08 PM   #133
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Yeah I've been waiting to settle the initial problem before permanently mounting it.
Gotta find a heatsink.

Quote:
Originally Posted by Braineack View Post
so impuls is pretty much a horrible person
BUT NOW WITH MORE ALLOFIT
Impuls is offline   Reply With Quote
Old 07-24-2014, 04:44 PM   #134
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

This thread just went full Florida
EO2K is offline   Reply With Quote
Old 07-24-2014, 04:50 PM   #135
Senior Member
iTrader: (3)

Join Date: Dec 2011
Location: Tucson, Az
Posts: 514
Total Cats: 33
Default

Quote:
Originally Posted by Impuls View Post
Yeah I've been waiting to settle the initial problem before permanently mounting it.


Step 1: Go to local computer store
Step 2: Ask to browse through their old garbage
Step 3: Find flat copper heatsink
Step 4: ???
Step 5: Profit
TheScaryOne is offline   Reply With Quote
Old 07-24-2014, 10:24 PM   #136
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,695
Total Cats: 1,562
Default

Quote:
Originally Posted by TheScaryOne View Post


Step 1: Go to local computer store old computer
Step 2: Ask to browse through their old garbage bring a screwdriver
Step 3: Find flat copper CPU heatsink
Step 4: ??? install it
Step 5: Profit drive it
FTFY
sixshooter is online now   Reply With Quote
Old 07-24-2014, 10:33 PM   #137
Senior Member
iTrader: (3)

Join Date: Dec 2011
Location: Tucson, Az
Posts: 514
Total Cats: 33
Default

Instructions unclear. Dick stuck in CPU fan.

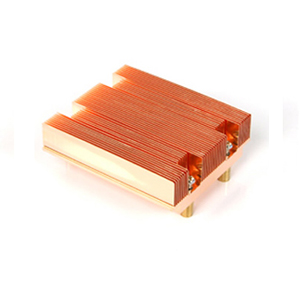

Edit: And I specified flat, because something like this

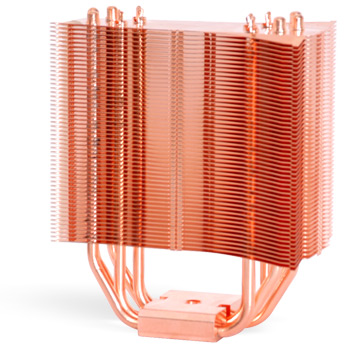

would work well, whereas something like this

would probably not.
Attached Thumbnails
[Solved] FAB9 CoP spark blowout-892512-.jpg   [Solved] FAB9 CoP spark blowout-cck-ip25-05.jpg
TheScaryOne is offline   Reply With Quote
Old 07-26-2014, 01:35 PM   #138
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Quote:
Originally Posted by TheScaryOne View Post
Instructions unclear. Dick stuck in CPU fan.

Edit: And I specified flat, because something like this


would work well, whereas something like this

would probably not.
I was notified from my buddy that builds primarily Euros, that with that module I NEED heatsink. I can just go to the junkyard and find it on 80's era VWs it's very specific year ranges though.
According to http://www.microsquirt.info/Bosch_211.htm
It says use:
Ignition Input Capture - Falling Edge
But my car did NOT like that.

Also is this need the mod needed http://www.microsquirt.info/us_logic_level_spark.htm
Or MS2PnP already have that?
Impuls is offline   Reply With Quote
Old 07-27-2014, 04:40 PM   #139
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

For those that question FAB9's module
I tried a a replacement(from o'reilly) bosch 211 unit, just to clarify accusations, it worked great until I drove for almost an hour yesterday. Started breaking up at 10psi last night.
Need heatsink so bad. But now I can't go to the junkyard tomorrow. Since I got a ticket for not having a Florida license, gotta go take care of that.
Impuls is offline   Reply With Quote
