Old 07-01-2014, 06:47 PM   #41
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

It is hard to believe that the driver inputs are designed such that there is a significant difference between 4.2V and 5V. 3V and 5V, sure, but not 4.2 to 5V.

Was that guy with the 4.2V signal having trouble?
JasonC SBB is offline   Reply With Quote
Old 07-01-2014, 08:19 PM   #42
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 943
Total Cats: 394
Default

Quote:
Originally Posted by JasonC SBB View Post
It is hard to believe that the driver inputs are designed such that there is a significant difference between 4.2V and 5V. 3V and 5V, sure, but not 4.2 to 5V.

Was that guy with the 4.2V signal having trouble?
I thought the same thing but it seems to be true. He has exactly the same symptoms as Impuls.

I have a harness that I've been working on that should solve this problem if I can reliably regulate a 5V+ supply (a 5v regulator isn't quick enough to keep up). I can't exactly do the testing on a breadboard because of the amperage fluctuations of an alternator but I might find a combo of resistors that give me around 7v on a running Miata and then use a solid state relay to forward it. Maybe you have some insight?
FAB is offline   Reply With Quote
Old 07-01-2014, 08:28 PM   #43
Junior Member
iTrader: (1)

Join Date: May 2013
Location: Sandia Park, NM
Posts: 388
Total Cats: 41
Default

Why a regulator on a signal in a digital system?

An option would be a simple 5v digital buffer if the single driver in the MS doesn't have the juice to run wasted spark.
If you plan on making it standalone in the engine bay then a 5v regulator (off the 12v system) is the ticket to power your buffer solution.
leboeuf is offline   Reply With Quote
Old 07-01-2014, 10:08 PM   #44
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

The input to the CDI system is a digital signal. It does not affect the quality nor strength of the spark. It's either spark or no spark.

That 4.2 V thing is not the cause of weak spark issues.

I do analog electronics design for a living.
JasonC SBB is offline   Reply With Quote
Old 07-01-2014, 10:33 PM   #45
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 943
Total Cats: 394
Default

Quote:
Originally Posted by JasonC SBB View Post
The input to the CDI system is a digital signal. It does not affect the quality o rstrength of the spark. It's either spark or no spark.

That 4.2 V thing is not the cause of weak spark issues.

I do analog electronics design for a living.

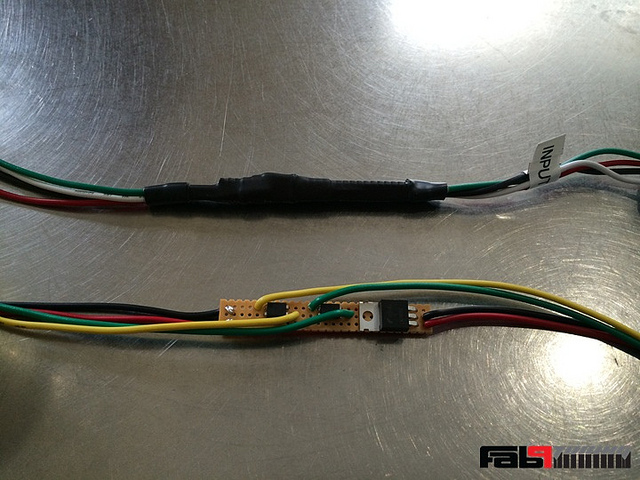

Hmmmm.... I'm fairly certain it's the quality of the signal being delivered to the ignition module. I've tested these two harnesses with mixed results. The lower one was using a 5v regulator and failed to regulate quickly enough so the car didn't run properly. The upper harness forwarded a full 12v signal and solved the blowout problem until it eventually caused the ignition module to fail 10-15 minutes into driving .

If not the signal voltage, can you explain what else might be causing the problem with Megasquirt systems running wasted spark? Why are some customers and myself able to run much higher boost (27-28 before break up) on exactly the same systems.

Attached Thumbnails
[Solved] FAB9 CoP spark blowout-14007447680_f772e162a1_z.jpg
FAB is offline   Reply With Quote
Old 07-02-2014, 03:17 AM   #46
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

I don't see any capacitors for the 5V regulator. It won't work properly without them.
Reverant is online now   Reply With Quote
Old 07-02-2014, 11:08 AM   #47
Junior Member

Join Date: Sep 2011
Location: finger lakes NY
Posts: 444
Total Cats: 17
Default

Mr (Ms?) FAB9, I appreciate your efforts to find a solution, but I'm with Jason in that I don't think you're going down the right road.

What information can you provide on the COPS's? If I understand what they really require then I can help find a good robust solution.
DaveC is offline   Reply With Quote
Old 07-02-2014, 11:37 AM   #48
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 943
Total Cats: 394
Default

Quote:
Originally Posted by DaveC View Post
Mr (Ms?) FAB9, I appreciate your efforts to find a solution, but I'm with Jason in that I don't think you're going down the right road.

What information can you provide on the COPS's? If I understand what they really require then I can help find a good robust solution.
Thank you -

Information I do have:
  1. 3-4 guys running MS have had trouble running them on wasted spark.
  2. One of them happened to scope the signal while the car was running and saw a max of 4.2v and the components used in the ignition module state a minimal of 5v is required.
  3. Some MS customers don't have the issue at all. (maybe they are running sequential) Some customers with piggy back systems or timing cards have the identical issue.
  4. I've also discovered that increasing the signal voltage solved the problem and that if increased too much it will destroy the ignition module in a short period of time.
  5. It's not a matter of the components ability to produce a strong spark. My personal car ran the exact same kit I ship to customers at very high boost levels for the past 4-5 months. I'm using an AEM EMS4, sequential.

I've been busy catching up with back-ordered kits (over 300 kits have shipped this year) so unfortunately I don't have time to look deeper into this, I'm also not an electrical engineer. I have a local GM electrical engineer that was giving me advice but I have the feeling this isn't his area of expertise.

Cheers,
Bryan
FAB is offline   Reply With Quote
Old 07-02-2014, 12:10 PM   #49
Junior Member

Join Date: Sep 2011
Location: finger lakes NY
Posts: 444
Total Cats: 17
Default

Can I get an example of the COP to measure on the bench? It can be cosmetically flawed, but it should be a normally working unit.
DaveC is offline   Reply With Quote
Old 07-02-2014, 12:52 PM   #50
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 943
Total Cats: 394
Default

Absolutely - I'll PM you.

Rev - thank you for the answer as to why that regulator solution didn't function.
FAB is offline   Reply With Quote
Old 07-02-2014, 01:39 PM   #51
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Trying to give him the general jist of what's going on.

I know Matt has an account here, it'd be more efficient if you guys could talk.

Quote:
FAB9: "5v and our module want's allofit. However when running wasted spark you're splitting that current between 2 channels and that's where the problem comes in. "
Abd that's where the pull up resistor comes in, they are saying that swapping the 1kohm for a 100ohm would help.
This is the video of what happens with the COPs:
Turbo Miata CoP problem - YouTube
Sent from Yahoo Mail on Android
Reply
Quote:
Except the MSPNP doesn't use a 1K resistor; the inline resistance is 100 ohms. Do they have a current spec for what their module needs?
Thanks,

Matt Cramer
DIYAutoTune.com
Impuls is offline   Reply With Quote
Old 07-02-2014, 01:43 PM   #52
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

I already posted about the MSPNP outputs.
Braineack is offline   Reply With Quote
Old 07-02-2014, 06:42 PM   #53
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Quote:
Originally Posted by Braineack View Post
I already posted about the MSPNP outputs.
You posted what you think the output is. Which turns out is wrong. It's inline 100 ohms.-

So, what's your point again?
Quote:
Originally Posted by Braineack View Post
the MSPNP2 uses the microsquirt module. I *think* the output is 5v normally and it pulls-down to ground with a 100K.
_________

Now watch what happens.
Attached Thumbnails
[Solved] FAB9 CoP spark blowout-trolling.png

Last edited by Impuls; 07-03-2014 at 12:51 PM. Reason: Added hidden gem.
Impuls is offline   Reply With Quote
Old 07-03-2014, 07:12 AM   #54
Junior Member

Join Date: Nov 2012
Location: Netherlands, Europe
Posts: 79
Total Cats: 7
Default

Quote:
Originally Posted by JasonC SBB View Post
The input to the CDI system is a digital signal. It does not affect the quality nor strength of the spark. It's either spark or no spark.

That 4.2 V thing is not the cause of weak spark issues.

I do analog electronics design for a living.
Do you have any information about the CDI module to make you believe the input is actually digital?

To FAB9: I am also an electrical engineer and I am also interested in this problem. Do you have any datasheets or other information/data from the manufacturer of the CDI module ? You can PM if you do not want to get this into the public.
Best way to determine how to control the CDI would be to tear one down and fully understand its workings. CDI is not some very complicated technology so I would quickly understand its workings and I would be able to do some measurements when I have a module on my desk.

I was thinking of buying one of these COP kits, but I am a bit reluctant to buy when I do not know how to control it in the most appropriate way.
DaWaN is offline   Reply With Quote
Old 07-03-2014, 08:26 AM   #55
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Quote:
Originally Posted by Impuls View Post
You posted what you think the output is. Which turns out is wrong. It's inline 100 ohms.-

So, what's your point again?
It's not wrong--add in a 100ohm resistor inline and it's how it works. The 5v output comes directly from the CPU and it just happens to have an inline resistor on the output. It does pull-down to ground with a 100K resistor and also happens to have a flyback circuit built in back to 5v.

The inline resistor is just current limiting. A 100ohm resistor on a 5V output is limiting the current to .05A (5v/.05A = 100r). The output will still be 5v.

I was pointing out the difference between the DIYPNP, MSPNP2 & MS3x vs. the most MS1 and MSPNP1 units is that former is normally low and the latter is normally high, but both ultimately output a digital 5v signal.

When I suggested the MS in question had a 1K resistor, I was referring to a MSPNP1 built on the v3.57 board that has a built-in 1K resistor pull-up. If you look here on page 7, you can clearly see R58 and R60 for yourself.

One needs to be very specific when asking questions because there are many varieties of MS out there.

I posted the schematic of the 1K pull-up on the v3.57 board. That was the resistor I was talking about. The MSPNP1 was built using the v3.57 mainboard, the MSPNP2 uses the micosquirt module. There is a big difference between the two, especially in regards to the spark output.

The MS, in all its varieties, has no issues firing the stock coils, or toyota coils, or almost any other ignition setup people have used (like GM coils). The only ignition setup that people seem to be having issue with is this FAB setup. Please note: I'm not saying anything bad about the product; just saying.

I suggested changing the 1K resistor because back in 06 or so, when we were building MS1 units, we started switch from a 1K pull-up to a 100-300ohm pull-up to 5v because it was suggested it would help provide a cleaner spark signal. It's been so long I don't quite remember the reasoning, but it could be part of the problem here. Here's a thread that I talked about it back in 2009.

I also remember someone having issues with the ms expander board and trying to run wasted spark off it or something. I'd have to go back and find it. Could be somewhat related; like it couldn't fire two coils from one output. I just can't quite remember and I'd have to go back and find it. I think they changed the firmware after that to give the option for wasted COP so each coil fired from its own circuit but in a wasted firing order.

But like others have suggested, the "power" of the signal from the ECU shouldn't matter. It's not directly responsible for providing power to the coils. All it's doing is toggling from 0v to 5v and when it does, the coil knows when it should release its own charge to the coil. It just needs to see that switch from low to high, it doesn't matter how many amps is passing through, because it's not using it. That's why it's called a trigger. Like when firing a gun, it doesn't matter how hard, or lightly, you pull the trigger, all that matters is that you pull it.

Keep in mind: I am not an electrical engineer, engineer, or electrical. some might describe me as magical, but I also describe electricity as black magic.

Now don't ever question me again.


Edit: here's a thread where it was discussed how to convert the MS output to trigger 12v safely, and more about current limiting resistors. I think it also speaks to as why people should listen to Joe P on this subject. And post #17 talks about the 1K to 100ohm pull-up switcheroo. I'm still leaning in this direction.

Last edited by Braineack; 07-03-2014 at 09:42 AM.
Braineack is offline   Reply With Quote
Old 07-03-2014, 10:05 AM   #56
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

Take that!

Attached Thumbnails
[Solved] FAB9 CoP spark blowout-smack.gif
Splitime is offline   Reply With Quote
Old 07-03-2014, 10:37 AM   #57
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 943
Total Cats: 394
Default

Haha. I knew that response was coming. I appreciate the input, Scott.

I still believe it's absolutely related to the signal quality. Even though this is a "trigger" signal these components still produce some form of resistance. Apparently enough resistance to make a difference to the signal when driving two channels at once.

There IS a reason this is a powerhouse setup on an AEM and not a functioning properly on some of these MS systems and I can't imagine there are any other factors involved than the trigger signal, or is this bad logic? It must be very close to the threshold because it's not all MS guys that have this problem.

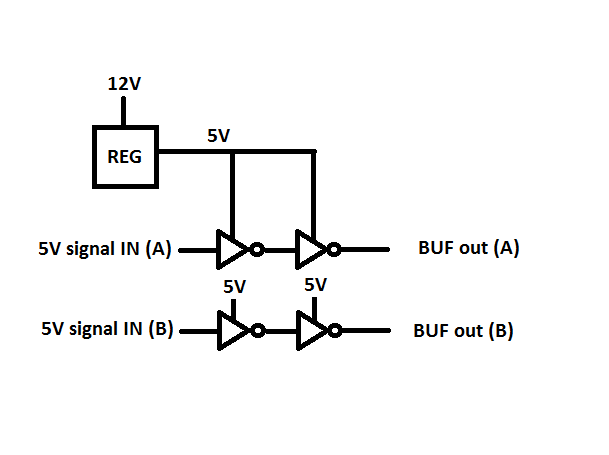

Based on a previous suggestion, I'm going to attempt to build a signal buffer - any thoughts on this?


With suggestions on which components to use, I should be able to build this into the harness. I'm also going to attempt to revamp the harness with the solid state relays.
Attached Thumbnails
[Solved] FAB9 CoP spark blowout-simple_buffer.png
FAB is offline   Reply With Quote
Old 07-03-2014, 10:41 AM   #58
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Quote:
Originally Posted by FAB View Post
Haha. I knew that response was coming. I appreciate the input, Scott.

I still believe it's absolutely related to the signal quality. Even though this is a "trigger" signal these components still produce some form of resistance.
yeah, read through this link I added: https://www.miataturbo.net/megasquir...ed-cops-43411/

Joe talks about how the quality of the rising edge improved when the pull-up resistor was swapped out in post #17.

if the issue is limited to older MSPNP1 units, then this is probably the solution. and you could add in a second 270-330 pull-up resistor on the output very easily--you shouldn't even have to remove the stamped 1Ks.
Braineack is offline   Reply With Quote
Old 07-03-2014, 11:40 AM   #59
Junior Member

Join Date: Sep 2011
Location: finger lakes NY
Posts: 444
Total Cats: 17
Default

All digital circuits are analog if you look closely enough. More to the point, not all digital inputs work identically. Obviously there can be different voltage requirements, but the input impedance (current draw) can vary hugely. That's why I want to measure one of these coils; then we'll know.

There are some measurements of different pencil coils around the web. Some show that the trigger pin can draw more than 10 mA while high. Put two in parallel and that's over 20 mA that we're asking the CPU pin to supply and it might not be happy doing it.

Changing a pullup resistor to something smaller typically helps with a so-called open collector circuit. This is one where a transistor acts like an on-off switch connecting an output to ground. Either it connects to ground (pulls down) or it just lets go. The pull up resistor is then left with the job of bringing the output high. This works fine if significant current is drawn only when in the low state. But there can still be some current drawn in the high state. A large pull up resistor limits this current. A smaller one improves rising edges and possibly increases the voltage at the output.

In the case where an output pulls up and down actively (most IC's) then pull up and pull down resistors are usually just for protection during power up.

As Scott said, the 100 ohm series resistor on the Microsquirt module is there just to protect the CPU if there's a short circuit. But if whatever is being driven requires more than a few milliamps then that resistor can reduce performance. The above mentioned 20 mA will result in a 2 volt drop across the resistor; the output will be only 3 volts instead of the expected 5!

Personally, I think it's an abomination to drive anything off-board directly from CPU pins. (I am an EE and design embedded systems for a living.)
DaveC is offline   Reply With Quote
Old 07-03-2014, 11:55 AM   #60
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by leboeuf View Post
Why a regulator on a signal in a digital system?

An option would be a simple 5v digital buffer if the single driver in the MS doesn't have the juice to run wasted spark.
If you plan on making it standalone in the engine bay then a 5v regulator (off the 12v system) is the ticket to power your buffer solution.
MSPNP2 V1.3 has an ignition output buffer already. Each channel is rated for 220mA.

This will trigger (2) BIP373 drivers, (2) VAG logic coils, or (2) IGN-1A coils.

Spark outputs C and D are accessible from the DB26 connector. They are set up for "wasted cop" by default, where A and D are triggered together and B and C are triggered together. These outputs are also rated at 220ma, or 440ma per channel. If you truly feel that the standard spark outputs do not provide enough current for your wasted setup, then use the C and D outputs as well.
http://www.megasquirtpnp.com/docs/ms...r=13&isModel=2
Ben is offline   Reply With Quote


Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
Toyota COP Erat Miata parts for sale/trade 17 02-17-2016 05:22 PM
Expected intake temps on the track? tazswing Race Prep 20 10-03-2015 12:04 PM
Time to start learning and play with tuning The Gleas MEGAsquirt 3 10-01-2015 10:30 AM
01-05 Fab9 PNP COPs (used) FrankB Miata parts for sale/trade 6 09-30-2015 12:48 PM


Tags
cognitive dissonance, lol

Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -4. The time now is 05:22 AM.
