Getting closer.



together
Attached Thumbnails
3d printed intake for N/A NA miatas-20160616_210536.jpg
bbundy is offline   Reply With Quote
Old 06-18-2016, 12:37 PM   #402
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,088
Total Cats: 572
Default

Quote:
Originally Posted by bbundy View Post
yea I push 2.5 hose on a 2.7XX OD Skunk2 TB without too much difficulty. I like the tight fit and without boost it won't need hose clamps at all.
I dont know about the no clamps though. Vibration will get it off imo.
triple88a is offline   Reply With Quote
Old 06-27-2016, 12:56 PM   #403
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 737
Total Cats: 66
Default

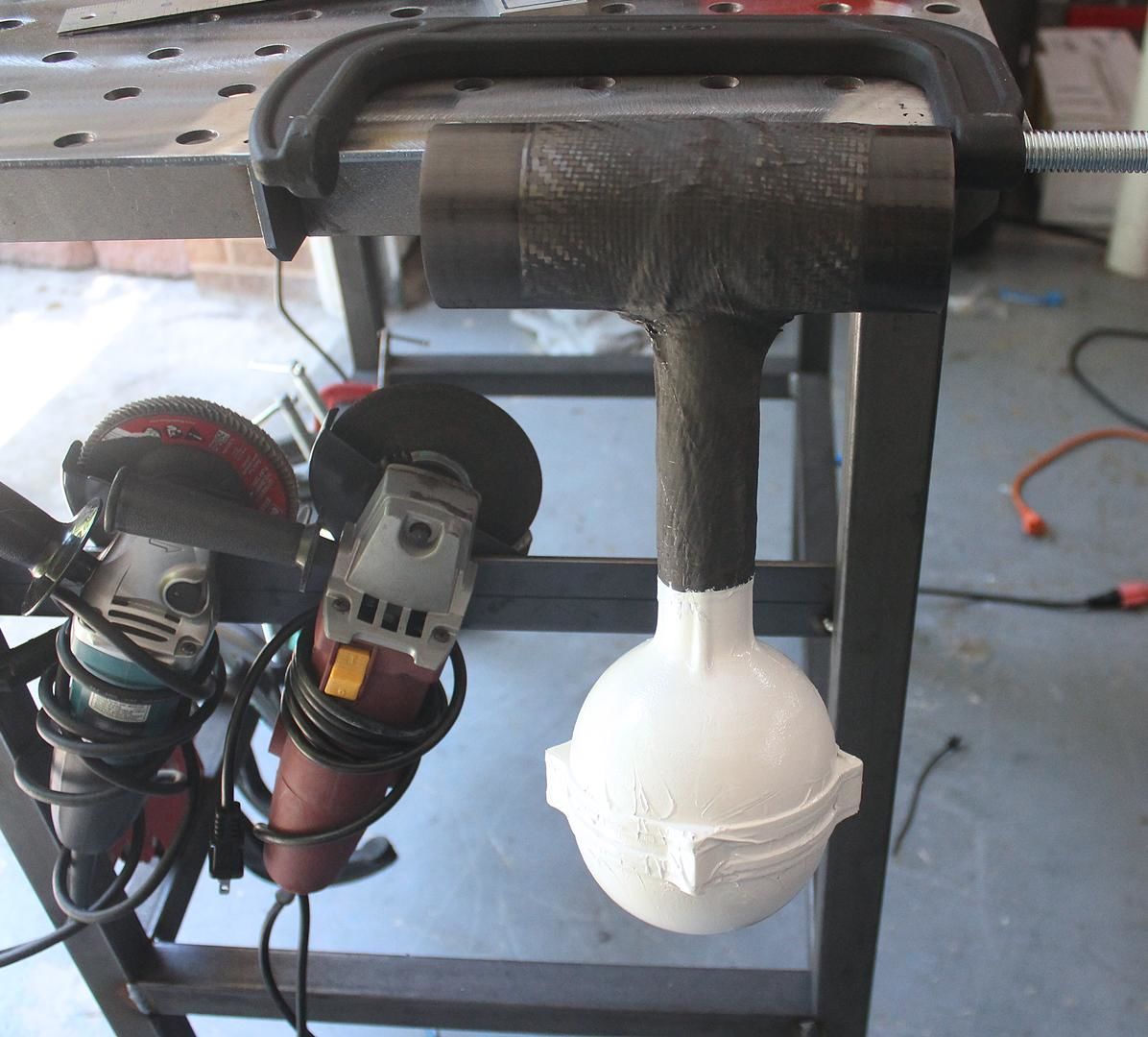

I sent this helmholtz resonated crossover and the new airfilter setup out to the PNW to get dyno tested.


The helmholtz chamber showed a conclusive improvement in the targeted RPM range. There is quite a bit of per run variation in the dyno results. If you take the two closest a/b runs its about a 5 wtq difference- the two farthest and its a 10 wtq improvement. I'm going to call the result "between 5 and 10 wtq."

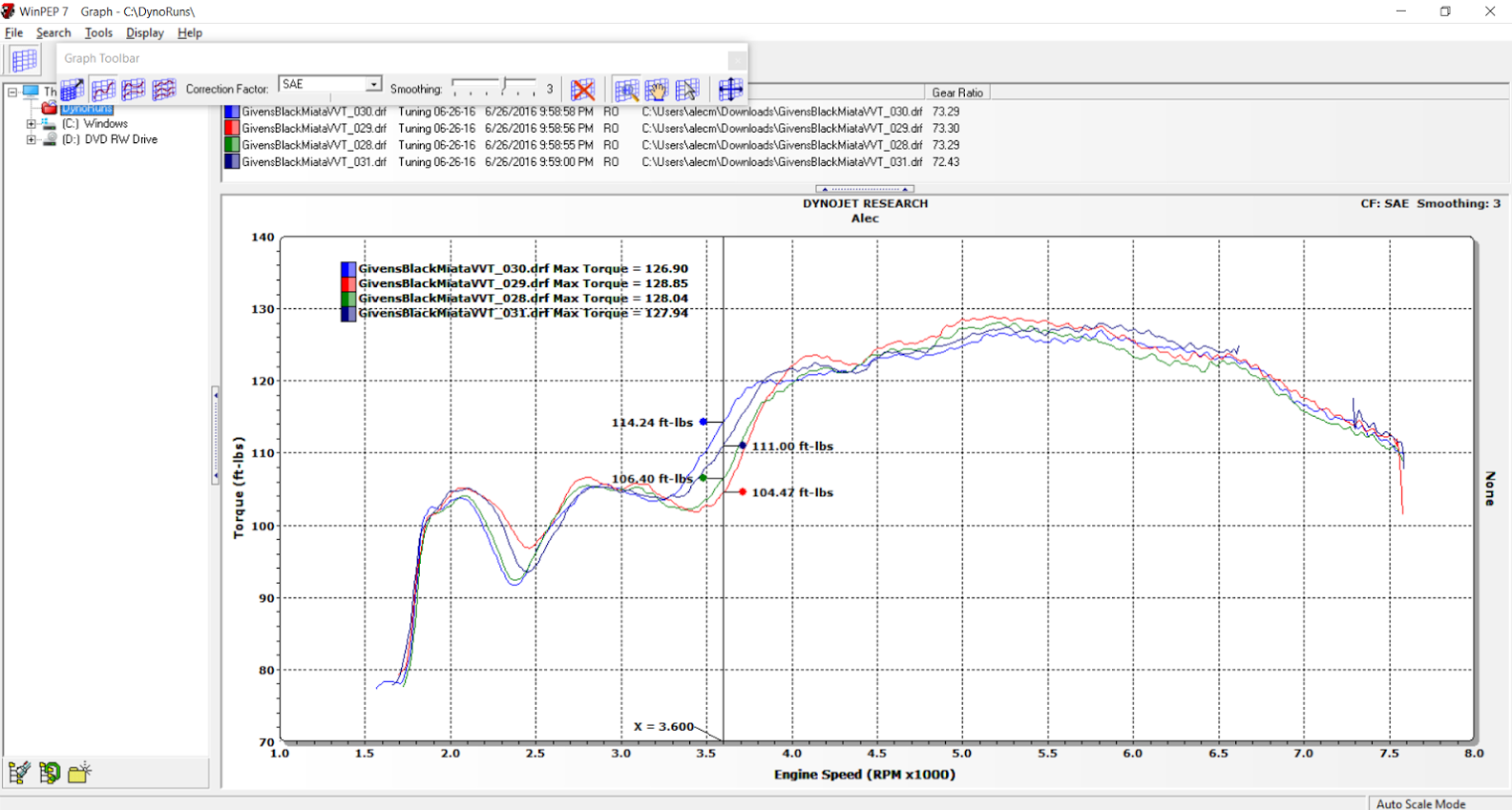

A chart- Two with the chamber, two without:


I'm going to make production versions with a male mold I can lay up twice, and bond the halves together. Since its a male tool, the flanges can be kept on the carbon part without altering the internal shape.


Surprisingly the silicone reducer/bellmouth/larger filter part didn't show conclusive improvements. If you sort the results of all 12 dyno runs, there is a trend of the new filter results being at the top, but there is no definitive conclusion from comparing any two runs. I would guess the part is providing minimal (1whp) benefit, which is less than the per run variation, but is responsible for that sorting trend. I might try and force a large bell mouth radius on the side where I have room and see if that helps.
Attached Thumbnails
3d printed intake for N/A NA miatas-80-kjz0nnq_48f5c9f8de1fe8f1cc3495b76247050f5b4f87c9.jpg   3d printed intake for N/A NA miatas-nv5dpht.png
asmasm is offline   Reply With Quote
Old 06-27-2016, 03:27 PM   #404
SadFab CEO
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,625
Total Cats: 493
Default

someone owes you something...



good job alec
Attached Thumbnails
3d printed intake for N/A NA miatas-80-10_20dollar_20bill_4be9676a4ed668c8f85ca84b4153b35d8e070692.jpg
hi_im_sean is offline   Reply With Quote
Old 06-27-2016, 04:27 PM   #405
Junior Member
iTrader: (2)

Join Date: May 2010
Location: Portland, OR
Posts: 76
Total Cats: 7
Default

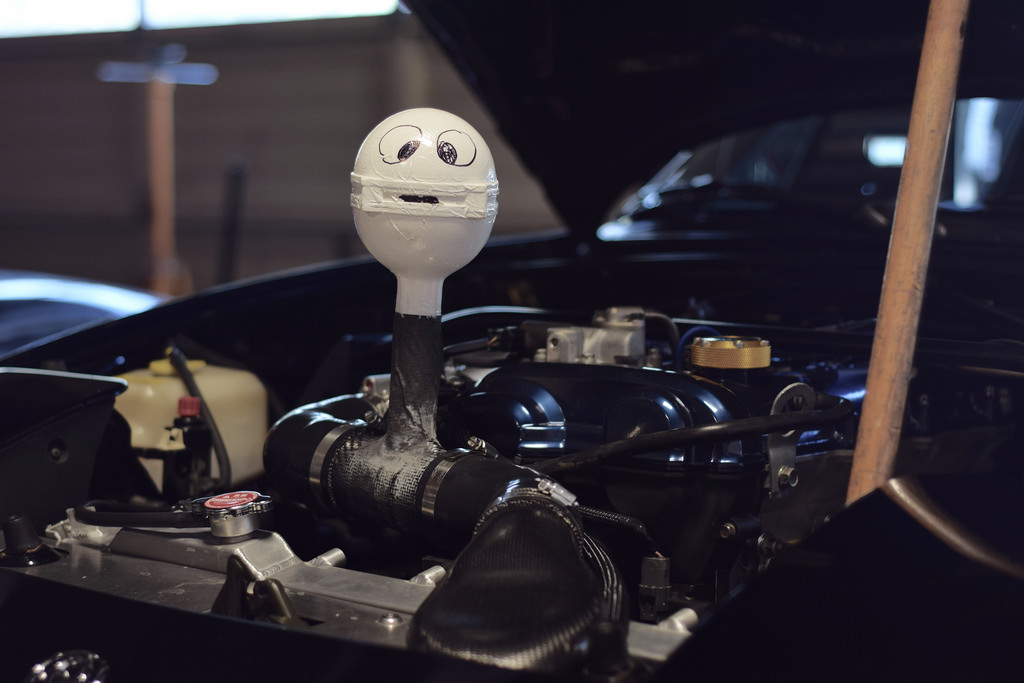

Your prototype was in good hands.


DSC_0021 by stormin'norman3, on Flickr
Attached Thumbnails
3d printed intake for N/A NA miatas-27311034914_0fcc4d482b_b.jpg
stormin'norman is offline   Reply With Quote
Old 06-27-2016, 11:21 PM   #406
Junior Member

Join Date: Nov 2011
Location: Ottawa, Ontario, Canada
Posts: 105
Total Cats: -1
Default

Are these for sale yet?
Frenchmanremy is offline   Reply With Quote
Old 06-29-2016, 11:06 PM   #407
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,461
Total Cats: 110
Default

Dam now I got to make a helmholtz out of aluminum
bbundy is offline   Reply With Quote
Old 06-30-2016, 10:03 AM   #408
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 737
Total Cats: 66
Default

I will have a supply helmholtz crossovers pretty soon. I don't have to do any significant work to get the molds going and I can have my brother in law churn them out while I am busy with my day job. The intake ducts require a lot more cad work, followed by machining, then making bladders... So they are going a lot slower.

Last edited by asmasm; 06-30-2016 at 01:11 PM.
asmasm is offline   Reply With Quote
Old 06-30-2016, 01:50 PM   #409
Junior Member

Join Date: May 2010
Location: Tampa, Florida
Posts: 125
Total Cats: -38
Default

How is the fitment behind the radiator? Have you considered selling them via some of the vendors like FM and 949racing?
my97miata is offline   Reply With Quote
Old 06-30-2016, 02:09 PM   #410
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 737
Total Cats: 66
Default

The helmholtz chambers require a coolant reroute to fit. I'm not sure how well it would fit with something like the massive TSE radiator. Maybe Nial can measure clearance on either side + the thickness of his RAD to give an idea.

I don't have one installed on my car since I don't have my new engine with coolant reroute in yet.
asmasm is offline   Reply With Quote
Old 06-30-2016, 02:13 PM   #411
Senior Member

Join Date: Sep 2013
Posts: 903
Total Cats: 59
Default

You can put one on my car in a few weeks.
Dunning Kruger Affect is offline   Reply With Quote
Old 06-30-2016, 02:16 PM   #412
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 737
Total Cats: 66
Default

Also,
Do people want a helmholtz effect at another RPM? I want to make a few more test parts just to see what happens when you size a Helmholtz for 5k or 7k. I'm also wondering what happens when you put multiple resonators in line. I assume you get some kind of negative wave interactions.
asmasm is offline   Reply With Quote
Old 06-30-2016, 02:20 PM   #413
Senior Member

Join Date: Jan 2013
Location: Gilbert, AZ
Posts: 651
Total Cats: 80
Default

Quote:
Originally Posted by hi_im_sean View Post
someone owes you something...



good job alec

LOL no ten dollars for those shitty graphs. Seriously what is up with that? After my car is warmed up I can lay a bunch of lines right on top of each other.
Arca_ex is offline   Reply With Quote
Old 07-01-2016, 04:58 PM   #414
Junior Member
iTrader: (2)

Join Date: May 2010
Location: Portland, OR
Posts: 76
Total Cats: 7
Default

Quote:
Originally Posted by asmasm View Post
The helmholtz chambers require a coolant reroute to fit. I'm not sure how well it would fit with something like the massive TSE radiator. Maybe Nial can measure clearance on either side + the thickness of his RAD to give an idea.

I don't have one installed on my car since I don't have my new engine with coolant reroute in yet.
Sure, I can try to measure this evening. There wasn't a ton of room with the 37mm Koyo Hypercore. May be problematic with 55's and larger.
stormin'norman is offline   Reply With Quote
Old 07-01-2016, 05:03 PM   #415
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,435
Total Cats: 416
Default

Quote:
Originally Posted by hi_im_sean View Post
someone owes you something...



good job alec
Shouldn't that be a 3 dollar bill?
rleete is offline   Reply With Quote
Old 07-23-2016, 07:14 PM   #416
Junior Member

Join Date: Nov 2006
Location: Goshen, IN
Posts: 58
Total Cats: 0
Default

asmasm, please don't make me buy a K&N for my VVT swap! I'm in for a copy of your latest intake design if you're up for it.

It was mentioned a couple pages back...since ABS was not offered in 1990, the theory about the ABS washer bottle makes sense. My 11,xxx VIN `90 doesn't have the hole either. Passenger side hole appears to be access to A/C receiver/drier sight glass.
mkrazit is offline   Reply With Quote
Old 08-15-2016, 01:16 PM   #417
Junior Member

Join Date: Aug 2009
Location: Lakewood (Green Mountain) CO.
Posts: 100
Total Cats: -22
Default

Almost a month since the last post, any updates?
The Driver is offline   Reply With Quote
Old 08-15-2016, 01:48 PM   #418
Junior Member
iTrader: (1)

Join Date: May 2015
Location: Salem, OR
Posts: 287
Total Cats: 30
Default

Quote:
Originally Posted by The Driver View Post
Almost a month since the last post, any updates?
I PM'd and emailed him a couple weeks ago, no dice. Maybe on vacation or something?
dleavitt is offline   Reply With Quote
Old 08-15-2016, 01:55 PM   #419
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,823
Total Cats: 1,252
Default

He has become obsessed with sim racing. He doesn't leave the house anymore.
aidandj is offline   Reply With Quote
Old 08-15-2016, 03:01 PM   #420
Newb
iTrader: (1)

Join Date: Sep 2015
Posts: 31
Total Cats: 1
Default

Ive been on a waiting list for months and months for the carbon version.. Though, I dont foresee it coming soon at this rate. Has anyone recently had good success/experience with a particular printer/person/method? (besides whats already been documented here)
pakmx5 is offline   Reply With Quote
