The Definitive "VVT swap into 90-97 chassis" Megathread.

Engine Performance This section is for discussion on all engine building related questions.
Sponsored by:
Sponsored by:

The Definitive "VVT swap into 90-97 chassis" Megathread.


Old 11-01-2014, 10:42 AM
  #81
Junior Member

Join Date: Apr 2011
Posts: 204
Total Cats: 11
Default

Thanks for this thread.

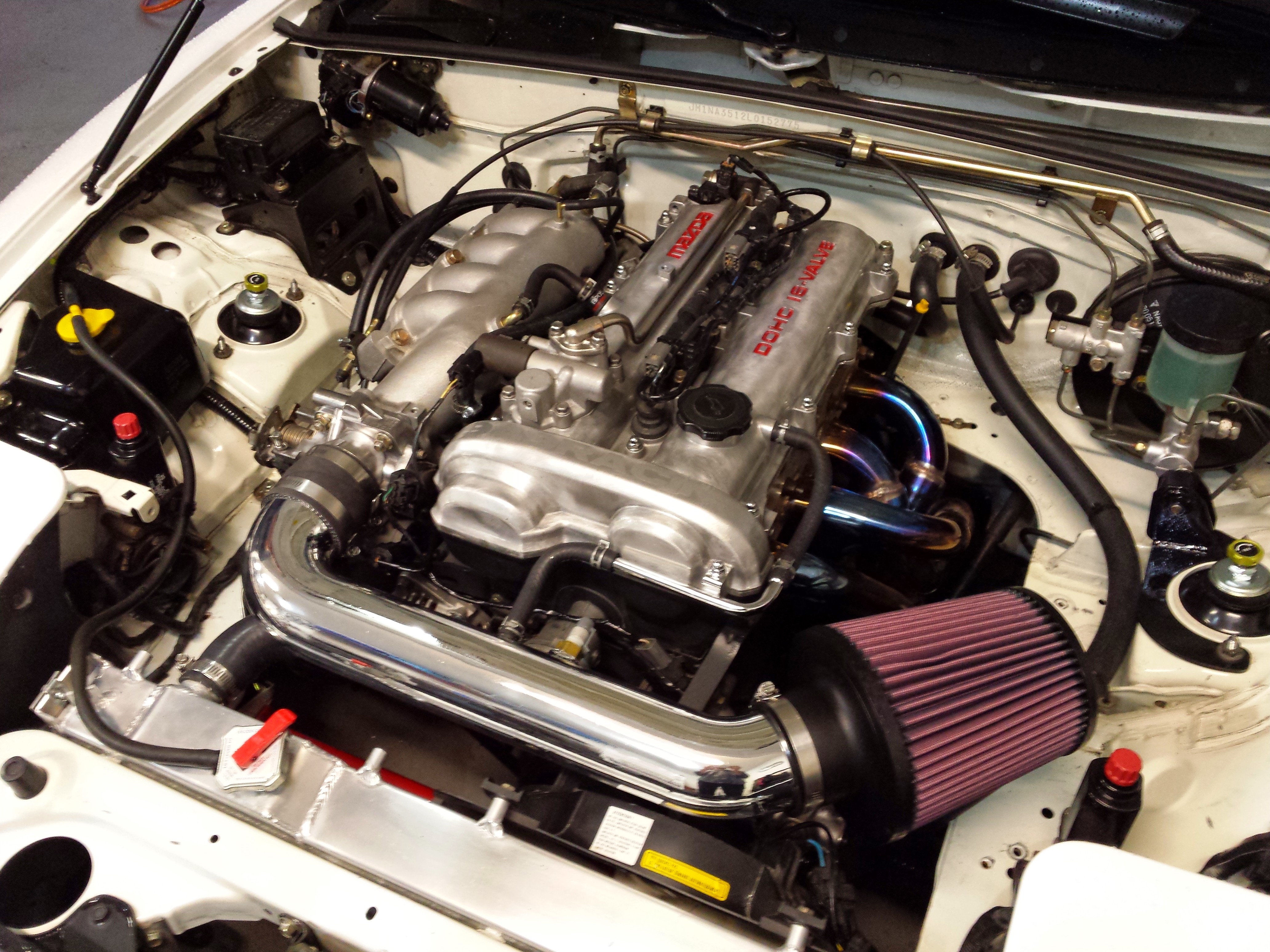

Here's my finished (for now) swap.

oregonmon is offline
Old 11-01-2014, 12:47 PM
  #82
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,593
Total Cats: 244
Default

Nice and clean.
__________________
Originally Posted by ninerwfo View Post
The “into to megasquirt thread” mentions that the MS3 basic has 5 inputs with built in pull up resistors - and I was just wondering why it would have so many, while the MS3Pro PnP has just 2 (with no pull ups?)
MS Labs: Plug and Play Megasquirt ECUs for ANY 90-05 Miata (NA, NB1, NB2 w/VVT, MSM), including basemaps to get you started ASAP. PM me or email or details.
For support on MS Labs ECUs: Please email, be sure to include the unit's serial number and include a datalog and your current map.
Reverant is offline
Old 11-04-2014, 06:36 AM
  #83
Junior Member

Join Date: May 2010
Location: Tampa, Florida
Posts: 134
Total Cats: -49
Default

Love the clean and healthy look of that engine above. My number 1 recommendation would be to cover the header with a TDR heat shield, those things really work.
my97miata is offline
Old 01-28-2015, 07:57 PM
  #84
Junior Member

Join Date: Jul 2009
Location: Greenville SC
Posts: 360
Total Cats: 22
Default

So I'm just now getting around to starting my swap (life happens) and I figure I would swap the fuel rail before putting my 02 engine in the car. So I have put on the 99 fuel rail with the 1.6 fpr outlet facing up and it doesn't seem like the intake manifold will go on without hitting it, unless I'm just dense. Do I need to bend the fpr tube? I am using the VTCS manifold. Does anyone have a picture showing specifically what on the 01+ manifold needs to be modified to fit this setup?
Morello is offline
Old 01-30-2015, 11:34 AM
  #85
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 15,313
Total Cats: 2,019
Default

You need to bend the FPR outlet up, yes. It's easy to do with a deep-wall socket and some patience.
__________________

High-Performance Turbo Specialists - Sunnyvale, CA - Email us!

Originally Posted by codrus View Post
Basically I've come over to the camp of "If something is a reliability problem on the track, just ask Andrew and do what he says".
Savington is offline
Old 01-30-2015, 12:46 PM
  #86
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,820
Total Cats: 693
Default

Yeah just take your time and bend/test fit/bend/test fit.

The real problem is the vacuum barb. Although you have to bend the 90-93, it positions the vacuum barb in a position that doesn't interfere with the VTCS brace behind the throttle body. This is a metal plate held on with 4 bolts on a VICS manifold, but cast into the upper half of a VTCS manifold. You'll have to cut the inside brace arm off if using a 94-97 fpr.
curly is offline
Old 01-30-2015, 09:04 PM
  #87
Junior Member

Join Date: Jul 2009
Location: Greenville SC
Posts: 360
Total Cats: 22
Default

Originally Posted by curly View Post
Yeah just take your time and bend/test fit/bend/test fit.

The real problem is the vacuum barb. Although you have to bend the 90-93, it positions the vacuum barb in a position that doesn't interfere with the VTCS brace behind the throttle body. This is a metal plate held on with 4 bolts on a VICS manifold, but cast into the upper half of a VTCS manifold. You'll have to cut the inside brace arm off if using a 94-97 fpr.
Okay, so no modification of the manifold required if I use the 1.6 FPR in this orientation and bend the tube a bit? I'm more comfortable with bending than grinding haha. Back to work.
Morello is offline
Old 01-30-2015, 09:35 PM
  #88
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,820
Total Cats: 693
Default

Yeah I think that's right. You'll find out soon enough.
curly is offline
Old 01-30-2015, 09:52 PM
  #89
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 15,313
Total Cats: 2,019
Default

You need to grind on the '01 manifold to clear the '99 rail, if you're using a 01-05 VCTS manifold (which you shouldn't be). It's a very minor modification and I've done it before with a hand file.
__________________

High-Performance Turbo Specialists - Sunnyvale, CA - Email us!

Originally Posted by codrus View Post
Basically I've come over to the camp of "If something is a reliability problem on the track, just ask Andrew and do what he says".
Savington is offline
Old 01-30-2015, 10:53 PM
  #90
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,820
Total Cats: 693
Default

That mod is pretty obvious, grinding for the front long bolt.

I mean the vacuum line off the FPR, it runs right into the throttle body flange brace if you're using a 94-97 fpr.
curly is offline
Old 02-08-2015, 12:19 PM
  #91
Newb

Join Date: Apr 2011
Posts: 40
Total Cats: 1
Default

Just wanted to add a note about the alternator if you have a 90-93. On my swap, I simply used the 1.6 crank pulley and water pump pulley and kept the v belt setup without having to mess with alternator pulleys, or buying a 94-97 alternator. Might be an easier route for some.
wkndracr is offline
Old 02-08-2015, 12:33 PM
  #92
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,820
Total Cats: 693
Default

I almost wish I did that. I think ribbed belts look much more modern, but I've never had issues with squeaking V-belts like I have with NB belts. They seem much more sensitive.
curly is offline
Old 02-08-2015, 02:37 PM
  #93
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 15,313
Total Cats: 2,019
Default

Originally Posted by wkndracr View Post
Just wanted to add a note about the alternator if you have a 90-93. On my swap, I simply used the 1.6 crank pulley and water pump pulley and kept the v belt setup without having to mess with alternator pulleys, or buying a 94-97 alternator. Might be an easier route for some.
Interesting. I specifically tried this when I built Rover 5 years ago and the 1.6 pulley would not fit on the 1.8 alternator (pulley was too large). I'm starting to think the 1.6 alternator I had was non-OEM. Can anyone 100% confirm that the OEM 1.6 and 1.8 alternators have the same shaft diameter?
__________________

High-Performance Turbo Specialists - Sunnyvale, CA - Email us!

Originally Posted by codrus View Post
Basically I've come over to the camp of "If something is a reliability problem on the track, just ask Andrew and do what he says".
Savington is offline
Old 02-15-2015, 06:12 PM
  #94
Junior Member

Join Date: Nov 2013
Location: Atlanta, GA
Posts: 53
Total Cats: 5
Default

I think the wiring colors for 94-97 coils may be slightly jumbled. On my 96 the trigger wires are switched from what you have listed in first post. Overall extremely helpful thread, TONS of awesome info.
harrybeachdog is offline
Old 02-16-2015, 02:29 PM
  #95
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 15,313
Total Cats: 2,019
Default

Originally Posted by harrybeachdog View Post
I think the wiring colors for 94-97 coils may be slightly jumbled. On my 96 the trigger wires are switched from what you have listed in first post. Overall extremely helpful thread, TONS of awesome info.
The diagrams I have show '94 and '96 both with BRN/YEL triggering 1/4.
__________________

High-Performance Turbo Specialists - Sunnyvale, CA - Email us!

Originally Posted by codrus View Post
Basically I've come over to the camp of "If something is a reliability problem on the track, just ask Andrew and do what he says".
Savington is offline
Old 02-16-2015, 02:55 PM
  #96
Junior Member

Join Date: Nov 2013
Location: Atlanta, GA
Posts: 53
Total Cats: 5
Default

The only way I could get mine to fire, stock ecu or ms2, was with
96 BRN to 05 BLK/YEL
96 BRN/YEL to 05 BRN/WHT
harrybeachdog is offline
Old 02-16-2015, 02:55 PM
  #97
Junior Member

Join Date: Nov 2013
Location: Atlanta, GA
Posts: 53
Total Cats: 5
Default

The only way I could get mine to fire, stock ecu or ms2, was with
96 BRN to 05 BLK/YEL
96 BRN/YEL to 05 BRN/WHT
harrybeachdog is offline
Old 03-03-2015, 10:08 AM
  #98
Junior Member

Join Date: Aug 2009
Location: Sun Prairie WI
Posts: 50
Total Cats: 1
Default

Thinking about updating to the NB1 or NB2 head and was wondering if anyone has found a fix for the NB2 intake cam harmonics problem at high RPM. I remember reading about it awhile back. I want to use the VVT since my ECU can control it and it would also allow me to pick up 949 cams with the crazy 4.. Lift. Plus who doesn't like torque the added torque of the NB2.
92mazdaspeed is offline
Old 03-03-2015, 10:24 AM
  #99
Newb

Join Date: Apr 2011
Posts: 40
Total Cats: 1
Default

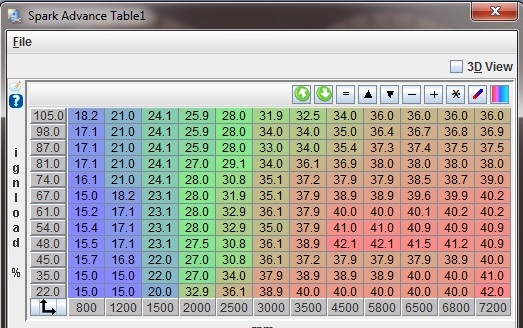

For those running a stock VVT motor, what does your spark table look like? I swapped back to an OEM airbox the other day and today I noticed what sounded like pinging while cruising on the highway at 4k rpms if I gave it a bit of gas, although it's hard to tell with all the wind noise. I've been running the same tune for almost a year, and haven't blown it up yet, including a few autocrosses and a track day, let alone about 20k street miles, so I don't think my tune is that off, but I'd like other opinions. Here is my current spark table. I don't remember exactly where I got it from, but it was snagged from a thread somewhere on this forum.
Attached Thumbnails The Definitive "VVT swap into 90-97 chassis" Megathread.-spark-table.jpg
wkndracr is offline
Old 03-03-2015, 10:32 AM
  #100
Newb

Join Date: Apr 2011
Posts: 40
Total Cats: 1
Default

Originally Posted by Savington View Post
Interesting. I specifically tried this when I built Rover 5 years ago and the 1.6 pulley would not fit on the 1.8 alternator (pulley was too large). I'm starting to think the 1.6 alternator I had was non-OEM. Can anyone 100% confirm that the OEM 1.6 and 1.8 alternators have the same shaft diameter?

Maybe you misunderstood my post. I did nothing to my 1.6 alternator or pulley. I used the 1.6 crank pulley, (with the ribbed and v-belt setup) and the 1.6 water pump pulley (v-Belt setup) and it all worked together just lovely.
wkndracr is offline
