Old 03-21-2013, 11:03 AM   #201
Senior Member
iTrader: (1)

Join Date: Oct 2009
Posts: 1,419
Total Cats: 58
Default

The next project that I am considering is fabbing a trailer hitch for use with a bike rack.
Enginerd is offline   Reply With Quote
Old 03-21-2013, 07:44 PM   #202
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 97
Default

Quote:
Originally Posted by Adamsm View Post
Yes, I removed or cut out the PPF. I donít have any pictures at the moment but it looks similar to this.


Securing the battery cable to the upper portion of the tunnel was not difficult.
what's the benefit to this besides maybe shed a few pounds?
Pen2_the_penguin is offline   Reply With Quote
Old 03-21-2013, 07:50 PM   #203
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,714
Total Cats: 1,083
Default

Quote:
Originally Posted by Pen2_the_penguin View Post
what's the benefit to this besides maybe shed a few pounds?
That is from Turbotims car and he did it because he is not using a stock transmission. Adamsm is doing it because he is using a RX7 TII trans which also does not have a ppf mount point.
shuiend is offline   Reply With Quote
Old 03-21-2013, 11:52 PM   #204
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 97
Default

ahhh okay, i just legitimately never have seen something like this before.
Pen2_the_penguin is offline   Reply With Quote
Old 03-22-2013, 12:08 AM   #205
Elite Member
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Quote:
Originally Posted by Pen2_the_penguin View Post
ahhh okay, i just legitimately never have seen something like this before.
Follow the V8 swap forums Budget V8 threads and you will see it on cars that don't want the cost and effort to change to a 7.5 or 8.8 Ford IRS rear. Stocker will handle most stock V8 Ford swaps.
Stein is offline   Reply With Quote
Old 03-22-2013, 02:40 AM   #206
Junior Member

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

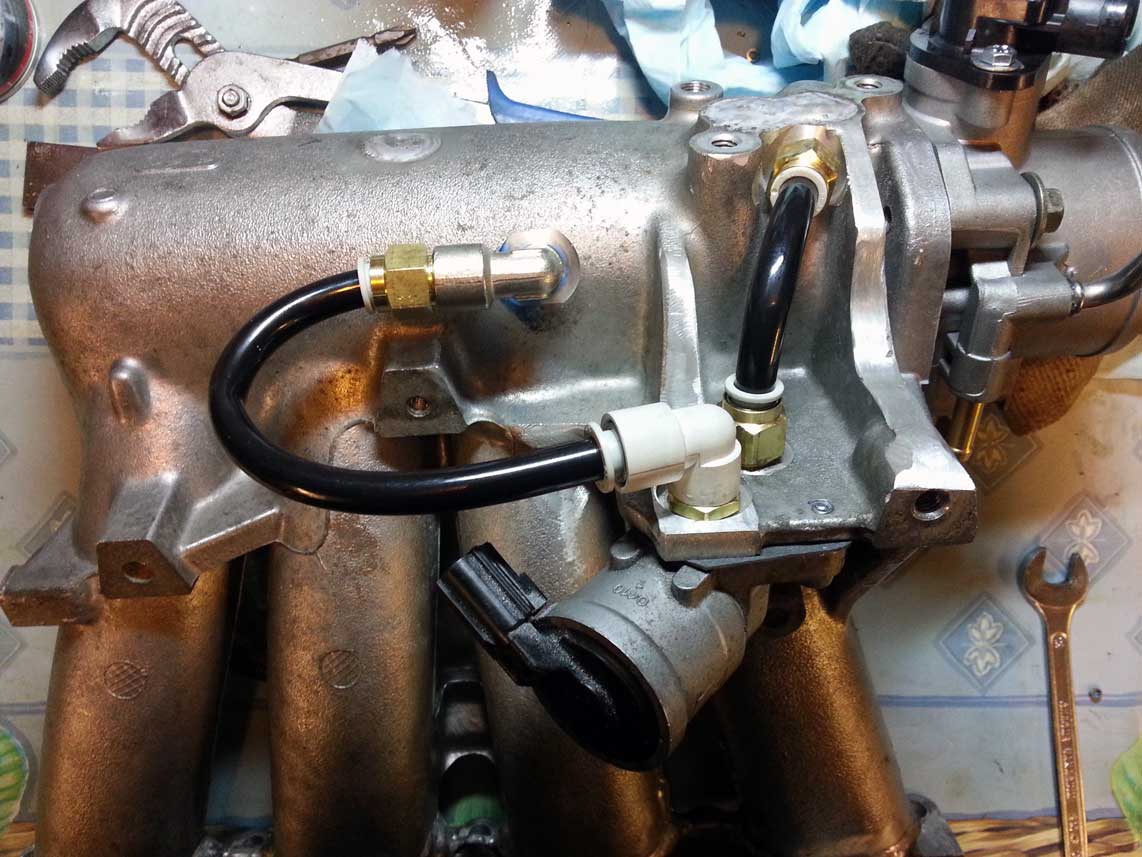

Mazda IAC valve adapted to Honda intake manifold which is adapted to Mazda cylinder head
Attached Thumbnails
The custom fabrication thread! (Post pics of stuff you have made)-20130321_203848.jpg
muoto is offline   Reply With Quote
Old 03-22-2013, 03:54 AM   #207
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 97
Default

wont that hose kink really bad when it gets exposed to engine heat in the future?
Pen2_the_penguin is offline   Reply With Quote
Old 03-22-2013, 04:04 AM   #208
Junior Member

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by Pen2_the_penguin View Post
wont that hose kink really bad when it gets exposed to engine heat in the future?
No.
muoto is offline   Reply With Quote
Old 03-22-2013, 07:26 AM   #209
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,039
Total Cats: 99
Default

I would expect that hose connection all the way to the right to leak.
Leafy is offline   Reply With Quote
Old 03-22-2013, 07:43 AM   #210
Junior Member

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by Leafy View Post
I would expect that hose connection all the way to the right to leak.
Good thing that your expectations are wrong. I have already tested it so quit whining, all of you
muoto is offline   Reply With Quote
Old 03-22-2013, 07:52 AM   #211
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,039
Total Cats: 99
Default

Did you test it under vacuum? Those fittings seal pretty easy when there is moderate pressure on them, but high pressure and vacuum are what make marginal connections leak.
Leafy is offline   Reply With Quote
Old 03-22-2013, 08:04 AM   #212
Junior Member

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by Leafy View Post
Did you test it under vacuum? Those fittings seal pretty easy when there is moderate pressure on them, but high pressure and vacuum are what make marginal connections leak.
For the millionth times, YES Iíve tested it with vacuum, boost, nuclear radiation, mars gravity, etc..
muoto is offline   Reply With Quote
Old 03-22-2013, 08:17 AM   #213
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,457
Total Cats: 244
Default

Quote:
Originally Posted by shuiend View Post
That is from Turbotims car and he did it because he is not using a stock transmission. Adamsm is doing it because he is using a RX7 TII trans which also does not have a ppf mount point.
The **** that's from my car. That pic is in my thread as a PPF solution option before I decided on a better idea. I think the setup in that pic ultimately ripped the mount off the subframe. It's cool that it has pinion angle adjustment but needs more strength, there's a significant moment that bracket has to hold.

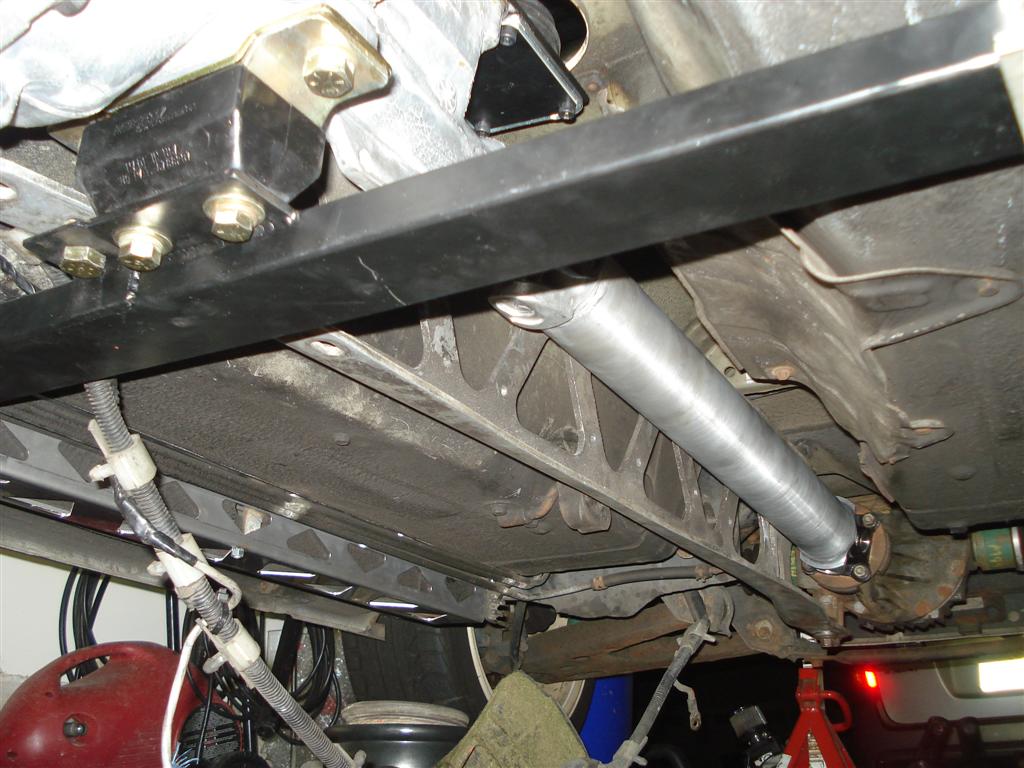

My PPF is minimally clearanced for the 3" driveshaft, attaches to the new transmission crossmember.
Attached Thumbnails
The custom fabrication thread! (Post pics of stuff you have made)-driveshaft2.jpg
TurboTim is offline   Reply With Quote
Old 03-22-2013, 10:07 AM   #214
Senior Member
iTrader: (1)

Join Date: Oct 2009
Posts: 1,419
Total Cats: 58
Default

Quote:
Originally Posted by muoto View Post
For the millionth times, YES I’ve tested it with vacuum, boost, nuclear radiation, mars gravity, etc..
Sometimes you just gotta smack 'em to get 'em to shut up. They just gotta deal with it.

P.S. Will it survive a Tyranasaurus Rex attack? If not, it's under designed.
Enginerd is offline   Reply With Quote
Old 03-22-2013, 10:22 AM   #215
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

If you haven't tested it in a hurricane then you haven't tested it.
thenuge26 is offline   Reply With Quote
Old 03-22-2013, 01:02 PM   #216
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 97
Default

did you try the lava test? You know, for heat?
Pen2_the_penguin is offline   Reply With Quote
Old 03-22-2013, 02:36 PM   #217
Junior Member

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by Enginerd View Post
Sometimes you just gotta smack 'em to get 'em to shut up. They just gotta deal with it.

P.S. Will it survive a Tyranasaurus Rex attack? If not, it's under designed.

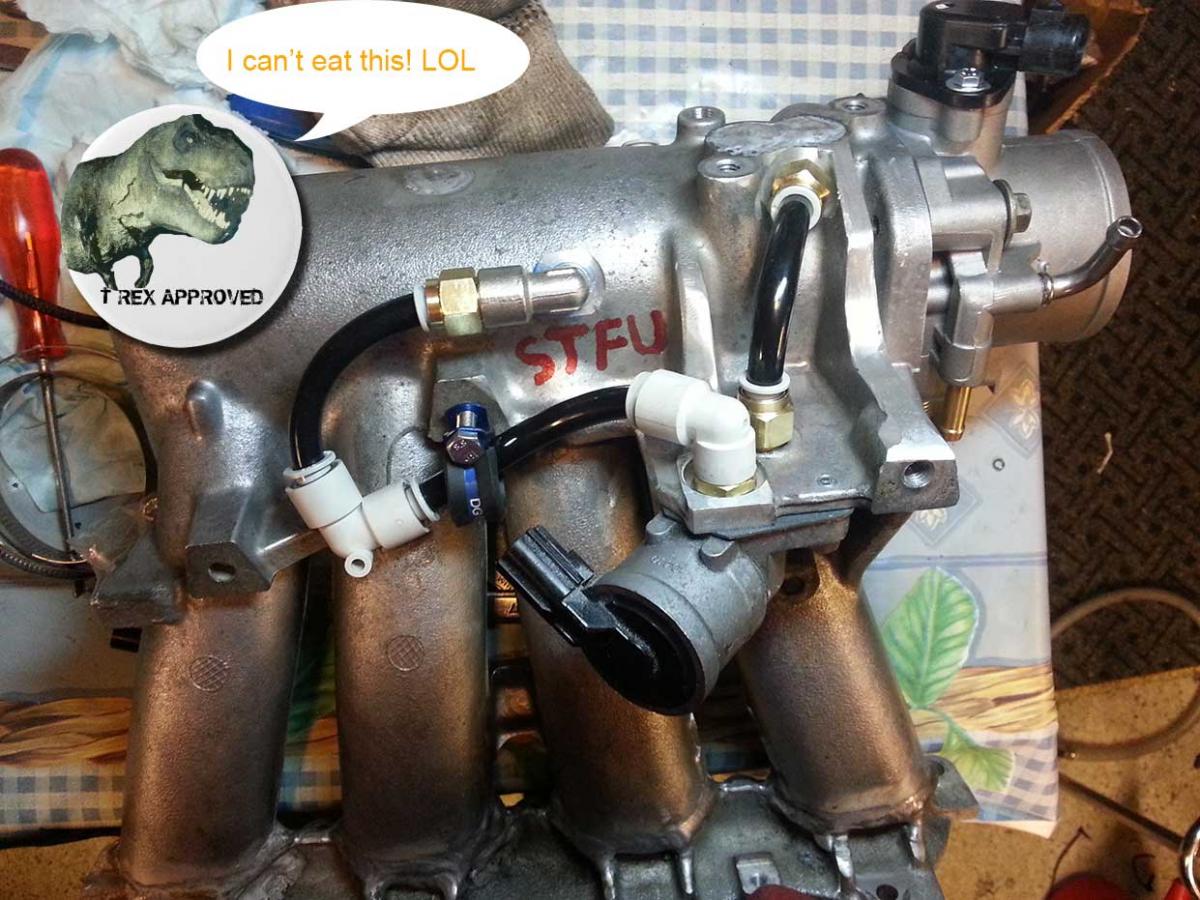

Ok all of you *******, I made some improvements


"version 2.0, limited STFU edition"

Attached Thumbnails
The custom fabrication thread! (Post pics of stuff you have made)-2013-03-22-16.34.jpg
muoto is offline   Reply With Quote
Old 03-22-2013, 02:40 PM   #218
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

That 'T Rex Approved' sticker looks like it's improperly applied. Better just throw out the whole manifold and start over.
thenuge26 is offline   Reply With Quote
Old 03-22-2013, 02:51 PM   #219
Senior Member
iTrader: (1)

Join Date: Oct 2009
Posts: 1,419
Total Cats: 58
Default

Lmfao well done!
Enginerd is offline   Reply With Quote
Old 03-22-2013, 06:44 PM   #220
573
Junior Member
iTrader: (2)

573's Avatar

Join Date: Nov 2011
Location: Troy, Michigan
Posts: 252
Total Cats: 16
Default

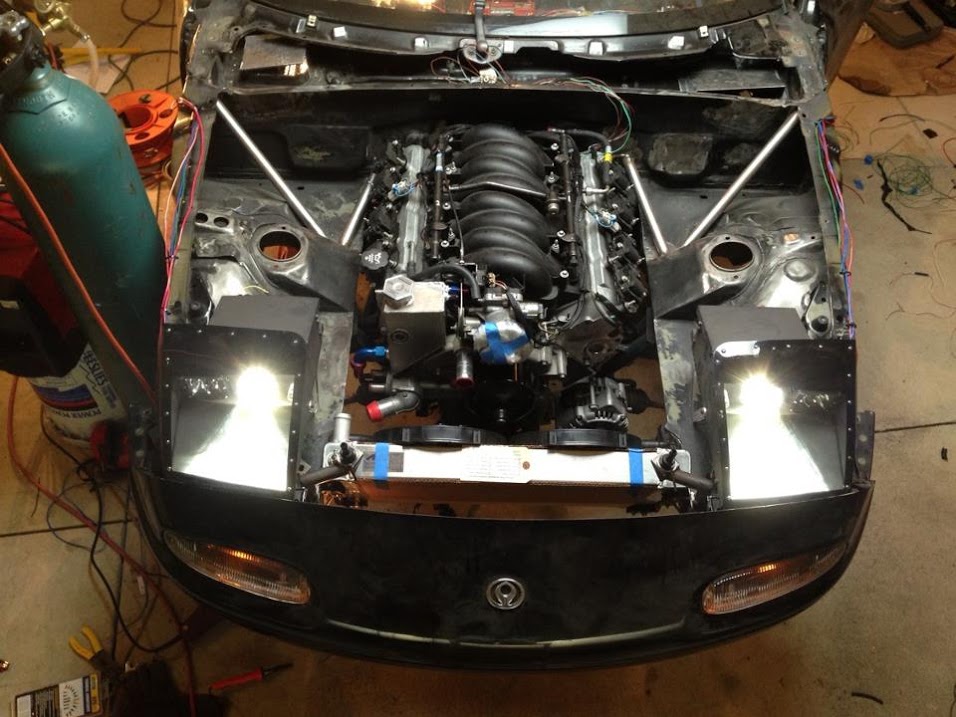

Some chassis bracing. I made the headlights as well. ...and shaved the bay. I guess there's quite a bit going on here.

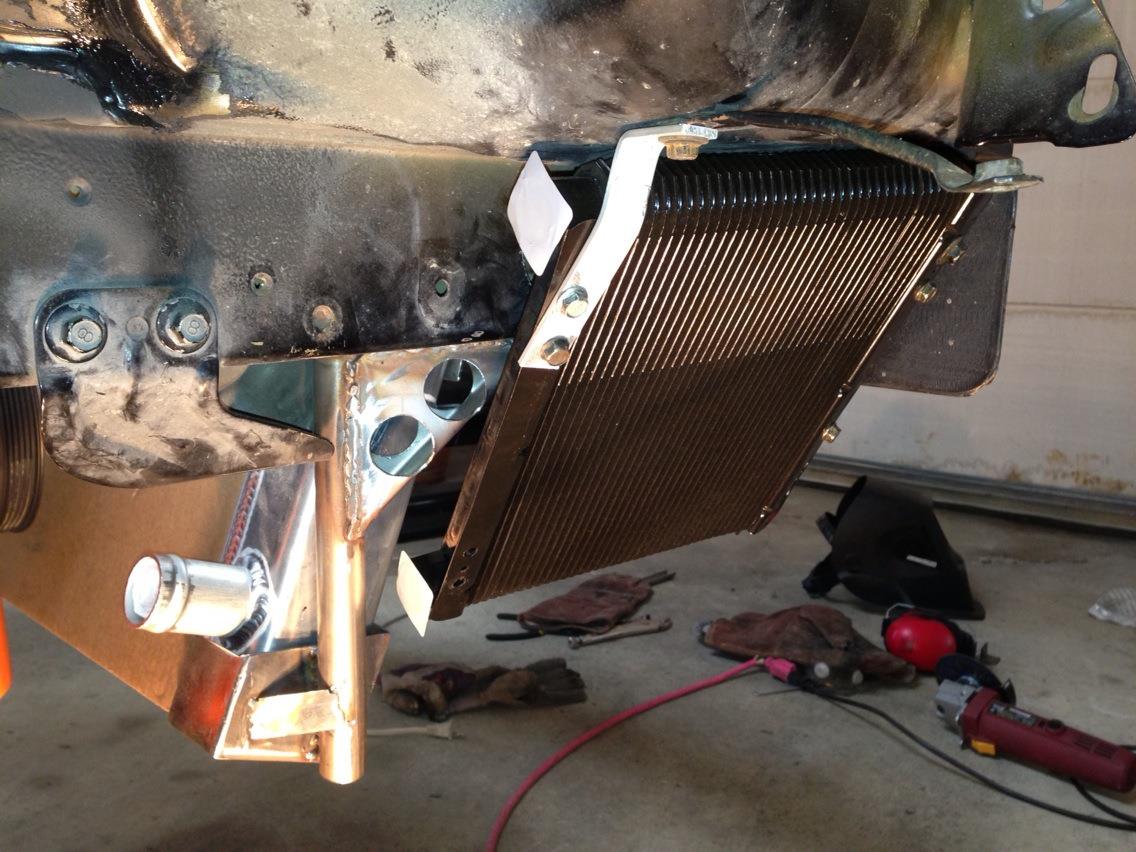

Radiator supports that'll double as mounts for a splitter and under tray.

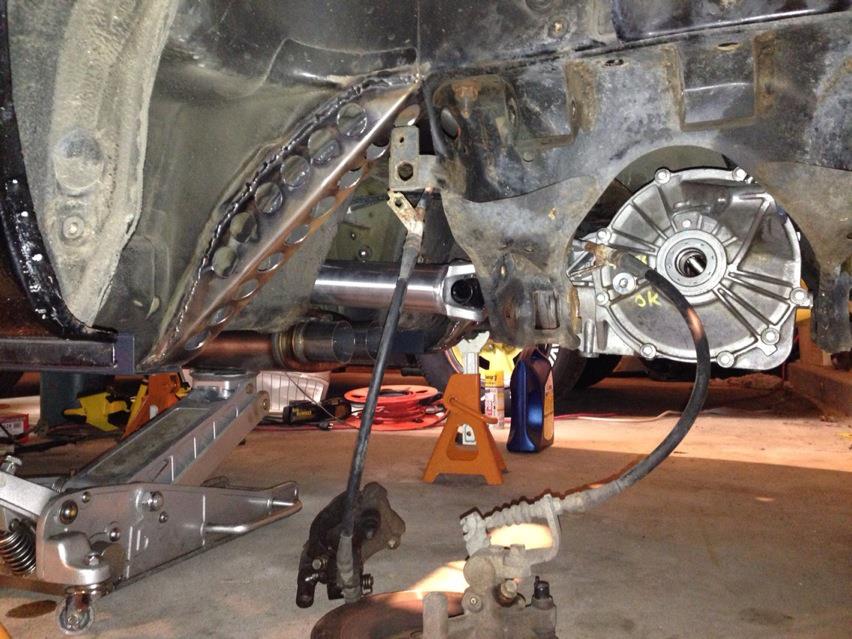

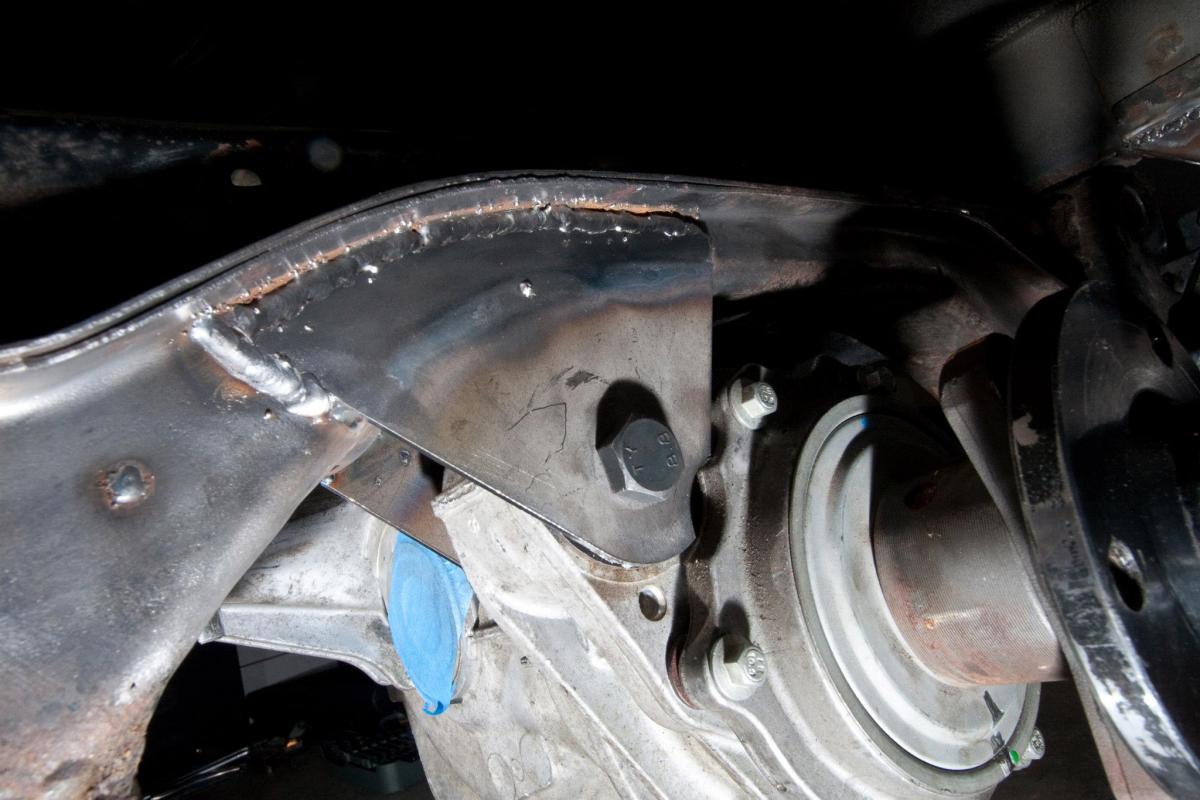

Rear diff mount. It's a Getrag differential from a Cadillac CTS.


Some more chassis bracing.

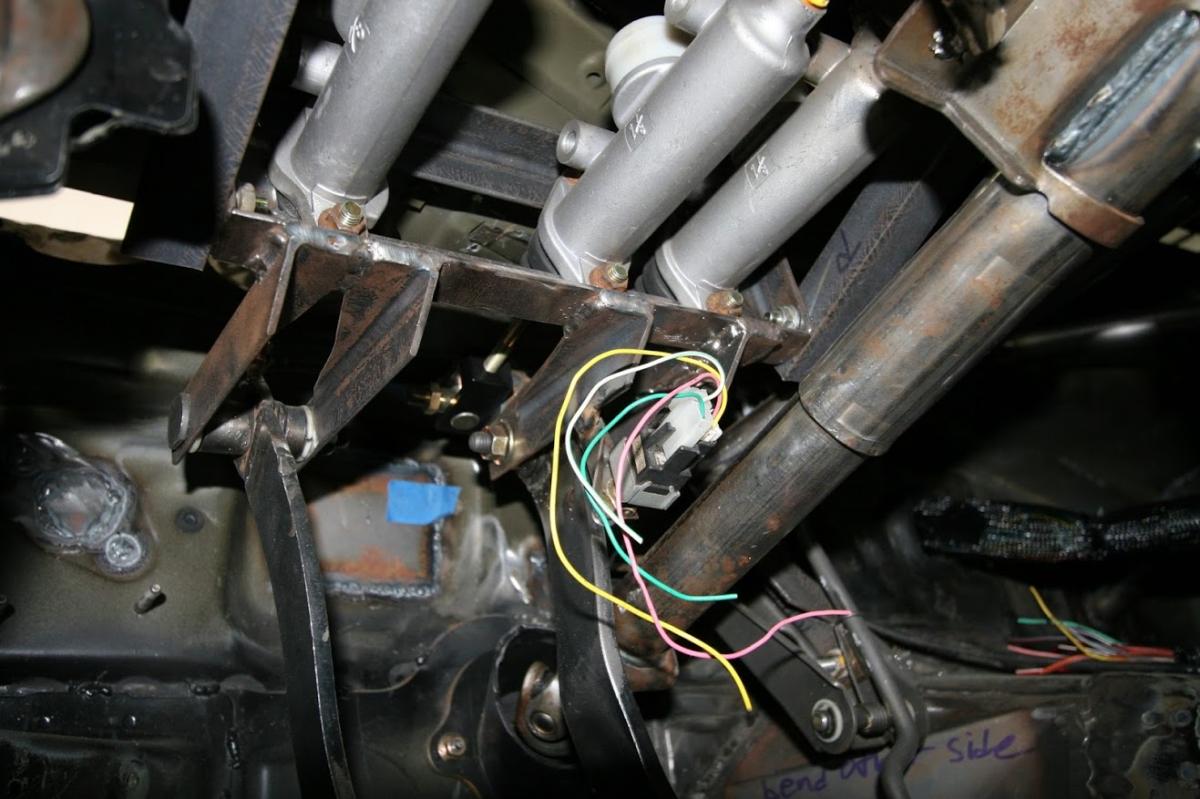

Pedal box with dual masters and balance bar. The supports are welded to the dash bar.

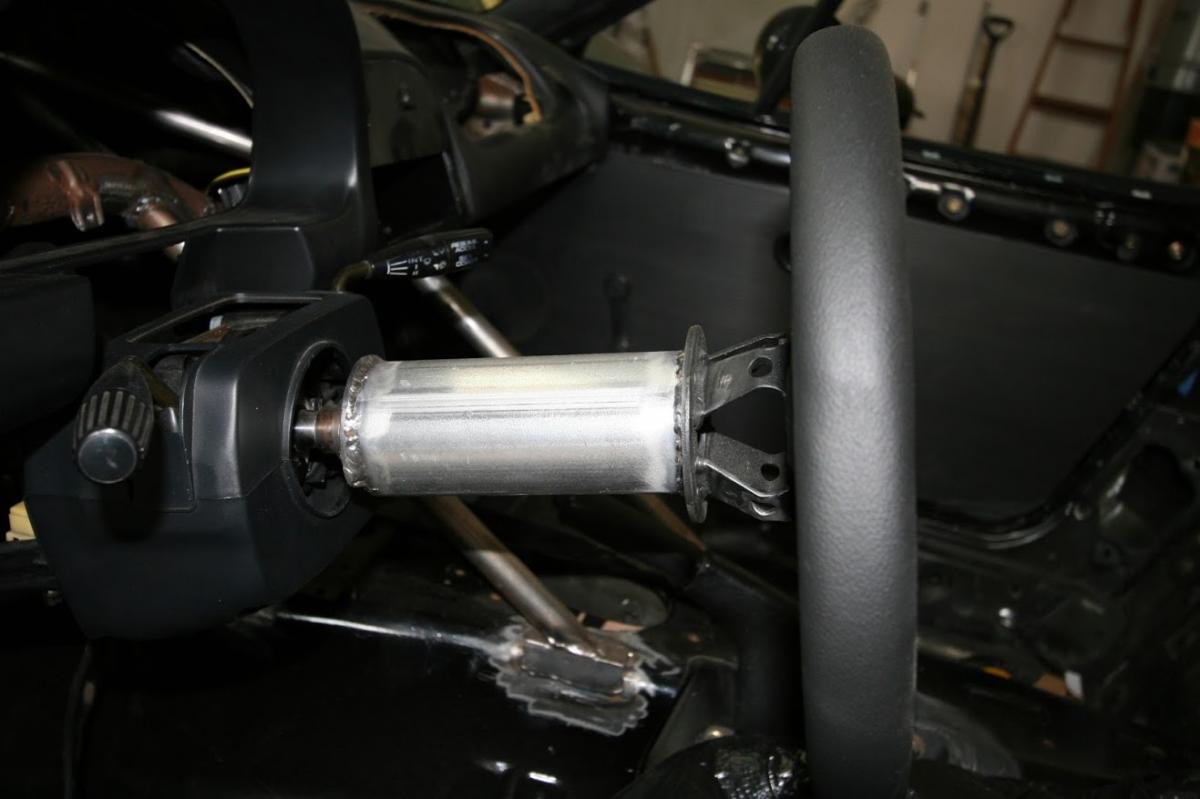

Steering wheel spacer, pieced together from an OEM steering wheel, 2.5" exhaust tubing, and a Sparco wheel hub. I'd like to take a hole saw to the tube since this thing is a bit overbuilt.

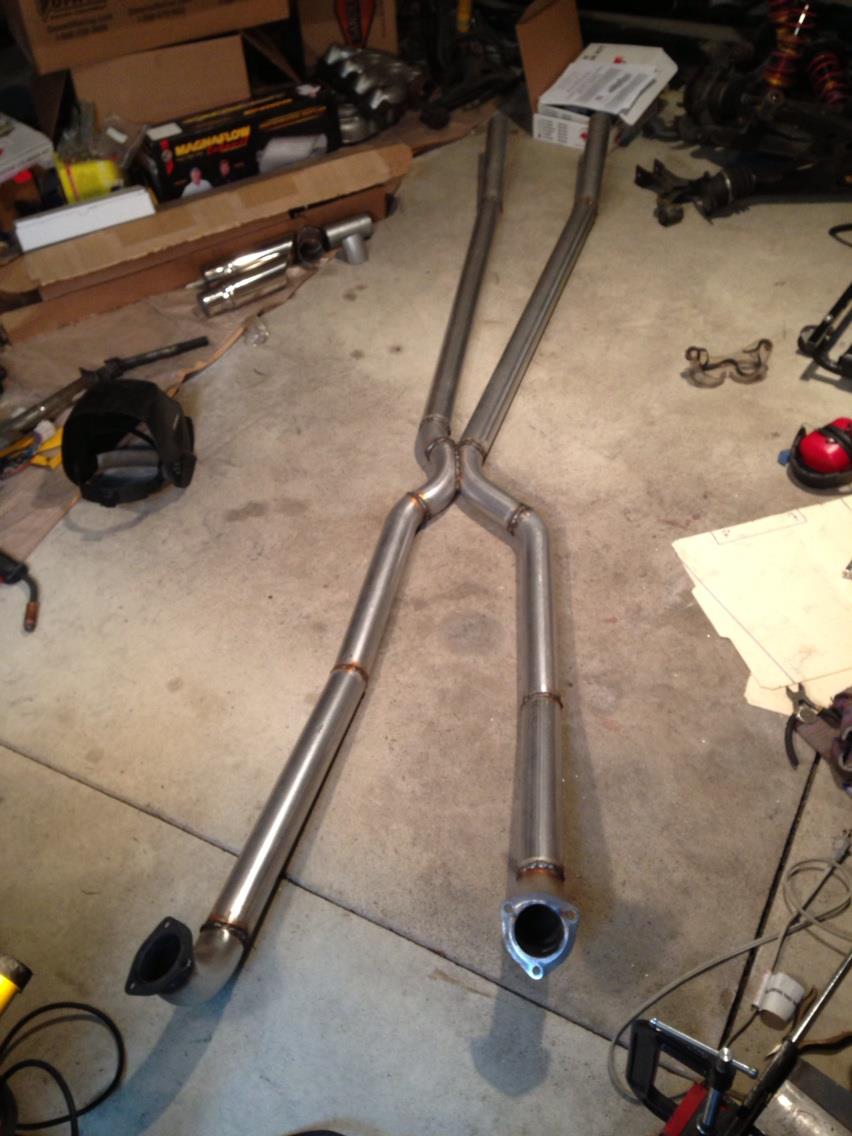

Exhaust system. I offset the X a bit to help even out the lengths of pipe prior to the X.

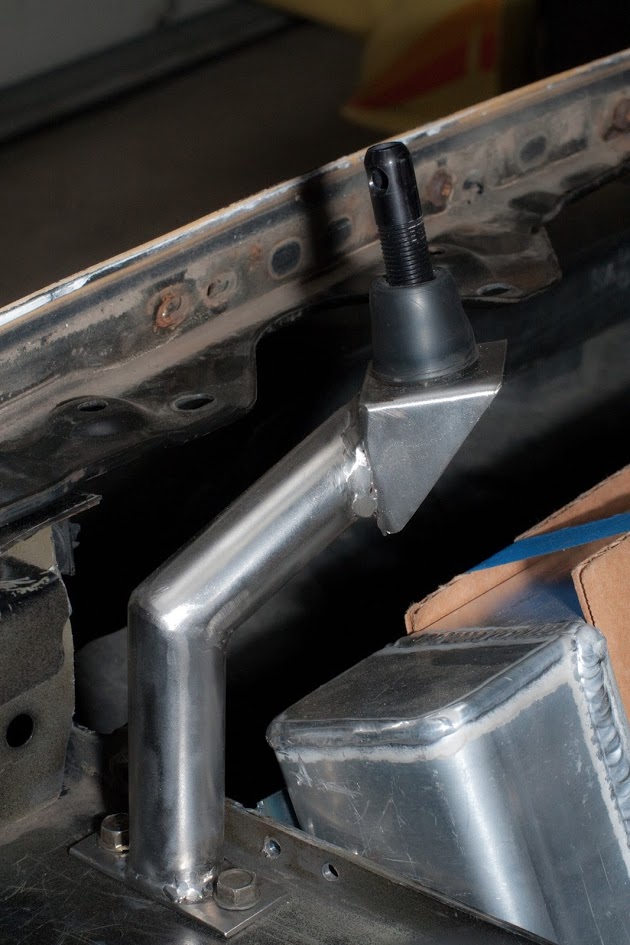

Hood pin mounts.

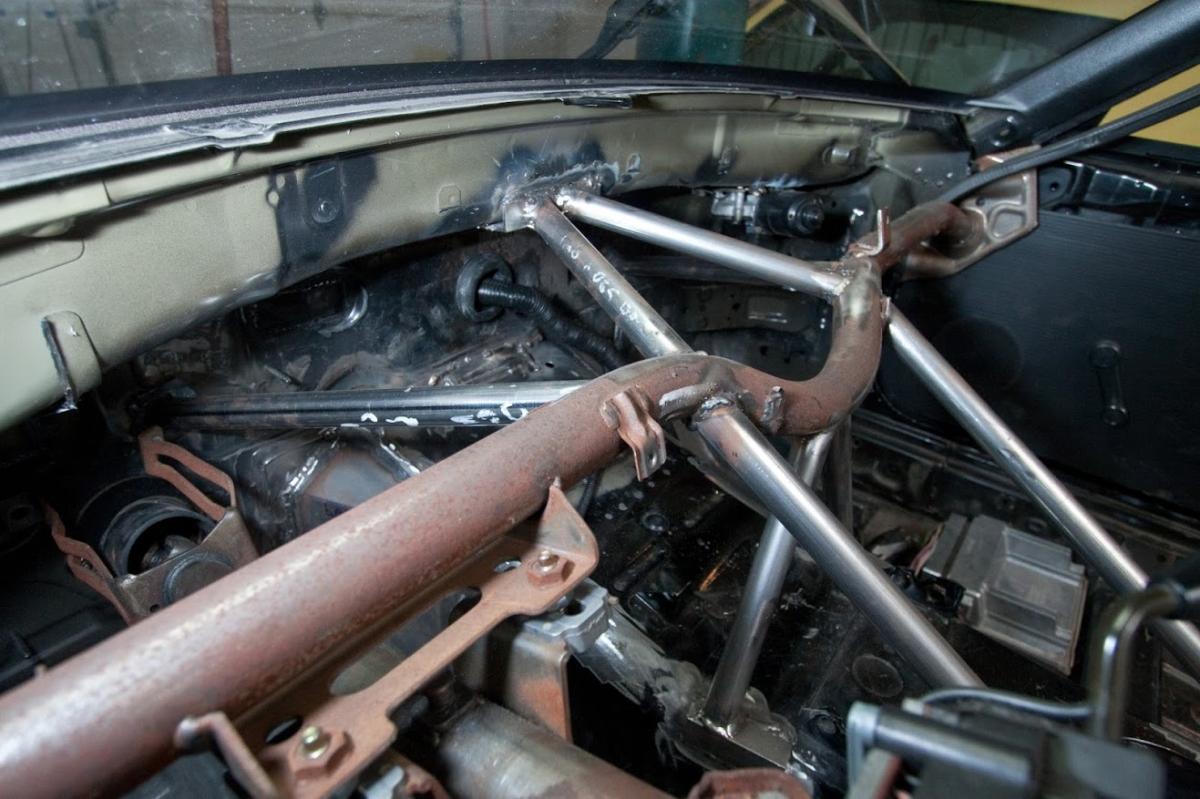

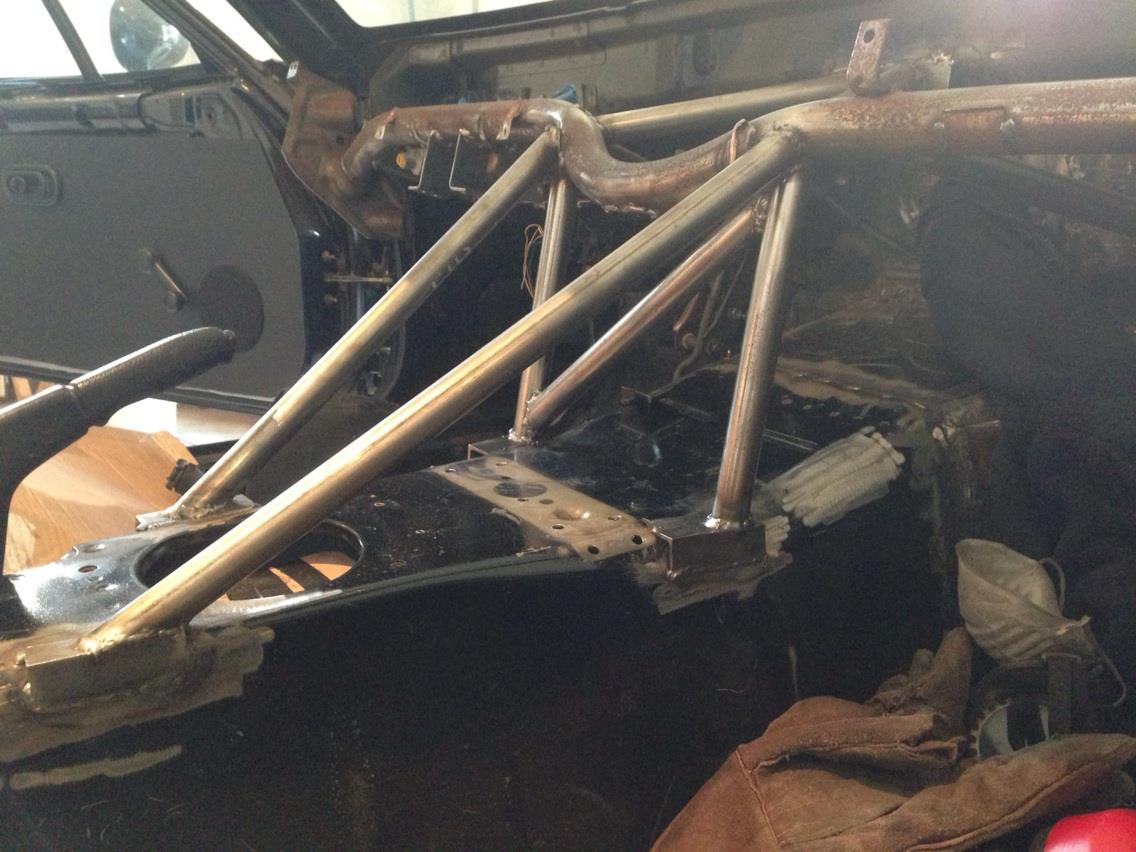

Interior chassis bracing. The goal here is to transmit loads from the suspension to the transmission tunnel, like they were from the factory when the gussets in the back of the engine bay were still in tact.


Another shot of the interior bracing, before I revised it.




Seeing as all of this has been done with a MIG setup that I acquired for $200, I really can't complain about the results. That said, my skills seem to have hit a plateau. I can make beautiful welds on thicker metal, like 1/8", but thinner material is a bit of a struggle. Somebody suggested trying a thinner wire, which is something that I still need to do. The fab work is mostly done for this project, but for future reference, which wire would you experienced people recommend for material 1/16" and thinner? It's a Craftsman welder, if that matters.
Attached Thumbnails
The custom fabrication thread! (Post pics of stuff you have made)-481180_10152663159720177_62031091_n.jpg   The custom fabrication thread! (Post pics of stuff you have made)-615525_10152419567550177_168992192_o.jpg   The custom fabrication thread! (Post pics of stuff you have made)-664823_10152363777635177_115153120_o.jpg   The custom fabrication thread! (Post pics of stuff you have made)-407341_10152353744150177_837298394_n.jpg   The custom fabrication thread! (Post pics of stuff you have made)-img_2296.jpg

The custom fabrication thread! (Post pics of stuff you have made)-img_2291.jpg   The custom fabrication thread! (Post pics of stuff you have made)-703892_10152413171150177_873812344_o.jpg   The custom fabrication thread! (Post pics of stuff you have made)-_mg_2006.jpg   The custom fabrication thread! (Post pics of stuff you have made)-882236_10152642936210177_672694702_o.jpg   The custom fabrication thread! (Post pics of stuff you have made)-_mg_1921.jpg

573 is offline   Reply With Quote
