Tacked up an intake pipe last night for a customers car.

Pretty pleased with the fitment. I just need to finish weld it tonight and build the exhaust system so I can get this car out of my shop!



More pictures on my facebook page for subscribers!

Matt
shlammed is offline   Reply With Quote
Old 04-24-2013, 04:39 AM   #323
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,585
Total Cats: 21
Default

Stealth MSM 400+whp setup












Dann
nitrodann is offline   Reply With Quote
Old 04-24-2013, 08:50 AM   #324
Junior Member

Join Date: Mar 2013
Posts: 46
Total Cats: -3
Default

Damn damn damn ! one day i want to be able to do that !

Amazing piece of work mate !
triplezoom is offline   Reply With Quote
Old 04-24-2013, 12:38 PM   #325
Junior Member
iTrader: (2)

Join Date: Mar 2008
Location: Irvine, Ca
Posts: 277
Total Cats: 22
Default

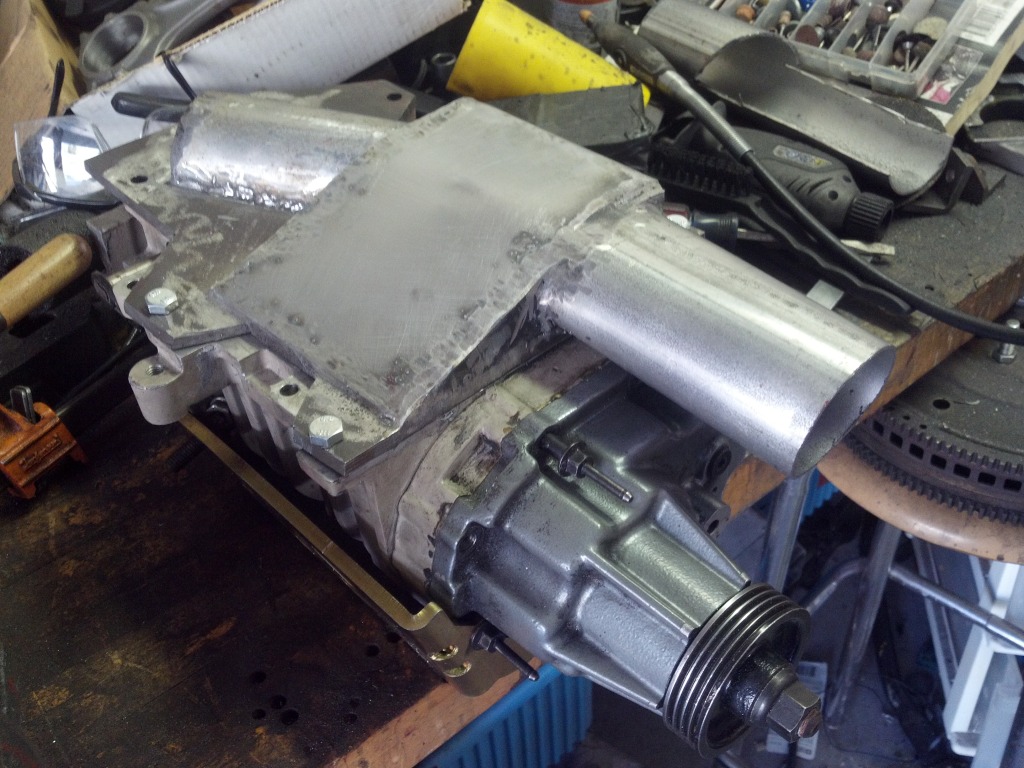

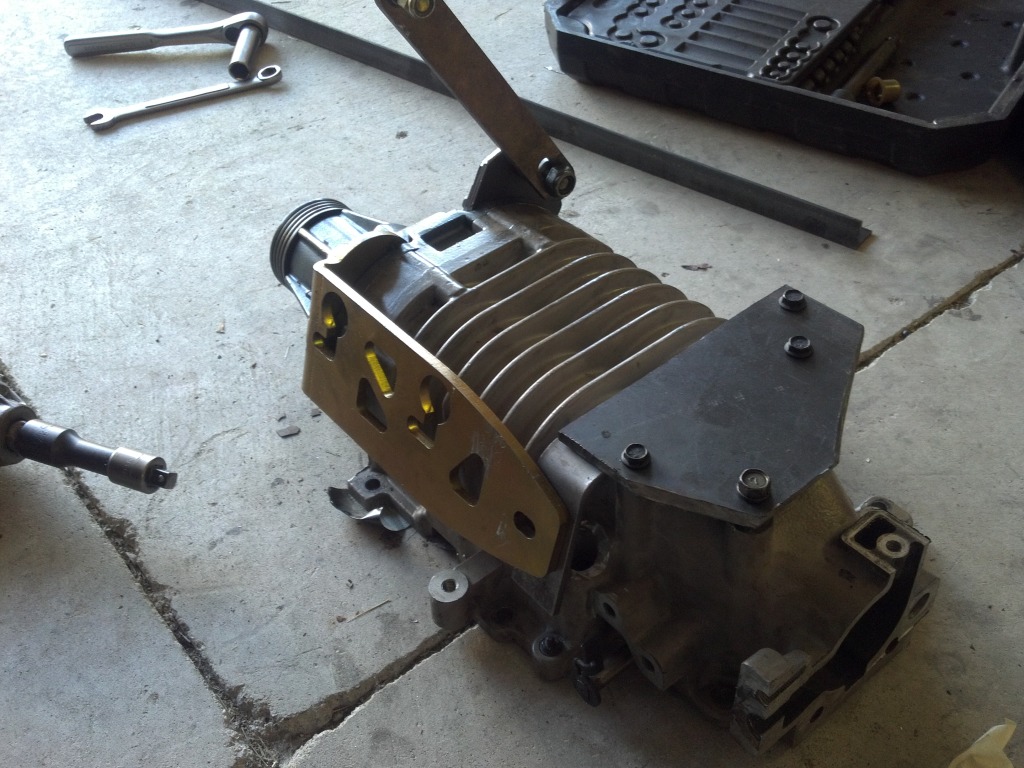

Not as nice as most of the stuff here. Also let the flame war begin for the supercharger content. Modified a Buick M62 to work on my car.

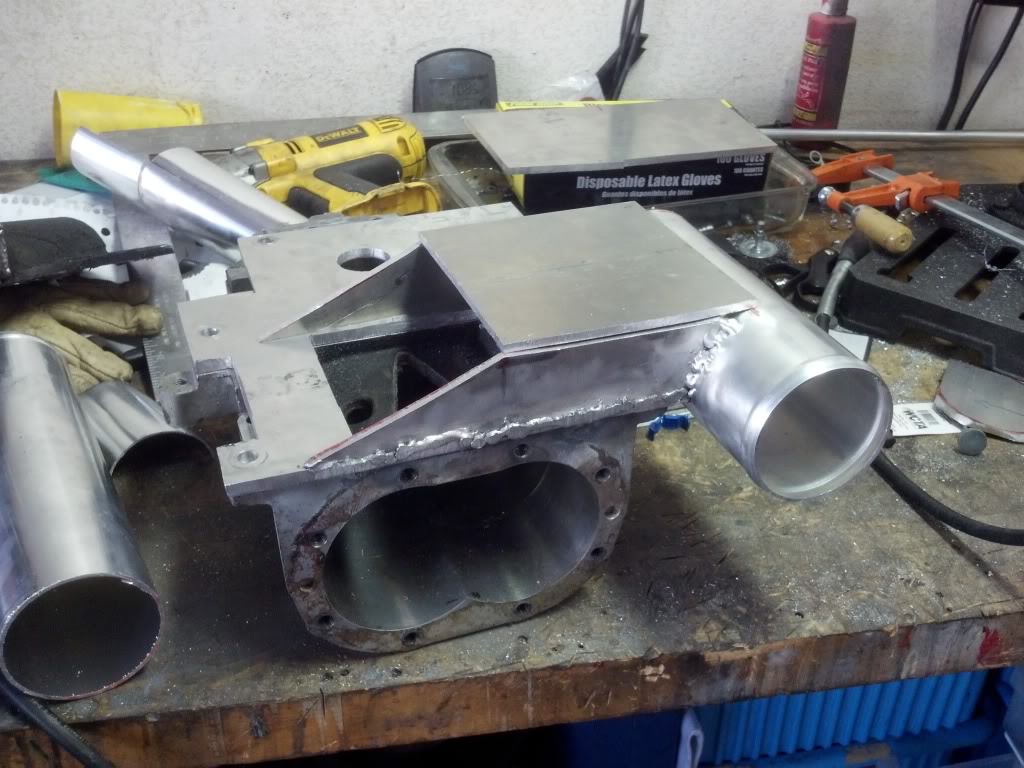

Then decided to learn aluminum and remake the manifold. Beware noob aluminum welds made with a mig spoolgun ahead. Still a lot of work left to do.

cjsafski is offline   Reply With Quote
Old 04-24-2013, 12:48 PM   #326
Senior Member
iTrader: (1)

gorillazfan1023's Avatar

Join Date: May 2010
Location: Harrisburg, Pa
Posts: 582
Total Cats: 8
Default

Quote:
Originally Posted by cjsafski View Post
Not as nice as most of the stuff here. Also let the flame war begin for the supercharger content. Modified a Buick M62 to work on my car.







Then decided to learn aluminum and remake the manifold. Beware noob aluminum welds made with a mig spoolgun ahead. Still a lot of work left to do.

Nice! I also do more "amateur" stuff then most of what gets posted here and it's nice to see more. I've also been wanting to do something similar for awhile so props.
gorillazfan1023 is offline   Reply With Quote
Old 04-24-2013, 07:09 PM   #327
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,035
Total Cats: 247
Default

Any custom stuff is awesome IMO.

But dude, you don't have to quote all his photos.
Erat is offline   Reply With Quote
Old 04-24-2013, 07:22 PM   #328
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 233
Default

Quote:
Originally Posted by cjsafski View Post
Not as nice as most of the stuff here. Also let the flame war begin for the supercharger content. Modified a Buick M62 to work on my car.







Then decided to learn aluminum and remake the manifold. Beware noob aluminum welds made with a mig spoolgun ahead. Still a lot of work left to do.

What these photos?
thenuge26 is offline   Reply With Quote
Old 04-24-2013, 07:29 PM   #329
Senior Member
iTrader: (1)

gorillazfan1023's Avatar

Join Date: May 2010
Location: Harrisburg, Pa
Posts: 582
Total Cats: 8
Default

Quote:
Originally Posted by thenuge26 View Post
What these photos?
Haha

Sorry though.
gorillazfan1023 is offline   Reply With Quote
Old 04-24-2013, 07:30 PM   #330
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,035
Total Cats: 247
Default

Erat is offline   Reply With Quote
Old 04-25-2013, 08:10 AM   #331
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,585
Total Cats: 21
Default



Straight enough for you? One advantage of a super low mount.



Cgeck this, 1.5" straight pipe loosely sitting in, and running through it, it will flow thats for sure


Snaking up through the chassis, great clearance everywhere.


Just tacked, and missing the V band flange between the flexy and the cat, but looking great so far.


Dann
nitrodann is offline   Reply With Quote
Old 04-25-2013, 08:17 AM   #332
Elite Member
iTrader: (4)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,667
Total Cats: 67
Default

Dann , did you weld the manifold for the msm in the vise like your picture had it?
shlammed is offline   Reply With Quote
Old 04-25-2013, 08:20 AM   #333
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,585
Total Cats: 21
Default

It was being final ported in that photo.

I know where you are going with this, it was welded with another 2 flanges bolted to it and I welded on ONLY the little 2" long starter pipes first, and then welded the rest of the manifold to those.

This way you have great access to all the welds that are usually tricky on a small manifold thats so awkward like this. This way you can get 100% nice strong welds with no excuses and you can work on the entry to the runner (porting) on a bench, much easier and better for me anyway.

Dann
nitrodann is offline   Reply With Quote
Old 04-25-2013, 08:21 AM   #334
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,340
Total Cats: 229
Default

Yah, low mounts make downpipes nice.







TurboTim is offline   Reply With Quote
Old 04-25-2013, 08:29 AM   #335
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,922
Total Cats: 93
Default

You two make me want to re-do mine. I had my dad do the cuts while I was at school, lets just say it has some interesting pie cuts in it and it closer to the transmission and the trans tunnel than I would like it. Its also very short so that I could put the o2 sensor and the flex pipe section after the downpipe. Speaking of flex pipes, what kind do we like? Vibrant?
Leafy is offline   Reply With Quote
Old 04-25-2013, 08:30 AM   #336
Elite Member
iTrader: (4)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,667
Total Cats: 67
Default

Tim,

What beltsander is that under your bench?



Quote:
Originally Posted by Leafy View Post
Speaking of flex pipes, what kind do we like? Vibrant?
I like most things vibrant. Only thing i dont like of theirs is their aluminum piping.
shlammed is offline   Reply With Quote
Old 04-25-2013, 09:21 AM   #337
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,340
Total Cats: 229
Default

Quote:
Originally Posted by Leafy View Post
You two make me want to re-do mine. I had my dad do the cuts while I was at school, lets just say it has some interesting pie cuts in it and it closer to the transmission and the trans tunnel than I would like it. Its also very short so that I could put the o2 sensor and the flex pipe section after the downpipe. Speaking of flex pipes, what kind do we like? Vibrant?
I use the smooth liner 6" long vibrant flexes.

Quote:
Originally Posted by shlammed View Post
Tim,

What beltsander is that under your bench?
Craftsman. I can get more specs once I get home if you need it.

Quote:
I like most things vibrant. Only thing i dont like of theirs is their aluminum piping.
Same here, but their stainless exhaust hanger rods are not stainless. They rust just as quickly as their mild hangers. Full suck. They may have changed them since I last bought them, the guys there are very receptive to criticism/comments, and actually seem to care about making a quality product.

I have had no problem with vibrant aluminum pipe
TurboTim is offline   Reply With Quote
Old 04-25-2013, 09:27 AM   #338
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,922
Total Cats: 93
Default

You guys buy exhaust hangers pre-made? I figured you would just buy 304 rod and cut and bend. The 304 rod metal drop I bought for the price of 1 pre made hanger should be able to do like 8 hangers.

For the flex joint, I'm guessing those are the ones labeled turbo flex joints rather than standard? I wasnt aware that you could get a smooth lined flex joint and not one with bellows inside, which is why I was considering not running one.
Leafy is offline   Reply With Quote
Old 04-25-2013, 09:30 AM   #339
Elite Member
iTrader: (4)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,667
Total Cats: 67
Default

Quote:
Originally Posted by TurboTim View Post
I use the smooth liner 6" long vibrant flexes.

Craftsman. I can get more specs once I get home if you need it.

Same here, but their stainless exhaust hanger rods are not stainless. They rust just as quickly as their mild hangers. Full suck. They may have changed them since I last bought them, the guys there are very receptive to criticism/comments, and actually seem to care about making a quality product.

I have had no problem with vibrant aluminum pipe
I havent used their hanger material.... I go to a local metal supermarket and grab some nice stock and some stainless collars (pic below) for my hangers.






Vibrant aluminum piping is fine, but I found some other piping that is 2mm wall vs 1.2mm that welds a lot nicer and has a nicer feel as a part.

Is the belt sander just a store bought 4x36, or something with a little more oomph?
6'' Bench Top Disc Sander: Get the Perfect Finish with Tools at Sears
shlammed is offline   Reply With Quote
Old 04-25-2013, 09:49 AM   #340
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,340
Total Cats: 229
Default

Quote:
Originally Posted by Leafy View Post
You guys buy exhaust hangers pre-made? I figured you would just buy 304 rod and cut and bend. The 304 rod metal drop I bought for the price of 1 pre made hanger should be able to do like 8 hangers.

For the flex joint, I'm guessing those are the ones labeled turbo flex joints rather than standard? I wasnt aware that you could get a smooth lined flex joint and not one with bellows inside, which is why I was considering not running one.
RE:Rod, yeah, I was silly, wanted to spend the extra $ on the vibrant piece with the built in stoppers. Looks like a very nice part. Rusts very quickly/badly. Live & learn.

RE:Flex, the turbo flex is what I meant for the 3" pipe. I use their smooth liner (straight pipe inside the bellows) for my wastegate pipes. I love those. Smooth liner, lost of flex, not stiff. But Lars' did crack on at least 2 of the bellows.


Quote:
Originally Posted by shlammed View Post
I havent used their hanger material.... I go to a local metal supermarket and grab some nice stock and some stainless collars (pic below) for my hangers.

nice! Good idea there.


Quote:
Is the belt sander just a store bought 4x36, or something with a little more oomph?
6'' Bench Top Disc Sander: Get the Perfect Finish with Tools at Sears
I'm fairly certain mine is a 4x36. It's an older model that the one in that picture, the cast body is shaped differently. It is not powerful. I can easily stop the belt.

For the price of the craftsman, I would consider the 1hp 6x48 harbor freight with a stand.
6" x 48" Belt and 9" Disc Combination Sander
