Old 08-04-2010, 09:00 PM   #21
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

Quote:
Originally Posted by Splitime View Post
If someone can confirm if a Capri turbo motor is identical.... i'll rip the cam caps off the one in the garage and see if its healthy.
Capri turbo is Identical.

Bob
bbundy is online now   Reply With Quote
Old 08-04-2010, 09:08 PM   #22
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

Quote:
Originally Posted by gospeed81 View Post
You could retard the intake cam, reducing overlap just the same, while keeping the higher lift B6 cams.

This also means that both cams are retarded compared to the B6T setup, which can be advantageous at higher rpms.
When I measured them myself the B6t cams were the same lift and duration as 5 speed miata cams the difference was the timing and you can make a B6t cam out of your 5 speed Miata cam by installing an adjustable cam gear on a miata cam.

My seat of the pants butt dyno measurements couldn’t tell much difference between the Miata 5 speed cam and a B6t cam. I got better spool by putting a 1.6 automatic cam on the exhaust however which has less lift and less duration.

Bob
bbundy is online now   Reply With Quote
Old 08-04-2010, 10:42 PM   #23
Senior Member
iTrader: (12)

absRTP's Avatar

Join Date: Sep 2009
Location: Montreal, Canada
Posts: 582
Total Cats: 0
Default

good to ear!
absRTP is offline   Reply With Quote
Old 08-04-2010, 11:11 PM   #24
Junior Member
iTrader: (1)

Join Date: Jun 2010
Location: Westover, Md
Posts: 231
Total Cats: 10
Default

Im running a b6t intake cam and miata exhaust cam in my b6t. Picked up 10hp on the dyno. I ran all of the stock cam specs through dyno sim and that was the best setup. Heres the dyno vid. http://www.streetfire.net/video/turb...yno_156375.htm
B6Tfastiva is offline   Reply With Quote
Old 08-05-2010, 01:16 AM   #25
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

Quote:
Originally Posted by B6Tfastiva View Post
Im running a b6t intake cam and miata exhaust cam in my b6t. Picked up 10hp on the dyno. I ran all of the stock cam specs through dyno sim and that was the best setup. Heres the dyno vid. http://www.streetfire.net/video/turb...yno_156375.htm
B6t intake cam and 5 speed miata intake cams are Identical.

Bob
bbundy is online now   Reply With Quote
Old 08-05-2010, 01:30 AM   #26
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

Spreadsheet where I measured 1.6L cams lift at the valve using a dial indicator and a degree wheel. The 207 was a Webbcam grind number.

Actually the automatic exhaust cam has the same lift with less duration both opening and closing were in-between the other cams. Seat of the pants without a dyno I couldn’t tell the difference between the B6t and the 5 speed miata cams. The auto exhaust cam spooled the turbo better and seemed to make more mid range probably at the expense of peak power.

Bob
Attached Files
File Type: xls cams.xls (85.5 KB, 137 views)
bbundy is online now   Reply With Quote
Old 08-05-2010, 09:42 AM   #27
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,868
Total Cats: 1,790
Default

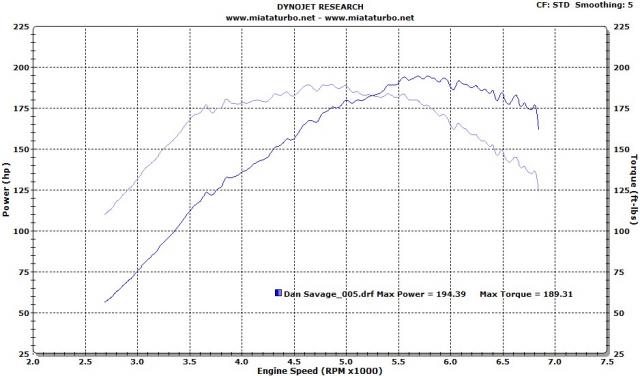

I had a buddy that fit an auto motor with his greddy kit, spooled faster had better peak tq than most greddy kits but had crap for top-end.

10psi IIRC

Attached Thumbnails
B6T 323 GTX Camshaft?-rappadan.jpg

Last edited by Braineack; 10-22-2012 at 12:44 PM.
Braineack is online now   Reply With Quote
Old 08-05-2010, 10:46 AM   #28
Junior Member

Join Date: Jun 2010
Posts: 56
Total Cats: 0
Default

That's about what I would expect from less overlap.
shifty35 is offline   Reply With Quote
Old 08-05-2010, 02:17 PM   #29
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

Quote:
Originally Posted by shifty35 View Post
That's about what I would expect from less overlap.
With the auto cams it is not so much the less overlap it is the reduced duration I think and especially the reduction in lift on the intake cam. run the auto exhaust cam only with the 5 speed intake cam and you get much of the added spool benefit and less of the top end hit was my butt dyno impression.

The auto was tuned for mid range because the transmission tries to keep you there all the time preventing you from having fun.

Bob
bbundy is online now   Reply With Quote
Old 08-06-2010, 11:57 AM   #30
Senior Member
iTrader: (12)

absRTP's Avatar

Join Date: Sep 2009
Location: Montreal, Canada
Posts: 582
Total Cats: 0
Default

absRTP is offline   Reply With Quote
Old 08-06-2010, 12:28 PM   #31
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

Quote:
Originally Posted by absRTP View Post
Now if the site would send me an F'ing verification email... sheez. I want the shifter cables and wing dammit!

Bah... do they authenticate each of this at a time or something? Bah.

Last edited by Splitime; 08-06-2010 at 04:10 PM.
Splitime is offline   Reply With Quote
Old 10-12-2010, 12:14 PM   #32
Junior Member
iTrader: (3)

Join Date: Apr 2008
Location: Marietta, Ga
Posts: 224
Total Cats: -1
Default

Did anyone ever do a B6T exhaust cam, or find out if it had more duration? I'm considering swapping the pistons and exhaust cam into my B6 if I'm going standalone. Low compression w/better cam...
JEMERY is offline   Reply With Quote
Old 10-12-2010, 01:12 PM   #33
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

Quote:
Originally Posted by JEMERY View Post
Did anyone ever do a B6T exhaust cam, or find out if it had more duration? I'm considering swapping the pistons and exhaust cam into my B6 if I'm going standalone. Low compression w/better cam...
Please read the thread agan. A 5 speed miata exhaust cam has the same profile as a B6t. An adjustable cam gear can be used to make them identical.

The diferance in performance is small.

Bob
bbundy is online now   Reply With Quote
Old 10-12-2010, 01:35 PM   #34
Junior Member
iTrader: (3)

Join Date: Apr 2008
Location: Marietta, Ga
Posts: 224
Total Cats: -1
Default

I read it and it contains incorrect info i.e. Capri motor has different rods than gtx. I have read the exhaust cam has different specs can anyone confirm? If anyone has access to Mazda epc that can easily cross part numbers?
JEMERY is offline   Reply With Quote
Old 10-12-2010, 01:49 PM   #35
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by JEMERY View Post
I read it and it contains incorrect info i.e. Capri motor has different rods than gtx. I have read the exhaust cam has different specs can anyone confirm? If anyone has access to Mazda epc that can easily cross part numbers?
As stated by bbundy ON THIS PAGE, the capri motor is identical. Try reading more.
wayne_curr is offline   Reply With Quote
Old 10-12-2010, 02:03 PM   #36
Junior Member
iTrader: (3)

Join Date: Apr 2008
Location: Marietta, Ga
Posts: 224
Total Cats: -1
Default

I read it I also know that to be wrong. But thanks for the input, the Capri rods were NOT the same as gtx rods and I will put money on it.
JEMERY is offline   Reply With Quote
Old 10-12-2010, 02:06 PM   #37
Elite Member
iTrader: (10)

Join Date: Oct 2008
Location: Seattle, Wa
Posts: 1,780
Total Cats: 30
Default

Quote:
Originally Posted by wayne_curr View Post
As stated by bbundy ON THIS PAGE, the capri motor is identical. Try reading more.
Quote:
Originally Posted by JEMERY View Post
I read it I also know that to be wrong. But thanks for the input, the Capri rods were NOT the same as gtx rods and I will put money on it.
I can confirm what ^ is saying. Capri motors use miata rods, not standard B6-T parts. I'm sure there are other small differences.
Jeff_Ciesielski is offline   Reply With Quote
Old 10-12-2010, 02:11 PM   #38
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by Jeff_Ciesielski View Post
I can confirm what ^ is saying. Capri motors use miata rods, not standard B6-T parts. I'm sure there are other small differences.
Are we talking about a turbo capri? I thought a B6t was a B6t.
wayne_curr is offline   Reply With Quote
Old 10-12-2010, 02:15 PM   #39
Junior Member
iTrader: (3)

Join Date: Apr 2008
Location: Marietta, Ga
Posts: 224
Total Cats: -1
Default

All except the rods they are all same miata junk except 323 gtx, which had more desireable "thick" rods. Now does anyone have access to mazda epc to confirm different part numbers on the cams?
JEMERY is offline   Reply With Quote
Old 10-12-2010, 02:20 PM   #40
Elite Member
iTrader: (10)

Join Date: Oct 2008
Location: Seattle, Wa
Posts: 1,780
Total Cats: 30
Default

Quote:
Originally Posted by wayne_curr View Post
Are we talking about a turbo capri? I thought a B6t was a B6t.
Yes. I have a set of b6t pistons that came out of a capri xr-2 which were attached to standard miata rods when I got them.
Jeff_Ciesielski is offline   Reply With Quote
