Default Cspence's wiring tuck. I want.

enginebay4.jpg?

I see this and I just drool. You pop the hood and all you can see is the heart. **** the veins, I wanna see my heart too!

I'm on a quest to clean the bitch up and get rid of all unsightly wiring and vacuum crap.

Here's day 1.


Project84 is offline   Reply With Quote
Old 06-13-2009, 01:59 PM   #2
Junior Member
iTrader: (3)

Join Date: Apr 2009
Location: McDonough Ga.
Posts: 356
Total Cats: -26
Default

Cspence for Car Czar!
-g-
Reverend Greg is offline   Reply With Quote
Old 06-13-2009, 02:15 PM   #3
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

Quote:
Originally Posted by Project84 View Post
I'm on a quest to clean the bitch up and get rid of all unsightly wiring and vacuum crap.
So you're OK with the rusted *** windshield wiper deflector, the uber-gay style-bar, and the doofus chrome rear-view mirror... but you really want the engine bay to shine?
samnavy is offline   Reply With Quote
Old 06-13-2009, 03:19 PM   #4
Senior Member

Join Date: Jun 2006
Location: Orlando FL - UCF
Posts: 688
Total Cats: 1
Default

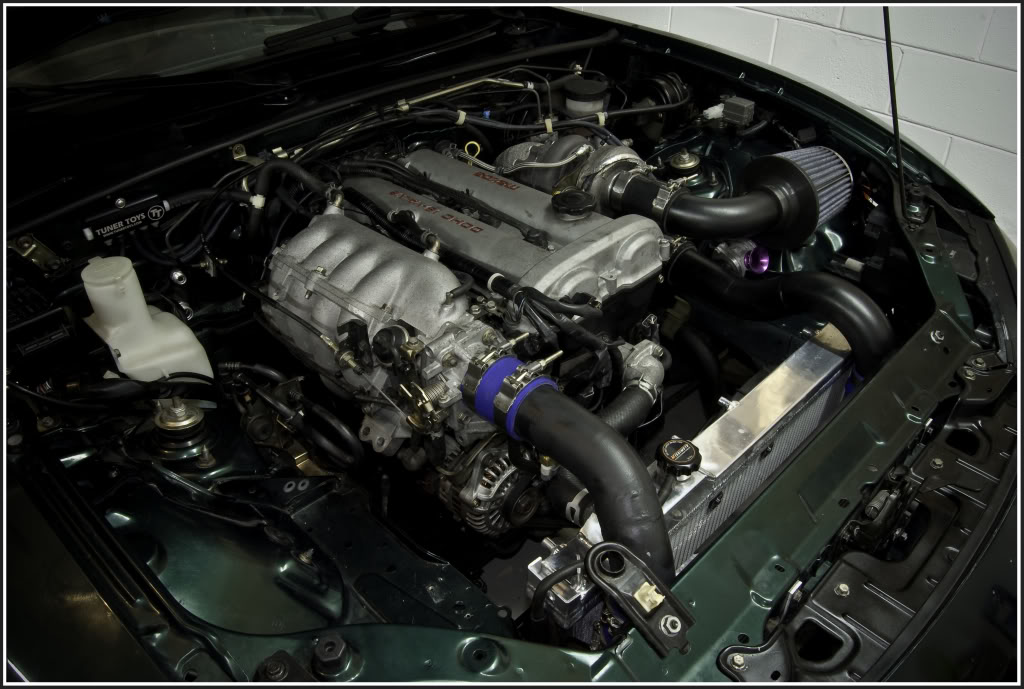

While mine isn't quite as good as his, I'm still fairly happy with it

Name:  DSC_1463-Edit.jpg
Views: 10
Size:  125.2 KB
coastertrav is offline   Reply With Quote
Old 06-13-2009, 03:25 PM   #5
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

I think you could probably re-route some of the added wires (like the blue one) and clean up the bay and it would look 10x better.

Cspence's car doesn't have a lot of things yours does. To accomplish his look, you'll have to sacrifice a few systems. Whether or not that's worth it is up to you.
kotomile is offline   Reply With Quote
Old 06-13-2009, 03:32 PM   #6
Senior Member

Join Date: Jun 2006
Location: Orlando FL - UCF
Posts: 688
Total Cats: 1
Default

Yeah, my car still has cruise control, windshield wipers, and wiper fluid reservoir. Also the NB's have a fuel rail dampener on the pass side.
coastertrav is offline   Reply With Quote
Old 06-13-2009, 03:41 PM   #7
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

Quote:
Originally Posted by kotomile View Post

Cspence's car doesn't have a lot of things yours does. To accomplish his look, you'll have to sacrifice a few systems. Whether or not that's worth it is up to you.
+1. Only way to get that look is to eliminate anything and everything that isn't absolutely necessary. If it's ugly and needed you have to fab a replacement and hide it. (like the radiator overflow bottle Cspence did) If you want any comfort at all you'll never get it that clean.

Good to try and clean yours up but as SamNavy pointed out, you have plenty of other projects that might be more obvious to the casual onlooker.
cueball1 is offline   Reply With Quote
Old 06-13-2009, 07:42 PM   #8
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Meriden, CT
Posts: 2,072
Total Cats: 1
Default

Quote:
Originally Posted by Project84 View Post
I see this and I just drool. You pop the hood and all you can see is the heart. **** the veins, I wanna see my heart too!

I think I see some arteries in there too!

But seriously, my car's PO did one serious tuck, and like Koto and Cueball said, if it was'nt absolutely necessary, it's gone. He also made many custom bits to move stuff out of ones sight. Figure out what can go and have at it!! Thanks for the props!
Cspence is offline   Reply With Quote
Old 06-14-2009, 02:05 AM   #9
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jul 2008
Posts: 602
Total Cats: 0
Default

Quote:
Originally Posted by samnavy View Post
So you're OK with the rusted *** windshield wiper deflector, the uber-gay style-bar, and the doofus chrome rear-view mirror... but you really want the engine bay to shine?
No.

But I use the approach: One thing at a time. Any first and foremost, I'm tired of getting dirty up to my eblows just being under the hood for 30 seconds. I'm also tired of working around stuff, that in most cases could be moved to a more convenient spot or just deleted all together.

In the process of locating/buying OEM side views.

Style bar will be replace by custom bar/cage.

Rusted winshield wiper - 5 minutes and that can/will be fixed.

I should be more focused on getting the car running, but I have no where to put it for a few more weeks (maybe 2-3 months). So other projects are filling the time between now and D-Day.
Project84 is offline   Reply With Quote
Old 06-19-2009, 09:56 AM   #10
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jul 2008
Posts: 602
Total Cats: 0
Default

For Samnavy's sake, I removed the side views because it's better to not have any at all than to have the lame *** chrome ones.

Also removed and sanded wiper arms, sandblasted valve cover (after an hour of hand-sanding and wanting to cry), tucked some wires, cut some others, repaired my wiring harness in about 5 different spots, and moved the blue convoluted tubing (home to my boost sensor hose) to under the intake between the runners.

WOW things are looking about 50% better. Just wish I was man enough to delete the WW resevoir, hide/remove the overflow tank, and cut into the wire loom and delete other wiring. Maybe later.

Pics in a week or so when I've painted and installed the valve cover and wiper arms, and hopefully have put OEM mirrors back on the car by then.

Since the pic of my Barney Car above, I've also deleted the charcoal can and PS.
Project84 is offline   Reply With Quote
Old 06-19-2009, 03:03 PM   #11
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

You don't have to have OEM mirrors, just not those old school chrome things!

Let's see a quick pic now to gauge the progress!
cueball1 is offline   Reply With Quote
Old 06-19-2009, 06:49 PM   #12
Junior Member
iTrader: (4)

Join Date: Dec 2006
Location: Charlotte , nc
Posts: 325
Total Cats: 1
Default

Its also very easy to dump the Evap Canister... and all the vacc hoses and stuff associated with it on top of the RH Shock Tower.

If you ever plan on Going with aftermarket steering wheel. No time like the present to dump the airbag system... Sensors up front etc. Those wires are movable too.

Its not always about removal, just relocation... I know the honda guys remove the fenders and run everything inside the fender wells , the poke into the engine bay when needed....
goodluck
jedduh01 is offline   Reply With Quote
Old 06-19-2009, 07:32 PM   #13
Elite Member
iTrader: (2)

Join Date: Jun 2006
Location: ABQ, NM
Posts: 1,850
Total Cats: -8
Default

The radiator is going to crack soon.
BenR is offline   Reply With Quote
Old 06-20-2009, 12:57 AM   #14
Elite Member
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

I don't care for the tucked look. Cleaned up a bit is fine, but it looks funny with nothing left. Looks like it shouldn't run. I like it to look mechanically and electrically sound.
NA6C-Guy is offline   Reply With Quote
Old 06-20-2009, 01:10 AM   #15
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Meriden, CT
Posts: 2,072
Total Cats: 1
Default

Quote:
Originally Posted by NA6C-Guy View Post
I don't care for the tucked look. Cleaned up a bit is fine, but it looks funny with nothing left. Looks like it shouldn't run. I like it to look mechanically and electrically sound.
Cspence is offline   Reply With Quote
Old 06-20-2009, 01:17 AM   #16
Elite Member
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

Everyone has their own taste. If I saw that car, my first thought would be that you were part way into an engine swap or something Not that it doesn't look good and all, I just like to have at least a few hoses and wires. I did strip my Turbo II RX7 pretty much to the essentials which only left a few hoses and wires. It also ran like horrid ***.

It may also have something to do with you not having the barn doors. Makes it look even that much more empty.
NA6C-Guy is offline   Reply With Quote
Old 06-29-2009, 09:04 AM   #17
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jul 2008
Posts: 602
Total Cats: 0
Default

I'll get update pics soon fellas! I didn't do as well as I had hoped.
