Old 05-12-2011, 10:14 PM   #1
Want fries with that?
Thread Starter
iTrader: (3)

Join Date: Oct 2009
Location: Twin Cities, Minnesota
Posts: 2,023
Total Cats: -1
Default CXracing 52mm Aluminum Radiator review

Bit the bullet and purchased the CXracing radiator, thought I'd write a review for people thinking of doing the same.

The radiator fits very well. By very well, I mean it went into place with relative ease and all the mounts are 100% spot on. It is, however, monstrously large (obviously). The upper radiator hose pinches on the charge pipe, though my pipe routing is laughably bad. The only problem I had with installation is that the lower radiator mount's holes were not big enough. Five minutes with the drill took care of that though, no big deal.

This radiator cools phenomenally. Sat still until temps hit 200 (According to TS). After 1 mile of driving, temp was down to 186 where it sat. Has NO problems at idle or at speed. 30 seconds with the fan on brings it down from 200 to 193ish degrees.

I cannot comment on the fan mounts since I am running an aftermarket fan (Bought it from a friend. Unknown brand, was simply labeled "aftermarket puller fan). I just built some custom fan mounts out of a piece of closet and some bolts I had lying around. Based on the quality of this thing and how well it fit though, I would assume that they're just fine as well.

Pics:

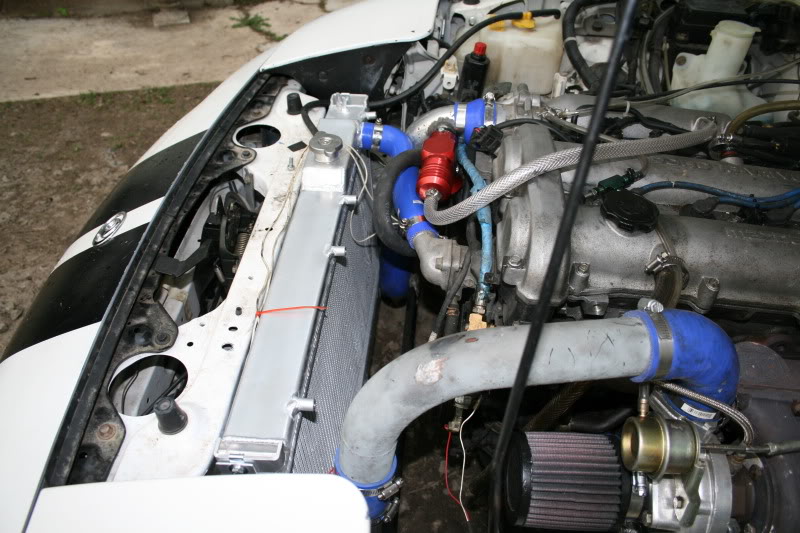

Name:  Picture002-7.jpg
Views: 160
Size:  95.2 KB

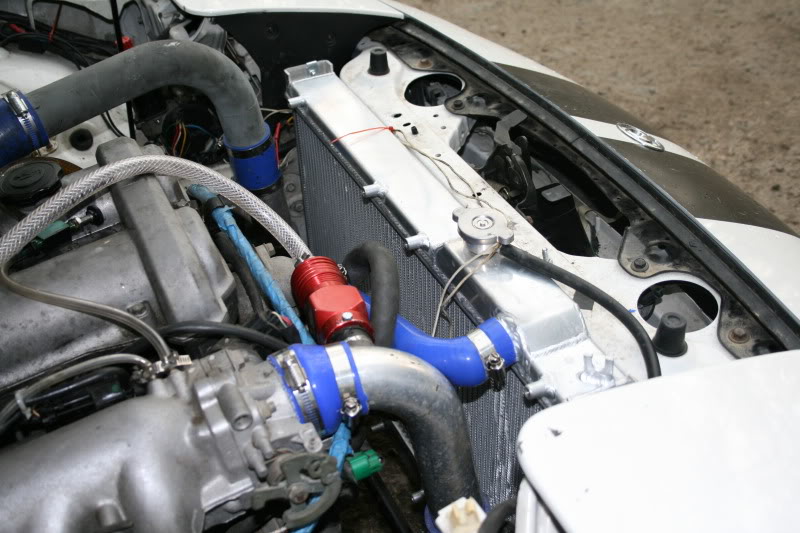

Name:  Picture004-8.jpg
Views: 133
Size:  85.1 KB

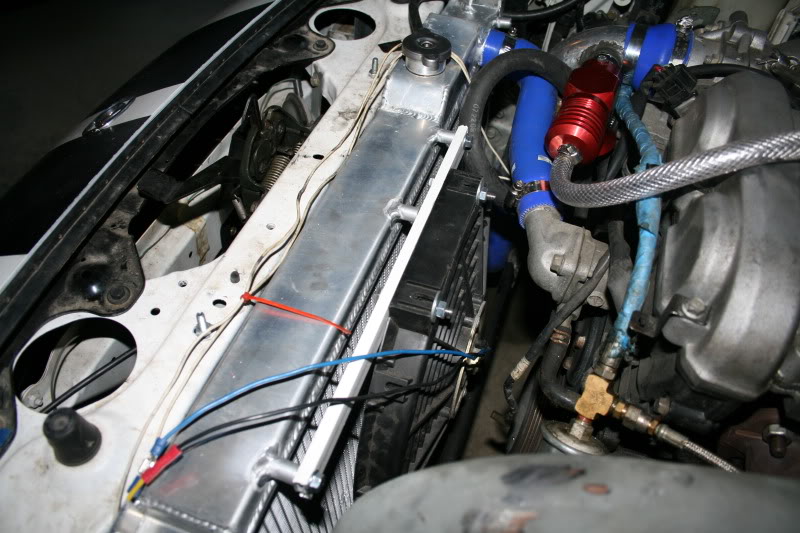

Name:  Picture008-8.jpg
Views: 140
Size:  92.6 KB

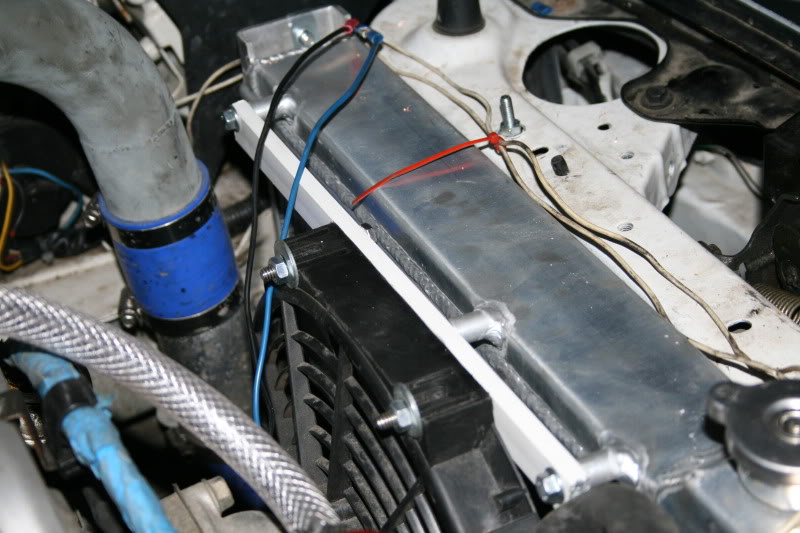

Name:  Picture010-5.jpg
Views: 128
Size:  77.7 KB

Overall a great purchase. Definitely worth the 130 dollar asking price. I would go so far as to say I would pay 200 for this thing.
rider384 is offline   Reply With Quote
Old 05-12-2011, 10:22 PM   #2
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

I have it too So much cheap win. Slave for me ye chinamen!
Faeflora is offline   Reply With Quote
Old 05-13-2011, 12:05 AM   #3
Senior Member
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

Mines worked great for years, Its been through a lot too, its bent all to heck from 2010 MC at Infineon when I lost my rad scoop under the car and it crushed into the rad. But still no leaks to this day.
Gotpsi? is offline   Reply With Quote
Old 05-13-2011, 08:53 AM   #4
Senior Member
iTrader: (10)

Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4
Default

I've run mine for the last 2 years. With slim fans and shrouding around fans....
Only 1 fan ever has to turn on.
Preluding is offline   Reply With Quote
Old 05-13-2011, 11:17 AM   #5
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by Preluding View Post
I've run mine for the last 2 years. With slim fans and shrouding around fans....
Only 1 fan ever has to turn on.
Where'd you get your slim fans and shrouding?

I'm looking for a package kit. I don't want to DIY because I will make it look like suck.
Faeflora is offline   Reply With Quote
Old 05-13-2011, 01:08 PM   #6
Senior Member
iTrader: (10)

Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4
Default

Quote:
Originally Posted by Faeflora View Post
Where'd you get your slim fans and shrouding?

I'm looking for a package kit. I don't want to DIY because I will make it look like suck.
Right from CXracing.

http://www.cxracing.com/mm5/merchant...ory_Code=MIATA
Preluding is offline   Reply With Quote
Old 05-13-2011, 01:44 PM   #7
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by Preluding View Post
Hmm is that one much better than the mishimoto package?

http://cgi.ebay.com/ebaymotors/MISHI...Q5fAccessories

It's more $$$!
Faeflora is offline   Reply With Quote
Old 05-13-2011, 01:56 PM   #8
Senior Member
iTrader: (10)

Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4
Default

Quote:
Originally Posted by Faeflora View Post
Hmm is that one much better than the mishimoto package?

http://cgi.ebay.com/ebaymotors/MISHI...Q5fAccessories

It's more $$$!
Yes... the link i put up comes with the radiator itself as well as the shrouding
The link you put up is the shrouding only for $185.00

ninja edit: the bolt up locations on the michimoto one doesn't look like it would match up to the cxracing rad.
Preluding is offline   Reply With Quote
Old 05-14-2011, 02:07 PM   #9
Senior Member
iTrader: (2)

Join Date: Nov 2007
Location: Saint Paul, MN
Posts: 1,295
Total Cats: 22
Default

So rider, when are we going to meet up? :P
Der_Idiot is offline   Reply With Quote
Old 05-14-2011, 02:17 PM   #10
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

You don't want that shroud if your tracking the car. I made a shroud out of plastic and the car immediately overheated. I took it off, zip tied on one fan and it was back to 190*f for the entire 98*f ambient session.
hustler is offline   Reply With Quote
Old 05-14-2011, 07:12 PM   #11
Senior Member
iTrader: (10)

Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4
Default

Quote:
Originally Posted by hustler View Post
You don't want that shroud if your tracking the car. I made a shroud out of plastic and the car immediately overheated. I took it off, zip tied on one fan and it was back to 190*f for the entire 98*f ambient session.
Good to know, very good to know...it would give me a little more room to work if I could bolt the fan directly to the rad too.

Thanks
Preluding is offline   Reply With Quote
Old 05-14-2011, 07:50 PM   #12
Elite Member
iTrader: (10)

rccote's Avatar

Join Date: Jan 2008
Location: Buffalo NY
Posts: 1,595
Total Cats: 17
Default

Makes sense, that shroud is blocking off a lot of air flow and basically forcing it through a smaller opening.
rccote is offline   Reply With Quote
Old 05-14-2011, 08:39 PM   #13
Senior Member
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

I dont run a fan at all, the only time I've had a problem was a red flag and all cars stopped on the track, I have everything sealed so all the air from the front goes through the IC, oil Cooler, then the rad.
Gotpsi? is offline   Reply With Quote
Old 05-14-2011, 08:52 PM   #14
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by rccote View Post
Makes sense, that shroud is blocking off a lot of air flow and basically forcing it through a smaller opening.
Lot's of OEM's have rubber flapper doors on their shrouds to help flow air without the fans on. I like to tell newbs to go 70mph down the road and stick their hand out the window, and then turn the fans on in your car and see how much air they move with your hand.

The first time I ran the ducting on the orifice at TWS it blew out the rivets in the plastic at ~150mph, lol.
hustler is offline   Reply With Quote
Old 05-15-2011, 11:36 AM   #15
Newb
iTrader: (1)

Join Date: Nov 2010
Posts: 21
Total Cats: 0
Default

Where did you get the radiator for $130? I don't see any on ebay.
VIPER7016 is offline   Reply With Quote
Old 05-15-2011, 01:36 PM   #16
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by VIPER7016 View Post
Where did you get the radiator for $130? I don't see any on ebay.
Stop searching for butt plugs and type

miata radiator


into the ebay search box.
