Default Does such a device exist?

I have a nice set of BBS RAs that I'm looking to stick on my Miata. The only problem is that my current studs don't stick out far enough to get ANY safe thread on... Probably half of a conventional nut, at best.

So, I'm looking for... ****, how do I describe this...

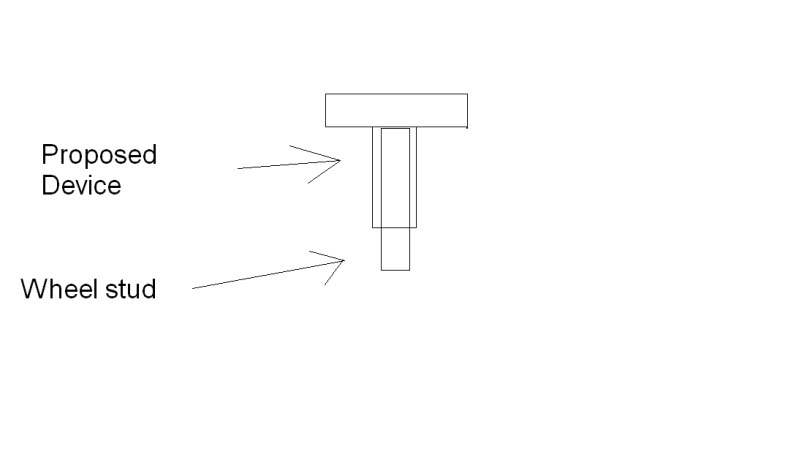

MS paint FTW!

Name:  IdosayoldchapthatIhopesomethinglike.jpg
Views: 0
Size:  10.6 KB

The "proposed device" is threaded on the inside and snugly fits the wheel stud, though not nearly as "puffy" as a conventional nut, with the hex head on the outside. Kind of like a cap on a bottle of water, only much longer and inflated at the end to hold the wheel on.

I don't really know how to describe it any better, does such a thing exist if you get what I'm talking about?
rider384 is offline   Reply With Quote
Old 04-26-2010, 11:33 PM   #2
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

I would suggest getting extended studs instead
Techsalvager is offline   Reply With Quote
Old 04-26-2010, 11:33 PM   #3
Want fries with that?
Thread Starter
iTrader: (3)

Join Date: Oct 2009
Location: Twin Cities, Minnesota
Posts: 2,023
Total Cats: -1
Default

Quote:
Originally Posted by Techsalvager View Post
I would suggest getting extended studs instead
100 bucks all around, and if it's safe I'd just assume run a 25 dollar solution.

EDIT: Much like these:
http://www.google.com/products/catal...CAsQ8wIwATgK#p
Anyone run these before?
rider384 is offline   Reply With Quote
Old 04-26-2010, 11:44 PM   #4
Senior Member
iTrader: (8)

Join Date: Mar 2006
Location: Indianapolis, IN
Posts: 758
Total Cats: 5
Default

They make other narrow lugnuts, often called "tuner lugs" that major autoparts stores carry. You need to make sure that whatever lugnut you are using has the same taper as the holes on your wheels.
boileralum is offline   Reply With Quote
Old 04-26-2010, 11:55 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,793
Default

splined lug nuts.
Braineack is offline   Reply With Quote
Old 04-26-2010, 11:56 PM   #6
Junior Member
iTrader: (3)

Join Date: Apr 2009
Location: McDonough Ga.
Posts: 356
Total Cats: -26
Default

Quote:
Originally Posted by Techsalvager View Post
I would suggest getting extended studs instead
All of this....If you run an extended lug nut like those in the link,it will only make the problem worse,enertia will cause them to work loose faster.
(G)
Reverend Greg is offline   Reply With Quote
Old 04-26-2010, 11:57 PM   #7
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,687
Total Cats: 216
Default

:/

...
Full_Tilt_Boogie is offline   Reply With Quote
Old 04-27-2010, 11:43 AM   #8
Junior Member

Join Date: Jan 2008
Location: Ashburn, VA
Posts: 444
Total Cats: 0
Default

Quote:
Originally Posted by Reverend Greg View Post
All of this....If you run an extended lug nut like those in the link,it will only make the problem worse,enertia will cause them to work loose faster.
(G)
Huh? I don't see how inertia would cause an extended lug nut to loosen. First of all, you're not factoring in material, thermal expansion, heat dissipation, contact patch, pitch, etc. of both the stud and the lug nut. There's so much that you can factor in, that I honestly don't know how you can state that inertia will loosen them.

Also, you can factor in when the lugs were put on. Was it immediately after a series of hot runs in an autox/track situation?
saint_foo is offline   Reply With Quote
Old 04-27-2010, 11:53 AM   #9
Junior Member
iTrader: (3)

Join Date: Apr 2009
Location: McDonough Ga.
Posts: 356
Total Cats: -26
Default

Well...You would have the larger portion as far away from the contact of the few threads that are holding it as the weight can be,causing the nut/stud to deflect.Coupled with vibration,Loose nut.I deal with fasteners all day long,Thats what would happen,you need to have at least 1.5x the dia. of the threads sticking out the other side of the nut or engaged in a fastener.Next time try a little more polite tone.Oh Btw that would be inertia
(G)

Last edited by Reverend Greg; 04-27-2010 at 12:24 PM.
Reverend Greg is offline   Reply With Quote
Old 04-27-2010, 12:19 PM   #10
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Extended studs or your next thread is "Guys, my wheels came off on the highway".
kotomile is offline   Reply With Quote
Old 04-27-2010, 03:45 PM   #11
Junior Member

Join Date: Jan 2008
Location: Ashburn, VA
Posts: 444
Total Cats: 0
Default

Quote:
Originally Posted by Reverend Greg View Post
Well...You would have the larger portion as far away from the contact of the few threads that are holding it as the weight can be,causing the nut/stud to deflect.Coupled with vibration,Loose nut.I deal with fasteners all day long,Thats what would happen,you need to have at least 1.5x the dia. of the threads sticking out the other side of the nut or engaged in a fastener.Next time try a little more polite tone.Oh Btw that would be inertia
(G)
Sorry if I came across as impolite. Humble apologies.

I'm picturing extended studs w/ tapered "tuner lugs" (i.e., those that can reach into those pain-in-the-butt openings on fancy wheels. A lot of the tuner lugs are longer than the stock "acorn nuts", giving a longer length of contact thread patch.

I think we're both in agreement, I was just picturing extended studs + tuner lugs.
saint_foo is offline   Reply With Quote
Old 04-27-2010, 03:57 PM   #12
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,906
Total Cats: 109
Default

I know that some sanctioning race bodies require a longer stud with appropriate lug nuts. I thought the reason was to have more threads contacting the nut, and so inspectors could see the stud. I find it hard to believe that having a longer stud would not be safe, as long as all components fit properly.
miata2fast is offline   Reply With Quote
Old 04-29-2010, 03:20 PM   #13
Newb

Join Date: May 2008
Location: Detroit area
Posts: 15
Total Cats: 0
Default

Quote:
Originally Posted by rider384 View Post
100 bucks all around, and if it's safe I'd just assume run a 25 dollar solution.

EDIT: Much like these:
http://www.google.com/products/catal...CAsQ8wIwATgK#p
Anyone run these before?
The nuts in that link are for drag race wheels like Weld 5 stars or Draglites.
cASe SenSiTive is offline   Reply With Quote
Old 04-29-2010, 06:25 PM   #14
Junior Member
iTrader: (3)

Join Date: Apr 2009
Location: McDonough Ga.
Posts: 356
Total Cats: -26
Default

Quote:
Originally Posted by saint_foo View Post
Sorry if I came across as impolite. Humble apologies.

I'm picturing extended studs w/ tapered "tuner lugs" (i.e., those that can reach into those pain-in-the-butt openings on fancy wheels. A lot of the tuner lugs are longer than the stock "acorn nuts", giving a longer length of contact thread patch.

I think we're both in agreement, I was just picturing extended studs + tuner lugs.
Sorry Myself I was a little bitchy that day...My cubscouts are kickin' My ***
Longer studs should be a required thing on any Boosted Miata,IMO.
(G)
Reverend Greg is offline   Reply With Quote
