Default Don't need no stinkin' gauges...

I used to have gauges in the center eyeball vents, but you can only have two of them there..
Then, I wanted a couple more, and realized the car would look like a friggin' carnival ride with all those gauges. Not to mention the fact that it would attract unwanted attention.
So, this has been my project for the past couple of weeks:

I now have 8 "gauges" in a single din display panel...

Godless Commie is offline   Reply With Quote
Old 08-15-2011, 11:03 PM   #2
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jun 2009
Location: Istanbul, Turkey
Posts: 2,050
Total Cats: 433
Default

And, here's how I set it up:

Godless Commie is offline   Reply With Quote
Old 08-15-2011, 11:15 PM   #3
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jun 2009
Location: Istanbul, Turkey
Posts: 2,050
Total Cats: 433
Default

I got the display panel and the controller (more on that later) as a kit.
Comes with standard push buttons, but I found some cool metal ones, with green LEDs built in. I simply used resistors (not a pwm) to dim the LEDs to my liking, and the result was satisfactory.
For the panel, I took measurements, and had a bunch of plexiglass panels laser cut.
I drilled countersunk holes in one panel so I could attach the display with screws, and then I just glued a second panel on top of it to cover the screws, for a clean look.

There are 8 parameters you can choose to be displayed, and you can take logs as you wish via a serial cable.

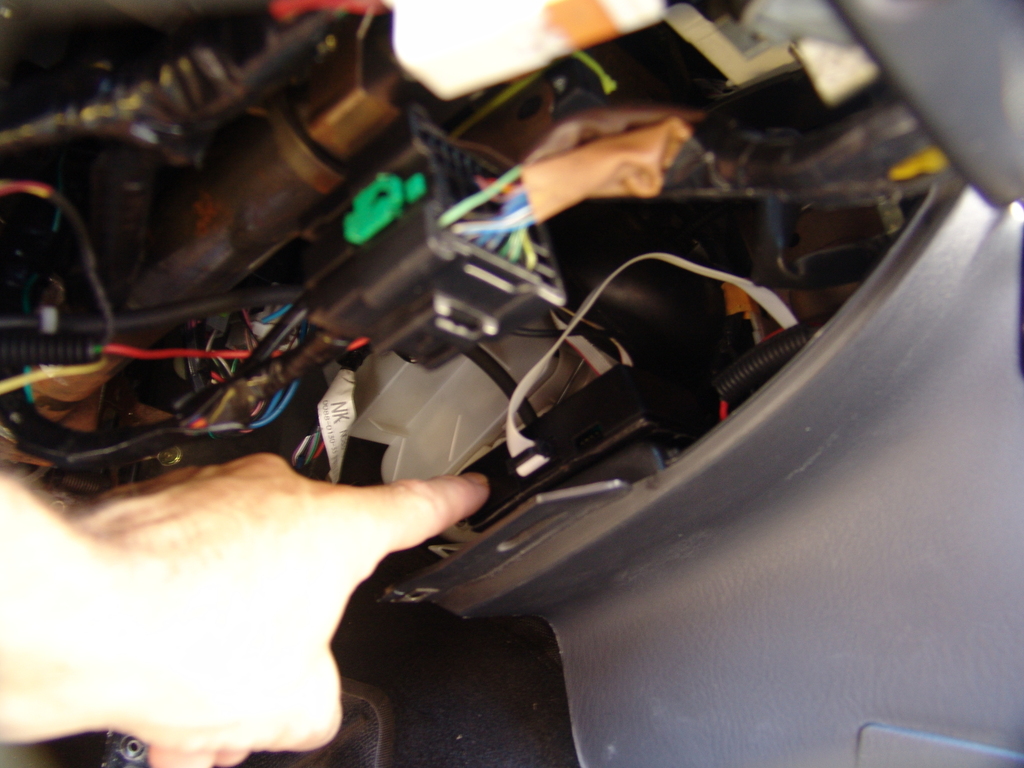

The control box is located right by my left knee, secured with double sided tape on the back of the dash trim:

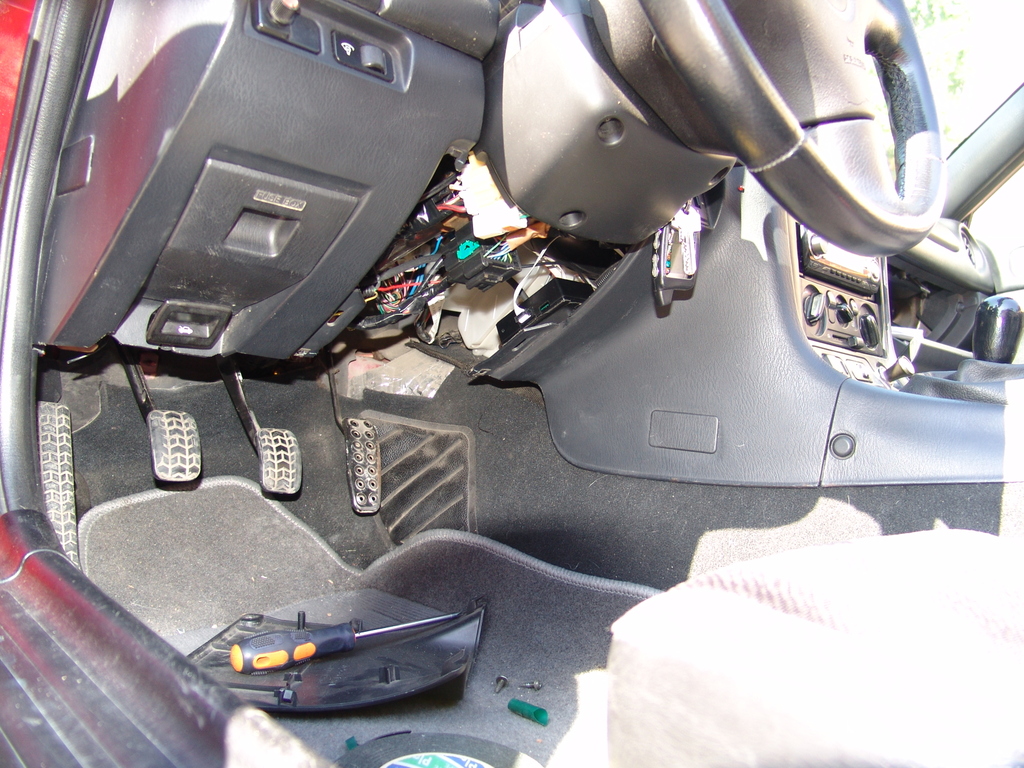

Here is a "wider" shot, to give a better idea:

Attached Thumbnails
Don't need no stinkin' gauges...-dsc02009hs.jpg   Don't need no stinkin' gauges...-dsc02010da.jpg
Godless Commie is offline   Reply With Quote
Old 08-15-2011, 11:20 PM   #4
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jun 2009
Location: Istanbul, Turkey
Posts: 2,050
Total Cats: 433
Default

There are audible and visual warnings, as well as a shift light.

I set up all temps in Celsius, pressure in psi, and vacuum in in/hg. That's what I am used to.

The whole thing cost just about 300 bucks - I already had a WB, and an EGT probe.


Just wanted to share.. Thought it could come in handy for someone like me who does not want their car to look like a carnival ride..
And I can log it all..
Godless Commie is offline   Reply With Quote
Old 08-15-2011, 11:49 PM   #5
Senior Member
iTrader: (20)

yellowihss's Avatar

Join Date: Dec 2008
Location: Austin, TX
Posts: 738
Total Cats: 7
Default

Links to where you got everything?
yellowihss is offline   Reply With Quote
Old 08-15-2011, 11:52 PM   #6
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jun 2009
Location: Istanbul, Turkey
Posts: 2,050
Total Cats: 433
Default

Godless Commie is offline   Reply With Quote
Old 08-16-2011, 12:00 AM   #7
Junior Member
iTrader: (2)

Join Date: Jan 2011
Location: Columbus Ohio
Posts: 259
Total Cats: 4
Default

i have to say the end results look pretty good but if you run a ms you can just buy that megaviewer thing and it does the same thing w/out all that extra setup
you just plug it into the box (from what i understand)
also, all that info down there is awesome but it's out of your peripheral vision - so if you are trying to glance over and see your afr or boost at wot for just a micro sec, you are now looking down and possibly crashing.....
cpolly69 is offline   Reply With Quote
Old 08-16-2011, 04:51 AM   #8
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by cpolly69 View Post
i have to say the end results look pretty good but if you run a ms you can just buy that megaviewer thing and it does the same thing w/out all that extra setup
you just plug it into the box (from what i understand)
http://www.youtube.com/watch?v=suXOJ...eature=related
also, all that info down there is awesome but it's out of your peripheral vision - so if you are trying to glance over and see your afr or boost at wot for just a micro sec, you are now looking down and possibly crashing.....
Godless Commies setup is far far superior to MegaLogViewer.

I know I have a MLV and it's not very good.

GC, that's a great job and a very clean install (which seems to be par for the course with you!)
richyvrlimited is offline   Reply With Quote
Old 08-17-2011, 06:20 PM   #9
Newb

Join Date: Dec 2009
Posts: 12
Total Cats: 0
Default

thats awesome to have all those gauges in a Din spot!
splzero is offline   Reply With Quote
Old 08-17-2011, 07:17 PM   #10
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jun 2009
Location: Istanbul, Turkey
Posts: 2,050
Total Cats: 433
Default

Quote:
Originally Posted by richyvrlimited View Post
Godless Commies setup is far far superior to MegaLogViewer.

I know I have a MLV and it's not very good.

GC, that's a great job and a very clean install (which seems to be par for the course with you!)
Thank you. I try.
Godless Commie is offline   Reply With Quote
Old 08-17-2011, 07:30 PM   #11
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jun 2009
Location: Istanbul, Turkey
Posts: 2,050
Total Cats: 433
Default

Quote:
Originally Posted by cpolly69 View Post
also, all that info down there is awesome but it's out of your peripheral vision - so if you are trying to glance over and see your afr or boost at wot for just a micro sec, you are now looking down and possibly crashing.....
Actually,no.

There are warnings for everything you want to display there. If you are reaching a threshold you have set up for, say, the coolant temp, a loud beep and bright LED comes on and the screen flashes the (for example) the coolant temp...
There are two warning thresholds for oil pressure; one for overall pressure level, another one for 3500 RPM and above.
There's also a shift light.

Also, if I had eight gauges spread all over the car, keeping an eye on them would require an assistant. And, that would be my wife.
Then I would have no need for any gauges. She does not let me go over 60 mph when she is in the car.

Every once in a while I pull up the AFR screen and watch that for abnormalities, that's all. Stays pretty much in the 12s under boost, and all's good.
Godless Commie is offline   Reply With Quote
Old 08-17-2011, 10:03 PM   #12
Senior Member
iTrader: (1)

Join Date: Apr 2007
Location: North Jersey
Posts: 721
Total Cats: 0
Default

very awesome. i wish i had the time...or the ambition....or the intelligence....to do something like this.
budget racer is offline   Reply With Quote
Old 08-17-2011, 11:13 PM   #13
Junior Member

Join Date: Jun 2010
Location: South Jersey
Posts: 152
Total Cats: 3
Default

Is there a link to buy this? I can't read whatever language it's in.

Thanks!
thegrapist is offline   Reply With Quote
Old 08-18-2011, 02:23 AM   #14
Junior Member
iTrader: (3)

Join Date: Oct 2010
Posts: 201
Total Cats: 2
Default

great work!
samwu8k is offline   Reply With Quote
Old 08-18-2011, 11:26 AM   #15
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

Quote:
Originally Posted by thegrapist View Post
Is there a link to buy this? I can't read whatever language it's in.

Thanks!
What he said, although i admit that i haven't tried Google translator yet.
concealer404 is offline   Reply With Quote
Old 08-18-2011, 06:10 PM   #16
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jun 2009
Location: Istanbul, Turkey
Posts: 2,050
Total Cats: 433
Default

The site happens to be in Turkish.
OK then, I will translate and paste the website content here.

For the record, I have no affiliation with the guy who builds and sells the display kits.
Godless Commie is offline   Reply With Quote
Old 08-18-2011, 08:44 PM   #17
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jun 2009
Location: Istanbul, Turkey
Posts: 2,050
Total Cats: 433
Default

* MaxiDisplay II *





What is MaxiDisplay, what does it do..



MaxiDisplay displays a total of 8 important parameters on the LCD screen and provides warnings - both audible and visual – at levels set by the user.

Since MaxiDisplay communicates directly with the sensors, the response is instantaneous. The optional Windows based software allows the user to display live data on a computer screen, and logs can be taken, as well.

MaxiDisplay is designed, programmed and manufactured by Hakan Caliskan.

Customization of the MaxiDisplay is possible to a certain extent, the intro screen may also be customized.

Please read the following:
Since the product is semi-custom in nature, delivery takes up to 3-4 days.

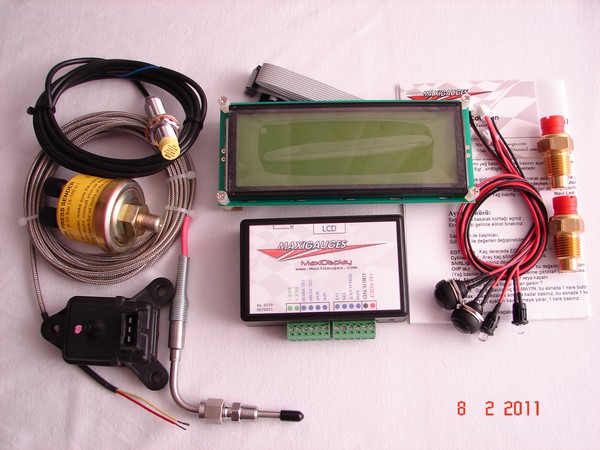

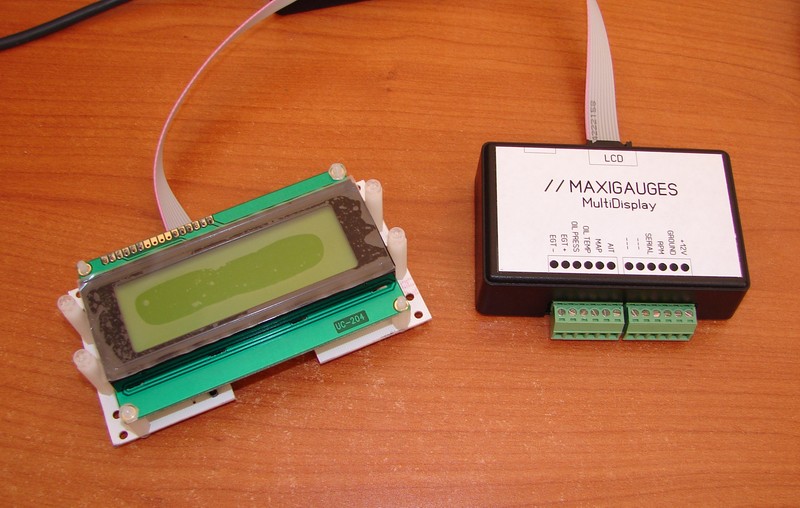

Kit Contents:
* Main control Unit
* LCD Screen and ribbon cable
* LEDs and Buttons (Red LED for alarm, Blue LED for the shift light)
* Yellow LED (used in certain applications, not available in every package. Used for fuel gauge, etc.)
* Coolant temp sensor (provided with the kit, free of charge, if needed)
* Oil temp sensor (provided with the kit, free of charge, if needed)
* Rs-232 serial connection cable (optional)
* Windows logging software (optional)
* User and installation manual



Pricing:
4*20 Normal LCD: $260 plus s/h. Outside measurements: 9.8cm x 6cm
4*20 Large LCD: $280 plus s/h. Outside measurements: 14.6cm x 6.2cm
4*20 Huge LCD: $330 plus s/h. Outside measurements: 18.2cm x 9cm


OPTION 1: Serial Log cable and Windows software $15
*as long as Option 2 is not selected serial out is present. Option 1 is for the serial cable and software.

OPTION 2: A relay controlled output instead of the serial out $ 35
Examples for Option 2: NOS CONTROL OUTPUT, INTERCOOLER SPRAY OUTPUT, FAN CONTROL, etc, etc…
* The ability to run the fan(s) or water spray over a certain temp and rpm level.
* The ability to activate NOS over a certain boost level + rpm and TPS value.
* The ability to activate exhaust bypass over a certain level of boost + rpm.

* Installation is not included.
* Guaranteed for 2 years.


What information is available with MaxiDisplay ?
NOTE: MaxiDisplay does not communicate with the ECU OBDII port. It communicates directly with the sensors.

The following information may be displayed in a fast and accurate manner:
Oil Pressure (oilP)
Oil Temp (oilT)
Intake air temp (Ait)
Intercooler temp (Ict)
Intercooler Efficiency% (Ice) (Input and output should be monitored simultaneously)
Coolant temp (Wts)
Rpm (Rpm)
Exhaust Temp (Egt)
Air-fuel wideband (Afr)
Boost-Vacuum (Map)
Throttle position (Tps)
İnjector duty cycle (Duty)
Volts (Batt)
Outside temp (OutT)
Fuel Pressure (FuelP)
Serial out (Datalog)
Speed in certain applications (Speed)
Fuel gauge in certain applications (Fuel) (float)

*MaxiDisplay has 8 inputs, excluding the serial out. The user needs to choose the desired inputs from the list. (Please contact me for your preferences)



Alarms can be defined:
* Alarms are important. Think about it: we should be looking ahead at full throttle, instead of the gauges. You can only catch a glimpse of the gauges either when you just get on, or off the gas. So, what happens in between?
The pistons of a 4 cylinder engine move up and down 100 times a second at 6000 rpm. This should give you an idea how little time you have to react in case something goes wrong.
No additional cost for the alarms.

2 or 3 LEDs and simultaneous audible alarms are used for:
Egt Alarm,
Shift Light,
Boost Alarm,
Coolant temp, Oil temp, Oil pressure alarms, etc...



Sensors:
* Oil and Coolant temp sensors come with the kit.
* Act, Oil pressure, EGT probe (if needed for the setup) should be purchased separately.
* Wideband sensor and its controller should be purchased separately.
Example: Innovate LC-1 wideband, AEM wideband (with their respective controllers)
* Data such as Rpm, Tps, Duty Cycle and Boost (Map) are collected from the sensors on the engine. No additional sensors are required for these functions.

In cases where the vehicle is not equipped with a MAP sensor, that should be purchased separately, as well, to read boost.
We try to use all the existing sensors to save money for the user.




LCD dimensions:

4*20 Normal LCD
Outside measurements: 9.8cm x 6cm
Active Display Measurements: 7.6cm x 2.6cm

4*20 Large LCD
Outside measurements:14.6cm x 6.2cm
Active Display Measurements:12.5cm x 4.3cm

4*20 Huge LCD
Outside measurements: 18.2cm x 9cm
Active Display Measurements: 14.7cm x 6.5cm

normal, buyuk (large) and kocaman (huge) LCD displays:





Delivery:
Maxidisplay is shipped within 3-4 days.
Custom orders may take longer.



Examples:
Please see http://www.maxigauges.com/ar-ge.html for sample pictures and videos.

Normal LCD

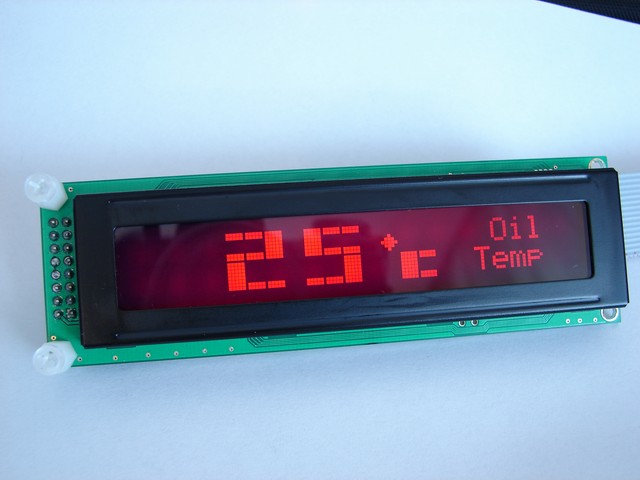

2*24 red LCD (vtec)

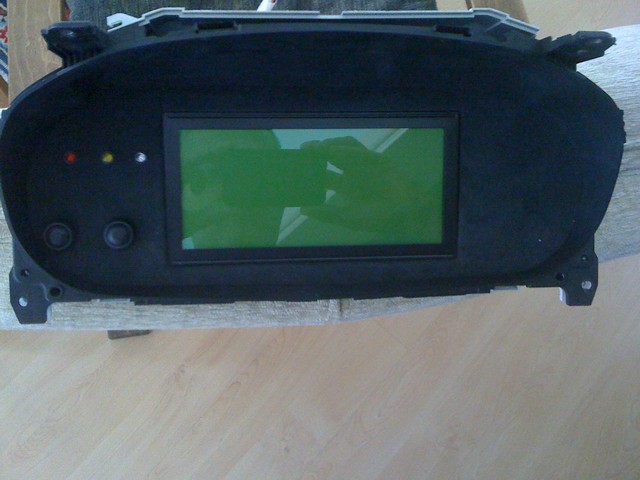

Huge LCD dashboard, vtec

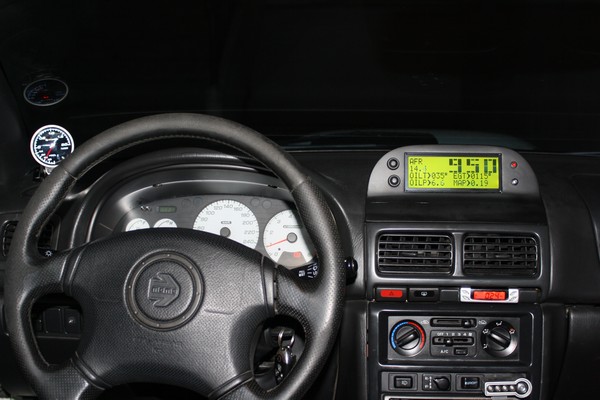

Large LCD, Subaru gc8

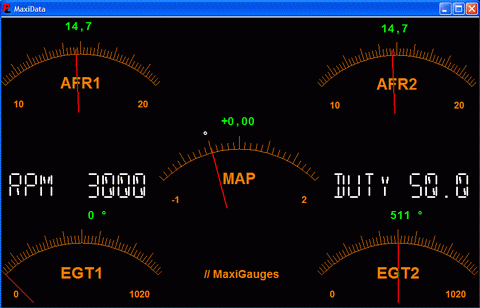

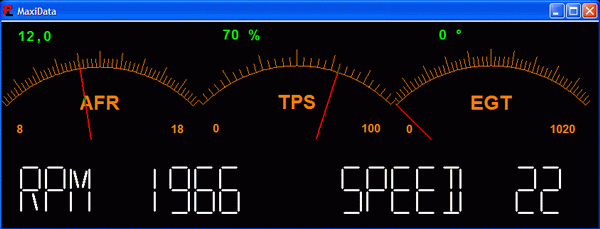

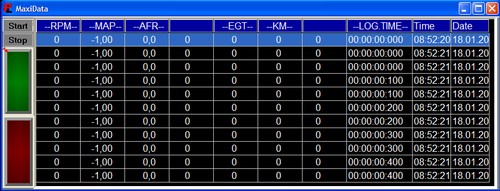

SOFTWARE:

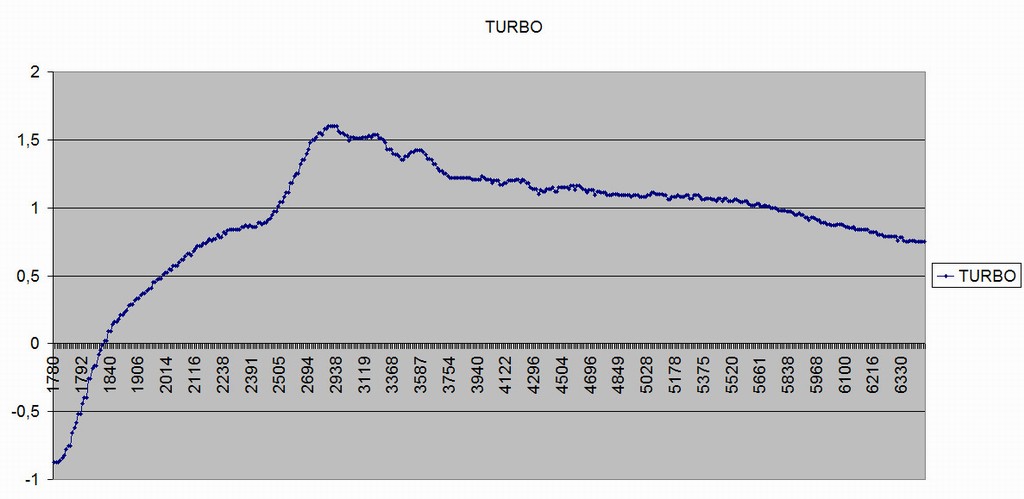

Sample boost graph:



Contact me here, I will translate the messages for Hakan Caliskan.
Again, I have no affiliation with the manufacturer, nor any financial gain for posting this info here. I just like the product.
Attached Thumbnails
Don't need no stinkin' gauges...-maxi2.jpg   Don't need no stinkin' gauges...-46388030.jpg   Don't need no stinkin' gauges...-14995557.jpg   Don't need no stinkin' gauges...-lcda.jpg   Don't need no stinkin' gauges...-aaakp.jpg

Don't need no stinkin' gauges...-adsz2.gif   Don't need no stinkin' gauges...-adszd.gif   Don't need no stinkin' gauges...-36129629.jpg   Don't need no stinkin' gauges...-turbod.jpg

Last edited by Godless Commie; 08-19-2011 at 09:05 AM.
Godless Commie is offline   Reply With Quote
Old 08-18-2011, 10:57 PM   #18
Junior Member

Join Date: Jun 2010
Location: South Jersey
Posts: 152
Total Cats: 3
Default

Thanks dude.

So uhh how do I buy one? Link? e-mail? distributor?
thegrapist is offline   Reply With Quote
Old 09-21-2011, 11:42 AM   #19
Newb

Join Date: Aug 2011
Location: istanbul Turkey
Posts: 28
Total Cats: 1
Default

hi friends
sorry for late

Im manufacturer
my name is hakan
If you have detail question I can answer it.

web: www.maxigauges.com
email: [email protected]
msn & email: [email protected]
http://www.maxigauges.com/MaxiDisplay_eng.pdf


thanks to translation -> @Godless Commie

Last edited by Maxiq4; 09-21-2011 at 03:03 PM.
Maxiq4 is offline   Reply With Quote
Old 09-21-2011, 12:15 PM   #20
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default

@ Godless: Thanks for all that info and taking the time to do the translation, and the details on your install. Looks fantastic.

@ Maxiq4: Great product!
matthewdesigns is offline   Reply With Quote


Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
Raleigh: Fiberglass headlight scope, 1.6L ECU, AFM, Hardtop latches, more bigmackloud Miata parts for sale/trade 13 09-22-2017 01:34 PM
15x10 - 15x11 6UL @ 949 Racing emilio700 Wheels and Tires 151 06-02-2017 03:36 PM
WTB MP62 (Hotside) (NB2) Rick02R WTB 3 01-03-2016 08:18 PM
Is my swirl pot design okay? FrankB Race Prep 10 10-02-2015 10:00 PM
In need of base map for stock 1997 brandonbkd MEGAsquirt 0 09-29-2015 12:52 AM


Thread Tools

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -4. The time now is 10:38 PM.
