Old 03-20-2008, 05:22 PM   #1
Elite Member
Thread Starter
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default I love COPs

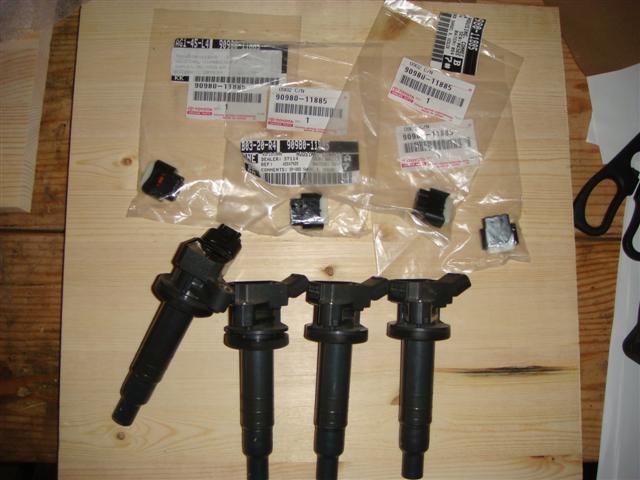

Got mine today... along with the connectors to make it easy.
They're out of an 02 Corolla.
Still looking for a spare ignitor... but am gonna fab up the wiring harness in the meantime.
I'm also taking a look at the various ways of engineering the plate to hold them all in place.
Attached Thumbnails
I love COPs-dsc01038-small-.jpg
samnavy is offline   Reply With Quote
Old 03-20-2008, 05:25 PM   #2
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

I like my simple "over" plate. I was too lazy to make a nice undermount one
Splitime is offline   Reply With Quote
Old 03-20-2008, 06:53 PM   #3
Elite Member
Thread Starter
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

Question... what gauge wire to use for my harness?
samnavy is offline   Reply With Quote
Old 03-20-2008, 07:29 PM   #4
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,689
Total Cats: 560
Default

The largest that will fit in the connector.
rleete is offline   Reply With Quote
Old 03-20-2008, 08:05 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

just use 18awg stranded wire.
Braineack is offline   Reply With Quote
Old 03-20-2008, 08:47 PM   #6
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Sam, my prayers are with you. I hope to god you dont run into the problems I ran into.
Saml01 is offline   Reply With Quote
Old 03-20-2008, 11:40 PM   #7
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Sam I have 2 spare ignitors that I snagged from the u-pull-it. Lemme know if you need one.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 03-21-2008, 12:47 AM   #8
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

Quote:
Originally Posted by levnubhin View Post
Sam I have 2 spare ignitors that I snagged from the u-pull-it. Lemme know if you need one.
Willing to sell one?
jayc72 is offline   Reply With Quote
Old 03-21-2008, 09:36 AM   #9
Elite Member
Thread Starter
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

Quote:
Originally Posted by levnubhin View Post
Sam I have 2 spare ignitors that I snagged from the u-pull-it. Lemme know if you need one.
I do still need one. Someody already PM'd me though. If he doesn't get back to me today, I'll be in touch.
-Sam
samnavy is offline   Reply With Quote
Old 03-21-2008, 10:44 AM   #10
Elite Member
Thread Starter
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

OK, since I'm going to source a spare ignitor to do this thing, is there room inside it to splice the Yel/Blu-Blk/Wht-Blue+1kohm... or are people putting the resistor somewhere in the harness?

Also, for the seperate ground wire protruding from the harness, should I ground it to the same grounding bundle I'm using for the MS/LC1... or should I find a seperate place on the head?

samnavy is offline   Reply With Quote
Old 03-21-2008, 11:26 AM   #11
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Quote:
Originally Posted by samnavy View Post
I do still need one. Someody already PM'd me though. If he doesn't get back to me today, I'll be in touch.
-Sam
Hey Sam, have you heard from that somebody yet? I have other instested but I offered to you 1st. Let me know.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 03-21-2008, 02:01 PM   #12
Elite Member
Thread Starter
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

Quote:
Originally Posted by levnubhin View Post
Hey Sam, have you heard from that somebody yet? I have other instested but I offered to you 1st. Let me know.
I'll take one... PM'd.
samnavy is offline   Reply With Quote
Old 03-21-2008, 02:04 PM   #13
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Sam, the resistor is for standalone. Don't think you'll be needing it for parallel.

B
Ben is offline   Reply With Quote
Old 03-23-2008, 10:41 PM   #14
Elite Member
Thread Starter
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

Ben, I'm running Megasquirt "By Braineak" Standalone... sweet!

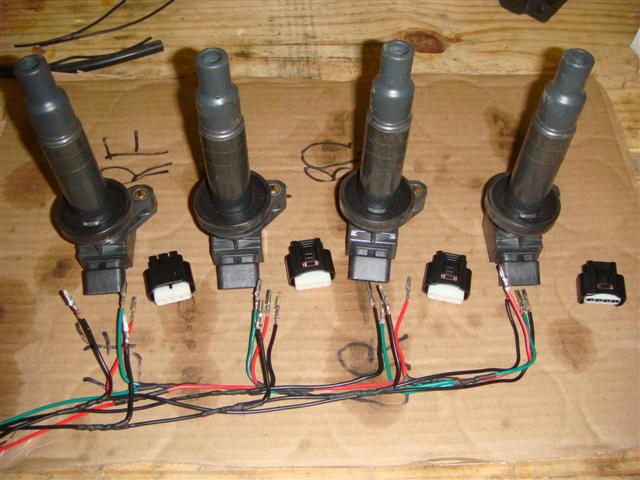

Anyways, just finished up the COP side of the harness, left about 5 feet extra to be sure I had enough to make it to the ignitor. My spare (to gut) ignitor should be here Tuesday. I'll be rocking this shiz by the weekend.

I've still gotta fab up a hold-down plate... working on the design.

Also, did anybody have to Dremel a little off the sides of the COP to get it to seat down completely. I think mine are about 1mm wider than the channel and they're not fully seated. I'm also looking forward to pulling the valve cover (to clean and affix studs) and checking the valvetrain on this magic 200k mile motor.
Attached Thumbnails
I love COPs-dsc01056-small-.jpg
samnavy is offline   Reply With Quote
Old 03-23-2008, 10:43 PM   #15
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

So pretty. Mine was pretty like that until I started looking for my problems and uglyfied it :(
Saml01 is offline   Reply With Quote
Old 03-24-2008, 12:24 AM   #16
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

i dremeled the **** out of mine to fit the 01 cover. I also had the bosses for the original coils in the way but I didn't want to mod the valve cover to install the new setup. Now I might since I'll have a spare.

y8s is offline   Reply With Quote
Old 03-24-2008, 09:00 AM   #17
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

I found that mine sit better if I remove the rubber grommets.
Ben is offline   Reply With Quote
Old 03-24-2008, 10:20 AM   #18
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by Ben View Post
I found that mine sit better if I remove the rubber grommets.
yeah but do they also let more water into the plug holes?
y8s is offline   Reply With Quote
Old 03-24-2008, 10:26 AM   #19
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Quote:
Originally Posted by Ben View Post
Sam, the resistor is for standalone. Don't think you'll be needing it for parallel.

B
yeah i need to fix that. also it's easier to simply jump the signal in the diagnostics box.
Braineack is offline   Reply With Quote
Old 03-24-2008, 10:34 AM   #20
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by y8s View Post
yeah but do they also let more water into the plug holes?
I'll remember to close my hood when it's raining.
Ben is offline   Reply With Quote
