Old 03-25-2008, 03:56 PM   #41
Elite Member
Thread Starter
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

Since you can't vent fuel fumes into the atmostphere (emissions) from the tank when the tank gets hot and the fuel/fumes expand... gas caps are now sealed... but the expanding fumes need somewhere to go. They go into the charcoal canister and the fuel bonds to the charcoal. When you start the car, a small solenoid attached to the canister opens and via vaccum, the fumes are sucked into the intake. It's strictly for the last 1% of emissions control and has no effect on the operating of the engine. The little wiring connector to the small solenoid can be unplugged and the car or MS won't care.
samnavy is offline   Reply With Quote
Old 03-25-2008, 07:59 PM   #42
Elite Member
Thread Starter
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

Brain/Ben,
All they had at RadioShack were 1/4 and 1/2 watt 1kohm resistors... is that good enough?
samnavy is offline   Reply With Quote
Old 03-25-2008, 08:45 PM   #43
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

use the 1/2 watt and rock on
Ben is offline   Reply With Quote
Old 03-25-2008, 09:15 PM   #44
FHS
Senior Member
iTrader: (2)

Join Date: Oct 2004
Location: Los Angeles, Ca.
Posts: 502
Total Cats: 0
Default

Quote:
car-part.com is a better source....
The lowest price listed for an ignition coil from any car on the list of source cars from the MOACopT was $20-$25. I'm assuming that's per coil, not including shipping. I found all the local suppliers I checked out in person through car-part. Some had prices listed while others had $Call.
FHS is offline   Reply With Quote
Old 03-25-2008, 11:57 PM   #45
Elite Member
Thread Starter
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

Uh.... MMmmmm... DO'H!

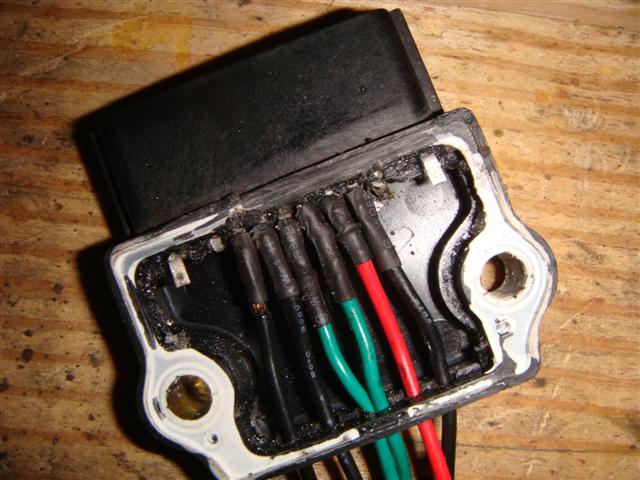

I think I did something wrong and didn't catch it until I came up to post this pic... how come I only have 6 wires coming out of the IGNITOR and Brain's pic show's he's using all 8? I saw in the diagram the end pins were labeled NC, so I assumed NO CHANGE, as in I DON'T USE THEM. But Now I'm confused.

I also didn't expect all the *** inside the ignitor box and I didn't know there was a circuit board attached to the top of the cover. What function does that board have now in the system now and what do I do about the pins for the WHITE and RED wires?

DISREGARD: I found this post:
https://www.miataturbo.net/forum/sho...&postcount=189
Indicates the RED/WHITE wires aren't used for anything anymore... but I see Brains pic of his gutted ignitor and it looks like he's got 8 wires?
Attached Thumbnails
I love COPs-dsc01089-small-.jpg

Last edited by samnavy; 03-26-2008 at 12:13 AM.
samnavy is offline   Reply With Quote
Old 03-26-2008, 09:08 AM   #46
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

you're good. I smear some liquid electrical tape on any exposed metal, then fill it with epoxy. The epoxy should be done in 2 or 3 stages, otherwise the center will take forever to cure. throw away the metal lid.
Ben is offline   Reply With Quote
Old 03-26-2008, 09:51 AM   #47
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,020
Total Cats: 114
Default

Quote:
Originally Posted by samnavy View Post
Since you can't vent fuel fumes into the atmostphere (emissions) from the tank when the tank gets hot and the fuel/fumes expand... gas caps are now sealed... but the expanding fumes need somewhere to go. They go into the charcoal canister and the fuel bonds to the charcoal. When you start the car, a small solenoid attached to the canister opens and via vaccum, the fumes are sucked into the intake. It's strictly for the last 1% of emissions control and has no effect on the operating of the engine. The little wiring connector to the small solenoid can be unplugged and the car or MS won't care.
thanks for clearing that up sam
Oscar is offline   Reply With Quote
Old 03-26-2008, 11:25 AM   #48
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,037
Total Cats: 406
Default

sam: NC = no connection. though if you want, it could mean Nasty ***.
y8s is offline   Reply With Quote
Old 03-27-2008, 09:07 PM   #49
Elite Member
Thread Starter
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

Sorry I left y'all hanging. I hope everybody saw my other thread with the video... again, apologies for not representing Miata "coolness" well by giggling like a teenager gabbin' his first tit.

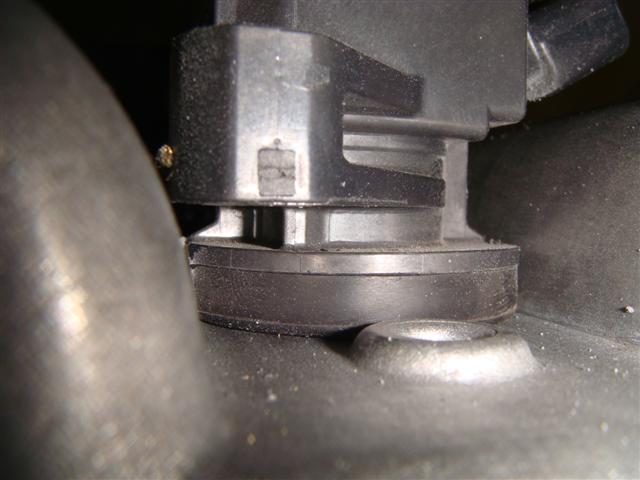

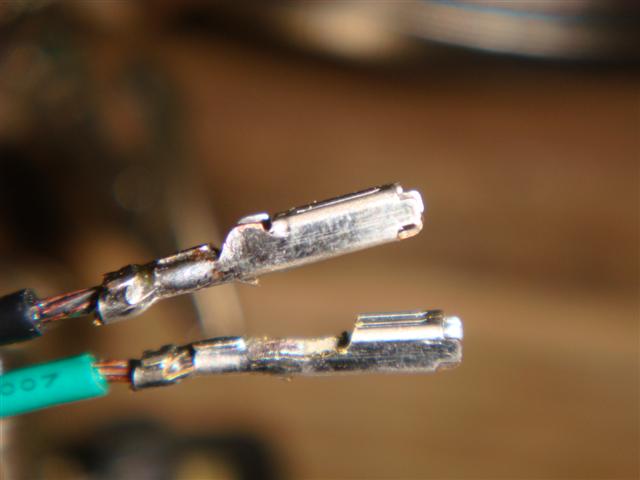

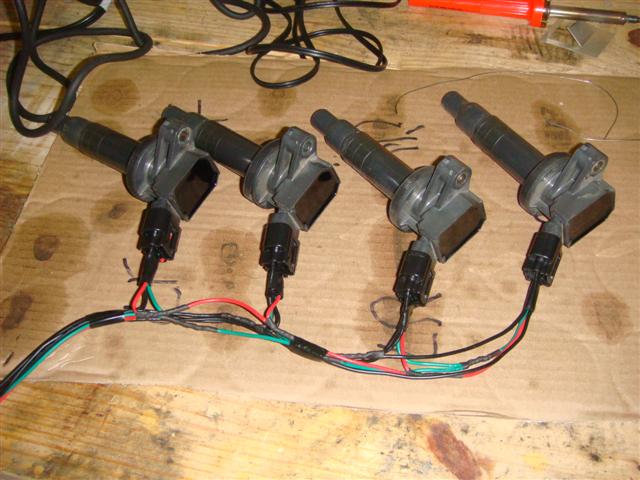

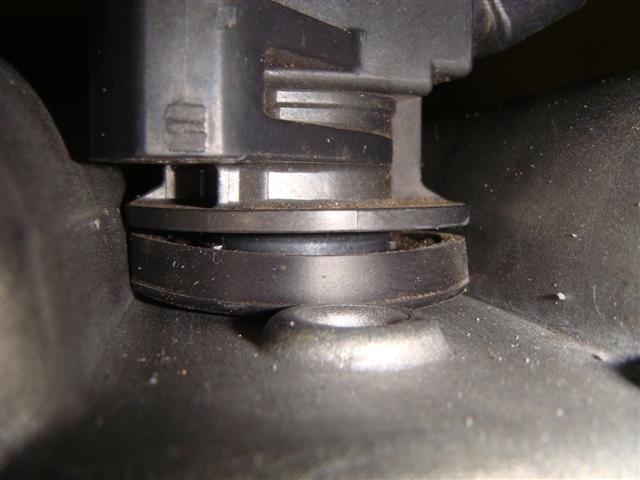

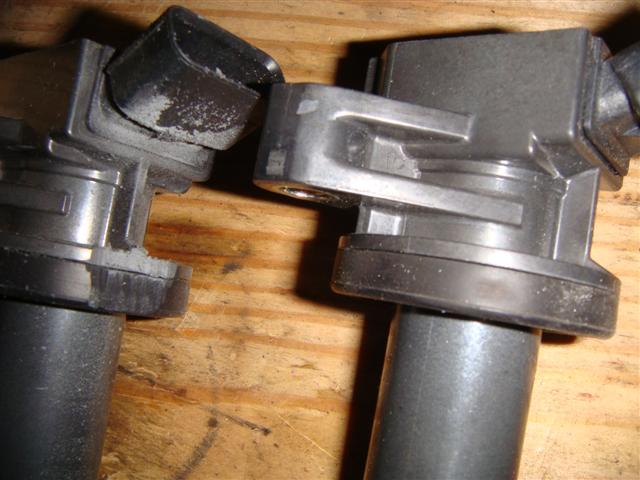

Anyways, more pics:
Attached Thumbnails
I love COPs-dsc01068-small-.jpg   I love COPs-dsc01072-small-.jpg   I love COPs-dsc01095-small-.jpg   I love COPs-dsc01098-small-.jpg   I love COPs-dsc01099-small-.jpg

samnavy is offline   Reply With Quote
Old 03-27-2008, 09:10 PM   #50
Elite Member
Thread Starter
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

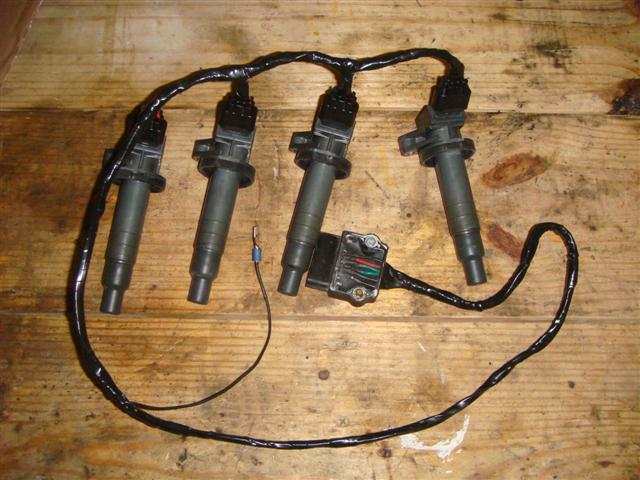

And the end result...
Attached Thumbnails
I love COPs-dsc01104-small-.jpg
samnavy is offline   Reply With Quote
Old 03-27-2008, 09:17 PM   #51
Senior Member
iTrader: (1)

Join Date: Apr 2007
Location: North Jersey
Posts: 721
Total Cats: 0
Default

wire loom that turkey up
budget racer is offline   Reply With Quote
Old 03-28-2008, 05:22 PM   #52
FHS
Senior Member
iTrader: (2)

Join Date: Oct 2004
Location: Los Angeles, Ca.
Posts: 502
Total Cats: 0
Default

Ok, sourced my COPS and I'm ready to make my wiring harness. Brain recommends 18awg wire, but I'm confused what to look for. If I run over to Fry's and see wire that says 18ga, is that 18awg? If not, is there a conversion from 18awg to ga?

Thanks!
FHS is offline   Reply With Quote
Old 03-28-2008, 05:25 PM   #53
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

18awg is 18ga, awg & ga = gauge.
Braineack is offline   Reply With Quote
Old 03-28-2008, 05:28 PM   #54
FHS
Senior Member
iTrader: (2)

Join Date: Oct 2004
Location: Los Angeles, Ca.
Posts: 502
Total Cats: 0
Default

Cool, thanks!
FHS is offline   Reply With Quote
