Default Is this Ignition Map Retarded?

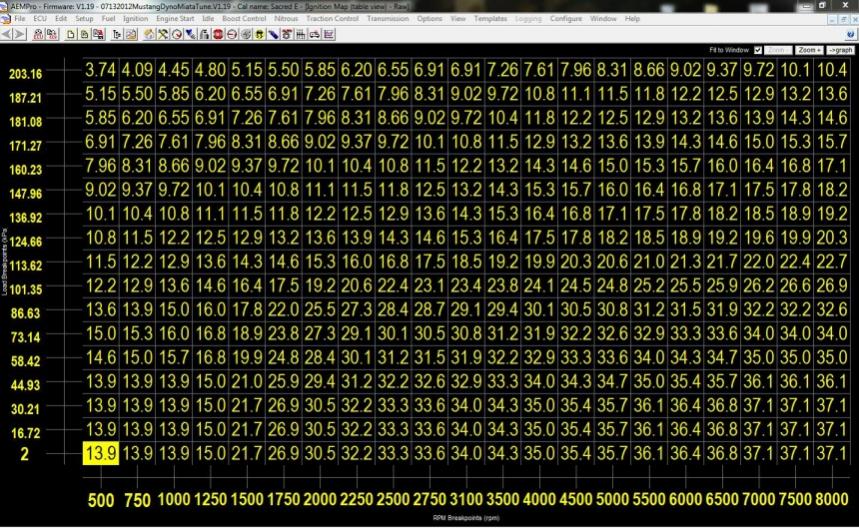

This is from a recent dyno tune. Looks to me like it's pretty good out of boost but conservative in boost. Thoughts? Am I off-base?




Car feels fast on the highway but a lot weaker than I expected down low. Spool seems slow as well.
Attached Thumbnails
Is this Ignition Map Retarded?-soloracer-3575-albums-dyno-tune-516-picture-aem-ign-map-dynotune-2590.jpg
soloracer is offline   Reply With Quote
Old 07-30-2012, 02:13 PM   #2
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Looks a little week but not tragic or anything.
hustler is offline   Reply With Quote
Old 07-30-2012, 02:18 PM   #3
Senior Member
Thread Starter
iTrader: (10)

Join Date: Apr 2007
Location: Ohio
Posts: 800
Total Cats: 3
Default

Thanks. Doesn't feel tragic by any means but I thought the 2560 would have a bit more oomph on bottom when tuned properly.

I'm just trying to decide if my expectations were too high or if there is power on the table. I mean, I have old, hard, Kumho 711s on the car right now (to preserve my *specs pre-alignment) and it will chirp them in 1st gear but no fear of breaking traction in second.
soloracer is offline   Reply With Quote
Old 07-30-2012, 02:19 PM   #4
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Looks like a good 4* more retarded than my "safe" basemaps.
Reverant is offline   Reply With Quote
Old 07-30-2012, 02:21 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

Quote:
Originally Posted by Reverant View Post
Looks like a good 4* more retarded than my "safe" basemaps.

this.
Braineack is offline   Reply With Quote
Old 07-30-2012, 02:28 PM   #6
Senior Member
Thread Starter
iTrader: (10)

Join Date: Apr 2007
Location: Ohio
Posts: 800
Total Cats: 3
Default

Quote:
Originally Posted by Reverant View Post
Looks like a good 4* more retarded than my "safe" basemaps.
Yeah, I've been running this for about 3 weeks but just got time last night to pull it off the EMS and take a look at it. In comparing it to some MS basemaps, it looked more retarded in boost than most.

Unfortunately the shop is pretty far away and I'm afraid to monkey with timing and not add fuel. Frankly, I don't have skills in this area - which is why I went to a shop in the first place. They seemed to have a clue, but their experience is largely Mitsu and Subie stuff. They have supposedly done a bunch of Spec Miatas but I'm probably 1 of only a couple turbos.

I'll post the graph when I'm able to get a good pic or scan. Mustang dyno - 208hp/185tq. I was expecting closer to 200 ft. lbs., really.
soloracer is offline   Reply With Quote
Old 07-30-2012, 02:33 PM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

it looks retarded in cruise as well, but not by as much.
Braineack is offline   Reply With Quote
Old 07-30-2012, 02:45 PM   #8
Senior Member
Thread Starter
iTrader: (10)

Join Date: Apr 2007
Location: Ohio
Posts: 800
Total Cats: 3
Default

It's rich in cruise, too. He set it up for 14.7 AFR. It's fine, I guess as an environmental consideration. Would be nice to get a little better mileage though.
soloracer is offline   Reply With Quote
Old 07-30-2012, 02:56 PM   #9
Senior Member
iTrader: (5)

Join Date: Sep 2009
Location: Lompoc, CA
Posts: 579
Total Cats: 12
Default

Wow, I had forgotten how aggravating it is to look at maps that aren't color coded. Just for my 2 cents, it seems on the low end compared to my tune as well.
baron340 is offline   Reply With Quote
Old 07-30-2012, 03:30 PM   #10
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by soloracer View Post
Thanks. Doesn't feel tragic by any means but I thought the 2560 would have a bit more oomph on bottom when tuned properly.

I'm just trying to decide if my expectations were too high or if there is power on the table. I mean, I have old, hard, Kumho 711s on the car right now (to preserve my *specs pre-alignment) and it will chirp them in 1st gear but no fear of breaking traction in second.
When I put 1%-er shocks on my car it stopped spinning the tires in 3rd. "Chirping" tires is more about slamming the gears than power. Breaking tires loose on the throttle is another story.

There are other variables to consider like belt-stretch, CAS position (can you see 2-3* on the crank pully?), and manliness.
hustler is offline   Reply With Quote
Old 07-30-2012, 04:21 PM   #11
Senior Member
Thread Starter
iTrader: (10)

Join Date: Apr 2007
Location: Ohio
Posts: 800
Total Cats: 3
Default

Quote:
Originally Posted by hustler View Post
Breaking tires loose on the throttle is another story.
This is what I really meant. I'm not talking about "burning rubber" so to speak.

Am I being too hung up on numbers, maybe? 185 ft. lbs. seems lame to me. Honestly I don't care much as long as it pushes me back in the seat a little!

Not sure what you mean by 2-3* on crank pulley. I'm running the NB crank sensor/TSE wheel, so the timing should be pretty spot-on.

Oh, and manliness?? We drive Miatas. Betta have yo' manliness together.

Last edited by soloracer; 07-30-2012 at 04:32 PM.
soloracer is offline   Reply With Quote
Old 07-31-2012, 03:48 PM   #12
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by baron340 View Post
Wow, I had forgotten how aggravating it is to look at maps that aren't color coded. Just for my 2 cents, it seems on the low end compared to my tune as well.
Yes, this, holy crap.

solo, What AFR's are you running at? I this looks like a DSM'er timing map and I'm wondering if it has the 10something:1 afr to match. Not seen played with tuning any turbo miata's but coming from NA ones, the out of boost timing is very conservative like 8 deg off of what you;d run a similar manifold pressure and rpm NA.
