Old 01-20-2013, 02:38 PM   #761
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,094
Total Cats: 48
Default

I have the diff out right now because im rebuilding the rear end, so that should give me some more movement. I got a nice set of pry bars for christmas so i should be set in that department. I kinda know its not gonna be an easy job, doing mounts without removing the engine. But i should be able to get a jack and some prying to lift the motor enough to slide them in and out, at least these will come apart. I might have a go at the install tonight
ctdrftna is offline   Reply With Quote
Old 01-20-2013, 03:07 PM   #762
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Sweden
Posts: 1,387
Total Cats: 58
Default

I ended up putting the bolts on the block last, just one of the ways to do it.
NiklasFalk is offline   Reply With Quote
Old 01-20-2013, 06:53 PM   #763
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,094
Total Cats: 48
Default

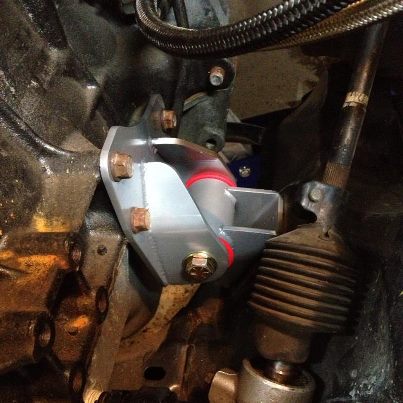

all done, really wasnt that bad to do, took 1.5 hrs, and i had to tighten up bolts on my creeper and find/make shorter bolts for the mounts
Attached Thumbnails
my tube front drifter-mountinstalled_zps93a02808.jpg
ctdrftna is offline   Reply With Quote
Old 03-19-2013, 08:44 PM   #764
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,094
Total Cats: 48
Default

Havent updated this thread in a while

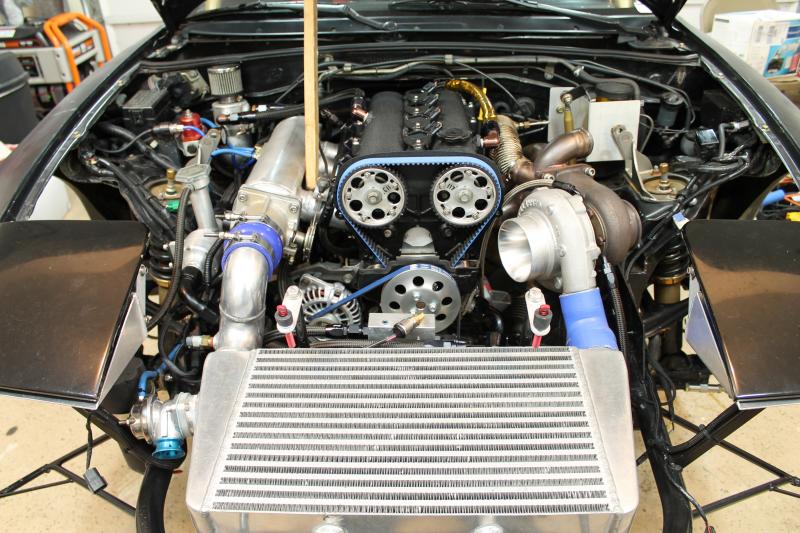

got some cleaning up of the engine bay done, painting and maintenance done. new timing belt and pulleys and aluminum alternator and waterpump pulleys.

3.636 ring and pinion is on its way as well as a 7-8" micrometer so i can get working on the rear end. i have a welded diff thats going in. Hopefully i will have it all buttoned up so i can get to some events in May.

Attached Thumbnails
my tube front drifter-img_1299_zps5738ace7.jpg
ctdrftna is offline   Reply With Quote
Old 03-19-2013, 10:38 PM   #765
A living god
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,020
Total Cats: 240
Default

If you had a larger version of that pic I'd use it as my wallpaper.
viperormiata is offline   Reply With Quote
Old 03-19-2013, 11:04 PM   #766
Senior Member
iTrader: (1)

Join Date: Dec 2008
Location: Manassas, Virginia
Posts: 1,247
Total Cats: 57
Default

Good Lord! You're running all that power through a welded diff?
mx5autoxer is offline   Reply With Quote
Old 03-19-2013, 11:18 PM   #767
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,866
Total Cats: 104
Default

Quote:
Originally Posted by mx5autoxer View Post
Good Lord! You're running all that power through a welded diff?
Pretty hard to break a welded diff if done properly. Gears and axles are the weaker link.
miata2fast is offline   Reply With Quote
Old 03-19-2013, 11:25 PM   #768
Senior Member
iTrader: (1)

Join Date: Dec 2008
Location: Manassas, Virginia
Posts: 1,247
Total Cats: 57
Default

Oh I was referring to how that would affect the handling.
mx5autoxer is offline   Reply With Quote
Old 03-20-2013, 05:20 AM   #769
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,094
Total Cats: 48
Default

the majority of formula d cars are running spools or welded diff. I looked into having a custom spool made, it was gonna be around 800-1000. I wasnt going to swing that so i said screw it and had my friend who is a certified welder do it.
ctdrftna is offline   Reply With Quote
Old 03-21-2013, 10:20 AM   #770
Senior Member
iTrader: (1)

Join Date: Dec 2008
Location: Manassas, Virginia
Posts: 1,247
Total Cats: 57
Default

I'm sure its great for drifting once you get used to it, but that would be funny to see someone who doesn't know it's welded try to drive it. (P.S. I still fap to your IC setup daily)
mx5autoxer is offline   Reply With Quote
Old 03-21-2013, 05:17 PM   #771
I'm Miserable!
iTrader: (13)

Join Date: Oct 2012
Posts: 255
Total Cats: 0
Default


One my favorite build threads on this forum.
Pretty much how I would set it up.

Still looking for a cheap miata though.
DoapParts is offline   Reply With Quote
Old 04-08-2013, 09:21 PM   #772
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,094
Total Cats: 48
Default

REAR END IS DONE !!

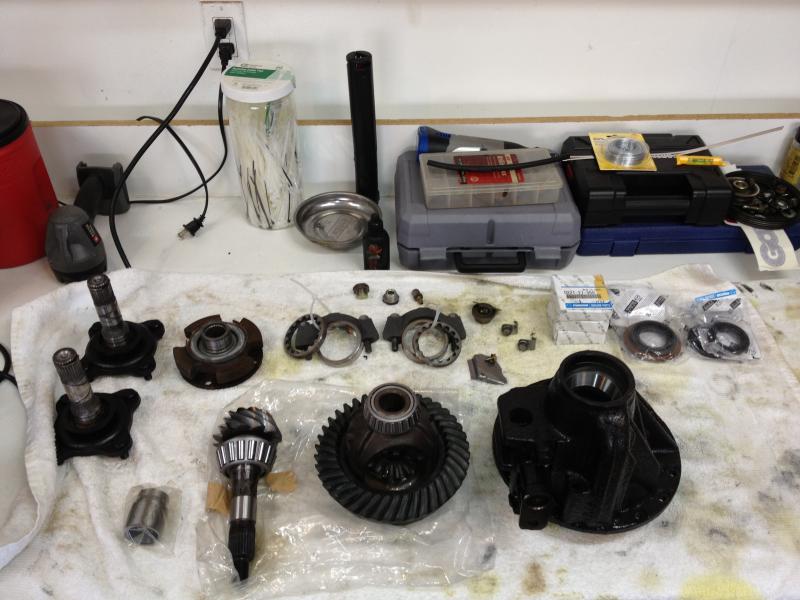

all the parts laid out

OEM bearings and seals
3.636 Ring and pinion
Weir Performance solid pinion bearing spacer kit

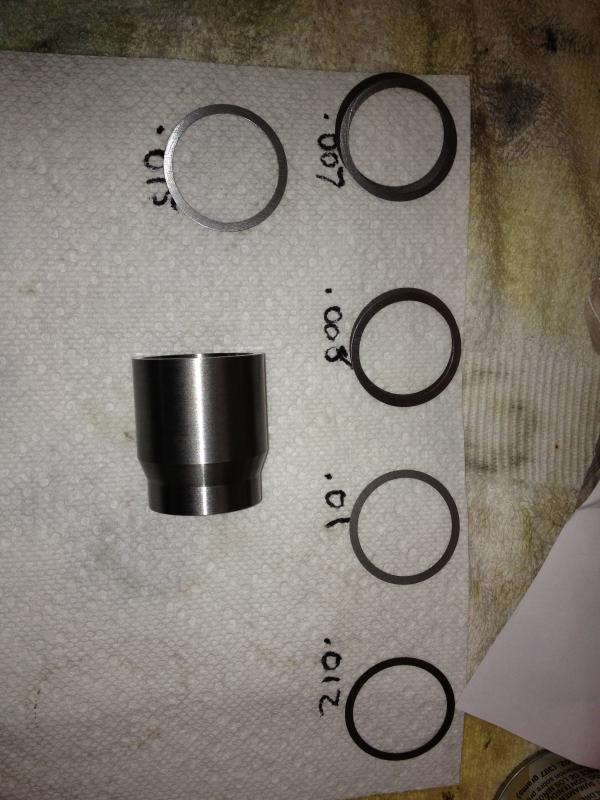

This is the Weir spacer kit

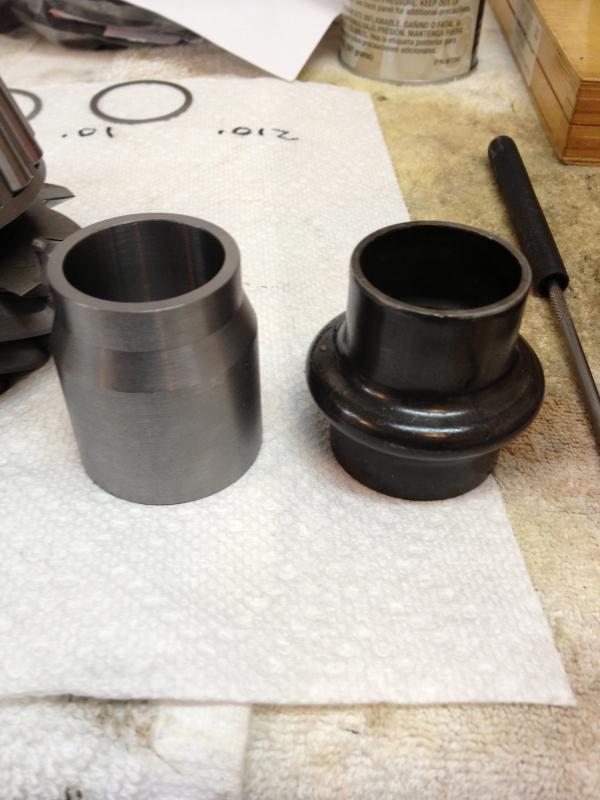

Comparison of the OEM vs Weir

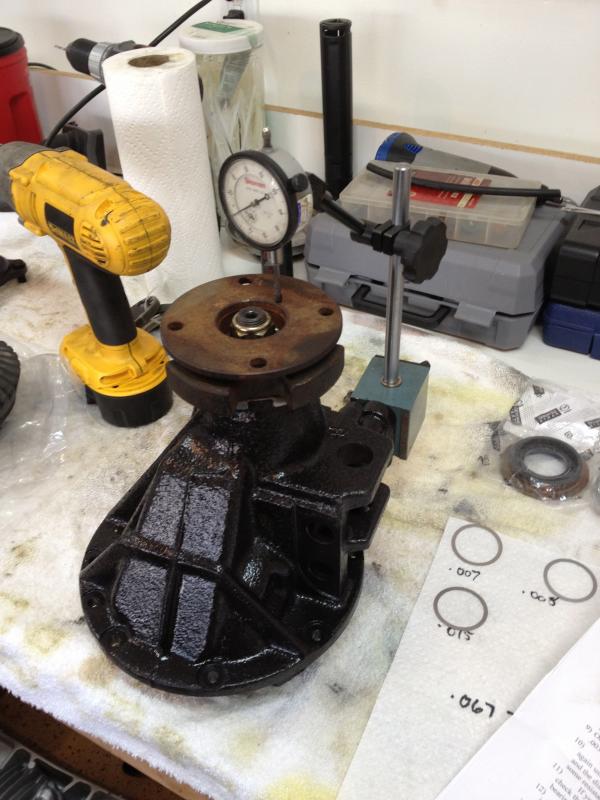

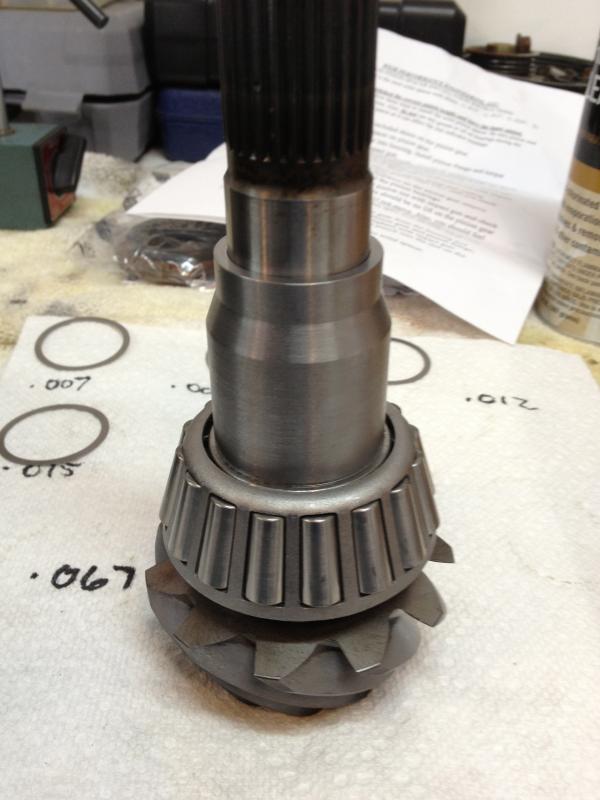

I set up my dial indicator to configure the shims, I stated with the whole stack that came with the kit, .067" total, i reduced the shims until i got zero pinion movement on the indicator. Than i removed .002 at a time untill i got the desired bearing preload via rotational torque. I ended up with a .012 shim when done.

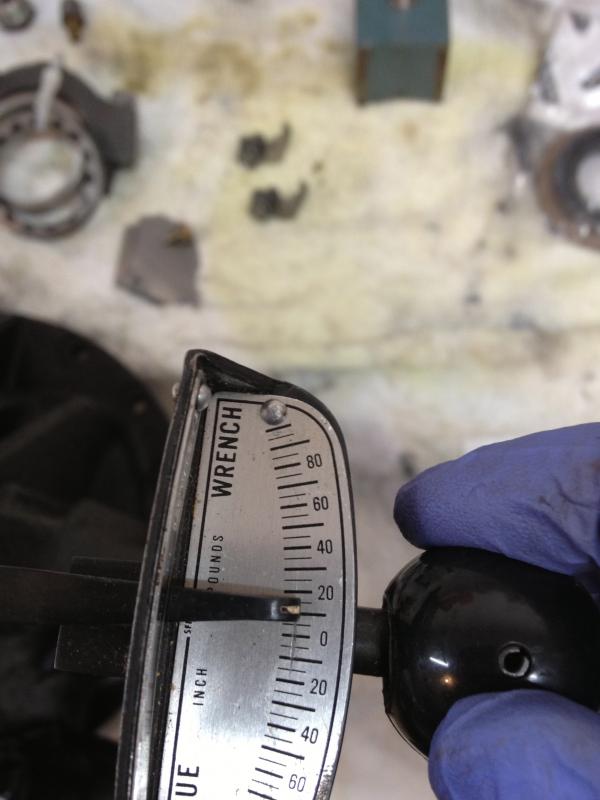

A beam type torque wrench is used to read the torque as the pinion is turned.

i set it at 12 in-lbs, this is on the high side of OEM spec

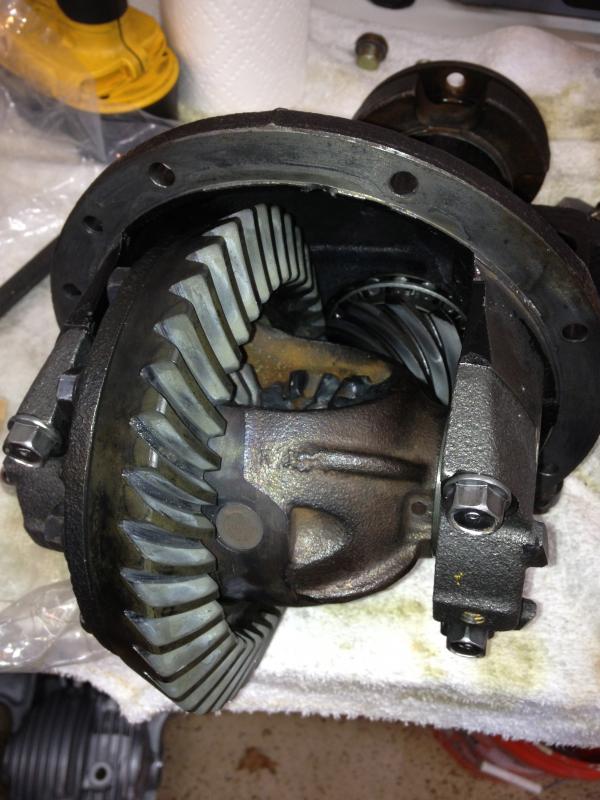

All together


I dont have any pics of checking the backlash and setting differential bearing preload. But the backlash is set between .002-.004, The oem spec calls for .0036-.0043. Checking my backlash in 4 places the backlash varied by about .002, I decided to keep it set on the tight side rather than loosen it up, Loose backlash breaks gears.

The preload was set using a 7-8" micrometer on the measuring pads, that was set to the tighter side of oem as well. The idea is to keep everything tight and have it loosen up to the middle of the spec as the bearings and gears break it. I want it to stay solid when i put the load to it .

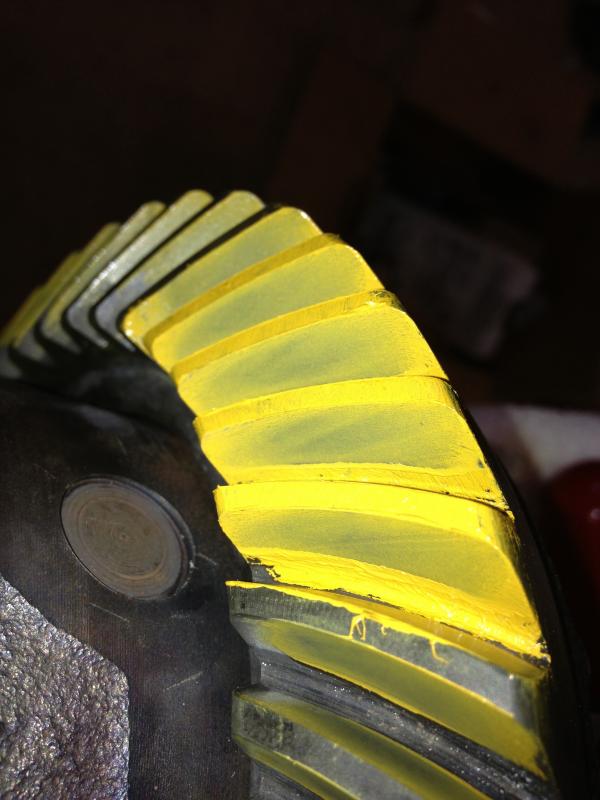

Now i had to check the contact pattern to make sure the pinion depth was set correct. I just reused the shim that was on my old gear set as a starting point. I happened to be perfect so that made this alot easier

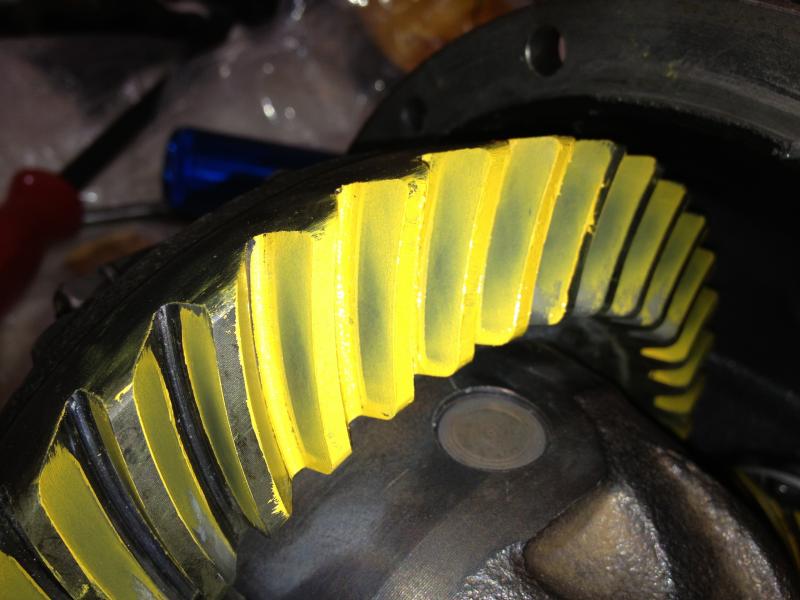

Drive side

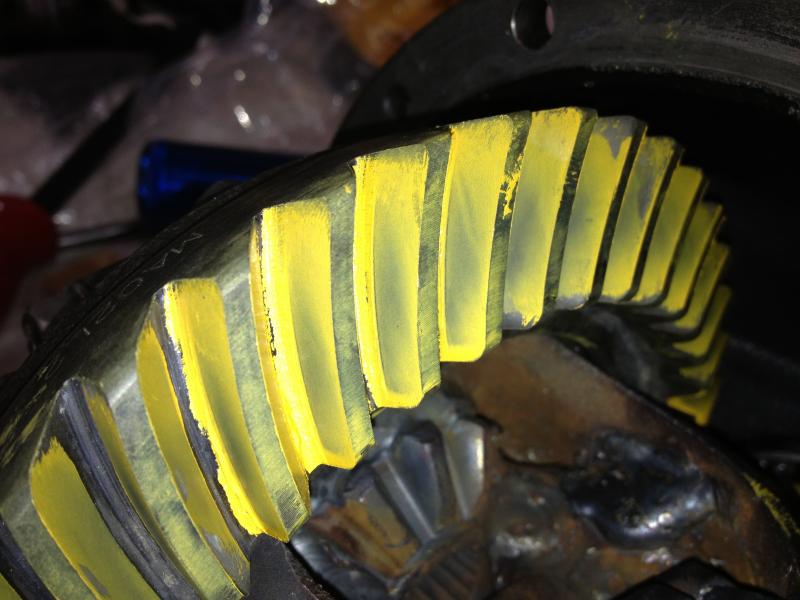

Coast side

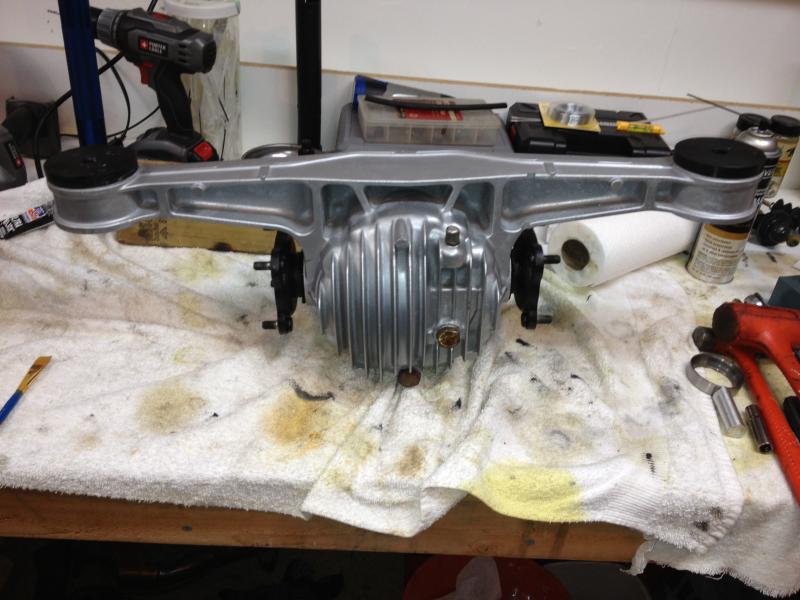

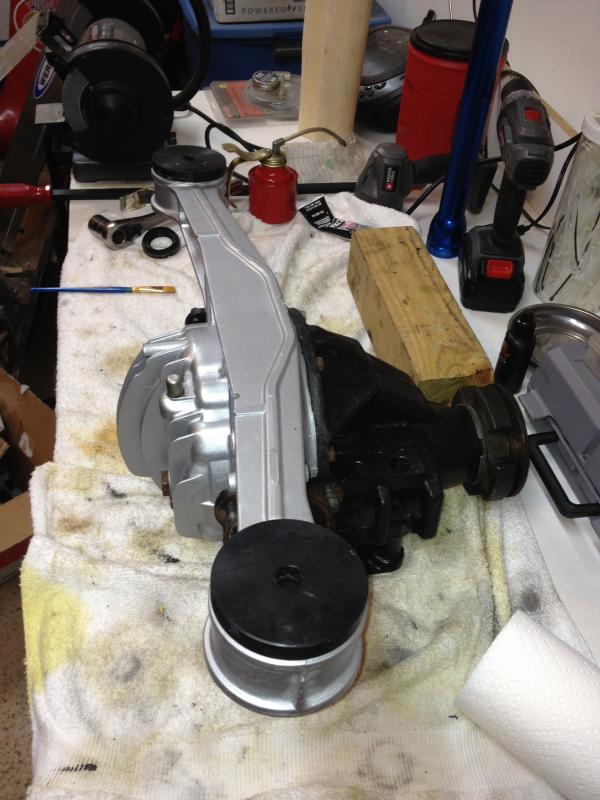

ALL DONE

Name:  IMG_0224-1_zps15f58958.jpg
Views: 16
Size:  62.0 KB
Attached Thumbnails
my tube front drifter-img_0208-1_zps169f4b70.jpg   my tube front drifter-img_0209_zps2add2ff6.jpg   my tube front drifter-img_0211_zps0de4fa79.jpg   my tube front drifter-img_0212_zps120aca57.jpg   my tube front drifter-img_0213_zps8281d332.jpg

my tube front drifter-img_0215_zpsa53fe22f.jpg   my tube front drifter-img_0216-1_zpsd7cde72c.jpg   my tube front drifter-img_0222-1_zps91ba064b.jpg   my tube front drifter-img_0221_zps22494f96.jpg   my tube front drifter-img_0220_zpsc5f5b8bd.jpg

ctdrftna is offline   Reply With Quote
Old 04-08-2013, 09:22 PM   #773
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,094
Total Cats: 48
Default

all thats left is axles, finish gutting my doors and re-bleed brakes and top off fluids. then back to dyno for more power. i wanna break 460whp and get more tq and response
Attached Thumbnails
my tube front drifter-img_0208-1_zps169f4b70.jpg   my tube front drifter-img_0209_zps2add2ff6.jpg   my tube front drifter-img_0211_zps0de4fa79.jpg   my tube front drifter-img_0213_zps8281d332.jpg   my tube front drifter-img_0216-1_zpsd7cde72c.jpg

my tube front drifter-img_0222-1_zps91ba064b.jpg   my tube front drifter-img_0221_zps22494f96.jpg   my tube front drifter-img_0220_zpsc5f5b8bd.jpg   my tube front drifter-img_0223-1_zps84849c4a.jpg   my tube front drifter-img_0224-1_zps15f58958.jpg


Last edited by ctdrftna; 04-08-2013 at 09:51 PM.
ctdrftna is offline   Reply With Quote
Old 04-09-2013, 12:38 AM   #774
Junior Member
iTrader: (1)

Join Date: Apr 2008
Location: Phx, AZ
Posts: 357
Total Cats: 0
Default

cool dude! Want to see dyno post. I'm curious to what I'll end up making, when I'm done.

Also, i feel like this car has been "done" forever and hasn't seen enough track time!
theshdwconspracy is offline   Reply With Quote
Old 04-09-2013, 02:29 AM   #775
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,071
Total Cats: 511
Default

Hey what are those motor mounts like? Do they have any give in them? Seems like our options are mazda comps or derlin, which are essentially solid.

Great work on the diff, you really went all out. Do you have one piece axles?

Edit: nvm, I see you have 2 piece axles. Did you axles clip in? The metal dust boots on my stub axles interfered with the metal dust boots Mazda moved to the seals for the 1 piece axles.

Last edited by curly; 04-09-2013 at 02:49 AM.
curly is offline   Reply With Quote
Old 04-09-2013, 05:05 AM   #776
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,094
Total Cats: 48
Default

The seals i got were replacements for the ones that were in there, so every thing went together fine.

My goal, which does seem attainable, is to get this car buttoned back up by the end of the month. I want to hit some events this year and there are quite a few coming up in the north east. I have a garage full of tires to burn
ctdrftna is offline   Reply With Quote
Old 04-09-2013, 07:40 AM   #777
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,037
Total Cats: 99
Default

Quote:
Originally Posted by curly View Post
Hey what are those motor mounts like? Do they have any give in them? Seems like our options are mazda comps or derlin, which are essentially solid.

Great work on the diff, you really went all out. Do you have one piece axles?

Edit: nvm, I see you have 2 piece axles. Did you axles clip in? The metal dust boots on my stub axles interfered with the metal dust boots Mazda moved to the seals for the 1 piece axles.
Those are the AWR mounts, I have them in the 70 duro variety. Dont seem too bad at all, engine doesnt seem to move at all, WAY less vibes in the cabin than the miata with delrin mounts I've driven.
Leafy is offline   Reply With Quote
Old 04-09-2013, 09:20 AM   #778
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,094
Total Cats: 48
Default

Yeah mine are the 90 durometer lol
ctdrftna is offline   Reply With Quote
Old 04-09-2013, 09:24 AM   #779
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,455
Total Cats: 1,698
Default

is that diff welded?
Braineack is offline   Reply With Quote
Old 04-09-2013, 09:24 AM   #780
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,037
Total Cats: 99
Default

Quote:
Originally Posted by ctdrftna View Post
Yeah mine are the 90 durometer lol
Mother of god.
Leafy is offline   Reply With Quote
