Old 08-07-2014, 02:29 PM   #221
Senior Member
iTrader: (5)

Join Date: Nov 2013
Location: Wisconsin
Posts: 659
Total Cats: 66
Default

Stop with all this "is it going to be cost effective" nonsense, and just tell me how much of my money you would like, and where I should send it to.

If I don't have louvers in my hand next March/April, you can refund me.
mlev is offline   Reply With Quote
Old 08-07-2014, 02:46 PM   #222
Supporting Vendor
Thread Starter
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,865
Total Cats: 493
Default

Group buy should be opening within a week mlev

I just won't open the group buy and start taking people's money until I'm totally happy with everything and have been as thorough as possible.
But then once that's done and the group buy is going, it shouldn't take long at all to get these in everyone's hands

I'd rather make people wait longer during the development phase than make them wait while I have their money and they keep checking their inbox for a tracking number.

-Ryan
ThePass is offline   Reply With Quote
Old 08-07-2014, 02:48 PM   #223
Senior Member
iTrader: (5)

Join Date: Nov 2013
Location: Wisconsin
Posts: 659
Total Cats: 66
Default

Quote:
Originally Posted by ThePass View Post
Group buy should be opening within a week mlev








Attached Thumbnails
NA & NB Miata Hood Louvers - Gauging Interest-so-excited-gif3.gif
mlev is offline   Reply With Quote
Old 08-07-2014, 03:11 PM   #224
Elite Member
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default

Quote:
Originally Posted by ThePass View Post
Steel? What do you think we're making here, parts for muscle cars, where nobody cares about weight?
These will be aluminum.



If it's small and low-profile, how much good is it really doing??
Well then make sure that the material is thick enough to do the job of the material that you removed.
cordycord is offline   Reply With Quote
Old 08-07-2014, 03:16 PM   #225
Supporting Vendor
Thread Starter
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,865
Total Cats: 493
Default

Stock hood is, frankly, overly-stiff. This is definitely being taken into consideration though.

-Ryan
ThePass is offline   Reply With Quote
Old 08-07-2014, 03:38 PM   #226
Junior Member

Join Date: Feb 2009
Location: The Woodlands, TX
Posts: 328
Total Cats: 12
Default

Quote:
Originally Posted by ThePass View Post
Stockton Hood is, frankly, overly-stiff.
Him and me both.

See what I did there?
Double O 86 is offline   Reply With Quote
Old 08-08-2014, 11:58 AM   #227
Junior Member

Join Date: Jul 2014
Posts: 54
Total Cats: 0
Default

Ryan should etch or engrave thepass on a louve in small prints. Just incase. 😉. Jk.
hmongmiatanb is offline   Reply With Quote
Old 08-08-2014, 01:11 PM   #228
Senior Member

Join Date: Dec 2007
Location: ATL
Posts: 728
Total Cats: 48
Default

Quote:
Originally Posted by mlev View Post









^^ This times 1,000

Quote:
Originally Posted by hmongmiatanb View Post
Ryan should etch or engrave thepass on a louvre in small prints.
...but only for the MT.net group buy, to flaunt our awesomeness.
rwyatt365 is offline   Reply With Quote
Old 08-08-2014, 02:11 PM   #229
Junior Member

Join Date: Jul 2014
Posts: 54
Total Cats: 0
Default

Quote:
Originally Posted by rwyatt365 View Post
^^ This times 1,000



...but only for the MT.net group buy, to flaunt our awesomeness.
Of course... Just because
hmongmiatanb is offline   Reply With Quote
Old 08-08-2014, 06:42 PM   #230
Junior Member

Join Date: May 2010
Posts: 75
Total Cats: -4
Default

Quote:
Originally Posted by hmongmiatanb View Post
Ryan should etch or engrave thepass on a louve in small prints. Just incase. 😉. Jk.
Of course, so the Chinese knockoffs will have that etching as well. Makes it easier to spot the fakes, as they tend to not get minor details correct (and they wouldn't know enough to delete this detail anyway).
M2Ken is offline   Reply With Quote
Old 08-08-2014, 07:48 PM   #231
Senior Member
iTrader: (3)

Join Date: Dec 2011
Location: Tucson, Az
Posts: 514
Total Cats: 33
Default

Stance Magic louvers! The vents will bend the wrong way! Engine bay air induction!

Edit: Requires hood lift kit!
TheScaryOne is offline   Reply With Quote
Old 08-12-2014, 07:06 PM   #232
Junior Member

Join Date: Jul 2014
Posts: 54
Total Cats: 0
Default

What's the update on these Ryan?
hmongmiatanb is offline   Reply With Quote
Old 08-13-2014, 02:09 AM   #233
Supporting Vendor
Thread Starter
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,865
Total Cats: 493
Default

Hey now, I've got two more days for my 'within a week' estimate

Today I went through an install to try and anticipate any possible issues that might arise for you guys. Tonight I'm designing the cut templates for NA and NB. Finishing up a before/after on an MSM tomorrow.

Lots of work but I believe we're on-track.

-Ryan
ThePass is offline   Reply With Quote
Old 08-13-2014, 02:20 AM   #234
Junior Member

Join Date: Jul 2014
Posts: 54
Total Cats: 0
Default

[QUOTE=ThePass;1156875]Hey now, I've got two more days for my 'within a week' estimate

Today I went through an install to try and anticipate any possible issues that might arise for you guys. Tonight I'm designing the cut templates for NA and NB. Finishing up a before/after on an MSM tomorrow.


Lots of work but I believe we're on-track.

-Ryan[/QUOTE



I know just want to keep up to date. I just blew my first bp motor. So Uhm yea... Get er done so I can have an excuse to buy louvers to help with heat issues. -Wink wink-
hmongmiatanb is offline   Reply With Quote
Old 08-13-2014, 02:59 PM   #235
Senior Member
iTrader: (5)

Join Date: Nov 2013
Location: Wisconsin
Posts: 659
Total Cats: 66
Default

Quote:
Originally Posted by ThePass View Post
Hey now, I've got two more days for my 'within a week' estimate

Today I went through an install to try and anticipate any possible issues that might arise for you guys. Tonight I'm designing the cut templates for NA and NB. Finishing up a before/after on an MSM tomorrow.

Lots of work but I believe we're on-track.

-Ryan
This is how excited I am.



Except I'm not celebrating with champagne.

I'll give you a hint.



I take my hood louvers seriously.
Attached Thumbnails
NA & NB Miata Hood Louvers - Gauging Interest-_47665015_jenson_button_champers.jpg
mlev is offline   Reply With Quote
Old 08-14-2014, 01:13 PM   #236
Supporting Vendor
Thread Starter
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,865
Total Cats: 493
Default

Alright guys, here is the culmination of our work over the last few weeks. This is a bit of a teaser with the full release and group buy coming tomorrow in a separate thread!

The percentages below are the reduction of the under-hood pressure from a stock unvented hood. A higher % change is better. By placing vents in the hood, the pressure behind the radiator is reduced, which increases the differential between the front of the radiator (very high pressure) and behind it (lower pressure). This increases the airflow through the radiator.
Reducing pressure here also reduces front end lift, which, in other words increases downforce.

Vents tested:

Basic DIY holes covered with mesh (my old hood): 13.5% pressure reduction
The hole’s simple orientation in the surface, no element forward of the vent to facilitate lower pressure over it and a mesh that impedes flow all contributed to giving this a “barely worth it” ranking.

Same DIY holes and a larger horizontal opening added between the headlights, with a gurney flap: 19% pressure reduction
The extra opening showed a better result, but the area of the opening (1.5” x 18”) limited the amount of air it can move, Vent position was the killer here, focusing just center and rearward of the radiator doesn’t utilize the best areas of the hood in terms of pressure.

GT500 vent: 27% improvement
The overall shape looks like it should be effective, but area of the openings are surprisingly small for the size of the part. Airflow is further restricted by the mesh of the GT500 vent. Coupled with very little lip forward of the opening and the same positioning issues as the options above, the GT500’s effectiveness is limited.

Autokonexion/Garage Vary composite vented hood: 31% improvement
This is a whole replacement hood. There are a lot of ‘right’ things about this one. The rear of the vent drops significantly below the hood level and a small gurney feature is shaped into the front edge of the vent creating low pressure over the vent. This hood had the largest hole area of anything we tested which made this the most effective, but we felt there was still room for improvement. We used this as our benchmark.

Singular Motorsports Hood Louver System: 49% improvement
The louver fins create a low pressure area across the entire surface of the vent. Specific fin design and the vent’s orientation on the hood are based on real-world airflow testing, Exact hole positioning based on pressure testing above and under the hood. Gurney flaps further increase efficiency. We tried multiple variations of just about every little element before deciding on the final version.

We set out to match or beat the Garage Vary hood and after wrapping up the tests yesterday, I’m very happy to report that the numbers speak for themselves: Nothing else comes close to these in terms of performance.

Group buy will be posted by tomorrow!

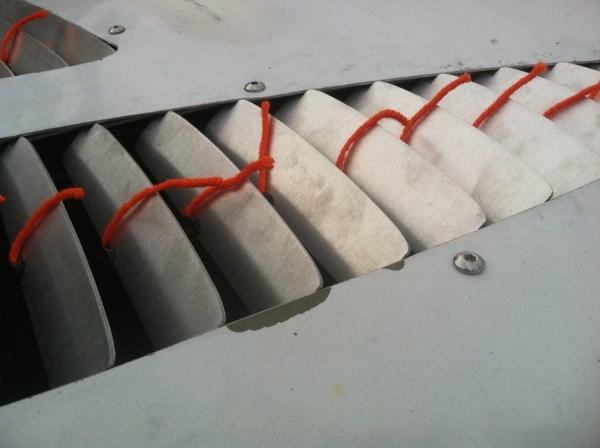

*pic is an unpainted prototype during testing*
Attached Thumbnails
NA & NB Miata Hood Louvers - Gauging Interest-stringtesting_zps5b6b2695.jpg
ThePass is offline   Reply With Quote
Old 08-14-2014, 01:16 PM   #237
Senior Member
iTrader: (5)

Join Date: Nov 2013
Location: Wisconsin
Posts: 659
Total Cats: 66
Default

Hello sir, have some props.

And also my money.
mlev is offline   Reply With Quote
Old 08-14-2014, 01:17 PM   #238
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

I might need to find another stock hood to gut and stuff.
Leafy is offline   Reply With Quote
Old 08-14-2014, 01:26 PM   #239
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,882
Total Cats: 45
Default

Did you tack weld the middle louver brace, or is there a capture method of some kind?
vehicular is offline   Reply With Quote
Old 08-14-2014, 01:35 PM   #240
Supporting Vendor
Thread Starter
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,865
Total Cats: 493
Default

unnecessary, we chose a material thickness that provides enough rigidity.
ThePass is offline   Reply With Quote
