Default need help with AC wiring

i am making a harness from scratch since my AC compressor wiring got lost somewhere. Can anyone help me with where the wires go? Is it the same as a 97'?

So far what ive got i referenced from my 97 and basically took one wire from a spade terminal behind the drivers headlight to the rearward pin on the 2pin connector. Then the forward pin on the 2pin connector is connected to the 1pin harness on the Compressor.

Anyway, help plz its not kicking on, pics are nice too.
akaryrye is offline   Reply With Quote
Old 09-21-2008, 11:37 PM   #2
Antisaint
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

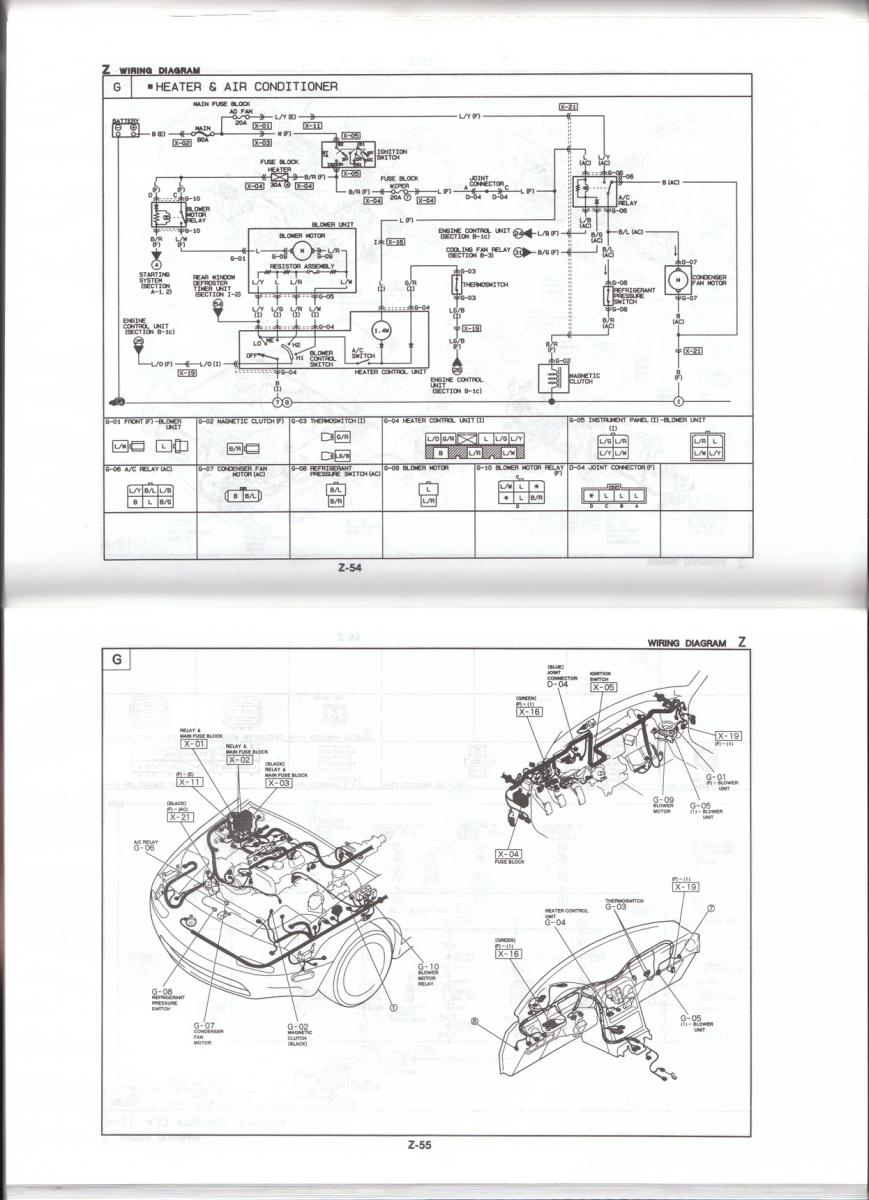

Not sure if this is what your looking for, but maybe it'll help.

Vash-
Attached Thumbnails
need help with AC wiring-acdiagram-2-.jpg
Vashthestampede is offline   Reply With Quote
Old 09-22-2008, 12:17 AM   #3
Elite Member
Thread Starter
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

Thanks man, those help a bit. The diagram shows the compressor connecting to a ground, would that just be through the casing straight to the block? Now, i double checked against my 97 just now and any wiring I can see is hooked up correctly ... hmm, maybe i should check my fuses and the relay ...
akaryrye is offline   Reply With Quote
Old 09-22-2008, 12:22 AM   #4
Elite Member
iTrader: (1)

Join Date: Jun 2007
Location: VA, Germany, Afghanistan
Posts: 2,967
Total Cats: 3
Default

If you end up needing a new compressor or anything in the a/c system, LMK. I ripped mine out and have no plans of it going back in.
KPLAFIN is offline   Reply With Quote
Old 09-22-2008, 05:08 AM   #5
Elite Member
Thread Starter
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

I guess ill take a peek at the FSM for answers ... i just need some way to confirm my wiring is correct ...
akaryrye is offline   Reply With Quote
Old 09-22-2008, 11:24 AM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

You should probably check out Joe's "the great a/c FAQ" in the megasquirt section.
Braineack is offline   Reply With Quote
Old 09-22-2008, 11:43 AM   #7
Elite Member
Thread Starter
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

you do realize that i am not running the megasquirt at the moment right? Ill go ahead and check it out real quick though.
akaryrye is offline   Reply With Quote
Old 09-27-2008, 02:19 AM   #8
Elite Member
Thread Starter
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

So after going through the Factory service manual troubleshooting guide, it looks like my relay was bad. Kplafin, you sir have a PM.
