Post pictures of your DIY style valve covers


Looking for some ideas, lets see what you guys have.

Lets put:
What brand of paint, rattle can, powdercoated ect..
Time between coats
Temp of day during drying process
Time between final coat and install

Post up!

http://i38.tinypic.com/kdubrk.jpg
http://i37.tinypic.com/f39btj.jpg
http://i33.tinypic.com/14ilz61.jpg
http://i33.tinypic.com/2lnbamq.jpg
http://i36.tinypic.com/28i53jq.jpg

krylon black wrinkle
3-coats, 5 minutes between
100* summer heat, let it set for a month or so I think.

I'll play.

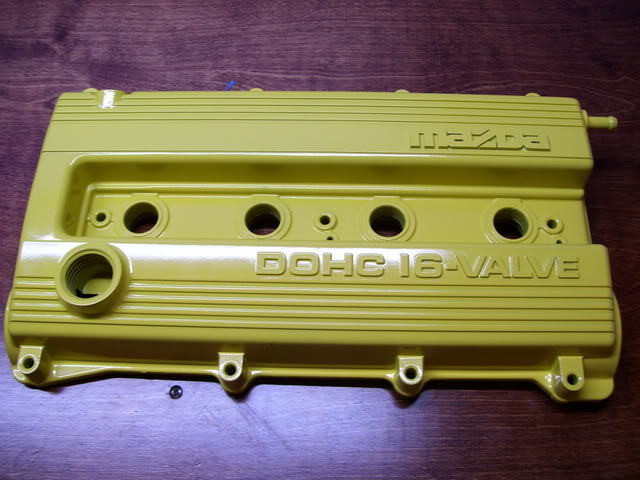

What brand of paint, rattle can, powdercoated ect: Dupli COlor Engine Enamel, rattle can
Time between coats: 2 days
Temp of day during drying process: 80*F
Time between final coat and install: Sold it after painting.
Also, I bead blasted and primed it before painting it. I think I put 3 coats of yellow on it, sanding between coats of course.
Attachment 210624

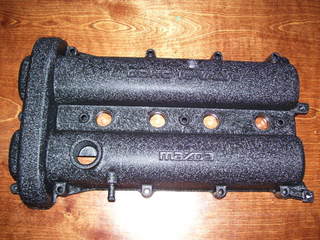

I used some crinkle pant from autozone on this one. VC was bead blasted and primed. 15 minutes between 3 light coats. 90*F Sold a month later.

Attachment 210625


This one got the works. Used black Dupli Color on this one. All casting marks removed, generally smoothed out for a cleaner look, bead blasted, polished raised lettering, then primed and 3-4 coats sanding between coats with 2 days between coats. Took a while but it came out nice.

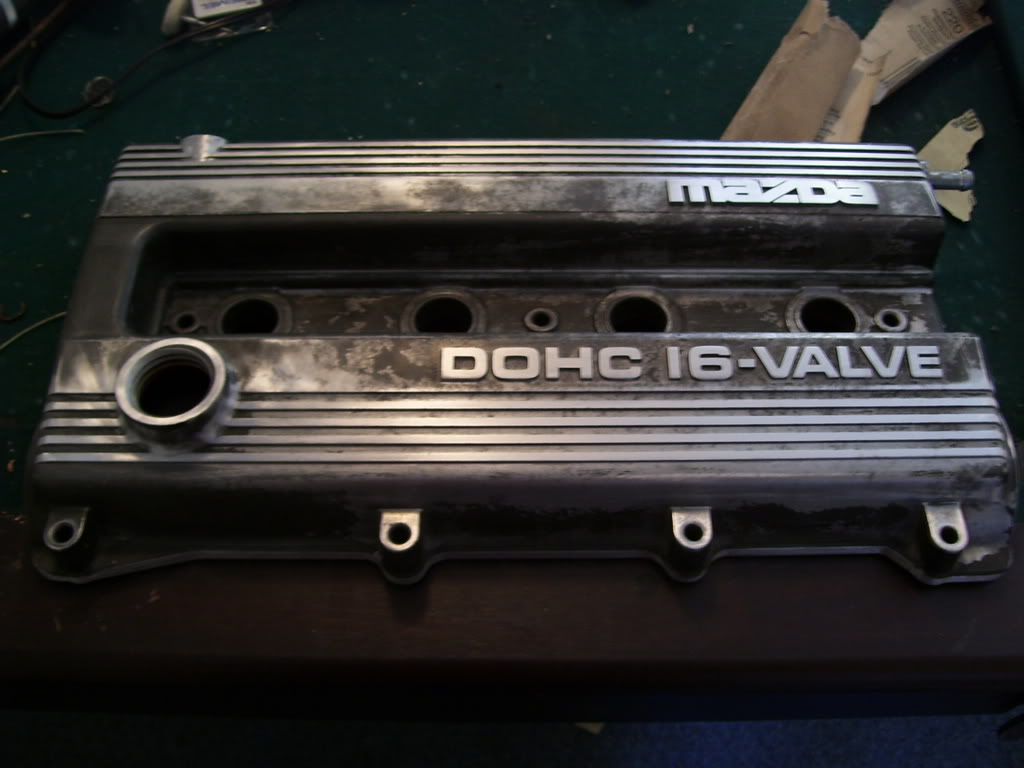

Bead blasted, casting marks removed, and polished raised lettering.
Attachment 210626

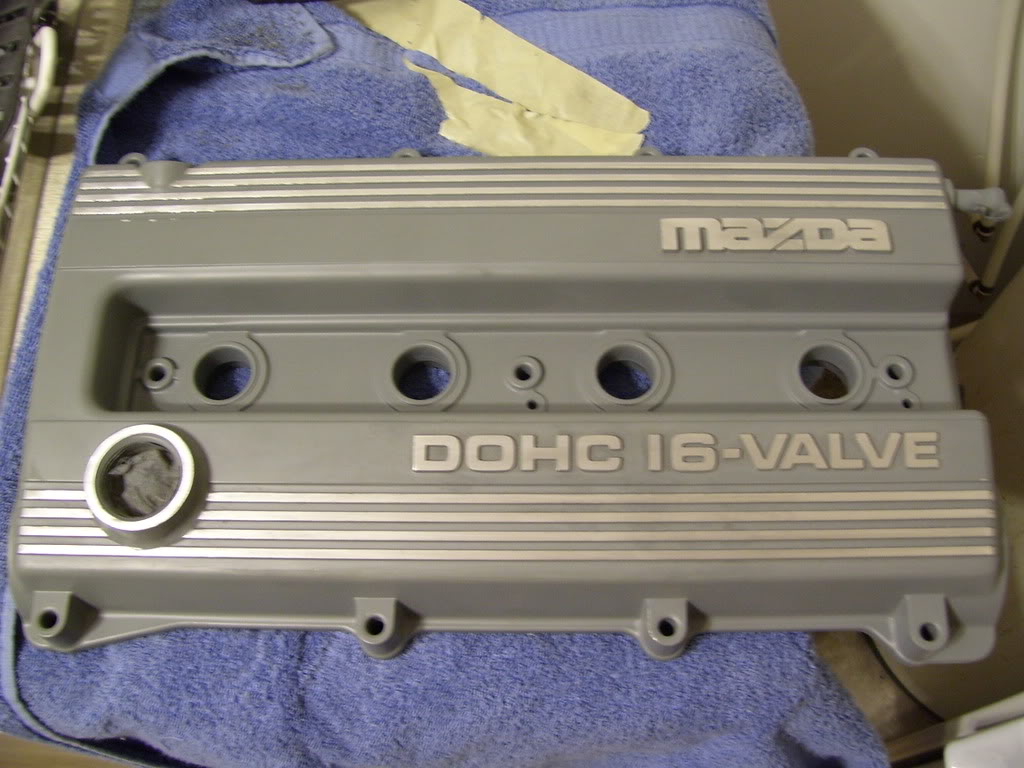

After priming:

Attachment 210627

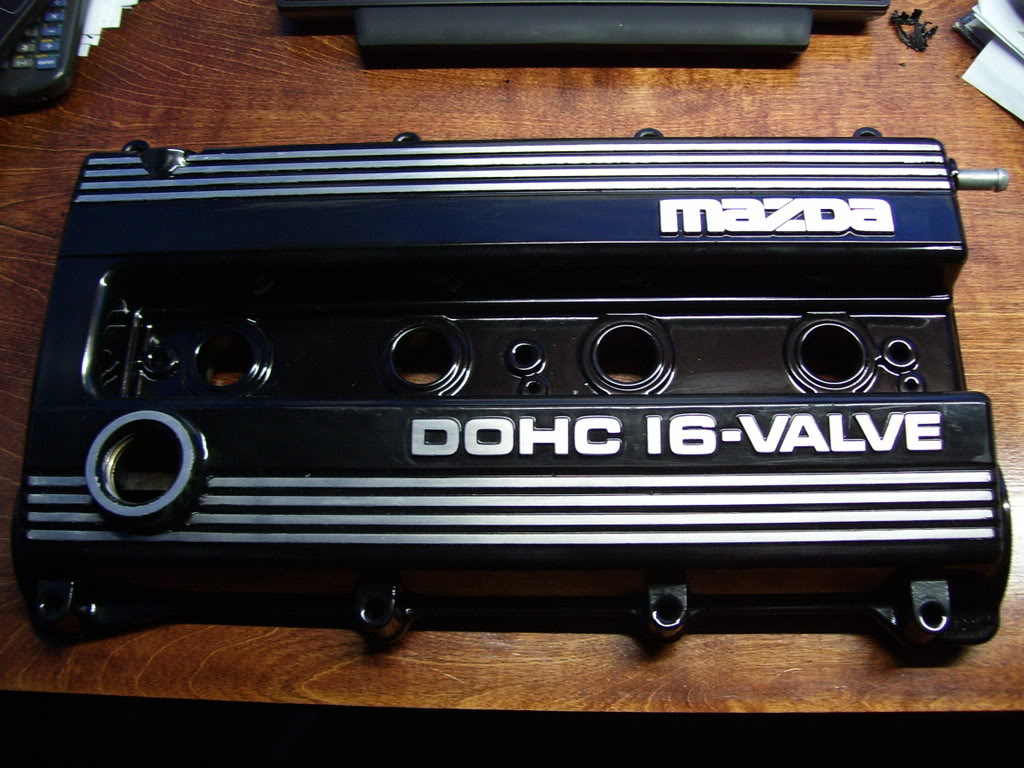

Finished
Attachment 210628

damn, i been wanting to do this, but have so much other shit....nice job to all so far...

that last one looks familiar pat...

That looks damn good. How much do you charge?
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote

I think I paid $60 or $70 for that valve cover.

I have the cover. How much to get it to look like that?
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote

99 intake manifold with a 1.6 valve cover?

VHT Wrinkle Plus (Black) - Cheapest that I found was to buy 2+ on Ebay, came out to be less than $10 a can.

I sand blasted the valve cover, then set it up under spot lights until it was hot to the touch. I layed on a heavy coat, as heavy as I could without running, then after a few minutes went back and touched up whatever I missed before the paint started curing. I let it sit under the lights for a few hours, then sanded off the paint on the raised lettering the next day. It has lasted a season so far, only thing that sucks is trying to clean oil off it.

I would have preferred to use an oven since thats what the directions recommended, but I sure as hell wasn't baking it in my house. This paint STINKS when warmed up. Letting it dry with no heat makes the wrinkles really deep, but letting it dry at the max temp makes them very tight and more consistent, which I prefer.

http://elesjuan.googlepages.com/CRW_...ze:628,920.jpg

Crappy white balance in that photo, but its a really pretty color. Red Rum Wrinkle powder coating. Don't have the balls to hit the Embossed lettering with the sander... :bang:

I think it looks good with the lettering red instead of silver.

;) Thanks!

For the record, that blue "Mazdaspeed" oil cap (5$ on ebay...:jerkit:) isn't blue anymore.. it faded to purple. :bowrofl:

I sold it to Paul for 90 shipped, so 70 for the cover. After that I got several PM's wanting it. If I did it again, it would be more. I spent waaayy too much time on that VC.

that is a 99 valve cover. they went back to sunken letters. note the coil pack and CAS locations.

yes. It has better throttle response than ITB's.

Rattle can Red High heat paint with several hours between coats.....did not finish sand except for the lettering due to time restraints and haven't bothered going back to finish it. Painted in the summer during low humidity with around 85-90* abmbient in the garage.

Mine was <$100 for powder coating two colors and three pieces. To many others things to do on the car for me to spend time on that. :giggle:
http://i158.photobucket.com/albums/t.../camcover2.jpg
http://i158.photobucket.com/albums/t.../camcover1.jpg

Is that the FE cover? Its hot. I tried getting mine powder coated, but my local shop was making a ton of excuses of why they "couldn't do it" so I just did it myself.

Don't mean to threadjack.. Did you get your FE from a sportage or was it imported? It came as the Non-Turbo FE 16 valve and you turbo'd it?
