Default Cam Seals!!

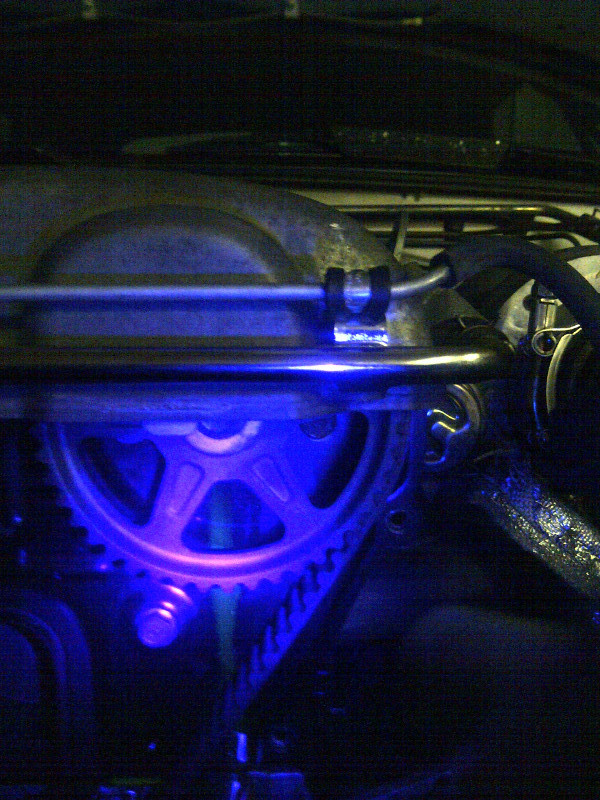

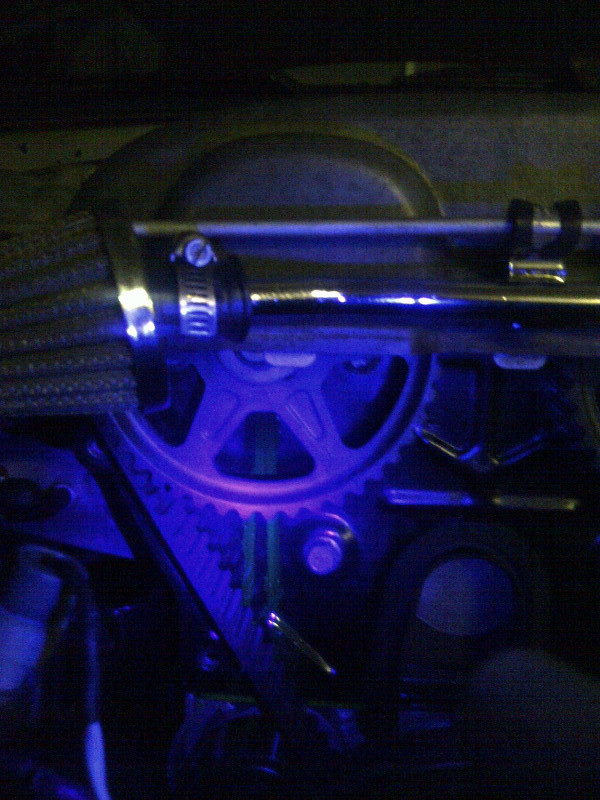

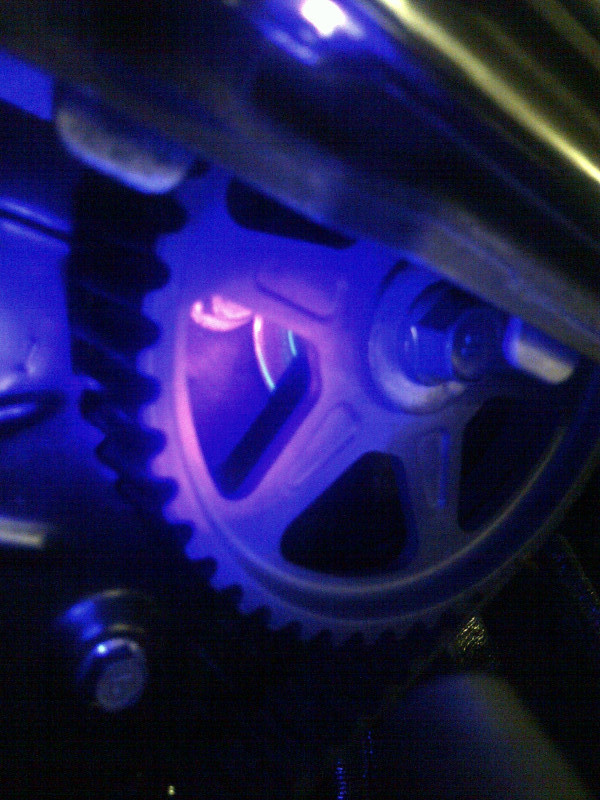

And the culprit is . . . Cam Seals:







Lessons learned:
1. Don't assume. I've "learned" this lesson multiple times. I still do it anyway.
2. Oil travels. It can appear to be coming from somewhere completely unrelated to the real source. In this case, oil dribbling from above was being caught by the slanted intersection of the block and oil pump and following that junction directly to the front, driver's side of the engine. Looked for all the world like a leak from the oil pump (the oil pump is not leaking at all, thankfully).
3. That UV dye stuff is awesome.
4. Curly got the reverse Murphy's Law working for me with the engine pull vibes. That's the only way I can explain getting lucky like this.
Attached Thumbnails
Pull me back from the brink!!  Oil Pump Leak!-weatherford-20130204-00164_zps2f5a1a0b.jpg   Pull me back from the brink!!  Oil Pump Leak!-granburyeast-20130204-00163_zps749cf7c9.jpg   Pull me back from the brink!!  Oil Pump Leak!-granburywest-20130204-00166_zpsa398c2bd.jpg

Last edited by hornetball; 02-06-2013 at 11:50 AM.
hornetball is offline   Reply With Quote
Old 02-05-2013, 02:16 PM   #22
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,109
Total Cats: 518
Default

Dammit. Damn you.

You described a lot more oil than that.
curly is online now   Reply With Quote
Old 02-05-2013, 02:31 PM   #23
Senior Member
iTrader: (8)

Join Date: Sep 2010
Location: misery
Posts: 1,130
Total Cats: 9
Default

at least that's easier than pulling the engine.
phillyb is offline   Reply With Quote
Old 02-05-2013, 02:55 PM   #24
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Quote:
Originally Posted by curly View Post
Dammit. Damn you.


FWIW, I thought you had it nailed. Plus, no guarantee that an oil leak from the pump won't eventually develop. But I don't need to pull the engine right now, thank goodness.

Last edited by hornetball; 02-05-2013 at 03:34 PM.
hornetball is offline   Reply With Quote
Old 02-05-2013, 03:56 PM   #25
Junior Member
iTrader: (1)

Join Date: Aug 2006
Location: Ellicott City, MD
Posts: 458
Total Cats: 6
Default

So is it the seal or do the ends of the caps not have any RTV othem?
MicaCeli is offline   Reply With Quote
Old 02-05-2013, 05:41 PM   #26
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,327
Total Cats: 1,926
Default

Quote:
Originally Posted by hornetball View Post
2. Oil travels.
It sure does.

Several years ago, I had a problem with oil winding up on the top of the valve cover, down in the well around the spark plug holes.

It was coming from the head gasket.
Joe Perez is offline   Reply With Quote
Old 02-06-2013, 11:55 AM   #27
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Swapped the seals last night. Drove to work this AM (about 40 minutes at highway speeds) and everything is dry.

I can't really figure it out though. The caps were properly torqued (150in-lbs) and had black RTV in the right place. I disassembled, cleaned up, hit the cap mating surfaces just a touch with some emory cloth (making sure there were no burrs), and reassembled with new seals. I guess the seals that were in there were somehow defective -- but I'll be darned if I can see why. They were new, same dimensions as the replacements I put in, yada, yada.

???

Well, at least everything is working and dry. I hate mysteries.
hornetball is offline   Reply With Quote
Old 02-06-2013, 11:58 AM   #28
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Quote:
Originally Posted by Joe Perez View Post
Several years ago, I had a problem with oil winding up on the top of the valve cover, down in the well around the spark plug holes.

It was coming from the head gasket.
How in the ??????

Joe invented anti-gravity!!! You need to replicate that.
hornetball is offline   Reply With Quote
Old 02-06-2013, 12:11 PM   #29
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,327
Total Cats: 1,926
Default

Quote:
Originally Posted by hornetball View Post
How in the ??????
I have utterly no idea.

I replaced damn near every other seal in the engine first. Even got around to finally removing the CAS, tracking down the blocking cap for that hole from an NB engine, and slathering the **** out of it with RTV. Nothing made a difference.

When I pulled the head, both it and the block were still straight, but the area at the extreme rear of the gasket where unpressurized oil drains down out of the head seemed to have degraded somewhat. Popped in a new gasket and that magically fixed the problem.

I can only assume that there are some bizarre air currents going on under the hood while in motion.
Joe Perez is offline   Reply With Quote
Old 02-06-2013, 12:25 PM   #30
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

were they installed properly to start? I had my cams out once and when I refit the caps, I didn't install them properly and had the same oil leak. I just popped the caps, and place them back in fully and retorqued and away I went.
Braineack is offline   Reply With Quote
Old 02-06-2013, 01:07 PM   #31
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Quote:
Originally Posted by Braineack View Post
were they installed properly to start?
Don't know. They were pre-installed with the crate engine. They looked like they were fully seated.

One of life's mysteries. Like oil travel.
hornetball is offline   Reply With Quote
Old 02-10-2013, 04:36 PM   #32
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Just a bit of follow-up. I remembered that I had posted pictures of my new oil pump here:

https://www.miataturbo.net/diy-turbo...d-70274/page2/

It turns out that it did not have an O-ring groove. So, a gasket-only assembly is correct in this case.

New engine continues to be clean and dry.
