Old 08-25-2014, 12:37 PM   #61
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 130
Default

With tq being that much higher than hp (158hp, 181tq), it sounds like something was really choking the motor at higher rpms. I don't think I ever remember seeing numbers that lopsided on a BP.
pdexta is offline   Reply With Quote
Old 08-25-2014, 12:49 PM   #62
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,679
Total Cats: 1,561
Default

I'm going to say it may have been overrevved at some point, stretching and stressing the rods a bit, which has been known to happen in our engines. The weakened rods would then not take nearly as much torque before yielding.
sixshooter is online now   Reply With Quote
Old 08-25-2014, 12:54 PM   #63
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,679
Total Cats: 1,561
Default

Quote:
Originally Posted by concealer404 View Post
OP, just as a reference point...

Here's a 2554 on 10psi.
That's obviously not a 2.25 downpipe and log manifold. And also not normal for a 2554.

Remember, the OP is unsure which t25 style turbo he has.
sixshooter is online now   Reply With Quote
Old 08-25-2014, 12:54 PM   #64
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

I missed that part in the shitting OP. Is this a 2554? My own made the numbers in my sig. And it says 12psi, but I think it was 11 at peak torque.

So I'm 10ft/lbs down and 15hp higher, with a 1.6.
curly is offline   Reply With Quote
Old 08-25-2014, 12:56 PM   #65
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

Quote:
Originally Posted by sixshooter View Post
That's obviously not a 2.25 downpipe and log manifold. And also not normal for a 2554.

Remember, the OP is unsure which t25 style turbo he has.

It's a 2.5" downpipe and a log manifold.

But i can see how that 0.25" could result in an extra 65hp. I stand corrected.
concealer404 is offline   Reply With Quote
Old 08-25-2014, 02:22 PM   #66
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

My car made 160hp at less than 6psi on a stock exhaust with no intercooler on a very hot day...
triple88a is offline   Reply With Quote
Old 08-25-2014, 02:24 PM   #67
Junior Member
Thread Starter

Join Date: Nov 2011
Posts: 77
Total Cats: 9
Default

Well yeah sorry what I mean when i say it ran perfect is that it seemed perfect. I.e no misfiring or anything. Obviously I have no idea if det was happening all along.

The rev limit is set to 7.5k and it saw that a lot in n/a form and even a few times in the 4 days it ran with the turbo.

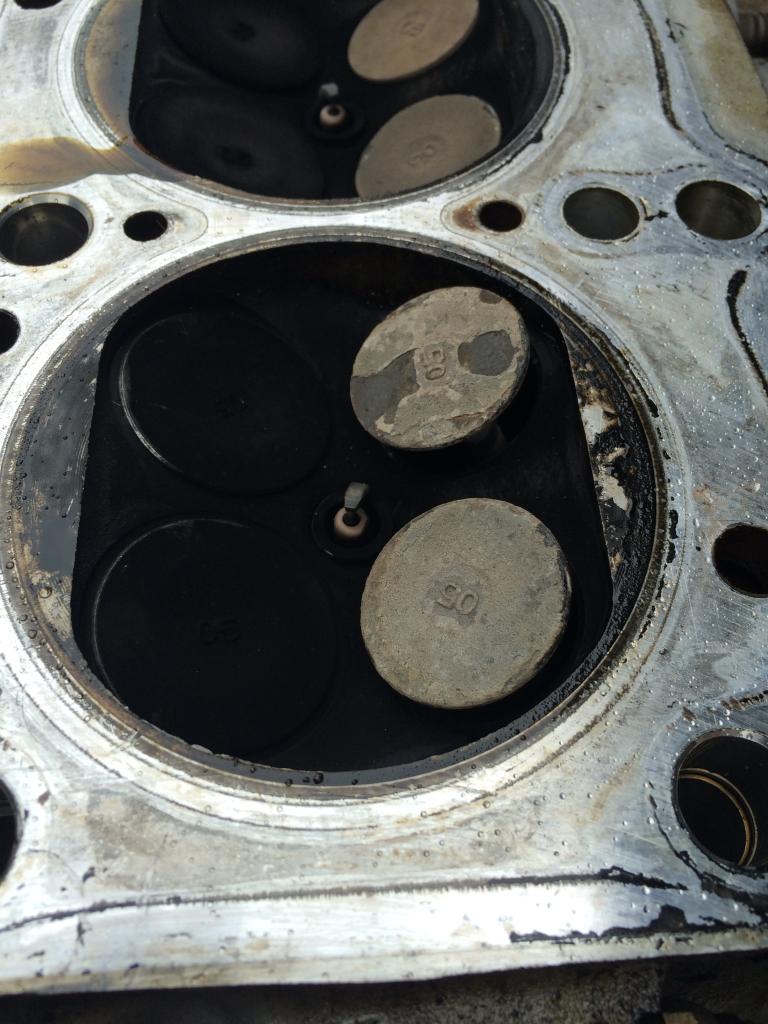

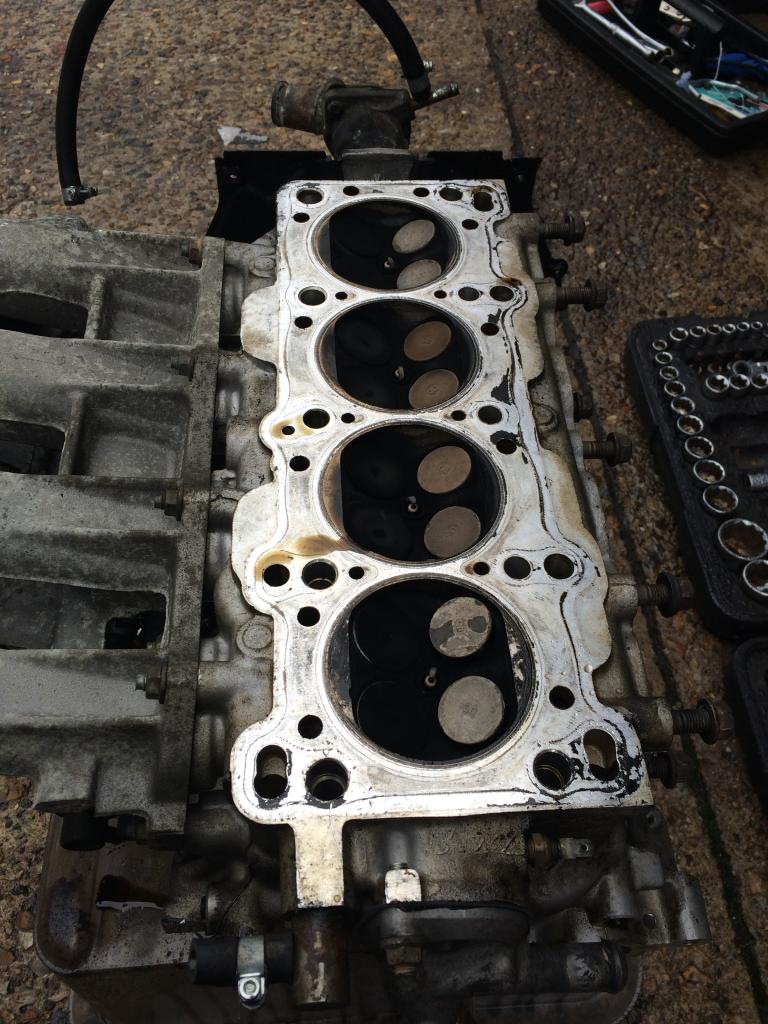

Here's pics of the head:





Quite sooted up.
Attached Thumbnails
Turbo installed. Lasted 4 days. Threw a rod.-496c60d6-fc23-426f-905c-00e5ad42b5d1.jpg   Turbo installed. Lasted 4 days. Threw a rod.-cbb88977-be14-4d38-89a5-82ddb38a9a4a.jpg
Horton is offline   Reply With Quote
Old 08-25-2014, 02:27 PM   #68
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

7.5k on a boosted motor and only 160hp? ouch.

That redline probably had something to do with it.
triple88a is offline   Reply With Quote
Old 08-25-2014, 02:28 PM   #69
Junior Member
Thread Starter

Join Date: Nov 2011
Posts: 77
Total Cats: 9
Default

Quote:
Originally Posted by triple88a View Post
7.5k on a boosted motor and only 160hp? ouch.

That redline probably had something to do with it.
Yeah as I said I was disappointed with the numbers
Horton is offline   Reply With Quote
Old 08-25-2014, 02:30 PM   #70
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,583
Default

is that pitting on the head or just drops of coolant?
18psi is offline   Reply With Quote
Old 08-25-2014, 02:32 PM   #71
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Post the timing map.
triple88a is offline   Reply With Quote
Old 08-25-2014, 02:32 PM   #72
Junior Member
Thread Starter

Join Date: Nov 2011
Posts: 77
Total Cats: 9
Default

Rain probably. It was raining when I removed it.

As i said. I can't post any mapping or anything ecu related until I've got it off my mapper. I was hoping that just by looking at the parts someone could tell what's happened but obviously that's hard after just 4 days use.
Horton is offline   Reply With Quote
Old 08-25-2014, 02:34 PM   #73
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,679
Total Cats: 1,561
Default

I had my rev limiter set to 7100 and it didn't need to go that high because the meat of the powerband was below there with a log manifold and stock heads. And I hated to push it too hard because I wanted it to last.
sixshooter is online now   Reply With Quote
Old 08-25-2014, 02:35 PM   #74
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,679
Total Cats: 1,561
Default

Quote:
Originally Posted by triple88a View Post
Post the timing map.
Read the thread, lol.
sixshooter is online now   Reply With Quote
Old 08-25-2014, 02:36 PM   #75
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,583
Default

are you sure?

look at at the edge of the combustion chamber, see how #3 is smooth and #4 looks like it has chips in it?

or am I seeing things?
18psi is offline   Reply With Quote
Old 08-25-2014, 02:40 PM   #76
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

I see it too, but hard to tell considering the #4 piston came up and smacked it.
hornetball is offline   Reply With Quote
Old 08-25-2014, 02:40 PM   #77
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Quote:
Originally Posted by sixshooter View Post
Read the thread, lol.
I am.. dont get why the op is saying he needs it from his mapper.. hook up the laptop and download it from the megasquirt...
triple88a is offline   Reply With Quote
Old 08-25-2014, 02:43 PM   #78
Junior Member
Thread Starter

Join Date: Nov 2011
Posts: 77
Total Cats: 9
Default

Quote:
Originally Posted by triple88a View Post
I am.. dont get why the op is saying he needs it from his mapper.. hook up the laptop and download it from the megasquirt...
As I said earlier. I don't have a laptop or even the software.
Horton is offline   Reply With Quote
Old 08-25-2014, 02:47 PM   #79
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,583
Default

Does your "mapper" send his emails by carrier pidgeons? Or telegraph?

I mean seriously, this takes all of 2 seconds. Phone call, "can I have my map and logs", email, voila....

Or, since you said he is "well known on here" I'm guessing you meant MT? In which case he can just post it up and the included logs from his tuning session.
18psi is offline   Reply With Quote
Old 08-25-2014, 02:50 PM   #80
Junior Member
Thread Starter

Join Date: Nov 2011
Posts: 77
Total Cats: 9
Default

He's away at a festival all weekend. I'll try to get hold of him tomorrow
Horton is offline   Reply With Quote
