Old 08-25-2014, 08:18 AM   #41
Junior Member
Thread Starter

Join Date: Nov 2011
Posts: 77
Total Cats: 9
Default

Right I've taken the head off and removed the piston through the top by super glueing a little sucker on the top of it.

Here are pics.

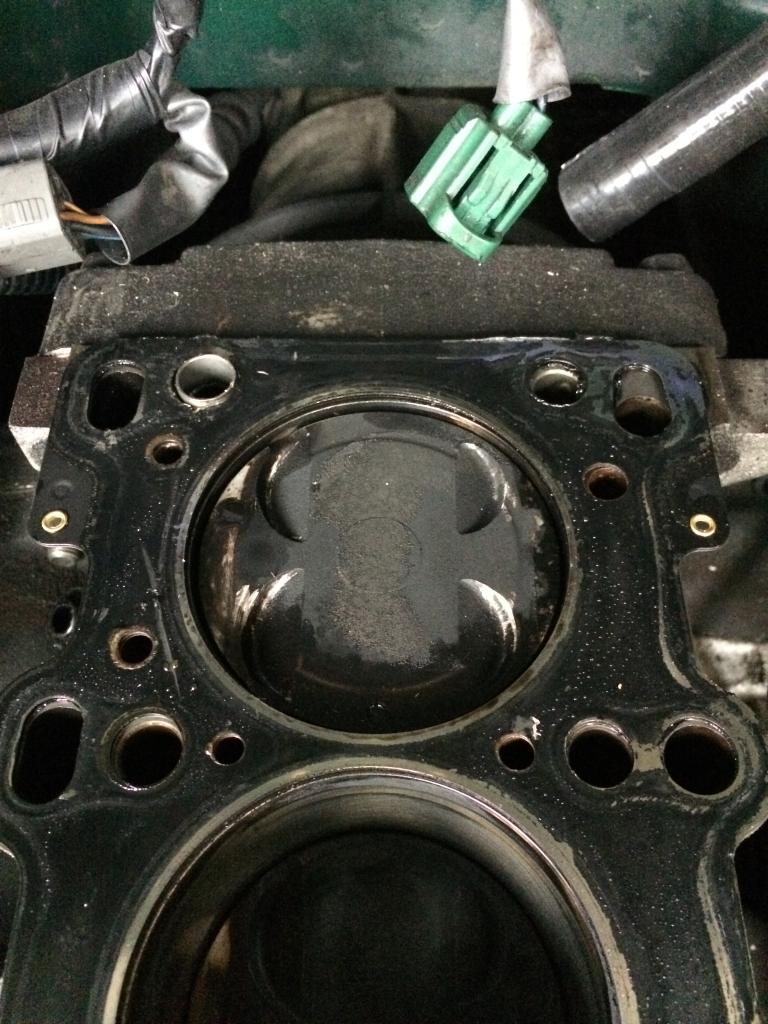

Pic of no:4 straight after I removed the head. The piston has hit the valves in the head.

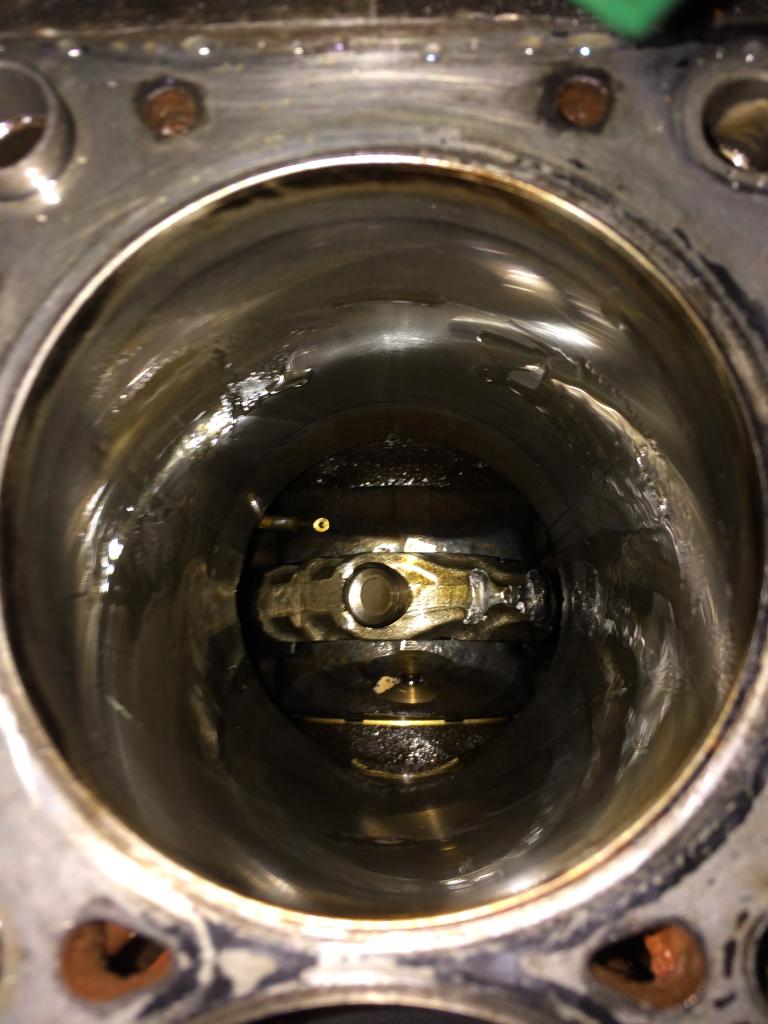

No:1

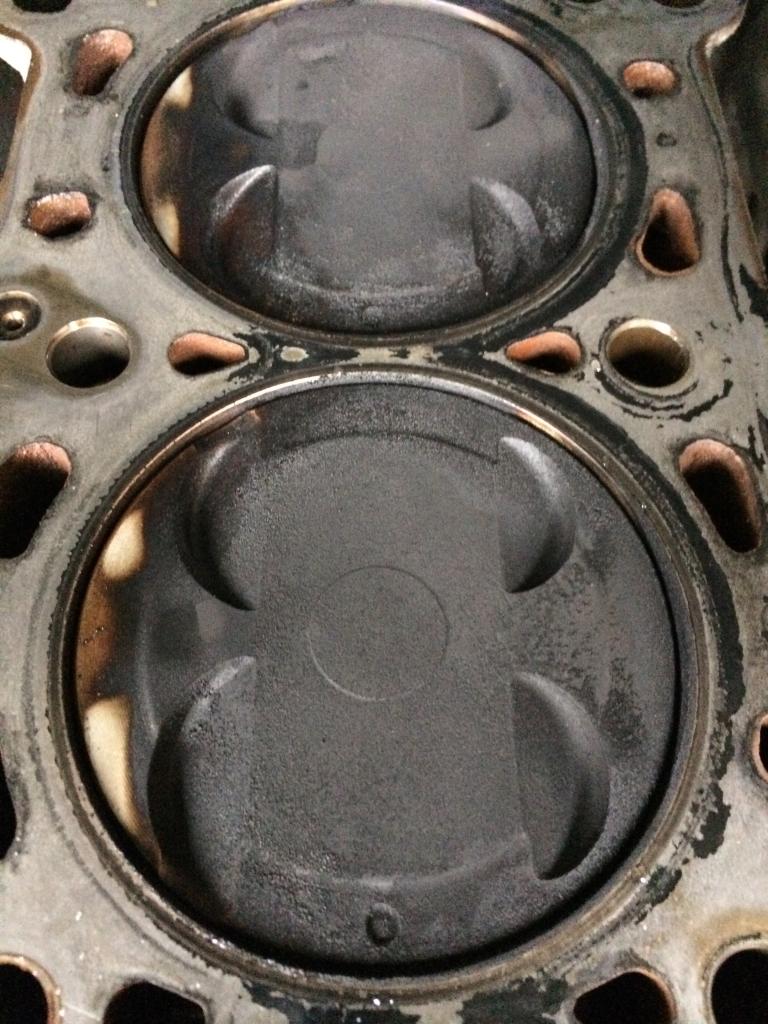

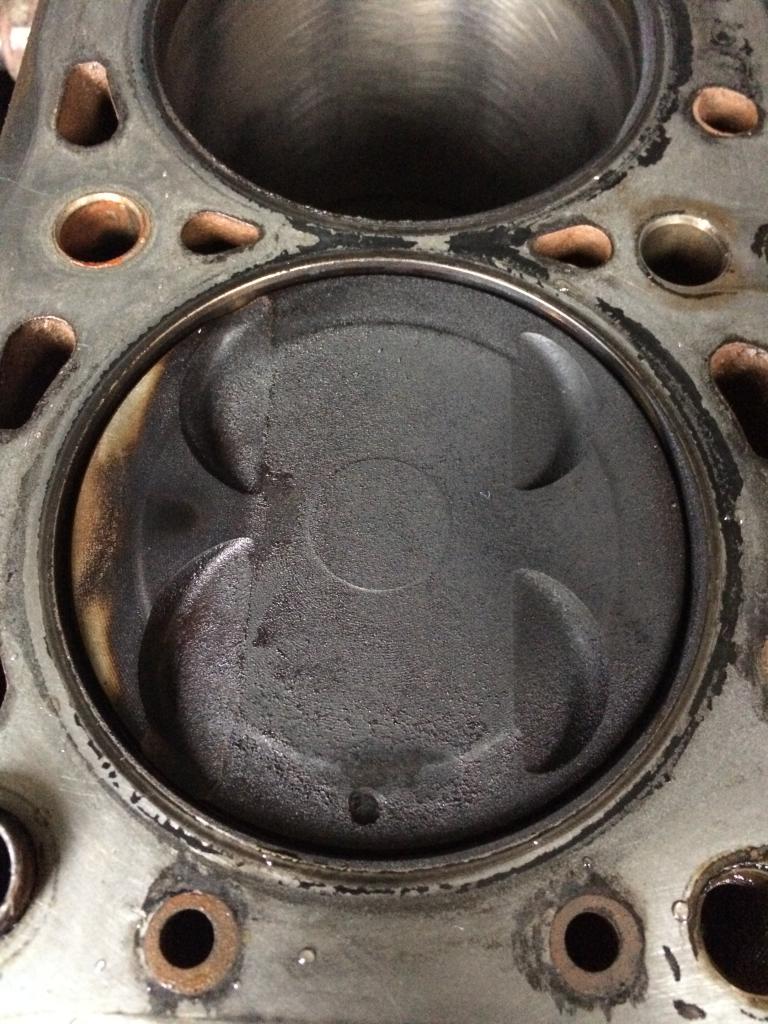

No:2 & No:3


Mangled rod:


The bit of rod left on the crank spins perfectly smooth so I don't think this is bearing related.

Once I've got the block out I'll remove the sump and take a look at the bearings in what's left of the rod.
Attached Thumbnails
Turbo installed. Lasted 4 days. Threw a rod.-5fc8bb9a-5c44-4d80-9405-68e41d8defb5.jpg   Turbo installed. Lasted 4 days. Threw a rod.-d70aaacf-8bbe-41b4-b228-53095c37214e.jpg   Turbo installed. Lasted 4 days. Threw a rod.-6fbd19f5-53a5-4835-866d-b61205072c99.jpg   Turbo installed. Lasted 4 days. Threw a rod.-ac617787-15b7-420b-bd4e-f6eebf7248ac.jpg
Horton is offline   Reply With Quote
Old 08-25-2014, 08:29 AM   #42
Junior Member
Thread Starter

Join Date: Nov 2011
Posts: 77
Total Cats: 9
Default

Here's the launch in normal speed.


I held it on launch control until I saw the boost rise on the gauge the let it go and released the clutch. I'm pretty sure it was a full boost when I let it go or at least very close.

So maybe it just couldn't take a full boost launch? And there's nothing wrong with the tune?
Horton is offline   Reply With Quote
Old 08-25-2014, 09:42 AM   #43
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,854
Total Cats: 1,788
Default

Quote:
Originally Posted by Horton View Post
So maybe it just couldn't take a full boost launch? And there's nothing wrong with the tune?
define full boost. did you post the tune yet?

can you show pics of the head in a similar manner?

Looks like a big chunk of piston is missing on #4 on the intake side and some det on the exhaust side of it. And maybe some contact with valves.

Lots of compression getting past the rings, but unsure if that was before or after boom. Probably will find a cracked ringland on the piston.

All four show it was running pretty rich, as the pistons are steam cleaned from the fuel.
Braineack is offline   Reply With Quote
Old 08-25-2014, 09:45 AM   #44
Junior Member
Thread Starter

Join Date: Nov 2011
Posts: 77
Total Cats: 9
Default

Full boost as in I watched the gauge get to just under 1 bar before I let it launch.

Can't post the tune until I get it off my mapper

The head does have marks on the valves where the piston has hot the head. The engine made good compression a couple of weeks ago.

Also I have the no:4 piston out and there are no signs of cracked ring lands or anything that I can see
Horton is offline   Reply With Quote
Old 08-25-2014, 09:52 AM   #45
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 129
Default

Really interested in hearing more feedback/opinions and seeing that tune.

I'm certainly no expert, but those pistons don't look bad to me at all, definitely not like I've seen from other motors that met an early demise. I assume we can ignore the valve marks on piston #4, none of the other pistons show any damage and with an exploded rod it seems pretty inevitable that there would be a collision.
pdexta is offline   Reply With Quote
Old 08-25-2014, 10:16 AM   #46
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,177
Total Cats: 2,579
Default

The problem is, it still could have been knocking badly, and you wouldn't see it too much since he's only had the car running 4 days. So while I agree the rest of the pistons don't look too bad, we still can't rule that out.

But for all we know it could have even been a seized injector that flooded the cylinder and hydrolocked it.

Sitting on the 2 step and building just under 1 bar is putting some serious stress on the engine. Even built engine cars I've worked with don't do that.

Serious heat and load from sitting on the 2step + possible flood from cutting fuel and spark = boom?
18psi is offline   Reply With Quote
Old 08-25-2014, 10:21 AM   #47
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,461
Total Cats: 782
Default

Really it doesn't matter without knowing the state of the tune (probably garbage), but really this is pretty cut and dry, due to numbers.

1) The motor was fucked before it was even turbo'd.

or

2) The tuner sucks.


Or a combination of 1 and 2.
concealer404 is online now   Reply With Quote
Old 08-25-2014, 10:33 AM   #48
Junior Member
Thread Starter

Join Date: Nov 2011
Posts: 77
Total Cats: 9
Default

Quote:
Originally Posted by concealer404 View Post
Really it doesn't matter without knowing the state of the tune (probably garbage), but really this is pretty cut and dry, due to numbers.

1) The motor was fucked before it was even turbo'd.

or

2) The tuner sucks.


Or a combination of 1 and 2.
The motor made great compression and ran perfect before the turbo. It also ran perfect with the turbo. No smoke, no rattles, no knocks. I had my local engine builder (who built the bottom end) take a look at it and he said the pistons look great. The tune appears ok but hard to tell from just 4 days. He thinks the rod simply couldn't take the stress from the launch control simple as that.

I personally think the tune is fine and that the launch control was just too much. I am still confused as to why it made such lower power for the psi the turbo was producing though.
Horton is offline   Reply With Quote
Old 08-25-2014, 10:42 AM   #49
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,177
Total Cats: 2,579
Default

rods break from torque

your engine doesn't make much torque.

the only thing that could have spiked compression through the roof like that is a bad tune or failed injector or something

until you post the tune, I'm betting everyone will just say its the tune
18psi is offline   Reply With Quote
Old 08-25-2014, 10:55 AM   #50
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,461
Total Cats: 782
Default

Quote:
Originally Posted by Horton View Post
The motor made great compression and ran perfect before the turbo. It also ran perfect with the turbo. No smoke, no rattles, no knocks. I had my local engine builder (who built the bottom end) take a look at it and he said the pistons look great. The tune appears ok but hard to tell from just 4 days. He thinks the rod simply couldn't take the stress from the launch control simple as that.

I personally think the tune is fine and that the launch control was just too much. I am still confused as to why it made such lower power for the psi the turbo was producing though.


These statements are contradicting.
concealer404 is online now   Reply With Quote
Old 08-25-2014, 11:05 AM   #51
Junior Member
Thread Starter

Join Date: Nov 2011
Posts: 77
Total Cats: 9
Default

Quote:
Originally Posted by concealer404 View Post
These statements are contradicting.
Are they? I mean it appeared to run. Perfect and I was told its running perfect just not making great power.
Horton is offline   Reply With Quote
Old 08-25-2014, 11:08 AM   #52
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,461
Total Cats: 782
Default

Quote:
Originally Posted by Horton View Post
Are they? I mean it appeared to run. Perfect and I was told its running perfect just not making great power.

If it was running perfect, it would have made more power.

Whether it was running like dick due to the tune, or due to a shot motor, we don't know. But it wasn't running well.
concealer404 is online now   Reply With Quote
Old 08-25-2014, 11:08 AM   #53
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,177
Total Cats: 2,579
Default

You're gonna get seriously flamed if you keep saying stupid stuff like: " It didn't go up in a burst of fire on startup, and I was told it was tuned good by the guy I paid to tune it, therefore it ran perfect and was tuned perfectly"

I mean seriously.......stahhp

*edit: and I keep forgetting to mention that if you really have a 4.65 Final drive, your 1st gear is semi-truck long, meaning you probably didn't load up the engine that bad after you actually launched it.
18psi is offline   Reply With Quote
Old 08-25-2014, 11:11 AM   #54
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,461
Total Cats: 782
Default

Right.

No tuner is going to say "Thanks for the money! I did a ******* terrible job for you, have a nice day!"


At least... not to your face.

Also see: TDR.
concealer404 is online now   Reply With Quote
Old 08-25-2014, 11:21 AM   #55
Supporting Vendor
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,764
Total Cats: 46
Default

if your going to ask for help you need to keep an open mind. don't be an ask hole or you'll need a flame shut....



Shamess plug--> fire suits available at OGracing.com :P

I don't know much about BP motors, but if you messed up a rod it happened from pre-ignition. Ie two cylinders firing at once. things that can cause this, too lean, excessive spark advanced, elevated cylinder temp, faulty coil wiring ect...ect...ect . post pictures of the cylinder head and spark plug. that will have evidence of Pre ignition.

Last edited by curly; 08-25-2014 at 11:50 AM.
OGRacing is offline   Reply With Quote
Old 08-25-2014, 11:52 AM   #56
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,106
Total Cats: 518
Default

Quote:
Originally Posted by Horton View Post
It also ran perfect with the turbo.
IT BLEW UP IN 4 DAYS, HOW IS THIS PERFECT?!?!
curly is online now   Reply With Quote
Old 08-25-2014, 12:00 PM   #57
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Exactly my point. 160hp for 13 psi is nothing. Should have been in the 220-230 range.
triple88a is offline   Reply With Quote
Old 08-25-2014, 12:01 PM   #58
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,177
Total Cats: 2,579
Default

LOL

But gaiths, the car ran perfect. It didn't blow up for a whole 4 days. That's like...forever
18psi is offline   Reply With Quote
Old 08-25-2014, 12:06 PM   #59
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

So how much timing and fuel enrich was it running for the launch control?
triple88a is offline   Reply With Quote
Old 08-25-2014, 12:06 PM   #60
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,461
Total Cats: 782
Default

OP, just as a reference point...

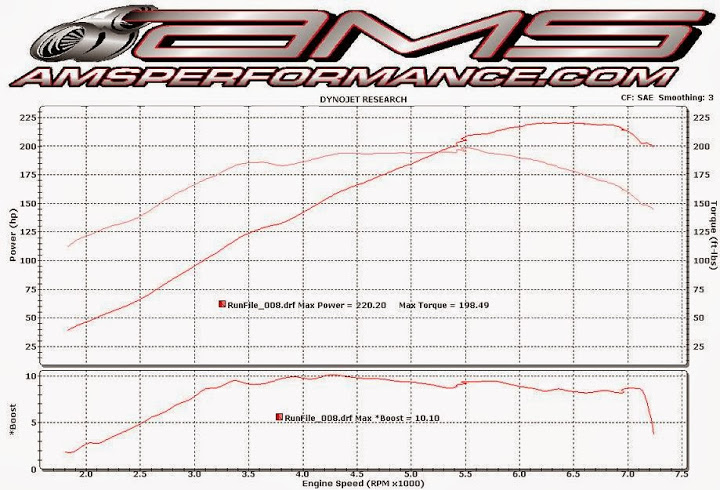

Here's a 2554 on 10psi.




For another anecdote, that car has run for at least FIVE days.
Attached Thumbnails
Turbo installed. Lasted 4 days. Threw a rod.-red%252520miata%252520dyno%2525202010.jpg
concealer404 is online now   Reply With Quote
