Old 09-11-2014, 08:26 AM   #221
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

Quote:
Originally Posted by concealer404 View Post
It's still a good 50-60ftlbs under my car with a 2554 only doing 8psi at redline...

But if this is normal, then ok then.
yes, it completely normal for 1.6L motors to make **** power.

it's also normal for dynapack dynos to read 10-15% lower than the dynojet you probably dynoed on.


hey remember that time i said it's probably boost drop? that was cool.


Quote:
That is because his turbo is WAYYYYY out of it's efficiency islands even making 8 psi at 6800. If the OP turned the boost down to 5 psi peak, it would make what we consider a "normal" looking graph and peak around 150 WHP on a dynojet.

I think the designation for this turbo would be "T-to small". It looks like a TD03-9b or there about in size.

Keith
__________
Are you suggesting that his turbo is so small it can barely support 150rwhp at 7psi? Even considering that 150rwhp on a dynapack on a 1.6L is a very common number on almost ever sized turbo thrown at it?
Attached Thumbnails

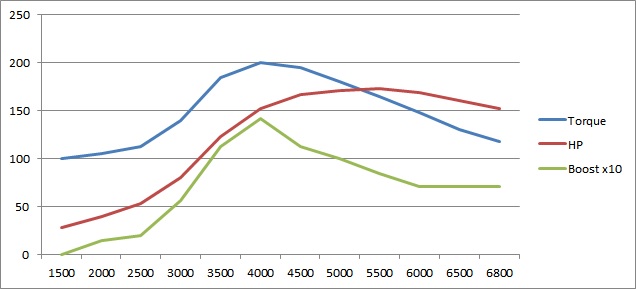

Turbo installed. Lasted 4 days. Threw a rod.-horton_hears_a_droop.jpg

Last edited by Braineack; 09-11-2014 at 08:49 AM.
Braineack is offline   Reply With Quote
Old 09-11-2014, 01:24 PM   #222
Senior Member
iTrader: (2)

Join Date: Mar 2014
Location: Meridian, Mississippi
Posts: 637
Total Cats: 42
Default

Quote:
Originally Posted by 18psi View Post
if that was the case with 2554's, not only would all the plots we have for them look pretty much like that, but 1.8 owners and 99+ owners would see an even bigger drop

fortunately, that's not the case at all.
I am saying that I don't think he has a 2554. He doesn't seem to clear on the issue, and I think he has something smaller than the 2554.

Braineack, I really want pictures of his turbo, so we can see if it is really a 2554. I specified that it looks like a TD03 9b because that turbo would only support around 150 WHP on a 1.6. This would explain the boost drop, and the low power. I dynoed a 3000GT on stock 9b turbos (3.0 liter with twin 9b's) on a dynapack dyno and had the same boost drop with a MBC sourced on the intake manifold.

Keith

Last edited by Twodoor; 09-11-2014 at 01:35 PM.
Twodoor is offline   Reply With Quote
Old 09-11-2014, 01:29 PM   #223
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,192
Total Cats: 2,583
Default

Oh I see what you're getting at. I wouldn't be surprised. I mean it took us 4+ pages to get basic info from OP, it will be another 20 before we actually have his turbo's specs.


By the time we get all the information about this car/build/setup, ND's will be stanced clubricer rust buckets and we will be waiting for the NZ unveiling.
18psi is offline   Reply With Quote
Old 09-11-2014, 02:08 PM   #224
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

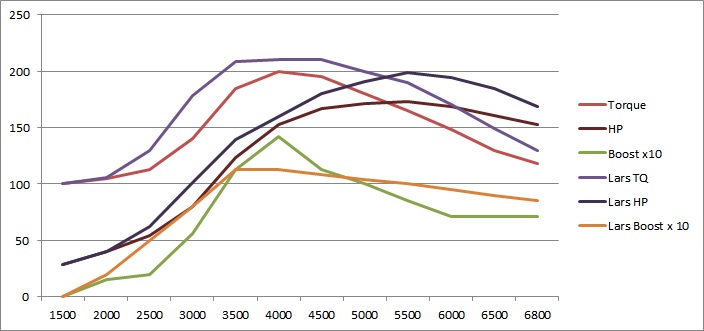

Here's raw rota-dyno numbers from Shueinds last dyno with his SR20 T25 on his 1.8L




and and here's one of my dynos:

Attached Thumbnails
Turbo installed. Lasted 4 days. Threw a rod.-horton_hears_a_lars.jpg
Braineack is offline   Reply With Quote
Old 09-11-2014, 02:29 PM   #225
Junior Member
Thread Starter

Join Date: Nov 2011
Posts: 77
Total Cats: 9
Default

My car is a 1.8 by the way.

I'll get a picture of the turbo
Horton is offline   Reply With Quote
Old 09-11-2014, 02:32 PM   #226
Senior Member
iTrader: (2)

Join Date: Mar 2014
Location: Meridian, Mississippi
Posts: 637
Total Cats: 42
Default

Quote:
Originally Posted by Horton View Post
My car is a 1.8 by the way.

I'll get a picture of the turbo
Holly ****!

Looking at the results, everyone was thinking it was a 1.6 even though you probably already said it was a 1.8

Now I am even more convinced he has a tiny turbo smaller than a 2554... or the blades are bent to ****.

Keith
Twodoor is offline   Reply With Quote
Old 09-11-2014, 02:39 PM   #227
Junior Member
Thread Starter

Join Date: Nov 2011
Posts: 77
Total Cats: 9
Default

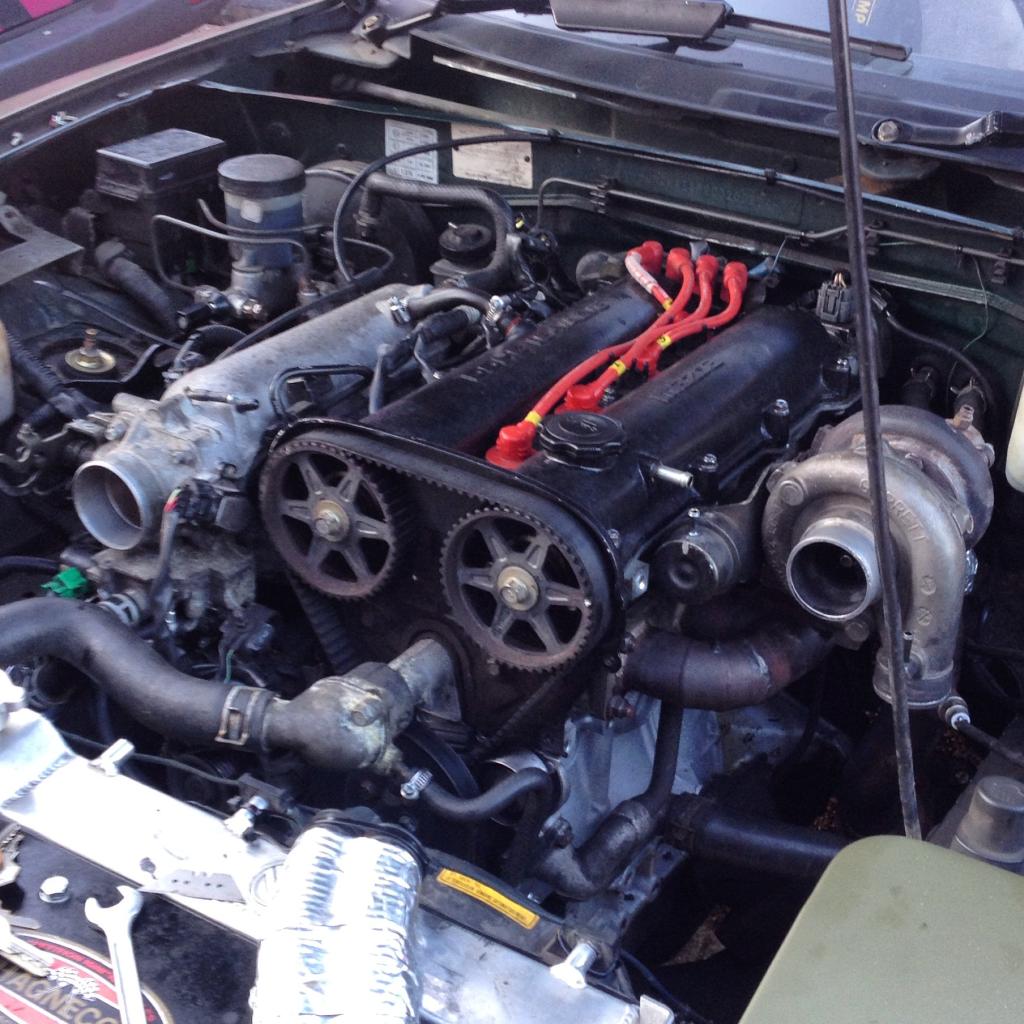

Here's the only pic on my phone showing the turbo. I'll get a better one when I can be bothered to go to the garage.

The blades all look fine and there is no evidence of any damage to the blades or the housing. There's minimal radial play and no in or out play at all.
Attached Thumbnails
Turbo installed. Lasted 4 days. Threw a rod.-9e64b859-f18c-4c9c-beb9-a0c3374021e1.jpg
Horton is offline   Reply With Quote
Old 09-11-2014, 02:44 PM   #228
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

looks like a 2554 to me, so explain the similar power output as the one I compared it to.
Braineack is offline   Reply With Quote
Old 09-11-2014, 03:00 PM   #229
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 782
Default

Just how bad is this exhaust, exactly?
concealer404 is offline   Reply With Quote
Old 09-11-2014, 05:43 PM   #230
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

Edit: I haz the dumb. What boost control are you using? Is the wastegate tight?
Fireindc is offline   Reply With Quote
Old 09-11-2014, 11:14 PM   #231
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

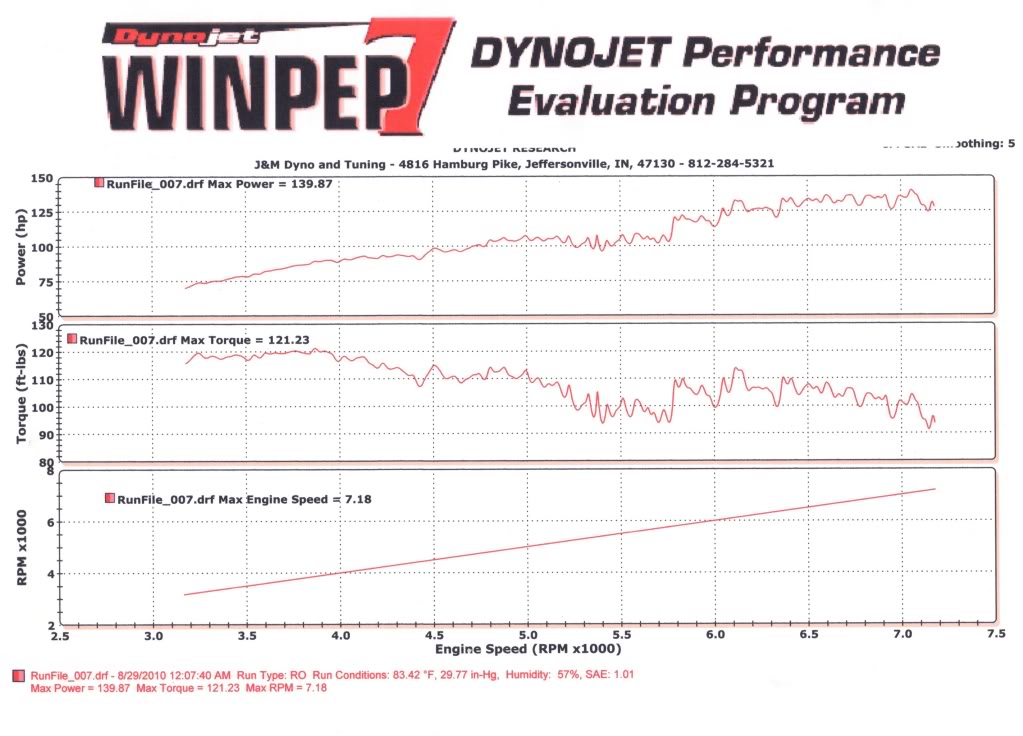

Indeed, 5 psi begi basic, very little timing, no intercooler, no MAT sensor, stock exhaust, 100 degree weather.

Attached Thumbnails
Turbo installed. Lasted 4 days. Threw a rod.-140dyno.jpg
triple88a is offline   Reply With Quote
Old 09-11-2014, 11:52 PM   #232
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,924
Total Cats: 526
Default

...on what?
turbofan is offline   Reply With Quote
Old 09-12-2014, 12:22 AM   #233
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

That was the first run i did with my car when i first installed the begi kit.
triple88a is offline   Reply With Quote
Old 06-29-2015, 10:50 PM   #234
Senior Member
iTrader: (6)

Join Date: Sep 2007
Posts: 1,085
Total Cats: 30
Default

So.. did this one ever get sorted out? I think I actually have a similar problem
albumleaf is offline   Reply With Quote
Old 06-30-2015, 02:20 AM   #235
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,366
Total Cats: 1,326
Default

Could be the angle, but the intake cam looks advanced in the pic in post 227. That would explain all of his issues.
Savington is online now   Reply With Quote
