Old 08-07-2012, 01:30 PM   #21
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,684
Total Cats: 555
Default

Searching google reveals that the bolt is M8 x 1.25 which uses a 12mm wrench. Length is somewhere around 25mm.
rleete is offline   Reply With Quote
Old 08-07-2012, 01:36 PM   #22
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,684
Total Cats: 555
Default

Quote:
Originally Posted by TheDriver View Post
aren't the threads on NA miatas lug nuts 1.5mm?
That's the pitch. Bolts are designated by size (diameter), pitch (coarse or fine threads) and length.
rleete is offline   Reply With Quote
Old 08-07-2012, 01:39 PM   #23
Junior Member
iTrader: (1)

Join Date: Nov 2011
Location: Independence Mo
Posts: 109
Total Cats: 1
Default

Best way to get the right bolt is to either:

A: buy it from a dealer ( expensive, takes time )

B: Pull the bolt that is still there, ( check the other hole's threads while you are there ) then take that bolt to your local hardware store and buy a matching bolt.
Just make sure to get a suitable grade of bolt.

Then put in a new slave cylinder, bolt no with your new bolts, bleed the clutch and then have fun.
AkaZero is offline   Reply With Quote
Old 08-07-2012, 01:41 PM   #24
Junior Member
Thread Starter
iTrader: (2)

Join Date: Oct 2011
Posts: 207
Total Cats: -14
Default

you guys are the best, thanks
TheDriver is offline   Reply With Quote
Old 08-07-2012, 01:49 PM   #25
Junior Member
Thread Starter
iTrader: (2)

Join Date: Oct 2011
Posts: 207
Total Cats: -14
Default

https://www.miataturbo.net/suspensio...ve-help-30133/

here is the previous owner being an idiot, he probably just neglected to install the top bolt that he was having trouble with. I'm guessing I will run into the same problem of not having enough room to install it correctly :/
TheDriver is offline   Reply With Quote
Old 08-07-2012, 02:03 PM   #26
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

Well, if the distance between the slave and the fork is now correct and the slave isn't completely compressed to fit, then it would seem he just forgot to put the top bolt in. This would obviouslky bind up and fail. It's a bit of a trick to get the slave compressed while installing, but it can be done...I've done it a few times. If you have the time/money, I'd highly recommend getting a "race" stainless steel clutch line while you're in there. It goes between the slave and the upper hard line and makes installing everything much easier.
Doppelgänger is offline   Reply With Quote
Old 08-07-2012, 02:27 PM   #27
Junior Member
Thread Starter
iTrader: (2)

Join Date: Oct 2011
Posts: 207
Total Cats: -14
Default

Quote:
Originally Posted by Doppelgänger View Post
Well, if the distance between the slave and the fork is now correct and the slave isn't completely compressed to fit, then it would seem he just forgot to put the top bolt in. This would obviouslky bind up and fail. It's a bit of a trick to get the slave compressed while installing, but it can be done...I've done it a few times. If you have the time/money, I'd highly recommend getting a "race" stainless steel clutch line while you're in there. It goes between the slave and the upper hard line and makes installing everything much easier.
Can you elaborate on compressing the slave while installing? I'll give you a handful of my negative props if you share one of the tricks
TheDriver is offline   Reply With Quote
Old 08-07-2012, 02:41 PM   #28
Junior Member
Thread Starter
iTrader: (2)

Join Date: Oct 2011
Posts: 207
Total Cats: -14
Default

Quote:
Originally Posted by Doppelgänger View Post
Well, if the distance between the slave and the fork is now correct and the slave isn't completely compressed to fit, then it would seem he just forgot to put the top bolt in. This would obviouslky bind up and fail. It's a bit of a trick to get the slave compressed while installing, but it can be done...I've done it a few times. If you have the time/money, I'd highly recommend getting a "race" stainless steel clutch line while you're in there. It goes between the slave and the upper hard line and makes installing everything much easier.


it looks like there might already be a stainless line
TheDriver is offline   Reply With Quote
Old 08-07-2012, 02:49 PM   #29
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

Well, if it currently looks that compressed, the transmission will need to come out as it's not supposed to look like that.

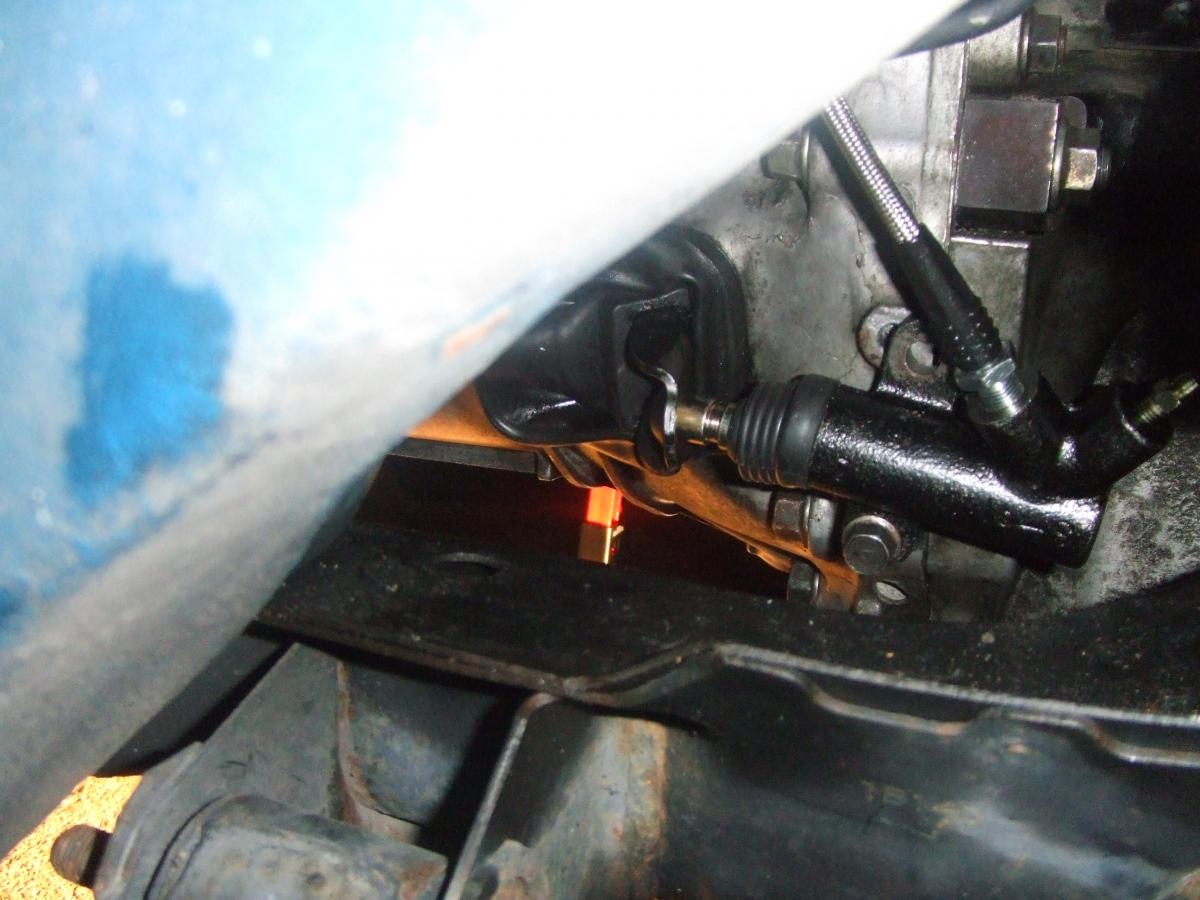

If all is well, like this...


...then it's using two hands and a few words in anger to get it all lined up. It's a matter of getting the rod nipple seated into the fork and getting the bolt holes lined up. It's not really that bad if you are flexable.
Doppelgänger is offline   Reply With Quote
Old 08-07-2012, 02:53 PM   #30
Junior Member
Thread Starter
iTrader: (2)

Join Date: Oct 2011
Posts: 207
Total Cats: -14
Default

is there any way to bend transmission piece that the slave rod bumps into? Or, will that mess up the tranny?
TheDriver is offline   Reply With Quote
Old 08-07-2012, 02:59 PM   #31
Newb

Join Date: Feb 2012
Posts: 30
Total Cats: -1
Default

The angle of your picture shows you should have more then enough room to get a socket and extension to tighten the bolt.

Jack up the passenger side and take the tire off, YOU NEED THAT TOP BOLT....
ramos157 is offline   Reply With Quote
Old 08-07-2012, 03:17 PM   #32
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,684
Total Cats: 555
Default

TheDriver, you need to figure out what's going on with the clutch. If that pic you posted from the P.O. is what it currently looks like, it's not right. Dopps' pic is how it should look.

No real trick to installing the slave, it's just kinda a pain in the a$$.
rleete is offline   Reply With Quote
Old 08-07-2012, 03:28 PM   #33
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,813
Total Cats: 1,780
Default

how is this not fixed already?
Braineack is online now   Reply With Quote
Old 08-07-2012, 03:53 PM   #34
Junior Member
Thread Starter
iTrader: (2)

Join Date: Oct 2011
Posts: 207
Total Cats: -14
Default

Quote:
Originally Posted by Braineack View Post
how is this not fixed already?
lol, the new slave just arrived in the mail yesterday and there was a chit storm brewing outside with rain...I don't have a garage to work out of
TheDriver is offline   Reply With Quote
Old 08-07-2012, 03:54 PM   #35
Junior Member
Thread Starter
iTrader: (2)

Join Date: Oct 2011
Posts: 207
Total Cats: -14
Default

Quote:
Originally Posted by rleete View Post
TheDriver, you need to figure out what's going on with the clutch. If that pic you posted from the P.O. is what it currently looks like, it's not right. Dopps' pic is how it should look.

No real trick to installing the slave, it's just kinda a pain in the a$$.
sorry, it is kind of confusing.

The picture of the broken rubber seal is what it currently looks like. The other picture with the top bolt missing and stainless line was pulled from the previous owners thread which I provided a link to
TheDriver is offline   Reply With Quote
