Old 10-31-2015, 04:41 PM   #41
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,197
Total Cats: 2,584
Default

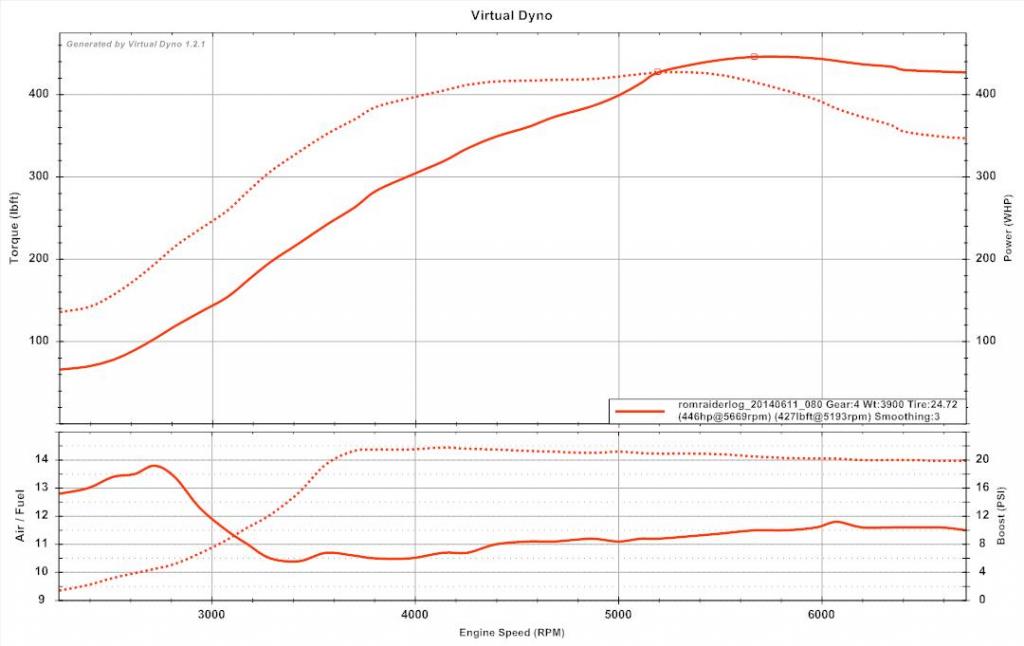

here's a dw300 at 60psi and id1000's at 90% on a thubawu



that's uncorrected. dynojet would be 460-470
Attached Thumbnails
What to fix on my Fuel System?-ryan20g22psi.jpg
18psi is offline   Reply With Quote
Old 10-31-2015, 04:51 PM   #42
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by 18psi View Post
Just bump to 70 and see. Then 80. I think even 90 it will still work and give you enough headroom for now

I suggest starting with easiest/cheapest approaches first, obviously. You can always throw spensive injectors at it later.

Is your AFR at 12 accross the board? Is your timing all solid? Let's see a virtual dyno pull and where she's at power wise. If you're sub 400 then you need to figure out what's wrong because you should easily make 400 on current fueling, at least I think so. (and is the sc really eating 100hp? I ask because in that case you're likely near the limit)
The SC is eating 100HP at this boost level, maybe a touch more. SC's are great for running 6 PSI, they suck at high boost though. Whipple doesn't publish a chart that goes as high as I'm pushing it.

AFRs are at 11.5, I've been hesitant to go to 12.0 but I think I need to. Was going to test 11.5 and 12.0 at the track last night but got rained out.

EDIT: And timing is solid, I'm runnin 19-20 degrees of advance at 18 PSI boost.
patsmx5 is offline   Reply With Quote
Old 10-31-2015, 04:53 PM   #43
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,197
Total Cats: 2,584
Default

no reason not to run 12
And get that VD so we can see where you're at.
18psi is offline   Reply With Quote
Old 10-31-2015, 04:56 PM   #44
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by 18psi View Post
no reason not to run 12
And get that VD so we can see where you're at.
I'll do a VD whenever it quits raining. It ran 8.04 @ 87mph in the 1/8 on the 18 PSI pulley. That was showing duty cycle at 75% then. Does that sound right?
patsmx5 is offline   Reply With Quote
Old 10-31-2015, 05:02 PM   #45
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,197
Total Cats: 2,584
Default

12.6 @ 107 is what the calculator shows.
that's like 250-300whp
18psi is offline   Reply With Quote
Old 10-31-2015, 05:05 PM   #46
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by 18psi View Post
12.6 @ 107 is what the calculator shows.
that's like 250-300whp
Ok. At 18 PSI, the SC is only using about 75hp for that boost level. So does 75% duty cycle make sense in this situation? Or do you think something is wrong with the fuel system? I swear I've done everything in the fuel system.

Twin pumps, new filters
New 10 gauge wires/new relay to power both pumps. Measured voltage drop to confirm they're getting good power under load..
6 AN lines
Aeromotive regulator in engine bay
6 AN return line.
Wix fuel filter.
ID 1000's

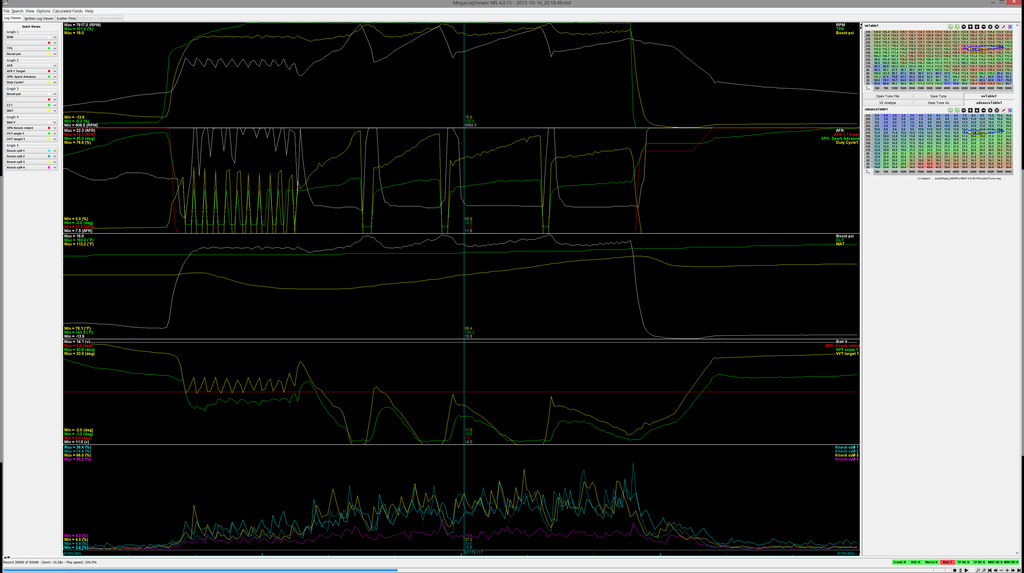

EDIT: Datalog at 18 PSI
Attached Thumbnails
What to fix on my Fuel System?-datalog_zpsq22r31mf.png
patsmx5 is offline   Reply With Quote
Old 10-31-2015, 05:16 PM   #47
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,197
Total Cats: 2,584
Default

The list looks solid, I don't really know what else to look for. DC just seems a little high given power level, but again the sc is eating lots of it so I guess it's close enough.
18psi is offline   Reply With Quote
Old 10-31-2015, 05:26 PM   #48
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by 18psi View Post
The list looks solid, I don't really know what else to look for. DC just seems a little high given power level, but again the sc is eating lots of it so I guess it's close enough.
Cool, thanks for the help. Off topic, but you'll note in the datalog I posted, air temps are now fantastic.

It looks like 900 buys a set of ID 2000s. I'm going to look around and see if there's any other option. If i buy these, I could sell my ID 1000s to get some of the money back. Still it seems crazy 900 for 4 injectors.
patsmx5 is offline   Reply With Quote
Old 10-31-2015, 05:54 PM   #49
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,370
Total Cats: 1,332
Default

I would want to know what fuel pressure was doing (i.e. buy a sensor/gauge) before buying anything else.
Savington is online now   Reply With Quote
Old 10-31-2015, 06:05 PM   #50
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Good point Sav. I'll do that, I think I have a sensor that will work, I'll just need some fittings to plumb it into the fuel system and a bit of wiring.
patsmx5 is offline   Reply With Quote
Old 10-31-2015, 06:33 PM   #51
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,197
Total Cats: 2,584
Default

2000's are not gonna wanna idle as nice as the 1000s
18psi is offline   Reply With Quote
Old 10-31-2015, 08:25 PM   #52
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by 18psi View Post
2000's are not gonna wanna idle as nice as the 1000s
Even on E85? If so, :(
patsmx5 is offline   Reply With Quote
Old 10-31-2015, 08:28 PM   #53
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,197
Total Cats: 2,584
Default

They will "work", but even on e85 the idle isn't gonna be as good, and I know you want it to remain an easy to live with street car.
I think 2000s are "gas" injectors or something like that. You can find theinfo I'm sure
18psi is offline   Reply With Quote
Old 10-31-2015, 08:36 PM   #54
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

I think I've said this twice. ID 1300s. Designed from the ground up by ID. All stainless internals. Should give you enough e85 to kill your trans.
aidandj is offline   Reply With Quote
Old 10-31-2015, 08:37 PM   #55
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by aidandj View Post
I think I've said this twice. ID 1300s. Designed from the ground up by ID. All stainless internals. Should give you enough e85 to kill your trans.
That's only 30% more than what I have, I want more than that. Tired of "upgrading" and not doing it enough that I grow out of it and have to do it again.
patsmx5 is offline   Reply With Quote
Old 10-31-2015, 08:39 PM   #56
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by 18psi View Post
They will "work", but even on e85 the idle isn't gonna be as good, and I know you want it to remain an easy to live with street car.
I think 2000s are "gas" injectors or something like that. You can find theinfo I'm sure
I read they were for E85 only. Supposedly they can idle on E85, but not on gas. But I've never used them, and don't know anyone that's using them either. On the up side, being supercharged I keep the idle higher than normal, so I'll probably be ok on that front. As long as it will idle smoothly, I'm ok with it idling a bit high I do that anyways.
patsmx5 is offline   Reply With Quote
Old 10-31-2015, 08:42 PM   #57
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

The do the 1700s. They are the same new design. They partnered with Bosch to make them to their own design.

ID1300 and ID1700 - True Motorsport Injectors - Injector Dynamics

Should idle much better than the 2000s.
aidandj is offline   Reply With Quote
Old 10-31-2015, 08:51 PM   #58
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

The ID1300s will do 1900cc/min at 90psi.
Reverant is offline   Reply With Quote
Old 10-31-2015, 11:07 PM   #59
Senior Member

Join Date: Jan 2013
Location: Gilbert, AZ
Posts: 784
Total Cats: 104
Default

Quote:
Originally Posted by 18psi View Post
They will "work", but even on e85 the idle isn't gonna be as good, and I know you want it to remain an easy to live with street car.
I think 2000s are "gas" injectors or something like that. You can find theinfo I'm sure
You're on the right track. They start life as CNG injectors. Compressed Natural Gas. Most commonly found on buses in Europe.

ID1700's are a massive leap forward in drivability and durability for alternate fuels, as well as normal pump gas.
Arca_ex is offline   Reply With Quote
Old 10-31-2015, 11:10 PM   #60
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,878
Total Cats: 344
Default

IMHO staged injection is the right answer. I'm sure you can hire a fabricator to add four more bungs to the EUDM manifold for less than half the cost of a set of ID2000s.

FM used to sell VICS manifolds with four injector bungs in them as a part of the 99 FM2 link piggyback kit.

--Ian
