Question Who manufactures the connectors for Mazda...

especially for the engine harness?
I am in need of a special connector of the 1,6 NB engine harness (which is neraly identical with the 1,8 harness)

Does anyone know, who produces all the connectors inside the engine bay for mazda. (Tyco doesn't seem, because they only have the ECU connectors)

Any idea?

Thanks

Sven
Zaphod is offline   Reply With Quote
Old 08-19-2008, 10:48 AM   #2
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

Tyco makes the connectors, specifically their company AMP. Look at the DIY MS writeup Braineack put together for the places to buy them.
neogenesis2004 is offline   Reply With Quote
Old 08-19-2008, 10:56 AM   #3
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

in for 99 tps connector.
hustler is offline   Reply With Quote
Old 08-19-2008, 02:14 PM   #4
Former Vendor

Join Date: Jun 2006
Location: Bell Tuning & Performance
Posts: 1,338
Total Cats: -78
Default

Stephanie Turner is offline   Reply With Quote
Old 08-19-2008, 02:22 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

and here i am only charging $80 for a boomslang with a patch in MS harness...
Braineack is offline   Reply With Quote
Old 08-19-2008, 02:51 PM   #6
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

Well, thanks for all that - but it wasn't what I need.

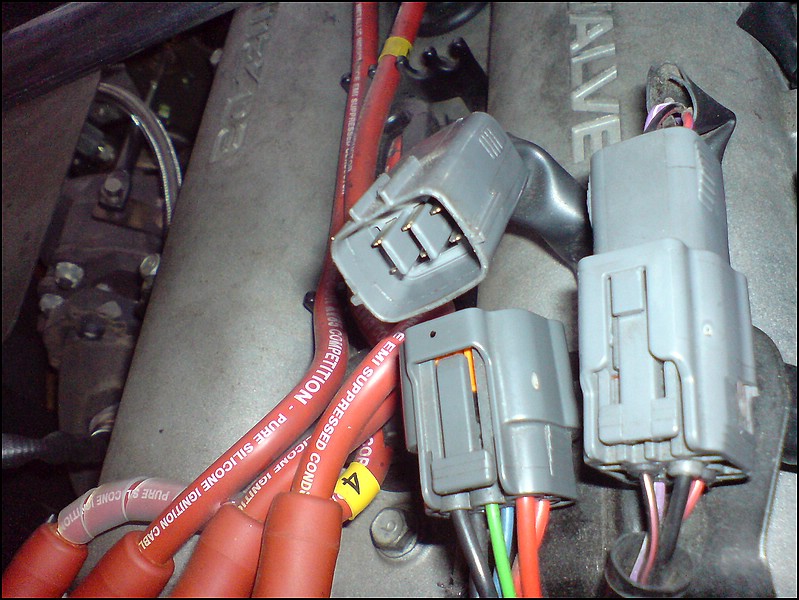

I was looking for this connector:




It's because I will be able to use my long done COP harness with the MS. That 6-pin connector connects a 6-pin y-cable with the OEM coils - I want to use this connector to make my COP harness plug and play (and always be able to go back to OEM coils without a lot of work)

Now - (which is surely also important for the one that was searching the TPS connector) - I know the manufacturer for the connectors - it's Sumitomo Electric

The type of connectors is called Type SL.

Here is a PDF file which also includes the connector I need.
http://www.sws.co.jp/en/product/connector/pdf/wp_sl.pdf

Page 6 - Part-Nr. 6189-0648
But I am not able to find this thing anywhere to buy...

Tyco produces a nearly similar connector called Econoseal J-series Mark II+

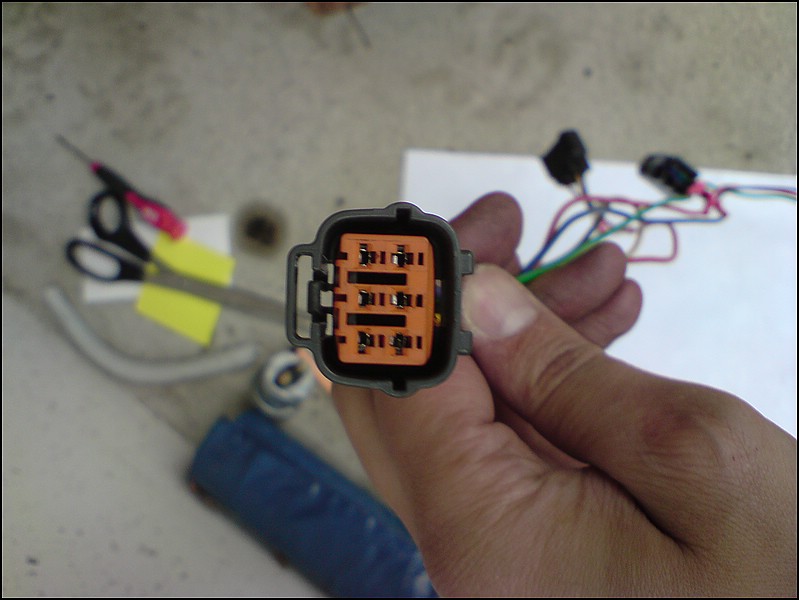

But this one is missing the two "dividers"? which you can see in my first pic.

@Braineack - damn, if I would have known your offer -before I orderd the wire extension at boomslang... too late now.


Greets
