Old 03-24-2009, 12:15 PM   #281
Senior Member
iTrader: (21)

Join Date: May 2008
Location: San Antonio
Posts: 712
Total Cats: 16
Default

Got mine this morning...now I need to find the time to wire it up...
rlogan is offline   Reply With Quote
Old 03-24-2009, 12:34 PM   #282
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

You suck Ryan. I will not get mine until Thursday
ZX-Tex is offline   Reply With Quote
Old 03-24-2009, 12:42 PM   #283
Senior Member
iTrader: (21)

Join Date: May 2008
Location: San Antonio
Posts: 712
Total Cats: 16
Default

I'd gladly let you have it, but without your harness it's worthless....

Why don't you coeme help wire mine up....it's going to be fun...

I need to round up the factory wiring harness for the 03 motor...I'd like to splice that into my harness for a clean install.
rlogan is offline   Reply With Quote
Old 03-24-2009, 09:59 PM   #284
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Mine should be here Thursday so neayh neayh you can keep your stinky Adaptronic :P
Wiring? Sounds like good times But seriously have soldering gun, will travel. I need to wire mine as well though it should go quickly.
So I guess that motor in Houston did not happen eh?
ZX-Tex is offline   Reply With Quote
Old 03-24-2009, 11:21 PM   #285
Junior Member
iTrader: (1)

Join Date: Feb 2009
Posts: 128
Total Cats: 0
Default

Got it today. Now need to get some time to install it.
BarrigaNA is offline   Reply With Quote
Old 03-25-2009, 12:01 AM   #286
Junior Member
iTrader: (5)

Join Date: Mar 2008
Location: Dallas
Posts: 131
Total Cats: 1
Default

Picked up mine from the post office this afternoon. I'll be watching all of the 1.6 installs for tips & tricks...
juxt3r is offline   Reply With Quote
Old 03-25-2009, 12:12 PM   #287
Junior Member
iTrader: (1)

Join Date: Feb 2009
Posts: 128
Total Cats: 0
Default

Quote:
Originally Posted by juxt3r View Post
picked up mine from the post office this afternoon. i'll be watching all of the 1.6 installs for tips & tricks...
+1.
BarrigaNA is offline   Reply With Quote
Old 03-25-2009, 03:49 PM   #288
Elite Member
Thread Starter
iTrader: (9)

Join Date: Jun 2008
Location: Houston, TX
Posts: 1,583
Total Cats: 8
Default

New install manuals/software has been uploaded!

http://www.boundaryengineering.com/instructions.zip
TravisR is offline   Reply With Quote
Old 03-25-2009, 09:00 PM   #289
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Travis thanks for the updates. I read through the NB(A) install instructions and that will be helpful. Got a couple of questions:

1. The included fuel map is for the stock injectors, correct? If so, since I am running 550cc injectors, I should scale the map first to compensate, correct?
2. Will the ECU come with the latest firmware, or should we plan to flash the firmware you sent with the zip file?

Thanks.
ZX-Tex is offline   Reply With Quote
Old 03-25-2009, 09:22 PM   #290
Elite Member
Thread Starter
iTrader: (9)

Join Date: Jun 2008
Location: Houston, TX
Posts: 1,583
Total Cats: 8
Default

Yea you need the scale it before you try to run it. I'm getting my 600's dialed in right now, so I should be able to get you moving with your 550's

The ECU will probably come with a couple of firmwares back, but I never checked to see what they had loaded. I would recommend flashing either way just to make sure.
TravisR is offline   Reply With Quote
Old 03-25-2009, 09:45 PM   #291
Senior Member
iTrader: (3)

Join Date: Aug 2005
Location: Gig Harbor, WA
Posts: 504
Total Cats: 3
Default

Mine came with V1.0N (sticker on back), which is the latest version of the firmware, and a build date of 11 Feb 2009. So you could just check the sticker...
TurboRoach is offline   Reply With Quote
Old 03-25-2009, 11:24 PM   #292
Elite Member
Thread Starter
iTrader: (9)

Join Date: Jun 2008
Location: Houston, TX
Posts: 1,583
Total Cats: 8
Default

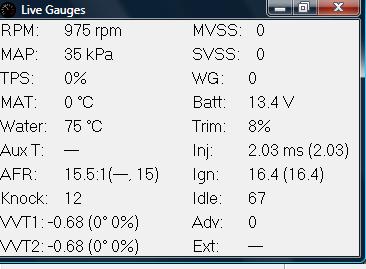

Just idled my 600cc's from Deatschworks at 15.5:1. It took me at maximum 10 minutes to get it there. I bumped my timing up at idle so it is running 100 RPM over what I like it to, but I just have to reduce my minimum IAC value or close up my idle screw just a tad to fix that.

I'll have this MAP done tomorrow to help people out with their injector setups. I will be caring the Deatschworks 600cc's with solid basemaps for the Adaptronic in the near future, and I could not be happier with what I have. My idle is just as stable as the stock injectors maybe better. Looking at this flow sheet, I can see why.
Attached Thumbnails
Adaptronic Stand Alones at a great price-600cc.jpg
TravisR is offline   Reply With Quote
Old 03-25-2009, 11:55 PM   #293
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Nice. I could never get my 550s to idle smoothly that lean. Are those low or high impedance injectors?
ZX-Tex is offline   Reply With Quote
Old 03-26-2009, 12:00 AM   #294
Elite Member
Thread Starter
iTrader: (9)

Join Date: Jun 2008
Location: Houston, TX
Posts: 1,583
Total Cats: 8
Default

These are high impedence. I really can't wait to get a fresh start on it tomorrow. I'm interested at how far I can push them. I had them up at 16:1, but the idle was a little rocky.
TravisR is offline   Reply With Quote
Old 03-26-2009, 12:30 AM   #295
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

how come my hydra logs show closer to 1.5 ms at idle with 550s at 14.7 AFR?
y8s is offline   Reply With Quote
Old 03-26-2009, 12:36 AM   #296
Elite Member
Thread Starter
iTrader: (9)

Join Date: Jun 2008
Location: Houston, TX
Posts: 1,583
Total Cats: 8
Default

I did put in dead time correction, which I think is added to the value. My indicated value from the table was .6-.7 ms (estimate don't have it infront of me) and the dead time indicated is 1.35ms so thats about right.
TravisR is offline   Reply With Quote
Old 03-26-2009, 08:09 PM   #297
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Mine arrived this afternoon. The timing was perfect as I had just finished the last of the mechanical jobs for the engine installation. The IAT and MAP are wired. Next I'll be doing the in-cab installation and some cleanup wiring under the dash. Hopefully I will have it running tonight or tomorrow.

So now that you mention it I was wondering about dead time correction. There is a similar setting in the Megasquirt. What does Adaptronic recommend for RX7 550cc injectors? I think I used 0.9-1.0 ms in the MS IIRC.
ZX-Tex is offline   Reply With Quote
Old 03-26-2009, 08:34 PM   #298
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

.9 is probably fine. I think even down to .8 will work but who knows.
y8s is offline   Reply With Quote
Old 03-26-2009, 09:37 PM   #299
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Thanks Y.

I want to make a huge pot of coffee and pull an all-nighter to get this thing running. There is so much new stuff on the car I want to try out in addition to the Adaptronic.
ZX-Tex is offline   Reply With Quote
Old 03-26-2009, 10:41 PM   #300
Elite Member
Thread Starter
iTrader: (9)

Join Date: Jun 2008
Location: Houston, TX
Posts: 1,583
Total Cats: 8
Default

Dead time changes from manufacturer to manufacturer. I could show you my deatschworks correction, but I don't think it really means much the to RX injectors.

I got my car to idle flat at 825 +/-15rpm with an AFR from 15.1-15.6. It seems to move around alot at low RPMs. I guess its getting slow enough each pulse moves it around a little bit. It also lands dead flat to. The Adaptronic idle control is unreal when you get it setup the way it should be.
TravisR is offline   Reply With Quote
