Old 03-06-2009, 02:15 AM   #241
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,184
Total Cats: 2,582
Default

Ok, I am seriously pissed off......WHERE THE **** DO I FIND OUT WHICH WIRE ON THE TPS IS THE SIGNAL, GRND, AND SOURCE?????????????!!!!!!!!!

I searched the forums, all I can find are the stupid ******* diagrams that show wires, but DO NOT say which one is which.
Travis, you might want to include this in the instructions, as it is very frustrating trying to figure it out. Googled it, no luck. Searched, no luck.

FUUUUUUUUUUUUUUUUUCK!!!!!!

Last edited by 18psi; 03-06-2009 at 02:49 AM.
18psi is offline   Reply With Quote
Old 03-06-2009, 03:49 AM   #242
Elite Member
Thread Starter
iTrader: (9)

Join Date: Jun 2008
Location: Houston, TX
Posts: 1,583
Total Cats: 8
Default

Quote:
Originally Posted by 18psi View Post
Ok, I am seriously pissed off......WHERE THE **** DO I FIND OUT WHICH WIRE ON THE TPS IS THE SIGNAL, GRND, AND SOURCE?????????????!!!!!!!!!

I searched the forums, all I can find are the stupid ******* diagrams that show wires, but DO NOT say which one is which.
Travis, you might want to include this in the instructions, as it is very frustrating trying to figure it out. Googled it, no luck. Searched, no luck.

FUUUUUUUUUUUUUUUUUCK!!!!!!
Take it easy Vlad, I'll get stein on the horn first thing tomorrow, as I don't know which is which myself. I would key the car on, get some sewing needles, poke into the wire and use your voltmeter to find the 5v+ and the ohmmeter to find the ground wire by finding low resistance to the block.

Travis
TravisR is offline   Reply With Quote
Old 03-06-2009, 04:41 AM   #243
Senior Member
iTrader: (3)

Join Date: Aug 2005
Location: Gig Harbor, WA
Posts: 504
Total Cats: 3
Default

18psi,
Are you talking about at the ecu? If so it should be pin 3E. Its in the little picture below the NA connectors. https://www.miataturbo.net/forum/t13676/#post168118
TurboRoach is offline   Reply With Quote
Old 03-06-2009, 07:30 AM   #244
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by 18psi View Post
Ok, I am seriously pissed off......WHERE THE **** DO I FIND OUT WHICH WIRE ON THE TPS IS THE SIGNAL, GRND, AND SOURCE?????????????!!!!!!!!!

I searched the forums, all I can find are the stupid ******* diagrams that show wires, but DO NOT say which one is which.
Travis, you might want to include this in the instructions, as it is very frustrating trying to figure it out. Googled it, no luck. Searched, no luck.

FUUUUUUUUUUUUUUUUUCK!!!!!!
With a DMM.
Ben is offline   Reply With Quote
Old 03-06-2009, 08:11 AM   #245
Junior Member
iTrader: (9)

Join Date: Jan 2007
Posts: 455
Total Cats: 3
Default

fyi - connector B1-20
Attached Thumbnails

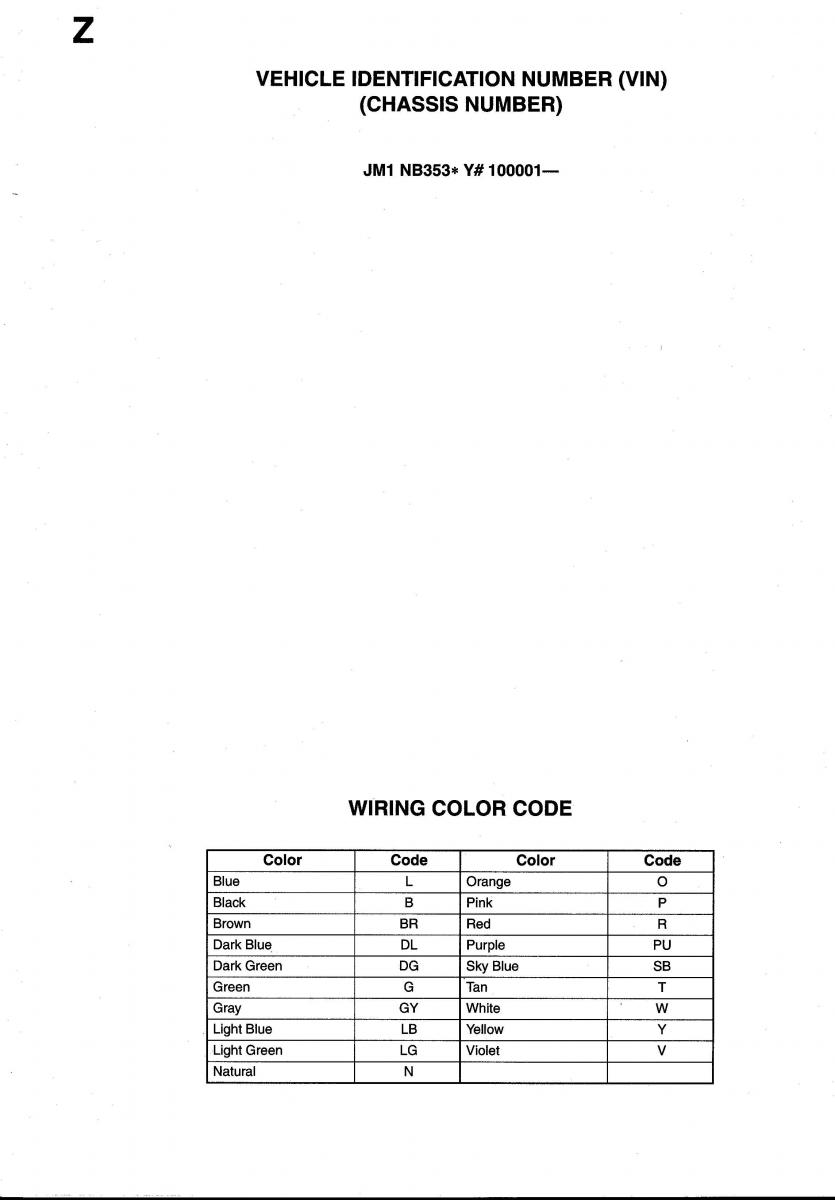

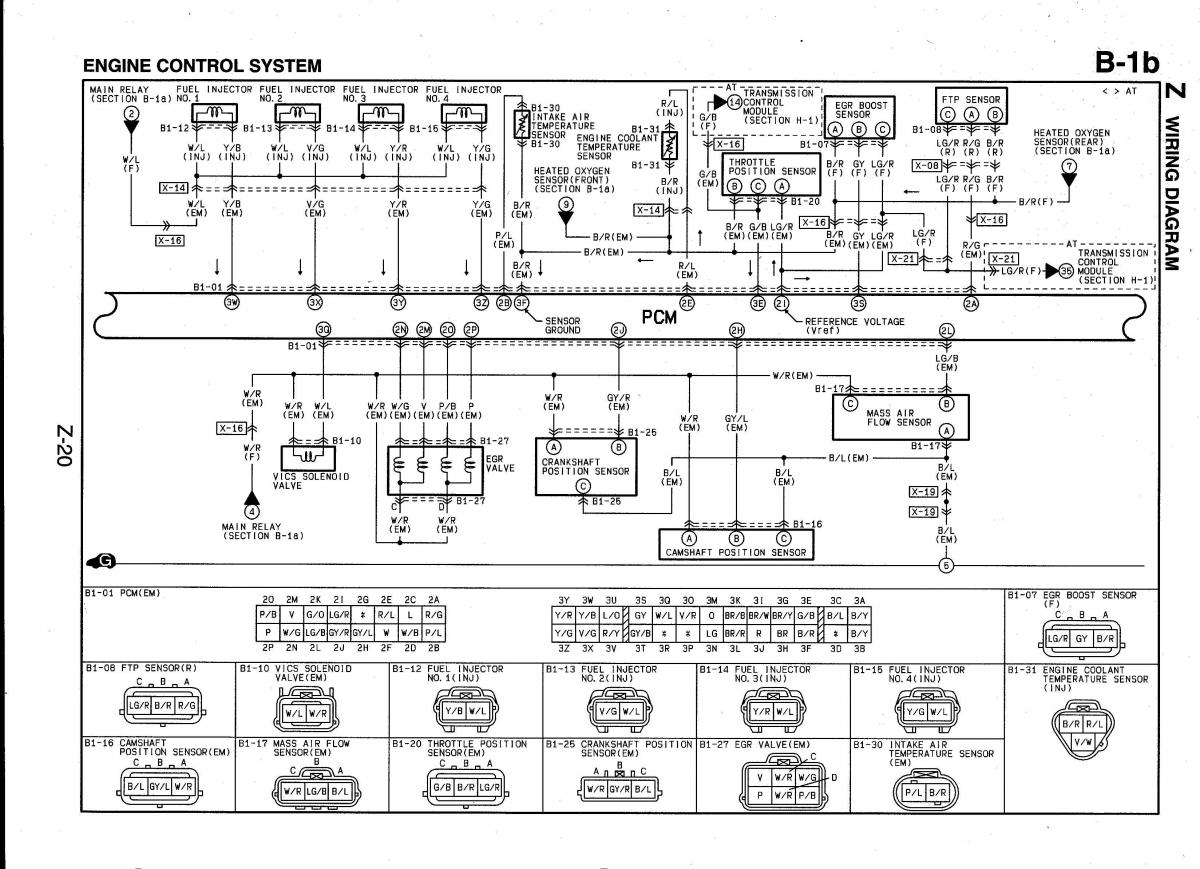

Adaptronic Stand Alones at a great price-pages-2000wire.jpg   Adaptronic Stand Alones at a great price-wire-color-code.jpg

Last edited by sv650_ck; 03-06-2009 at 09:25 AM.
sv650_ck is offline   Reply With Quote
Old 03-06-2009, 10:46 AM   #246
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

RTFM. it shows a picture of the connector and A B C for the pins then gives descriptions of the pins.

but seriously, a volt meter.
y8s is offline   Reply With Quote
Old 03-06-2009, 01:17 PM   #247
Senior Member
iTrader: (21)

Join Date: May 2008
Location: San Antonio
Posts: 712
Total Cats: 16
Default

Any thoughts on wiring the 03 VVT with adaptronic in a 94 chassis/wiring.
rlogan is offline   Reply With Quote
Old 03-06-2009, 02:02 PM   #248
Junior Member
iTrader: (1)

Join Date: Nov 2008
Posts: 60
Total Cats: 0
Default

Quote:
Originally Posted by rlogan View Post
So, how about an 94 that's about to get an 03 motor....do I get the 94 pnp harness and wire the VVT seperately?
Good question, I just bought a '01 head that I'll be putting on my 94 block.

Might be another dumb questions, but does this also come with it's own knock sensor, temp sensor and all typical ancillary items?
Father LeadFoot is offline   Reply With Quote
Old 03-06-2009, 04:06 PM   #249
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,184
Total Cats: 2,582
Default

Thanx guys. sorry about the outburst
18psi is offline   Reply With Quote
Old 03-06-2009, 04:07 PM   #250
Senior Member
iTrader: (21)

Join Date: May 2008
Location: San Antonio
Posts: 712
Total Cats: 16
Default

So for my 94, I am thinking I can order just the ECU and build my own harness similar to the boomslang MS harness...

...and then handle VVT separately direct with adaptronic?
rlogan is offline   Reply With Quote
Old 03-06-2009, 07:05 PM   #251
Elite Member
Thread Starter
iTrader: (9)

Join Date: Jun 2008
Location: Houston, TX
Posts: 1,583
Total Cats: 8
Default

What you want to do for the easiest install is probably order a 1.8L PNP NA harness. Then under the hood route the wires to the right positions(timing sensors). The PRCV valve which is emissions equipment can be deleted and rerouted to control the VVT mechanism. Or you can do a full on 2m loom and just go for it from the cabin.

As far as external parts, the only thing you might have to purchase is a GM temperature sensor. You can purchase anytype you want the system is programable. The stock sensors are wired in, but they are unreliable under boost conditions. Knock sensor is factory,
TravisR is offline   Reply With Quote
Old 03-06-2009, 10:10 PM   #252
Junior Member
iTrader: (1)

Join Date: Nov 2008
Posts: 60
Total Cats: 0
Default

So you still need to buy a GM Air Temp Sensor. What do you mean the Knock sensor is factory? It comes with the Adaptronic?

Quote:
Originally Posted by TravisR View Post
What you want to do for the easiest install is probably order a 1.8L PNP NA harness. Then under the hood route the wires to the right positions(timing sensors). The PRCV valve which is emissions equipment can be deleted and rerouted to control the VVT mechanism. Or you can do a full on 2m loom and just go for it from the cabin.

As far as external parts, the only thing you might have to purchase is a GM temperature sensor. You can purchase anytype you want the system is programable. The stock sensors are wired in, but they are unreliable under boost conditions. Knock sensor is factory,
Father LeadFoot is offline   Reply With Quote
Old 03-06-2009, 11:06 PM   #253
Elite Member
Thread Starter
iTrader: (9)

Join Date: Jun 2008
Location: Houston, TX
Posts: 1,583
Total Cats: 8
Default

Quote:
Originally Posted by Father LeadFoot View Post
So you still need to buy a GM Air Temp Sensor. What do you mean the Knock sensor is factory? It comes with the Adaptronic?

It depends on if you are turbocharged or not. The stock intake air temperature sensor was not designed to be used with turbocharged vehicles. If your running N/A then no temp sensor is required. If your running turbo, then you have to get a sensor that threads or clamps onto the intake tube. Otherwise the temperature sensor will just blow out. The sensors should not be more then a 10-15 dollars.

The knock sensor is the Mazda Miata factory knock sensor. So no modification needed there.
TravisR is offline   Reply With Quote
Old 03-07-2009, 08:04 AM   #254
Elite Member
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Quote:
Originally Posted by TravisR View Post

The knock sensor is the Mazda Miata factory knock sensor. So no modification needed there.
Travis, I think what he's saying is that the early (97 and earlier) models didn't come with knock sensor from the factory.
Rafa is offline   Reply With Quote
Old 03-07-2009, 10:35 AM   #255
Elite Member
Thread Starter
iTrader: (9)

Join Date: Jun 2008
Location: Houston, TX
Posts: 1,583
Total Cats: 8
Default

Wellllllllll....

<pauses... shakes head... reviews wiring diagrams... shakes head again...

That is an excellant observation Rafa.

I just assumed one existed.

Knock sensor not included. I would recommend a GM version.

I am going to paste a conversation I had about this with someone who has experience with different knock sensors and the adaptronic.

Quote:
I checked mine using det cans, but I still occasionally get false knock. If I do a power run in 2nd gear I alwasy get false knock. Its quite annoying.
I've tried several different non-resonant knock sensors and they all give a very noisey peak over about 500rpm, usually 10 times great than the usually back ground noise. I've settled on a GM sensor for now as this seems fairly stable above 4000rpm, its noisey peak is at 3000-3500 and goes as high as 120, where as the back noise elsewhere is about 10-20. I've set the filter up to get around the noise, but its no perfect.
TravisR is offline   Reply With Quote
Old 03-07-2009, 12:21 PM   #256
Senior Member
iTrader: (21)

Join Date: May 2008
Location: San Antonio
Posts: 712
Total Cats: 16
Default

I am very much on the fence but very seriously leaning toward ordering one...what is the price drop currently off the $680 price for jsut the ecu. take the $30 and the $40 off...so 610?
rlogan is offline   Reply With Quote
Old 03-07-2009, 12:30 PM   #257
Elite Member
Thread Starter
iTrader: (9)

Join Date: Jun 2008
Location: Houston, TX
Posts: 1,583
Total Cats: 8
Default

Yea thats the current price. The basic package without a harness does not include the MAP sensor. You can either source it yourself or you can pick one up from me for $50 with the pigtail connector.
TravisR is offline   Reply With Quote
Old 03-07-2009, 03:50 PM   #258
Senior Member
iTrader: (21)

Join Date: May 2008
Location: San Antonio
Posts: 712
Total Cats: 16
Default

Ok, you sold me....I'm in...with MAP sensor.I'll add myself to the other thread.
rlogan is offline   Reply With Quote
Old 03-08-2009, 05:34 PM   #259
Junior Member
iTrader: (9)

Join Date: Jan 2007
Posts: 455
Total Cats: 3
Default

Quote:
Originally Posted by TravisR View Post

I think that that causes CELs, because the engine goes through a set of warmup functions that require specific responses from the motor. Doing it this way I believe it locks water temperature at 185-190, air temperature at 70, AFM at idle. This keeps the motor in eternal happyness where it doesn't have to do alot of controlling.

The adaptronic is actually fed the correct values, the stock ECU can't see any of the this.
Is the water temp gauge also locked into the happy temp or is it a separate circuit?
sv650_ck is offline   Reply With Quote
Old 03-08-2009, 06:59 PM   #260
Elite Member
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Quote:
Originally Posted by Rafa View Post
Travis, I think what he's saying is that the early (97 and earlier) models didn't come with knock sensor from the factory.

Travis; anyone can also buy the one knocksense offers. That's what I did.
Rafa is offline   Reply With Quote
