Old 08-18-2014, 03:20 PM   #61
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,158
Total Cats: 131
Default

Then touch up paint on the edges I imagine?
Chiburbian is offline   Reply With Quote
Old 08-18-2014, 03:23 PM   #62
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,881
Total Cats: 45
Default

Yep. Honda sells touch up paint in pens which makes it super easy, but I've also polished the edges (looks silly, don't do that) and painted them black.
vehicular is offline   Reply With Quote
Old 08-19-2014, 04:21 AM   #63
Supporting Vendor
Thread Starter
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,862
Total Cats: 484
Default

The included cut template will take all the guesswork out of where to cut. Then it's just down to how to cut:

If you've done it before, you can finish the holes in a flash with a hole saw for the corners and an angle grinder with cut off wheel to connect between the corners.

I wouldn't recommend this to a first timer though. Both of those tools can get away from you in a heartbeat and cut or mar something beyond the area you want cut.

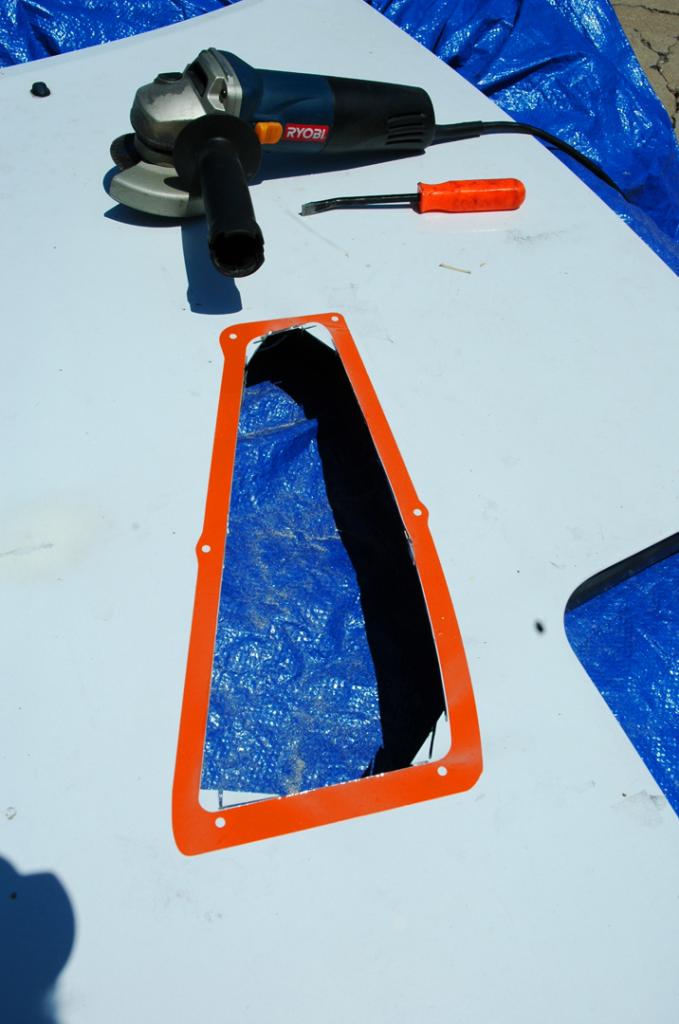

I do prefer an angle grinder for the straight sections, but a dremel with a small cutting wheel can do the same thing with less risk but will take more time. I usually cut the straight sections out first like this:



(the supplied cut template doesn't look like the one above, this was just when I was experimenting with the templates)

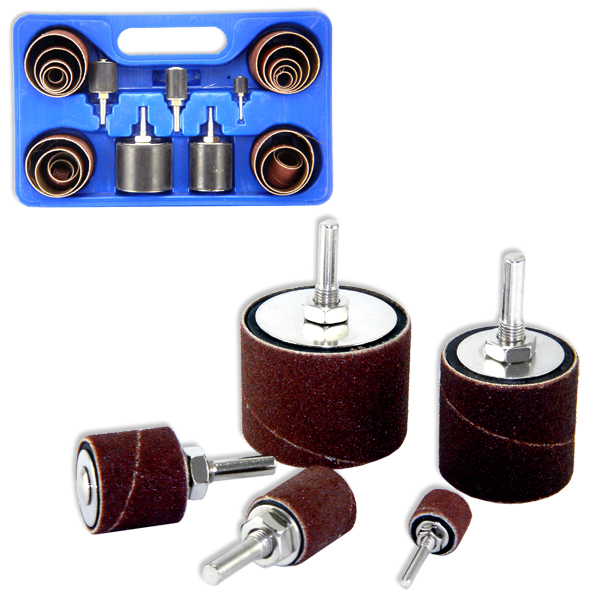

Once the straight cuts are done, you can smooth out any imperfections and work into the corners with a drum sander like this:



These work in air grinders, which is what I use, or the smaller ones fit in dremels. In the interest of making this easy to do on a budget, I made all of the radii on the holes no smaller than the ~0.8" diameter drum sanding bit for air grinders that they sell at Harbor Freight.

If you are able to achieve a nice, clean cut then painting the edge with a match to your hood's color can achieve a really clean install. This is what I did for the MSM in the original post.
For those worried about their cutting skills though, keep in mind that this kit includes rubber trim that can be fit over the cut edge and run the circumference of the hole, and this will give you a nice finished end result that hides any imperfections on the edge and you won't need to worry about painting.

One more side note, you can do this with the hood on or off the car - I did the full cutting and install on two cars without ever removing the hood just to make sure it could be done. The picture above is with the hood still on the car and a tarp just draped over the engine bay to keep debris out.

-Ryan
Attached Thumbnails
Singular Motorsports NA & NB Hood Louvers GROUP BUY-hoodcutting_zpsf272ee1f.jpg   Singular Motorsports NA & NB Hood Louvers GROUP BUY-drumsander1.jpg

Last edited by ThePass; 08-19-2014 at 04:31 AM.
ThePass is offline   Reply With Quote
Old 08-19-2014, 09:51 AM   #64
Senior Member

Join Date: Dec 2007
Location: ATL
Posts: 728
Total Cats: 48
Default

FWIW - I used a Dremel on a previous hood to put in some Subie bumper vents and it took FOREVER. I think I'll use the angle grinder for these.

Just another data point...
rwyatt365 is offline   Reply With Quote
Old 08-19-2014, 10:22 AM   #65
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 781
Default

When will remainder of money be due?
concealer404 is offline   Reply With Quote
Old 08-19-2014, 11:17 AM   #66
Supporting Vendor
iTrader: (1)

Join Date: May 2010
Location: San Diego
Posts: 491
Total Cats: 39
Default

Quote:
Originally Posted by concealer404 View Post
When will remainder of money be due?
Another email blast went out, but please have the remainder of your payment submitted no later than Monday, August 25th.
Lincoln Logs is offline   Reply With Quote
Old 08-19-2014, 11:33 AM   #67
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,881
Total Cats: 45
Default

Out of curiosity, how do you locate the template on top of the hood? I used to mark and drill guide holes from the bottom on S2000s, and when doing this with a GT500 vent.


BTW, to anybody doing this a first time, there are several layers to the stock Miata hood, and doing a nice job takes several hours. Taking your time pays dividends in final product appearance, though.
vehicular is offline   Reply With Quote
Old 08-19-2014, 11:51 AM   #68
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 781
Default

Got it, thanks!
concealer404 is offline   Reply With Quote
Old 08-19-2014, 02:45 PM   #69
Supporting Vendor
Thread Starter
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,862
Total Cats: 484
Default

Quote:
Originally Posted by rwyatt365 View Post
FWIW - I used a Dremel on a previous hood to put in some Subie bumper vents and it took FOREVER. I think I'll use the angle grinder for these.

Just another data point...
Yep, I did my first hood vent yeaaaars ago with a dremel and I remember the eons it took to complete. I just wouldn't recommend the angle grinder as the method for doing this to someone who is new to this tool. As with any hand tool, it is only as good as the user. I can do a dead straight cut for multiple feet with an angle grinder these days, but when I started out fabricating it was a different story. The dremel takes a long time, but a beginner can go into it with that and know they are likely to get a good end result with it.

Quote:
Originally Posted by vehicular View Post
Out of curiosity, how do you locate the template on top of the hood? I used to mark and drill guide holes from the bottom on S2000s, and when doing this with a GT500 vent.
That pic may be throwing you off because that isn't what the template that will be shipping out to you guys is going to look like.
The cut template has all 3 holes included in one piece, so their reltaionship to each other can't be messed up. All you do is center it on the hood and use a measuring tape to space the template X inches back from the front/center point of the hood and stick it on. Easy.

Quote:
Originally Posted by vehicular View Post
BTW, to anybody doing this a first time, there are several layers to the stock Miata hood, and doing a nice job takes several hours. Taking your time pays dividends in final product appearance, though.
+1, take your time to do it right and you'll be happy long time.

-Ryan
ThePass is offline   Reply With Quote
Old 08-20-2014, 04:22 PM   #70
Senior Member
iTrader: (3)

Join Date: Jul 2011
Location: STL
Posts: 528
Total Cats: 24
Default

Quote:
Originally Posted by ThePass View Post
I hear you, but it would also suck for me to take on a million orders at once and take months to deliver to anybody.

We could do another group buy with a staggered ship date to follow the first batch but I have my reservations about this. If we focused our energy on getting full production going on this instead of multiple group buys, we'll probably have them available in a larger quantity and at a steadier rate sooner. And then we're talking about something that is in stock - you order and it ships, and we all like that more than group buys anyways. So bear with us

-Ryan
Just wanted to say Ryan is a standup guy. He followed this post up with a PM explaining the situation and apologizing that I couldn't give him my money! Who even does that anymore? The vents look fantastic and I can't wait for the next batch so I can pick up a set.
midpack is offline   Reply With Quote
Old 08-20-2014, 04:42 PM   #71
Supporting Vendor
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,759
Total Cats: 47
Default

Quote:
Originally Posted by vehicular View Post
The aluminum packs up cutoff wheels and files, so you have to take your time, but the end product looks nice.
Cover your blade with ATF... it won't pack up.
OGRacing is offline   Reply With Quote
Old 08-20-2014, 05:28 PM   #72
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Sorry if you felt we(I) was pressuring you to get more developed, I merely meant that when the next run is made after the initial group buy, I'll be ready to burn the plastic off my credit card.
Jeffbucc is offline   Reply With Quote
Old 08-20-2014, 06:20 PM   #73
Junior Member
iTrader: (1)

Join Date: Jun 2014
Location: Metro Detroit
Posts: 270
Total Cats: 26
Default

Crap on a stick, I wanted to get in on this. Put me down for Round 2 please for a full NA set!
Ryephile is offline   Reply With Quote
Old 08-21-2014, 10:21 AM   #74
Junior Member
iTrader: (3)

Join Date: Oct 2011
Location: Naperville
Posts: 369
Total Cats: 3
Default

Quit being pussies and really vent that hood!!

Mazda Talk Forums • View topic - NC Light
tomiboy is offline   Reply With Quote
Old 08-21-2014, 10:58 AM   #75
Supporting Vendor
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,759
Total Cats: 47
Default

Quote:
Originally Posted by tomiboy View Post
Quit being pussies and really vent that hood!!

Mazda Talk Forums • View topic - NC Light
That won't fit with a LS1 engine :(

PS: i haven't received any payment requests..
OGRacing is offline   Reply With Quote
Old 08-21-2014, 12:12 PM   #76
Supporting Vendor
iTrader: (1)

Join Date: May 2010
Location: San Diego
Posts: 491
Total Cats: 39
Default

Quote:
Originally Posted by OGRacing View Post
PS: i haven't received any payment requests..
An email blast went out to those in the group buy earlier this week, however, payment requests have been sent to those who haven't responded. :-)
Lincoln Logs is offline   Reply With Quote
Old 08-21-2014, 12:34 PM   #77
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,881
Total Cats: 45
Default

You ice hoels send in money so they can make parts so I can get parts! I'm ready to cut up a Miata.
vehicular is offline   Reply With Quote
Old 08-21-2014, 01:09 PM   #78
Hug Life
iTrader: (3)

Monk's Avatar

Join Date: Apr 2014
Location: Huntington, Indiana
Posts: 2,798
Total Cats: 492
Default

Just out of curiosity... is you packaging, shall we say, Genesplicer inspired?
Monk is offline   Reply With Quote
Old 08-21-2014, 01:13 PM   #79
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,881
Total Cats: 45
Default

It had better be. I expect to find pink glitter in vehicles that I haven't even bought yet.
vehicular is offline   Reply With Quote
Old 08-21-2014, 01:34 PM   #80
Supporting Vendor
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,759
Total Cats: 47
Default

nope still nothing.. no email no payment request.
