Default Bought safety wire pliers. What safety wire?

I finally got around to getting the turbo clocked to my likeings. I pulled it back off in preperation for safty wireing the Tial turbine housing bolts.

I just ordered a pair of these, im gonna test them out to see if they are any good!

http://www.safetywirepliers.com/ (I picked up the 7" pair)

What I need input on is what which safety wire i should purchase. what diameter, grade and material? Im assuming Ill be using SS wire.
WonTon is offline   Reply With Quote
Old 12-04-2010, 01:29 AM   #2
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,353
Total Cats: 1,319
Default

Can you photograph your housing bolts for me? Specifically the heads.
Savington is offline   Reply With Quote
Old 12-04-2010, 01:30 AM   #3
Elite Member
Thread Starter
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

yeah! ill have them up in a few min!
WonTon is offline   Reply With Quote
Old 12-04-2010, 01:39 AM   #4
Elite Member
Thread Starter
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

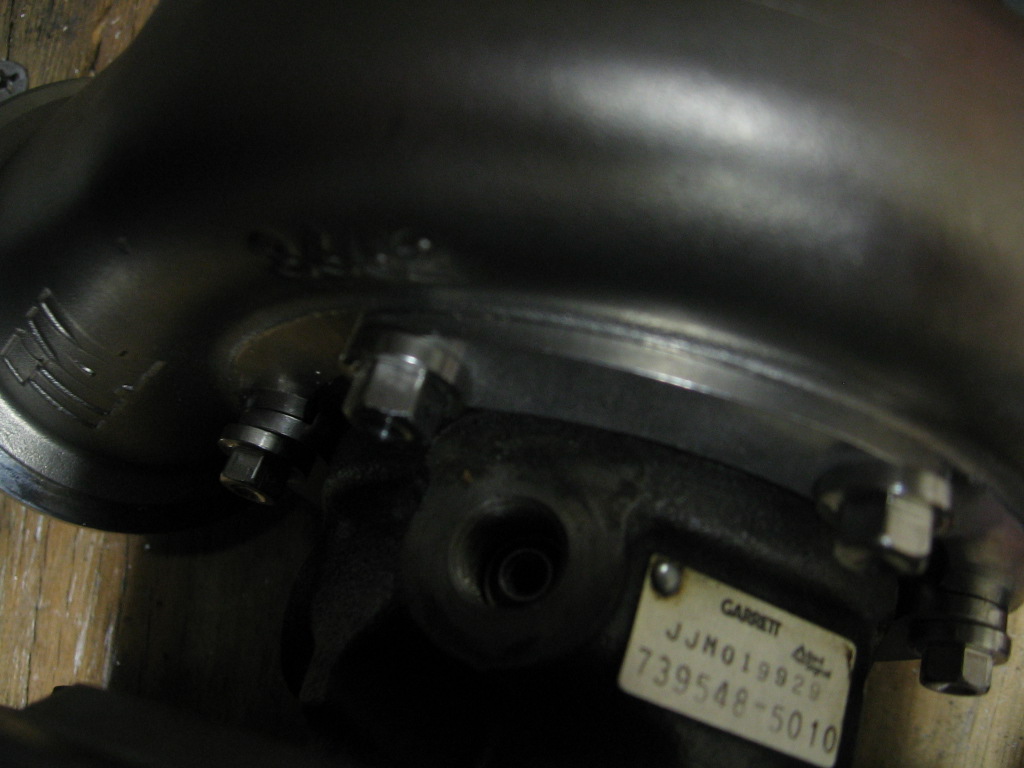

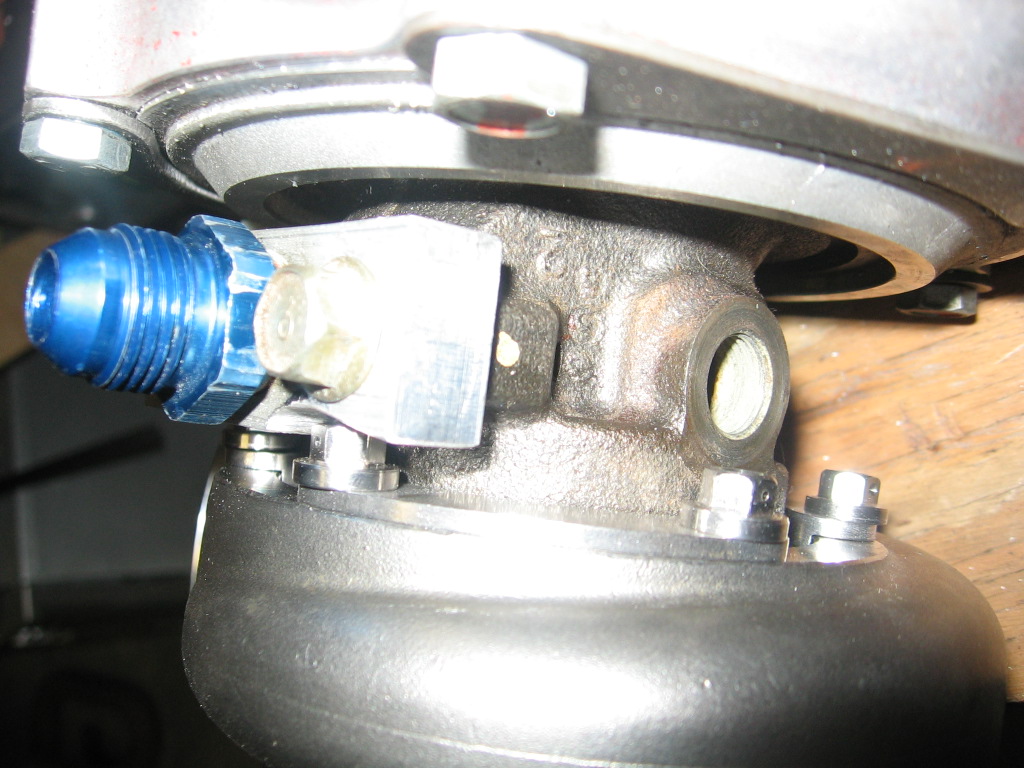

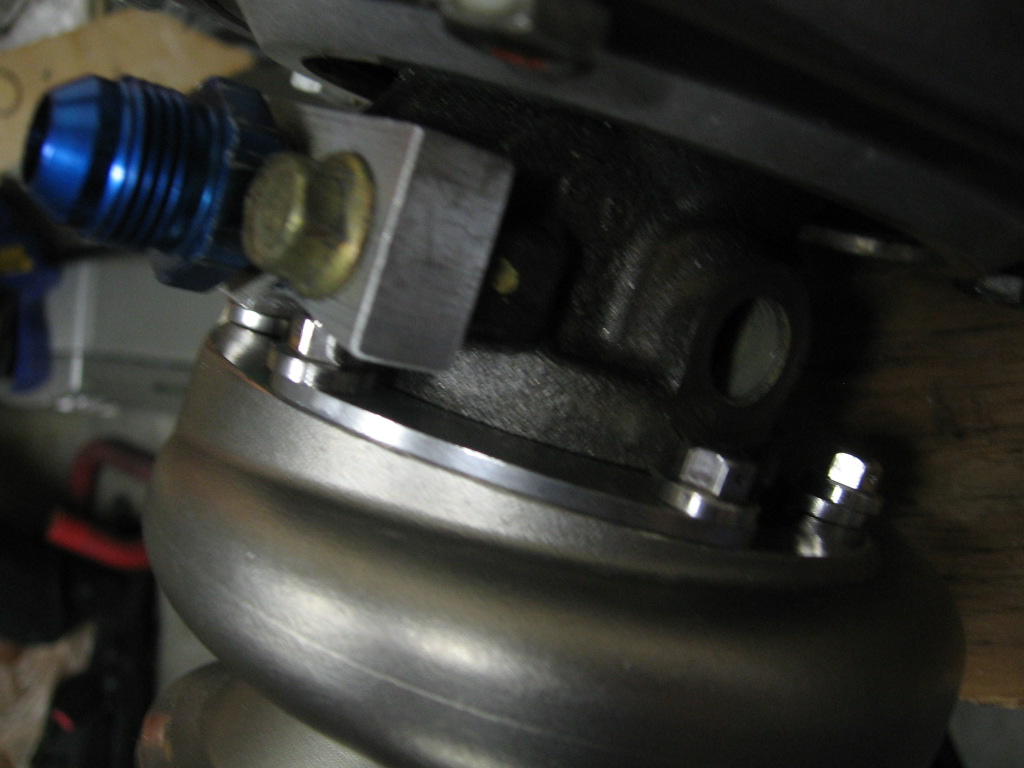

Pics...best I could do with a shitty old cannon power shot.

The heads are 8mm...
Attached Thumbnails
Bought safety wire pliers. What safety wire?-img_0320.jpg   Bought safety wire pliers. What safety wire?-img_0321.jpg   Bought safety wire pliers. What safety wire?-img_0322.jpg
WonTon is offline   Reply With Quote
Old 12-04-2010, 10:28 AM   #5
Elite Member
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

Pretty positive this is what I use on the sub and it is ridiculously strong:

http://www.dmctools.com/Products/saf...ing_cable.html
astroboy is offline   Reply With Quote
Old 12-04-2010, 10:59 AM   #6
Junior Member
iTrader: (6)

Join Date: Dec 2007
Location: PBC.
Posts: 404
Total Cats: 0
Default

.032 stainless is the standard for most applications.
dpexp is offline   Reply With Quote
Old 12-04-2010, 12:40 PM   #7
Senior Member
iTrader: (4)

Join Date: Jan 2008
Location: Falls Church, VA
Posts: 1,367
Total Cats: 16
Default

I've got the same bolts and I'll be running .032" inconel (600 alloy) wire. At the temperatures it will see, it will be stronger than regular SS, which is why inconel wire is spec'ed for aircraft engines and also the turbines on Mack diesel trucks. You can find it by googling its spec number "MS20995N32." The cheapest I found it at the time was at Island Aviation and a 1-lb spool was $30. I think they had a minimum order of $50, so I also picked up a few spools of regular stainless wire in different sizes. I probably won't have to buy safety wire again for the rest of my life.
ScottFW is offline   Reply With Quote
Old 12-04-2010, 02:15 PM   #8
Junior Member

Join Date: Mar 2010
Location: onion city,ca
Posts: 428
Total Cats: 1
Default

i've been using this http://www.harborfreight.com/0041-in...coil-8895.html for suspension pieces. 6 bux. beats the 30 bux i paid for 2lb roll of .035 ss308 mig stainless wire at the welding supply store.

thanx for tip, ima get some inconel tig filler wire at school next time. even better than hf
jasonb is offline   Reply With Quote
Old 12-04-2010, 02:19 PM   #9
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default

Those pliers work like a charm. I'm a jeweler and use them at my studio for twisting all sorts of wire when needed, up to about 12ga in annealed non-ferrous metals.
matthewdesigns is offline   Reply With Quote
Old 12-05-2010, 10:18 AM   #10
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

http://www.skygeek.com/ms20995n32.html

I run this stuff on mine and the bolts or wire slightly relaxed but not enough for damage, leakage, or drama aside from the internal heat sheild rattling at idle. I've since snugged and rewired, done 6-track days and it has not relaxed.
hustler is offline   Reply With Quote
Old 12-05-2010, 01:46 PM   #11
Elite Member
Thread Starter
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

Thanks for all the info and links everybody!
WonTon is offline   Reply With Quote
Old 12-05-2010, 02:09 PM   #12
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Are you getting the Inconel wire or SS fail?
hustler is offline   Reply With Quote
Old 12-05-2010, 02:11 PM   #13
Elite Member
Thread Starter
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

Inconel!

I is no dummy, I just forgot that they made it in Inconel...
WonTon is offline   Reply With Quote
Old 12-05-2010, 02:35 PM   #14
Junior Member
iTrader: (3)

Join Date: Apr 2009
Location: McDonough Ga.
Posts: 356
Total Cats: -26
Default

Quote:
Originally Posted by jasonb View Post
i've been using this http://www.harborfreight.com/0041-in...coil-8895.html for suspension pieces. 6 bux. beats the 30 bux i paid for 2lb roll of .035 ss308 mig stainless wire at the welding supply store.

thanx for tip, ima get some inconel tig filler wire at school next time. even better than hf
Welding wire is not safety wire,It might hold a turbo bolt,but if it fails on something like a steering rack or a suspension bolt....You dont even want to think about that...Buy the real stuff.
(G)
Reverend Greg is offline   Reply With Quote
Old 12-05-2010, 05:22 PM   #15
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,158
Total Cats: 131
Default

Safety wire pliers are the universal tool. I have been known to CUT screws that were too long with them. At least I did with the ones I used when I was in the Corps...

I have no need to safety wire anything and I still find myself shopping for safety wire pliers from time to time. They hold a place in my heart next to my AR-15...
Chiburbian is offline   Reply With Quote
Old 12-09-2010, 07:31 PM   #16
Elite Member
Thread Starter
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

I got my pliers in the mail the other day and they are of a better quality than i thought, not to pleased with how they lock but they will get the job done!

Would any of you that have a roll of econel wire mind sending me enough to do 6 bolts? i wont be able to buy any for a few weeks and am trying to get this sucker running before newyears! ill send some money via Paypal for whomevers generosity!
WonTon is offline   Reply With Quote
Old 12-09-2010, 08:07 PM   #17
Junior Member
iTrader: (1)

Join Date: Jan 2009
Location: Bradenton, FL
Posts: 291
Total Cats: 5
Default

With out going threw the massive amounts of replies in the Epic thread... (I'm waiting to get yelled at allready) Who is everyone using to get safety wire bolts from?
Sokool is offline   Reply With Quote
Old 12-09-2010, 08:22 PM   #18
Elite Member
Thread Starter
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

I got the ones they Tial offers for their housings, I think Savington mentioned to me about possibly getting some Inconel bolts made. Im not positive on that though, my memory is a lil shot right now! lol
