Old 10-13-2009, 03:56 PM   #121
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by JKav View Post
EDIT: just saw that it smokes on startup. Hmm. I don't know if this is related to the turbo--oil pressure on a cold start isn't that high (relatively speaking) and cold oil is viscous and has a harder time working past the turbine seal.
It smoked until it hit 80*f or so. What else could it be? My gauge liked to peg on cold-start too.
hustler is offline   Reply With Quote
Old 10-13-2009, 03:57 PM   #122
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

Its OP then.
neogenesis2004 is offline   Reply With Quote
Old 10-13-2009, 05:50 PM   #123
Junior Member
iTrader: (1)

Join Date: Aug 2008
Posts: 373
Total Cats: 36
Default

yeah sounds like high OP. If you run heavy weight oil and a shimmed oilpump then I could see the cold start OP being high enough to overwhelm the turbine seal.
JKav is offline   Reply With Quote
Old 10-13-2009, 09:37 PM   #124
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,484
Total Cats: 248
Default

What oil do you run anyway?
TurboTim is offline   Reply With Quote
Old 10-13-2009, 09:38 PM   #125
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by TurboTim View Post
What oil do you run anyway?
5w40 rotella synth. I should have the analysis data back now-ish.
hustler is offline   Reply With Quote
Old 10-15-2009, 03:03 PM   #126
Senior Member

Join Date: Jan 2007
Location: Maryland
Posts: 701
Total Cats: 0
Default

GDI. You guys and your safety wire. I'm stupid lots paranoid now, and I'm pretty sure I need to safety wire EVERYTHING. My solid motor and diff mounts have defintely caused a bolt or two to vibrate out and I'm only at 4 of aimed 15 psi.
MX_Eva is offline   Reply With Quote
Old 10-22-2009, 12:19 PM   #127
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Tial is sending me funky metal studs and nuts which they use in their GP2 cars for this problem. My contact there swears up and down that these work, and even discussed a redesign on these housings to include 8 rather than 6 holes, and possibly these fancy metal studs and nuts. Dear god, please work.

Considering these are run in GP2, I'm somewhat confident that it will work. I will not live through this again.


edit: I mean "Formula 2". I can't find anything on the engines and **** though, not any stylish pictures. He told me they are using tial v-band housings, with the funkymetal hardware, and NO safety wire. I'm not taking anymore chances.

Last edited by hustler; 10-22-2009 at 12:32 PM.
hustler is offline   Reply With Quote
Old 10-22-2009, 01:21 PM   #128
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,484
Total Cats: 248
Default

Quote:
Originally Posted by hustler View Post
Tial is sending me funky metal studs and nuts which they use in their GP2 cars for this problem. My contact there swears up and down that these work, and even discussed a redesign on these housings to include 8 rather than 6 holes, and possibly these fancy metal studs and nuts. Dear god, please work.

Considering these are run in GP2, I'm somewhat confident that it will work. I will not live through this again.


edit: I mean "Formula 2". I can't find anything on the engines and **** though, not any stylish pictures. He told me they are using tial v-band housings, with the funkymetal hardware, and NO safety wire. I'm not taking anymore chances.
Sooo you are gonna safetywire the nuts to the studs?

You're still getting a new set of 6mm bolts and those flange spacer things, shipping today. And a purple keychain
TurboTim is offline   Reply With Quote
Old 10-22-2009, 01:27 PM   #129
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by TurboTim View Post
Sooo you are gonna safetywire the nuts to the studs?

You're still getting a new set of 6mm bolts and those flange spacer things, shipping today. And a purple keychain
Yep, that's the way this works...I have to buy everything 3-times. Apparently we're now stretching the hardware that holds the CHRA to the turbine housing. At this point in the game, I'm not taking chances with money...I've run over-budget on this car. No chances, only the best. I'm drilling through the nut and stud, then wiring to opposing flanges, so if one backs out, hopefully the other will be tight.

The key chain is all I really wanted, lol.
hustler is offline   Reply With Quote
Old 10-22-2009, 01:46 PM   #130
Trackspeed Engineering
iTrader: (9)

Join Date: Jan 2008
Location: Bay Area, California
Posts: 937
Total Cats: 10
Default

Safety wire saved Savington's setup.... The bolts all turned about 1/16th of a turn since safety wiring them, CHRA could spin in the exhaust housing with force (wiggling the intercooler piping off was enough to notice it). How the **** do people not have this problem? (obviously not enough people do otherwise TiAL would have changed it quick.
crashnscar is offline   Reply With Quote
Old 10-22-2009, 03:13 PM   #131
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Nick,
Didn't you gays use SS wire? I wonder if the SS wire stretched? I have inconel wire, so hopefully that will work. I suppose I can try with the inconel wire and if that fails I'll go with the fancy ****.

I trust a mechanical lock more than alchemy.
hustler is offline   Reply With Quote
Old 10-22-2009, 03:56 PM   #132
Trackspeed Engineering
iTrader: (9)

Join Date: Jan 2008
Location: Bay Area, California
Posts: 937
Total Cats: 10
Default

I wouldn't trust mechanical lock over using the correct metals. Take a look at the reason you even went to v-bands..... mechanical locking wasn't enough because it is an issue concerning expansion and strength.

Yes, I believe it is SS safety wire. I do not know how tight it was between the bolts though (there was likely a small amount of slop, letting the bolt heads turn just that little bit). It did save the CHRA though. Report back how your special nuts/studs from TiAL work..... btw, how many hoes did you have to pimp to pay for the new TiAL hardware?
crashnscar is offline   Reply With Quote
Old 10-22-2009, 04:12 PM   #133
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by crashnscar View Post
I wouldn't trust mechanical lock over using the correct metals. Take a look at the reason you even went to v-bands..... mechanical locking wasn't enough because it is an issue concerning expansion and strength.

Yes, I believe it is SS safety wire. I do not know how tight it was between the bolts though (there was likely a small amount of slop, letting the bolt heads turn just that little bit). It did save the CHRA though. Report back how your special nuts/studs from TiAL work..... btw, how many hoes did you have to pimp to pay for the new TiAL hardware?
$100 I think. He's placing an order today. I hooked up Andy Kay with the contact info, and I know you two share a bed.
hustler is offline   Reply With Quote
Old 10-23-2009, 04:06 PM   #134
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

See, with my inconel safety wire I can let the tial hardware stretch and the safety wire will keep me from buying another housing. However, eventually after tightening, the tial hardware will break and I'll have to take the turbine housing to a machine shop and get the stud removed.

With the nimonic studs one can stretch or loosen , fall out, then I am out another $500 in CHRA.
hustler is offline   Reply With Quote
Old 12-13-2009, 02:32 AM   #135
Senior Member
iTrader: (3)

Join Date: May 2008
Location: Fargo, ND
Posts: 534
Total Cats: 3
Default

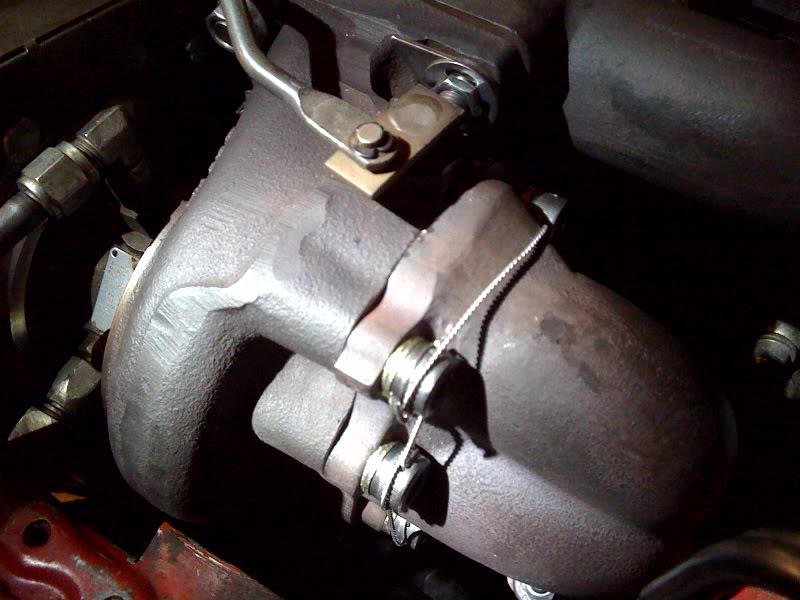

This is a great way to hold the bolts for drilling for lockwire. it holds only the neck on mine, not the threads. Its three pieces, a collet with the bolt, the large tapered block, and a screw on the end for the collet to pull it all together.


As for lockwire, does anyone know exactly how to do something like this? I am sort of at a loss, but it seems the best way to go for the outlet-turbo part. I'm also considering drilling for lockwire my turbine nuts so I don't lose a center housing, but that's mostly a V-band/tial problem, right?
Name:  turbowire.jpg
Views: 1
Size:  76.7 KB

Anyway, I'm going with a 1/16 drill bit, hss, and i have about 18 a286 bolts to go through, so I'm looking at about 10 bits on monday.. woo.
chance91 is offline   Reply With Quote
