Default 1.6 diypnp no spark

I had a guy build me a diypnp ecu. Everything is communicating with the ecu except that im getting no spark. When I tested the coils in Turner Studio thier was nothing until I got to coil D. Testing coil D wasn't producing any spark but it was turning the cooling fan on. Does that mean that thier is a wiring issue in the ecu itself? Going to look at it more when I get off work but any help to how the board should be wired for the factory coil pack would be very appreciated!
skippy008 is offline   Reply With Quote
Old 07-13-2015, 05:26 PM   #2
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

Please post your MSQ.
Matt Cramer is offline   Reply With Quote
Old 07-13-2015, 07:50 PM   #3
Newb
Thread Starter

Join Date: May 2015
Posts: 21
Total Cats: 0
Default

here is my tune as of now
Attached Files
File Type: msq CurrentTune.msq (110.4 KB, 54 views)
skippy008 is offline   Reply With Quote
Old 07-14-2015, 10:38 AM   #4
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

For testing purposes, unplug the coils and change the spark output to Going Low. DO NOT PLUG THE COILS BACK IN UNTIL YOU'VE CHANGED IT BACK TO GOING HIGH. Check if you have 5 volts on both spark outputs at that time.
Matt Cramer is offline   Reply With Quote
Old 07-14-2015, 11:47 AM   #5
Newb
Thread Starter

Join Date: May 2015
Posts: 21
Total Cats: 0
Default

Ok I will try that when I get to the car later today. What grounds the coil pack? I plan on tracing my grounds today and making sure tgey are in good shape.
skippy008 is offline   Reply With Quote
Old 07-14-2015, 11:52 AM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

next time have someone that knows what they are doing build you a diypnp.

you only have two coils, so i dunno why you are testing coil D.

sounds like you have the cooling fan on ALD which is why it turned on the fan when testing. I'm going to assuming he loaded regular ms2 firmware and not microsquirt firmware...
Braineack is offline   Reply With Quote
Old 07-14-2015, 12:01 PM   #7
Newb
Thread Starter

Join Date: May 2015
Posts: 21
Total Cats: 0
Default

Yea... I checked the pin-outs from a thread that I believe was the 91 miata no spark. It looks like all my pin-outs are in the correct spots from what thst thread shows. Could it be the firmware? I read somewhere where you might have to download the microsquirt firmware because it uses the correct pin-outs?
skippy008 is offline   Reply With Quote
Old 07-14-2015, 12:06 PM   #8
Newb
Thread Starter

Join Date: May 2015
Posts: 21
Total Cats: 0
Default

Ok. What is the download actually called for the correct firmware? Thanks for the help!
skippy008 is offline   Reply With Quote
Old 07-14-2015, 12:27 PM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

its all the same firmware but theres a setting when you flash.

on the ingition settings page, what does it say the ignition output is set to? I cant see the msq here at work (or screen capture)
Braineack is offline   Reply With Quote
Old 07-14-2015, 12:54 PM   #10
Newb
Thread Starter

Join Date: May 2015
Posts: 21
Total Cats: 0
Default

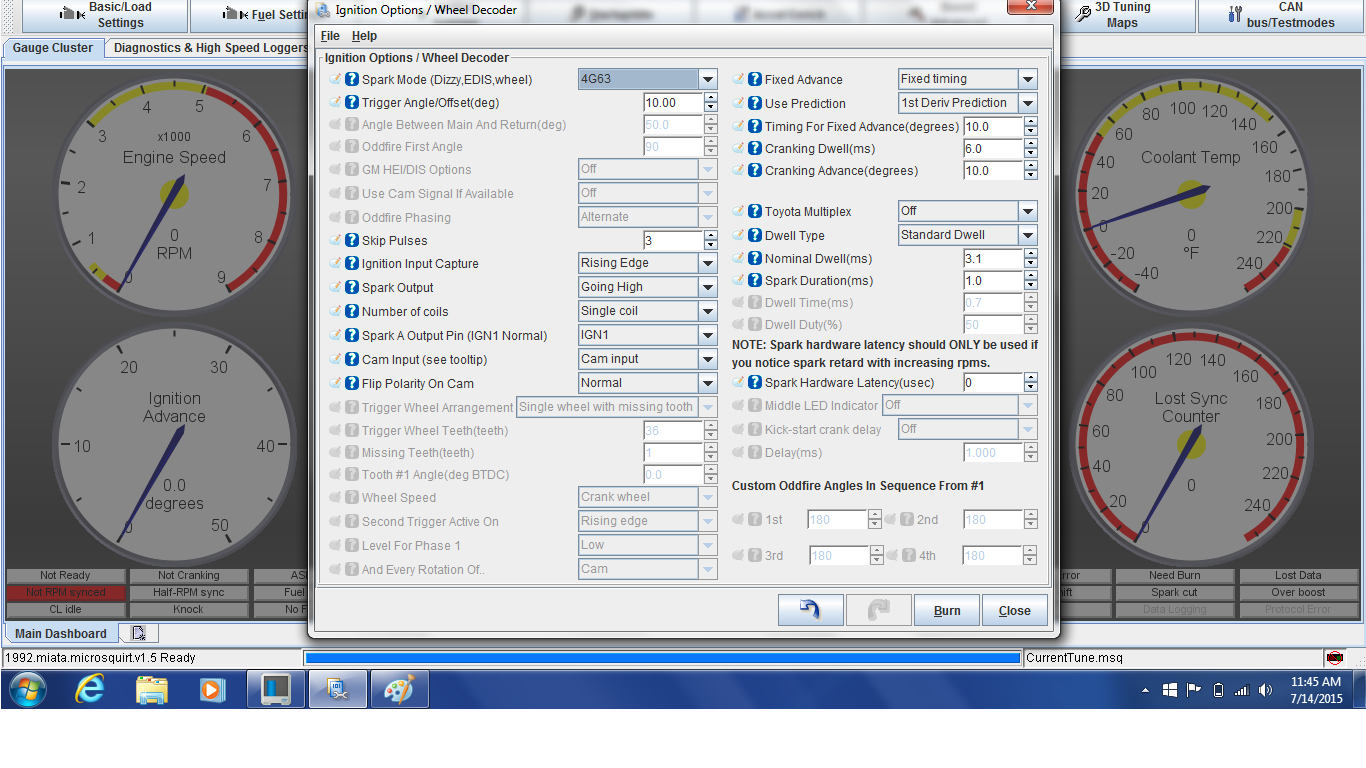

See attached file for the screenshot of my ignition settings. Spark output is Going High.
Attached Thumbnails
1.6 diypnp no spark-ignition-settings.png
skippy008 is offline   Reply With Quote
Old 07-14-2015, 02:16 PM   #11
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

firmware seems fine.

but youre setup for single coil; you have two. use wasted spark.
Braineack is offline   Reply With Quote
Old 07-14-2015, 10:45 PM   #12
Newb
Thread Starter

Join Date: May 2015
Posts: 21
Total Cats: 0
Default

Well changed the setting to wasted spark and still got nothing. Also unplugged the coils and changed it to going low and tested the volts and was getting 5v on both. So I figured maybe my coil pack was bad so replaced that with one out of LKQ and still nothing. The one from LKQ could be bad as well but, idk.
skippy008 is offline   Reply With Quote
Old 07-14-2015, 11:46 PM   #13
Newb
Thread Starter

Join Date: May 2015
Posts: 21
Total Cats: 0
Default

Also plugged the stock ecu in and still got no spark. What could cause this? Im still getting a rmp signal but I did notice that at one point I wasn't getting a rpm signal. I will upload my composite log later tonight along with my msq.

Last edited by skippy008; 07-15-2015 at 12:42 AM.
skippy008 is offline   Reply With Quote
Old 07-15-2015, 01:59 AM   #14
Newb
Thread Starter

Join Date: May 2015
Posts: 21
Total Cats: 0
Default

I have attached my composite log and my current msq.
Attached Files
File Type: csv 2015-07-14LOG4.csv (20.8 KB, 38 views)
File Type: msq CurrentTune.msq (112.0 KB, 62 views)
skippy008 is offline   Reply With Quote
Old 07-15-2015, 10:18 AM   #15
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

if your stock ecu cant spark, the aftermarket one never will.
Braineack is offline   Reply With Quote
Old 07-19-2015, 11:32 AM   #16
Newb
Thread Starter

Join Date: May 2015
Posts: 21
Total Cats: 0
Default

thanks for the input guys. The ignitor was bad, put a new one the car and it fired right up. After I got the base timing for the car and got the idle to run smooth I tried a short little rev and it wants to loss rpms fast and sputter. I did put a vtps from bmw on it can its communicating with the dyipnp perfect. I will post my current MSQ file for you guys that want to help, fill free to look at it! any input will be very helpful.


Thanks
skippy008 is offline   Reply With Quote
Old 07-19-2015, 11:33 AM   #17
Newb
Thread Starter

Join Date: May 2015
Posts: 21
Total Cats: 0
Default

Here is my current tune.....
Attached Files
File Type: msq CurrentTune.msq (112.3 KB, 53 views)
skippy008 is offline   Reply With Quote
Old 07-20-2015, 12:26 PM   #18
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

Can you also post a data log of the sputtering?
