Old 09-10-2007, 10:59 AM   #1
:(
Thread Starter
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default 18 psi with no FMIC

I don't have my pump pressure on the WI set up to keep it stable though. So until i get to realy tunning it i will back it off to good ole 14 psi. here is the MLV for any who are interested.
To recap fleabay manifolds ceramic caoted
MHI small 16g
Parker store lines
Ebay knock off BOV
MS1 running fuel
LC1 WB 02
act Xtreme PP 4 puck unsprung disk
Vodoo MBC with ace hardware spring
Snow performance WI with cooling mist nozzle on a selonoid for stage 2 for a total of about 7 gph.
High impedance 542 cc/min injectors flowed and test by witchhunter performance. feeling 18 psi priceless.
Attached Files
File Type: zip parts.zip (213.9 KB, 59 views)

Last edited by magnamx-5; 09-16-2007 at 06:33 AM. Reason: Some one jacked the title
magnamx-5 is offline   Reply With Quote
Old 09-10-2007, 11:04 AM   #2
:(
Thread Starter
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

Ok i have donned my flame suit lets see what happens
magnamx-5 is offline   Reply With Quote
Old 09-10-2007, 11:07 AM   #3
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

aren't you running stock rods?
Ben is offline   Reply With Quote
Old 09-10-2007, 11:10 AM   #4
:(
Thread Starter
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

yes with weisco 40 over pistons
magnamx-5 is offline   Reply With Quote
Old 09-10-2007, 11:15 AM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

does me no good when you intake temps so 25 flat throughout! Wanna fix that and try again?!


and i swear you made me believe that turbo spooled faster than my t3...guess it wasnt the case.
Braineack is offline   Reply With Quote
Old 09-10-2007, 11:51 AM   #6
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Quote:
Originally Posted by Braineack View Post
does me no good when you intake temps so 25 flat throughout! Wanna fix that and try again?!


and i swear you made me believe that turbo spooled faster than my t3...guess it wasnt the case.
Yeah he does need to install a GM IAT in his crossover. It's still interesting stuff. He is still running stock timing as his MS isn't controlling spark.
cjernigan is offline   Reply With Quote
Old 09-10-2007, 12:32 PM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

he needs to fix his CLT temp sensor too.
Braineack is offline   Reply With Quote
Old 09-10-2007, 01:06 PM   #8
:(
Thread Starter
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

AIT is ambient under hood temps, CLT is accurate i gues i dunno i think adam got that one right. I run a 170 or so degree thermostat at like 80% water with no FMshitercooler. I would realy like a oil cooler though so i can keep the water temps around 140 or so degrees and the oil at 190-210 max.
magnamx-5 is offline   Reply With Quote
Old 09-10-2007, 02:53 PM   #9
Senior Member

Join Date: Oct 2005
Location: Knoxville
Posts: 1,168
Total Cats: 0
Default

take it to the track!
Al Hounos is offline   Reply With Quote
Old 09-10-2007, 03:09 PM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

Quote:
Originally Posted by magnamx-5 View Post
AIT is ambient under hood temps, CLT is accurate i gues i dunno i think adam got that one right. I run a 170 or so degree thermostat at like 80% water with no FMshitercooler. I would realy like a oil cooler though so i can keep the water temps around 140 or so degrees and the oil at 190-210 max.

there's no way your water is cruising at 150F. Betcha $10 your R7 resistor is still install is fubaring the readings. All you gotta do to confirm is idle untill the fans kick on. if they come on anythign less than 200F (93C), you know it's not reading right.

your intake temps dont move whatsoever. if you run WI at 5psi like you say, then I'd expect a small bump in temps at the onset of boost. your intake temps barely move that entire log.

can you go out and take a 3rd gear pull from 2000RPM to redline and then stop it?
Braineack is offline   Reply With Quote
Old 09-10-2007, 04:27 PM   #11
:(
Thread Starter
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

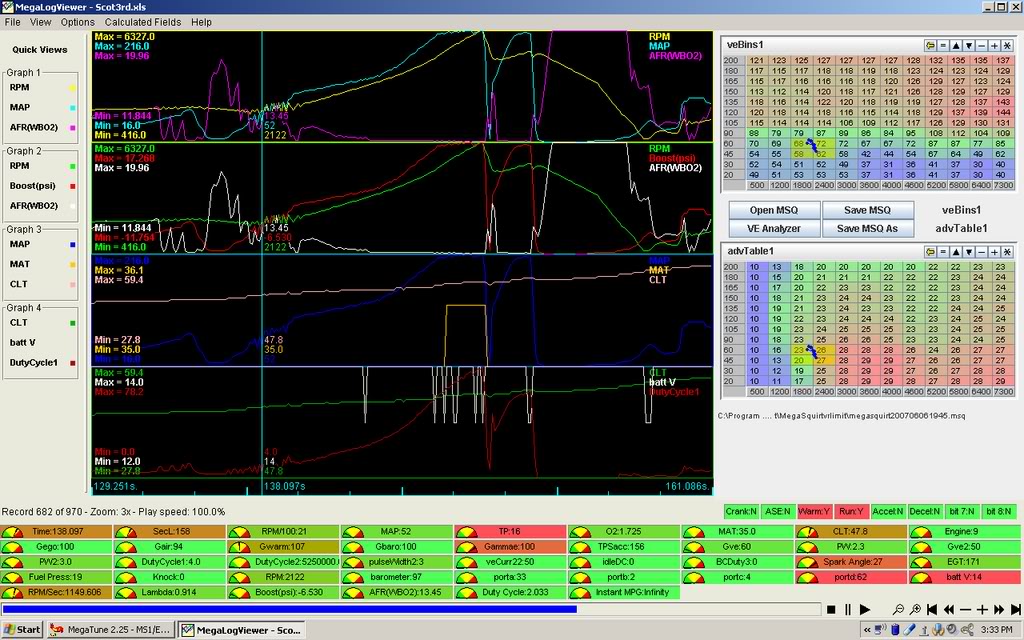

My AIT is over by the Brake master cylinder of course it didn't go up yes i can ill be back in a minute. As a mater of fact here it is the MLV and a capture I fired the car up and went down the raod and back.
Name:  2Kin3rdgear.jpg
Views: 2
Size:  167.0 KB
Attached Files
File Type: zip Scot3rd.zip (23.8 KB, 33 views)

Last edited by magnamx-5; 09-10-2007 at 04:39 PM.
magnamx-5 is offline   Reply With Quote
Old 09-10-2007, 04:37 PM   #12
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Brain, he's trying to say his AIT sensor is not reading the temp inside the charge pipe, but is laying loose under the hood.
kotomile is offline   Reply With Quote
Old 09-10-2007, 04:46 PM   #13
:(
Thread Starter
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

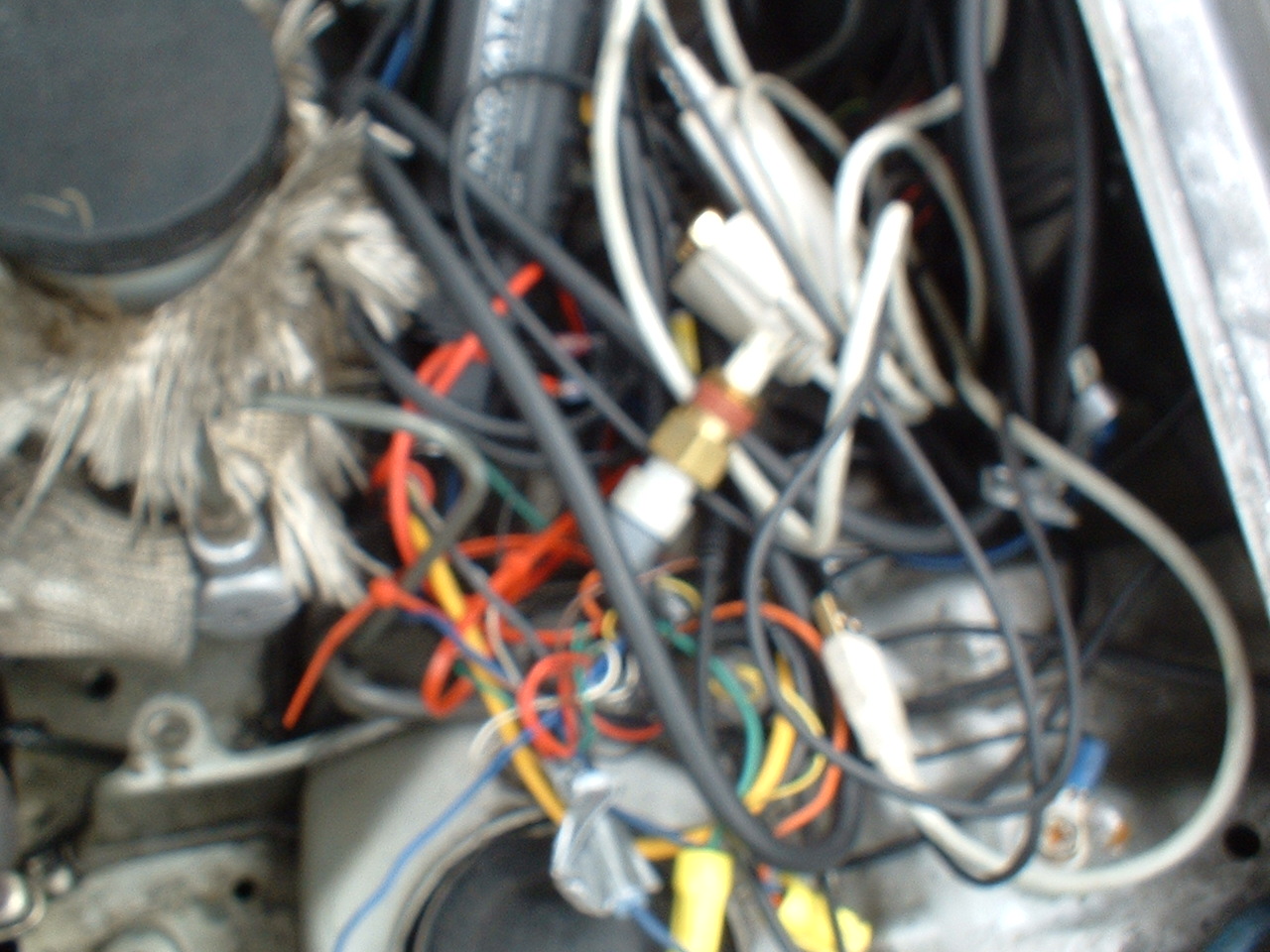

Yes i am Koto here is my GM ait sensor I never claimed to have it anywhere in the intake air flow.
Attached Thumbnails
18 psi with no FMIC.  I smell another RatFuck-dscf0020.jpg
magnamx-5 is offline   Reply With Quote
Old 09-10-2007, 04:50 PM   #14
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default






Ben is offline   Reply With Quote
Old 09-10-2007, 04:51 PM   #15
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

me = speechless
jayc72 is offline   Reply With Quote
Old 09-10-2007, 04:51 PM   #16
:(
Thread Starter
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

????? So i eased up towards 5K he wanted to see the spool if you look at the log it get positive boost of .4 psi by 1400 rpm at 1 point.
magnamx-5 is offline   Reply With Quote
Old 09-10-2007, 05:22 PM   #17
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

Why is your AIT sensor sitting in the engine bay?
jayc72 is offline   Reply With Quote
Old 09-10-2007, 06:12 PM   #18
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

god damn you richard. fix that **** you ghetto mfer.
Braineack is offline   Reply With Quote
Old 09-10-2007, 06:30 PM   #19
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

ummmmmmmmmmmmmmmmmmm brokes!

1. your car is running a little cold. 140F? brr. should be like 190F. the sun heating the interior of your car is 140F. fix that sensor.

2. how do you know if WI is better than an IC if you dont actually measure your intake temps?? fix that sensor too.
y8s is offline   Reply With Quote
Old 09-10-2007, 08:35 PM   #20
:(
Thread Starter
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

but tapping the manifold is to hard. and tapping the crossover gets me nothing. Just suffice it to say 17-18 psi on stock timming with minor oil pressure gauge detonation if i stay in it to long. i am sure that by tunning my pump pressure abit more or tunning it on the dyno i can do better. But i also have to fix my fuel wich for some reason is close to 12-1 through most of the range wich it should be a little higher to help me spool abit. But for a raod tune on stock spark maps i think it is pretty damn sweet. Maybe this winter when i have chad or someone help me with my spark and EBC i will have them check the rest of the unit. But doesn't MS control fans as well. I coulda swore mine was set to come on at 170 F
magnamx-5 is offline   Reply With Quote
