Default Best spot to mount IAT?

MS is in and I'm preparing for AFM removal, what do you think would be the best place to mount IAT? keeping in mind heat soak etc etc.

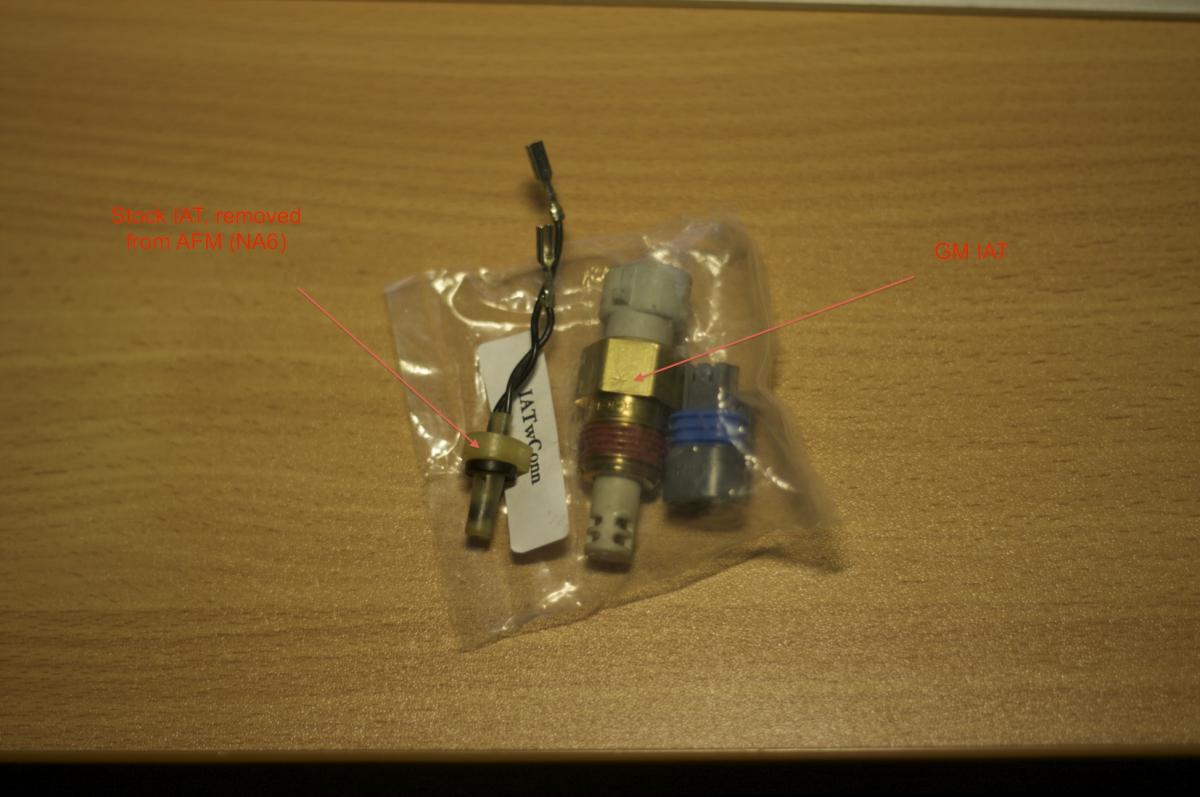

I've bought the GM IAT and will eventually use it, but thinking the stock sensor (in the photo) might be better to use; in that it's heaps smaller easier to insulate, plastic body doesn't absorb and transfer bonnet-soaked-heat into the sensor as much as the GM metal body sensor.

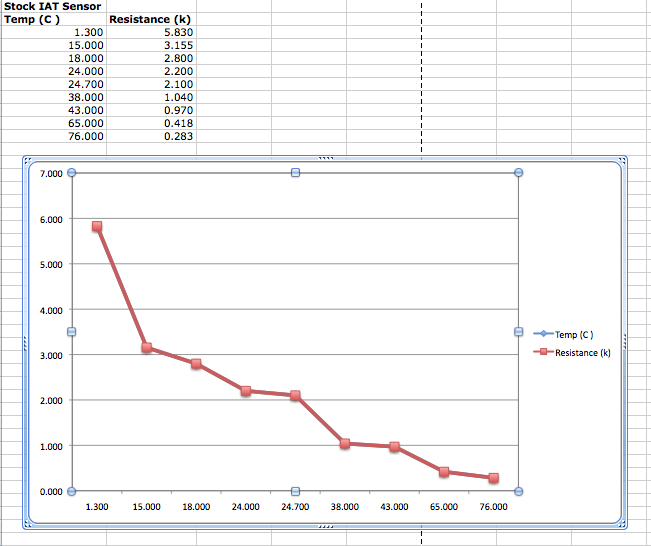

I've also done a rough characteristic check on the stock sensor...looks a bit wonky on the graph, probably need a heaps more data to get a function out, its taking shape.

Maybe some pics of where and how you have yours for some inspirations?
Attached Thumbnails

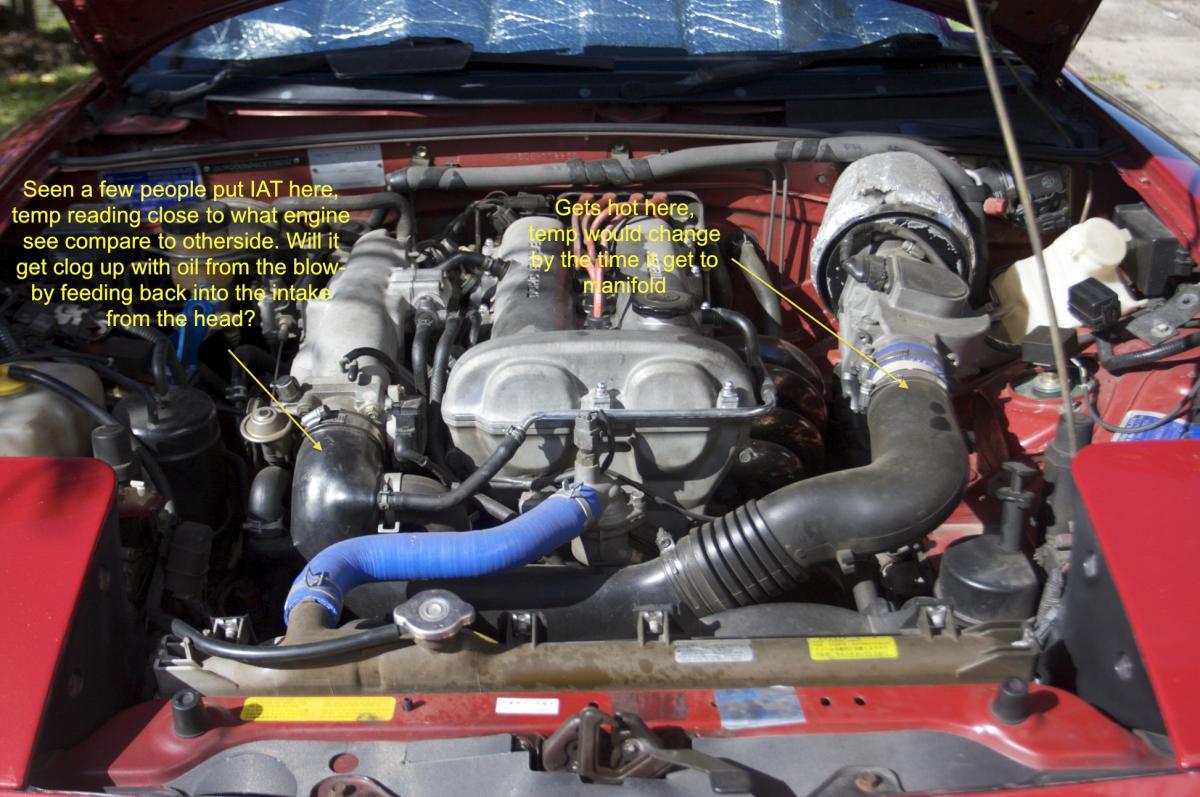

Best spot to mount IAT?-img_5623.jpg   Best spot to mount IAT?-img_2992.jpg   Best spot to mount IAT?-screen-shot-2009-09-26-2.28.31-am.png
s363134 is offline   Reply With Quote
Old 09-25-2009, 01:42 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

put it wherever it will heatsoak least...like in the air box or something.
Braineack is offline   Reply With Quote
Old 09-25-2009, 01:54 PM   #3
Newb
Thread Starter

Join Date: Sep 2009
Posts: 18
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
put it wherever it will heatsoak least...like in the air box or something.
1. Wouldn't it be more accurate to probe air just as it's about to enter the TB?
2. or is the induce air temp as air travels across the plastic intake pipe is too negligible to worry about? If this is the case then it make more sense putting it in the air box.
3. Wonder if someone mounted two sensors; one at either end of the intake pipe and get a rough idea of temp difference as air travel from filter to TB...would be interesting, because once you know that value you could in a way compensate for the difference in the MS firmware?
4. What about taking the above further and put an air temp sensor inside the intake manifold to see as close as possible what the air temp is as it enter the chamber.

Maybe it's all unnecessary to know accurate IAT in the whole scheme of things.
s363134 is offline   Reply With Quote
Old 09-25-2009, 02:05 PM   #4
Elite Member
iTrader: (9)

Join Date: Sep 2008
Location: Livonia, Michigan
Posts: 5,684
Total Cats: 10
Default

Dude go read the manual and do a little search while you are at it. This is the second thread I see with basic a question that either one the options I suggested above would have answer.


Put it in the ******* intercooler!
buffon01 is offline   Reply With Quote
Old 09-25-2009, 02:11 PM   #5
Junior Member
iTrader: (1)

Join Date: Jun 2009
Location: Los Angeles, California
Posts: 176
Total Cats: 0
Default

Quote:
Originally Posted by buffon01 View Post

Put it in the ******* intercooler!
If he has one...
x8mrxjohn8x is offline   Reply With Quote
Old 09-25-2009, 02:11 PM   #6
Newb
Thread Starter

Join Date: Sep 2009
Posts: 18
Total Cats: 0
Default

Quote:
Originally Posted by buffon01 View Post
Dude go read the manual and do a little search while you are at it. This is the second thread I see with basic a question that either one the options I suggested above would have answer.


Put it in the ******* intercooler!
Logical answer if I was running FI, trying to find the best location under the bonnet for an NA
s363134 is offline   Reply With Quote
Old 09-25-2009, 02:13 PM   #7
Elite Member
iTrader: (9)

Join Date: Sep 2008
Location: Livonia, Michigan
Posts: 5,684
Total Cats: 10
Default

Oh then airbox, if not you iz gonna getz soaked like a 14 year old at twilight premier.
buffon01 is offline   Reply With Quote
Old 09-25-2009, 02:19 PM   #8
Elite Member
iTrader: (9)

Join Date: Sep 2008
Location: Livonia, Michigan
Posts: 5,684
Total Cats: 10
Default

While youre at it you can do this. It will keep your hands away from the keyboard

revlimiter.net - Intake Isolator

revlimiter.net - NACA duct intake

Unless you already have something like than.
buffon01 is offline   Reply With Quote
Old 09-25-2009, 02:37 PM   #9
Newb
Thread Starter

Join Date: Sep 2009
Posts: 18
Total Cats: 0
Default

Awesome link! exactly what I needed.
s363134 is offline   Reply With Quote
Old 09-25-2009, 02:44 PM   #10
Elite Member
iTrader: (9)

Join Date: Sep 2008
Location: Livonia, Michigan
Posts: 5,684
Total Cats: 10
Default

Youre welcome. Now
buffon01 is offline   Reply With Quote
Old 09-25-2009, 02:50 PM   #11
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,371
Total Cats: 1,332
Default

For NA? As far away from anything hot as you can get.
Savington is online now   Reply With Quote
Old 09-25-2009, 02:59 PM   #12
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

I have mine in the coldside end tank and it helped a lot. Still heat soaks after I shut the car down and start it hot, though.

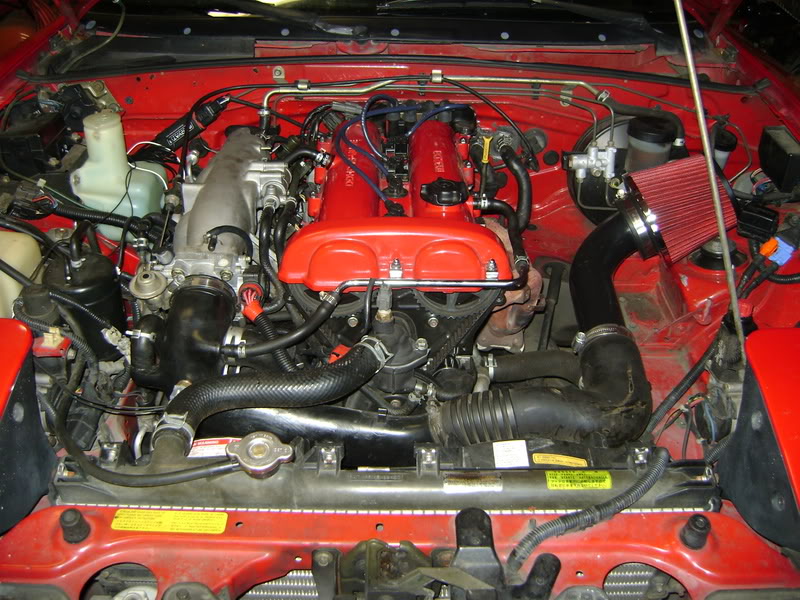

Edit: missed that you're N/A. Here is how I ran mine previously:
(you can just barely see it behind the upper rad hose)
Name:  DSC00821.jpg
Views: 8
Size:  143.5 KB

Last edited by wayne_curr; 09-25-2009 at 04:16 PM.
wayne_curr is offline   Reply With Quote
Old 09-25-2009, 03:39 PM   #13
Senior Member
iTrader: (4)

Join Date: Jan 2008
Location: Falls Church, VA
Posts: 1,367
Total Cats: 16
Default

On an n/a car it doesn't much matter because the intake air temp is not that different from the airbox to the throttle body that it's going to cause problems tuning. The airbox is near the toasty warm exhaust parts, and the crossover tube is bathed in air that's heated by the radiator. I took my IAT and zip tied it near the open end of the snorkel that feeds the airbox. I intended that to be somewhat temporary as I was expecting to be turbocharged much sooner, but anyway, the car was tuned with the sensor where it is so I'm not moving it until I do go turbo. It's far enough away from exhaust parts and not in a hot airstream, and it never gets soaked to the point that it substantially affects how the car runs.
ScottFW is offline   Reply With Quote
Old 09-25-2009, 04:28 PM   #14
Elite Member
iTrader: (9)

Join Date: Sep 2008
Location: Livonia, Michigan
Posts: 5,684
Total Cats: 10
Default

Since you got rid of the AFM why dont you point your inlet this way, and open a inlet in the headlight assembly to let in air??

Before you ask me where would you relocate the resevoir, IDK!, is just a thought.


Name:  DSC00821.jpg
Views: 8
Size:  109.5 KB
buffon01 is offline   Reply With Quote
Old 09-25-2009, 04:39 PM   #15
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by buffon01 View Post
Since you got rid of the AFM why dont you point your inlet this way, and open a inlet in the headlight assembly to let in air??

Before you ask me where would you relocate the resevoir, IDK!, is just a thought.

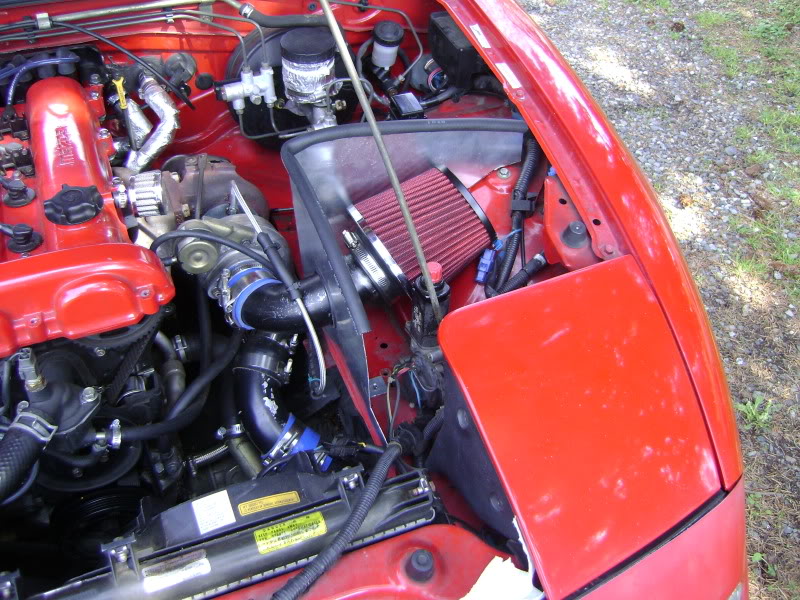

If you're asking me, its cause that was temporary until I made made this:

Name:  DSC01088.jpg
Views: 8
Size:  162.1 KB
wayne_curr is offline   Reply With Quote
Old 09-25-2009, 06:02 PM   #16
Elite Member
iTrader: (9)

Join Date: Sep 2008
Location: Livonia, Michigan
Posts: 5,684
Total Cats: 10
Default

Quote:
Originally Posted by wayne_curr View Post
If you're asking me, its cause that was temporary until I made made this:

That was mainly for the OP, or anyone who plans on staying N/A for some time and wants to get lets heat soaked.
buffon01 is offline   Reply With Quote
Old 09-25-2009, 06:06 PM   #17
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by buffon01 View Post
That was mainly for the OP, or anyone who plans on staying N/A for some time and wants to get lets heat soaked.
Ok thats kinda what I thought, and you are definitely correct. Although i've seen someone's setup that was in front of the radiator...that sounds ideal.
wayne_curr is offline   Reply With Quote
Old 09-25-2009, 06:37 PM   #18
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

When I was N/A I put it about 3" from the intake air horn. For your setup the airbox would work just as well.
gospeed81 is offline   Reply With Quote
Old 09-26-2009, 01:10 PM   #19
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

mine's in the silicone coupler about 1" from the throttlebody. It does heatsoak since it's right behind the rad, but nothing that some tweaking of the coolant related airdensity settings can't fix
Oscar is offline   Reply With Quote
Old 10-24-2009, 11:57 PM   #20
Elite Member
iTrader: (9)

Join Date: Sep 2008
Location: Livonia, Michigan
Posts: 5,684
Total Cats: 10
Default

Quote:
Originally Posted by wayne_curr View Post
Ok thats kinda what I thought, and you are definitely correct. Although i've seen someone's setup that was in front of the radiator...that sounds ideal.
I thought I might revive this one. Ive heard some ask about an intake mounted intercooler like, as in the front of the radiator. Well Im gonna be testing this out. Im intalling my MS this weekend, and I routed the filter to the front of the radiato. Ill upload pictures soon.
