Default crank but no start. Attached composite log

Hi guys. New day new problem. I got everything ready to start the car now but it only cranks but no start. I have attached the tune and composite log so i hope someone can help me out here.

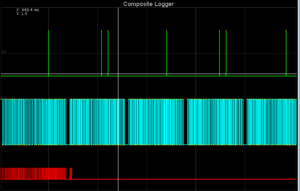

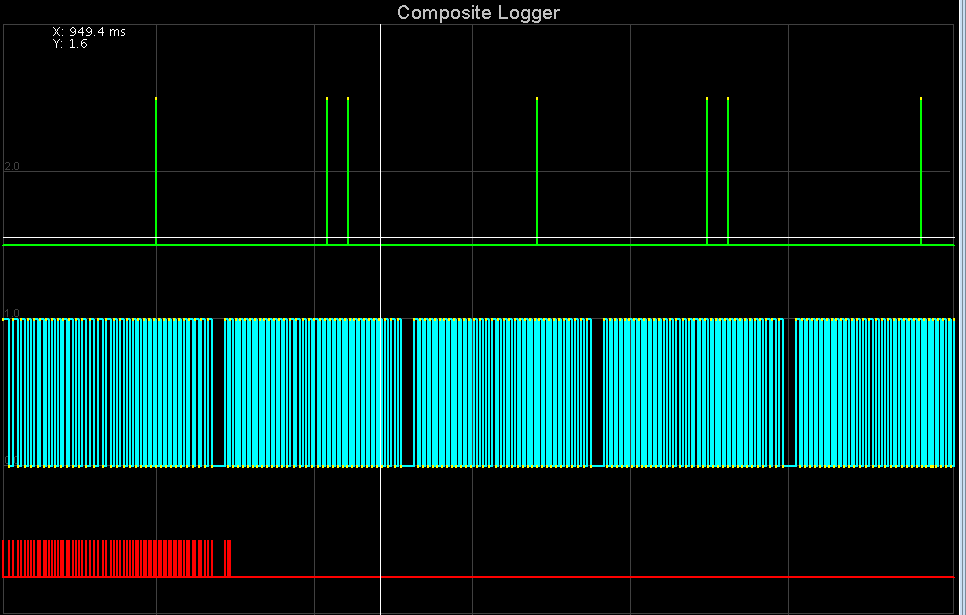

Attached Thumbnails crank but no start. Attached composite log-screen-shot-2017-08-05-4.52.28-pm.png
Attached Files
File Type: csv
2017-08-05_16.50.31.csv (41.6 KB, 39 views)
File Type: msq
CurrentTune.msq (265.5 KB, 23 views)
rikaro is offline
Old 08-05-2017, 10:33 PM
  #2
Junior Member
Thread Starter

Join Date: Apr 2011
Location: vancouver, bc
Posts: 116
Total Cats: 4
Default

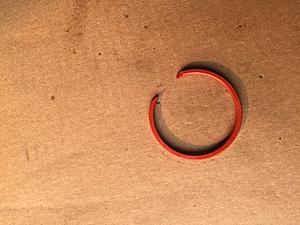

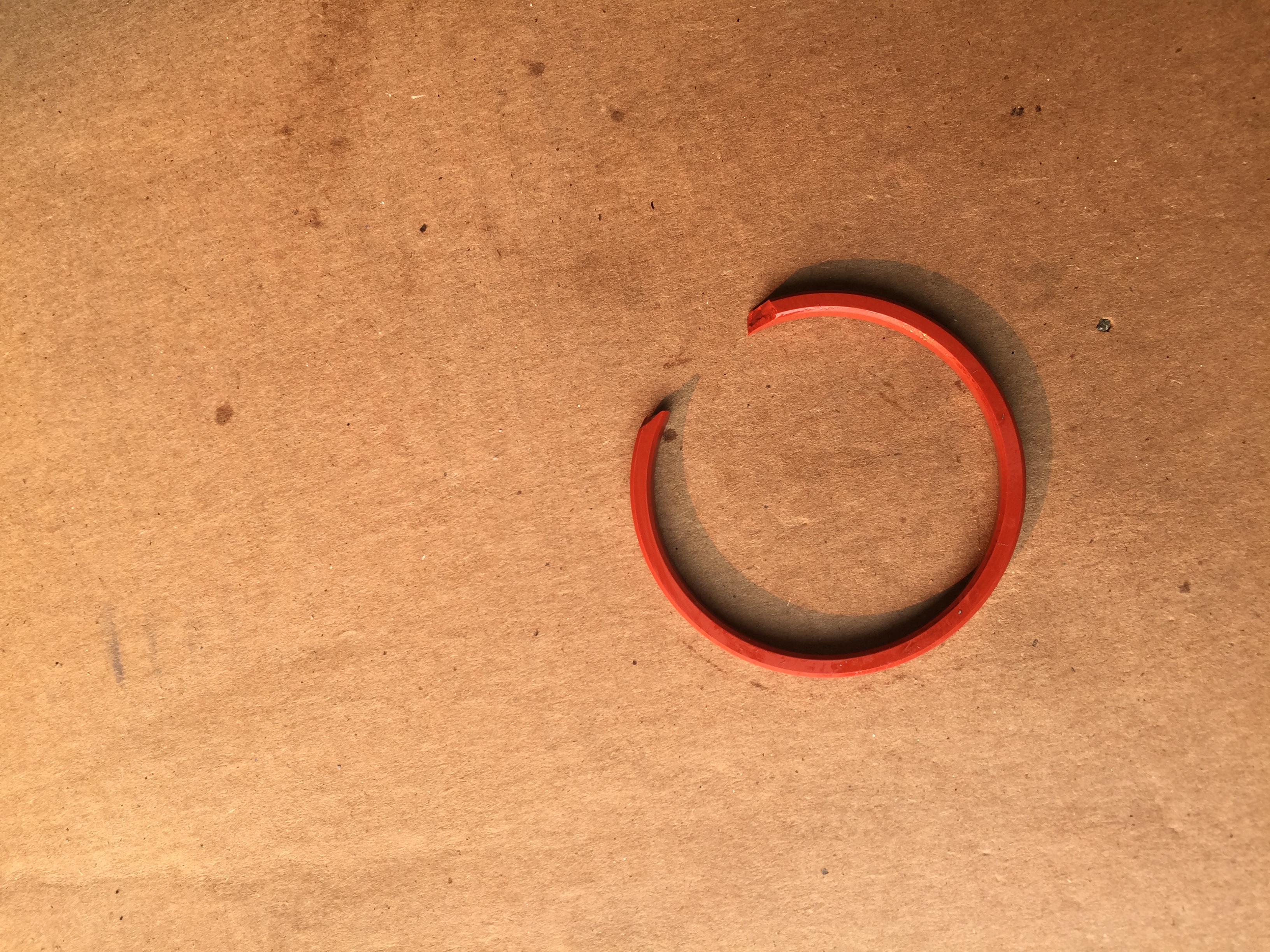

Oops this happened. Will replace it on Monday. Hope they have this in stock.
Attached Thumbnails crank but no start. Attached composite log-img_9983.jpg
rikaro is offline
Old 08-06-2017, 01:24 AM
  #3
Junior Member
Thread Starter

Join Date: Apr 2011
Location: vancouver, bc
Posts: 116
Total Cats: 4
Default

I might have found the issue. My fuel lines are swapped. Does the fuel input goes to the rail and the return line comes from the regulator?
rikaro is offline
Old 08-06-2017, 04:09 AM
  #4
Junior Member
iTrader: (1)

Join Date: Feb 2011
Location: Thessaloniki
Posts: 108
Total Cats: 12
Default

Fuel line closer to firewall to rail, return line from the regulator.
Akina_Downhill is offline
Old 08-06-2017, 09:10 AM
  #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 74,898
Total Cats: 2,079
Default

Originally Posted by rikaro View Post
I might have found the issue. My fuel lines are swapped. Does the fuel input goes to the rail and the return line comes from the regulator?
did you do a motor swap?
Braineack is online now
Old 08-10-2017, 07:13 PM
  #6
Junior Member
Thread Starter

Join Date: Apr 2011
Location: vancouver, bc
Posts: 116
Total Cats: 4
Default

Originally Posted by Braineack View Post
did you do a motor swap?
yes i did. vvt to 95 miata

Still no start :\
rikaro is offline
Old 08-10-2017, 07:41 PM
  #7
Junior Member
Thread Starter

Join Date: Apr 2011
Location: vancouver, bc
Posts: 116
Total Cats: 4
Default

rikaro is offline
Old 08-12-2017, 04:53 PM
  #8
Junior Member
Thread Starter

Join Date: Apr 2011
Location: vancouver, bc
Posts: 116
Total Cats: 4
Default

so here's an update:

i got spark and fuel. I emailed Dimitris and he said my cranking angle is too high at 20* so I changed to 8*. He also mentioned that my rpm while cranking is only at 120rpm while it should usually be at 200-250ish. I swapped my current NB starter with my NA starter and it's at 180ish rpm now while cranking but still no start. I smell fuel but no spark. I have tried 2 batteries and they both couldn't get my rpm over 180.

Any suggestions? I am trying my best to get the car running. :(
rikaro is offline
Old Today, 04:33 PM
  #9
Newb

Join Date: Oct 2018
Posts: 4
Total Cats: 0
Default

Did you ever figure out what thw problem was? Ive got a 95 a did a vvt swap in and it doing the same thing. Even down to the composite graph
