Old 09-28-2011, 05:33 AM   #381
Junior Member
Thread Starter

Join Date: Jun 2007
Posts: 411
Total Cats: 0
Default

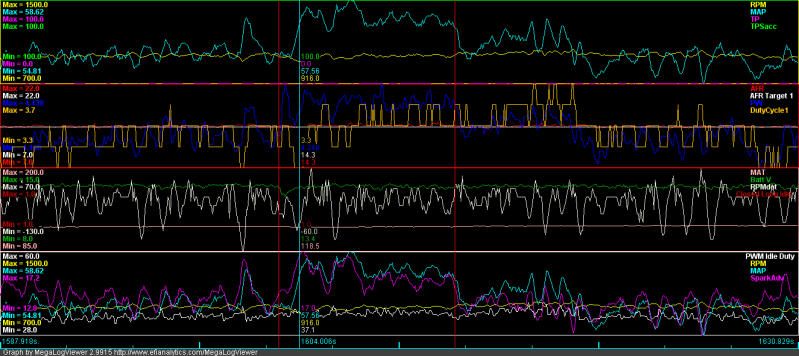

I swear the new cams have had a huge difference in the idle characteristics of the car! The increased air has allowed me to turn down the PID settings a LOT! I cannot even feel it when the AC compressor engages anymore, and turning on AC plus headlights is just a small smooth dip which normalizes immediately. With some more tuning, I may even be able to get rid of the extra solenoids.

RPMdot is more erratic now due to the cams, which is mainly the reason I cannot run extreme D anymore.

Name:  928p20i25d3000m900m2200intakecamret10igret.png
Views: 2
Size:  112.4 KB

Logs here:
https://www.miataturbo.net/showpost....0&postcount=29
Greg G is offline   Reply With Quote
Old 09-28-2011, 05:41 AM   #382
Junior Member
iTrader: (1)

Join Date: Jun 2011
Location: Australia
Posts: 178
Total Cats: 3
Default

Quote:
Originally Posted by Greg G View Post
I swear the new cams have had a huge difference in the idle characteristics of the car!
What brand/type or profile cams? They sound like they've helped a fair bit!

G
gslender is offline   Reply With Quote
Old 09-28-2011, 05:45 AM   #383
Junior Member
Thread Starter

Join Date: Jun 2007
Posts: 411
Total Cats: 0
Default

Maruha NA6 f-cams. They are mild cams, meant to be compatible with the stock ECU and valvetrain. 252 in/256ex, 8.5mm lift. I installed them for a better midrange, and was pleasantly surprised by the effect they had on idle (well after an initial shock at a horrible idle, due to wrong timing sync).
Greg G is offline   Reply With Quote
Old 09-28-2011, 07:09 AM   #384
Junior Member
iTrader: (1)

Join Date: Jun 2011
Location: Australia
Posts: 178
Total Cats: 3
Default

Cool. Where'd get 'em from? Also, not concerned about adding too much overlap (normally a bad thing for FI engines) ??

G
gslender is offline   Reply With Quote
Old 09-28-2011, 07:22 AM   #385
Junior Member
Thread Starter

Join Date: Jun 2007
Posts: 411
Total Cats: 0
Default

Got em from Tetsuyagarage in Japan. Still tuning the cams, we'll see how it goes...
Greg G is offline   Reply With Quote
Old 10-01-2011, 07:16 AM   #386
Junior Member
Thread Starter

Join Date: Jun 2007
Posts: 411
Total Cats: 0
Default

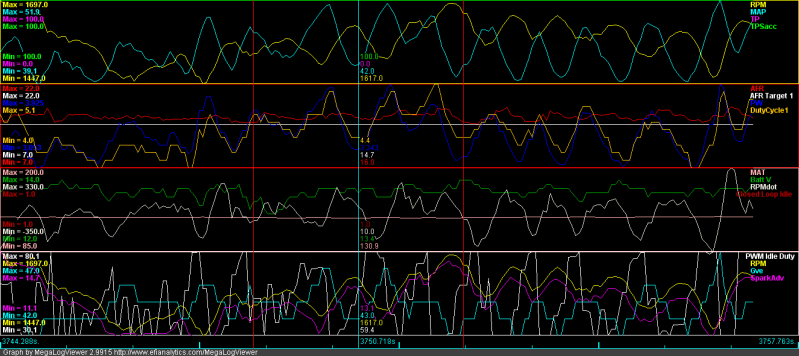

I switched back to standard firmware with 3.1.3 beta, from 3.1.1 mariobv17. Loaded up my current msq-- look what happened to the idle duty!

Name:  101stdfirmwarecrazyd.png
Views: 2
Size:  106.5 KB

Reduced D from 3000 to 200! I guess D is amplified ~10x!

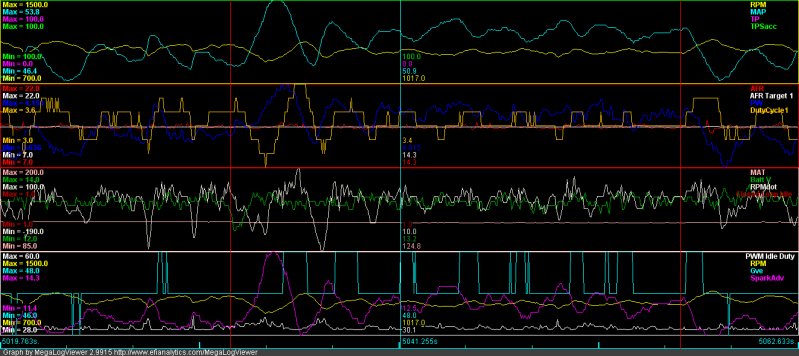

Much better. Need to retune my VE table a bit. Gve is moving too much.
Name:  101needsgvetune.png
Views: 2
Size:  97.7 KB
Greg G is offline   Reply With Quote
Old 10-01-2011, 12:57 PM   #387
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Quote:
Originally Posted by gslender View Post
Cool. Where'd get 'em from? Also, not concerned about adding too much overlap (normally a bad thing for FI engines) ??

G
He's got cam gears so he can dial in any overlap he wants.
JasonC SBB is offline   Reply With Quote
Old 10-01-2011, 01:06 PM   #388
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Quote:
Originally Posted by Greg G View Post
I swear the new cams have had a huge difference in the idle characteristics of the car! The increased air has allowed me to turn down the PID settings a LOT! I cannot even feel it when the AC compressor engages anymore, and turning on AC plus headlights is just a small smooth dip which normalizes immediately.
I think the mild overlap you tuned in, plus late intake closing from the duration, means the engine will idle at a higher MAP. (you reduced idle VE). With increased MAP in the intake tract (throttle volume), the feedback control system is more "linear" because operating the solenoid at a larger opening means air can get through more quickly as needed to catch an idle dip. This also means less D is needed. More MAP means more air is available in the intake tract if the engine suddenly needs it.
JasonC SBB is offline   Reply With Quote
Old 10-01-2011, 06:18 PM   #389
Junior Member
iTrader: (1)

Join Date: Jun 2011
Location: Australia
Posts: 178
Total Cats: 3
Default

Quote:
Originally Posted by JasonC SBB View Post
He's got cam gears so he can dial in any overlap he wants.
Sure. My point was more that any overlap increase is generally robbing power elsewhere in an FI system. Normally you'd add cams that reduce overlap, not add it (which is opposite of what you'd do for a NA engine). Under boost, that overlap is allowing air to escape out the exhaust.

Lift is a good thing either way.

G
gslender is offline   Reply With Quote
Old 10-01-2011, 07:17 PM   #390
Junior Member
Thread Starter

Join Date: Jun 2007
Posts: 411
Total Cats: 0
Default

I found this to be interesting reading:

http://www.superchargerperformance.c...and-cam-timing
Greg G is offline   Reply With Quote
Old 10-02-2011, 08:42 PM   #391
Junior Member
iTrader: (1)

Join Date: Jun 2011
Location: Australia
Posts: 178
Total Cats: 3
Default

Quote:
Originally Posted by Greg G View Post
I found this to be interesting reading:

http://www.superchargerperformance.c...and-cam-timing
So, what's your thinking? Gonna dial in some major retard (to combat the extra overlap from stock) or try first and see if it "feels" the same....??

I'd be keen to know as I'm working towards a turbo but will go Cams first and intend on getting 10mm lift with aggressive overlap, but will use Adj cam wheels to dial that out (and more) once the turbo becomes a reality.

G
gslender is offline   Reply With Quote
Old 10-08-2011, 02:05 AM   #392
Junior Member
Thread Starter

Join Date: Jun 2007
Posts: 411
Total Cats: 0
Default

Rassa frassa ^$^&$

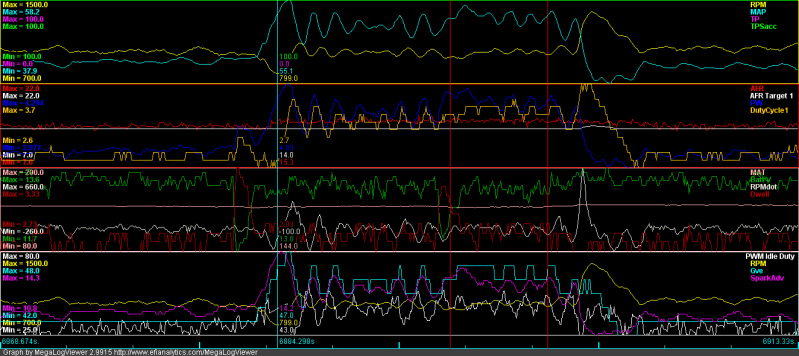

Discovered why my idle droop was gone-- the AC fan relay trigger was grounded and in turn triggered the compressor! So that's why my base MAP was so high, ~50. The rewiring was done at the same time as the cams (I never learn do I).

Aaaanyway, fixed the electrical issue- base idle MAP went down to ~40. And surprise surprise, AC engagement causes some droop again! Not as bad as before the cams, but I will have to ratchet up the D value. Right now it's a tradeoff between killing the dip completely and having a twitchy idle, or allowing some dip and have a more sedate idle. Trying to find that balance now...back to PID tuning! >.<

P60 I80 D600 min 900 max 1650 idle duty range: 25-80
Name:  108pidtuningagain.png
Views: 2
Size:  108.7 KB

Last edited by Greg G; 10-08-2011 at 03:01 AM.
Greg G is offline   Reply With Quote
Old 10-08-2011, 11:53 PM   #393
Junior Member
iTrader: (1)

Join Date: Jun 2011
Location: Australia
Posts: 178
Total Cats: 3
Default

Why not try my idle up code and perhaps this might be the solution to solve your idle tuning nightmares ;-)

http://www.msextra.com/forums/viewto...299164#p299164
gslender is offline   Reply With Quote
Old 10-09-2011, 12:22 AM   #394
Junior Member
Thread Starter

Join Date: Jun 2007
Posts: 411
Total Cats: 0
Default

Hey yeah I saw. Will give it a shot when I get some car time. Will require some rewiring to move control of the AC to an output controlled relay, but I can try it to see if the hardware triggered idle increase works! When I get some car time..this coming week is gonna be brutal for me... :P
Greg G is offline   Reply With Quote
Old 10-09-2011, 01:24 AM   #395
Junior Member
Thread Starter

Join Date: Jun 2007
Posts: 411
Total Cats: 0
Default

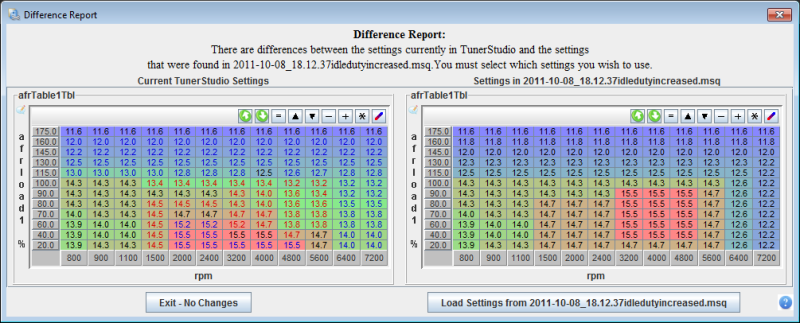

Since I'm stuck at home, I was playing with my AFR tables.

Went from the one on the right to the one on the left. Comments are welcome

Name:  109afrtables.png
Views: 2
Size:  158.3 KB
Greg G is offline   Reply With Quote
Old 10-09-2011, 06:52 AM   #396
Junior Member
Thread Starter

Join Date: Jun 2007
Posts: 411
Total Cats: 0
Default

Oh my this brings tears to my eyes...



Hope it works

How exactly is this calculated? It adds the percentage adder to the final calculated duty? Trying to figure out how this will affect the PID code when active...does this also affect the dashpot adder?
Attached Thumbnails
DIYPNP install: inital tuning-109acidleup.png

Last edited by Greg G; 10-09-2011 at 07:07 AM.
Greg G is offline   Reply With Quote
Old 10-09-2011, 08:19 AM   #397
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by gslender View Post
Why not try my idle up code and perhaps this might be the solution to solve your idle tuning nightmares ;-)

http://www.msextra.com/forums/viewto...299164#p299164
Damn you work fast!

I've filed you under the legend pile with Joe Perez and Reverant now
richyvrlimited is offline   Reply With Quote
Old 10-09-2011, 08:23 AM   #398
Junior Member
Thread Starter

Join Date: Jun 2007
Posts: 411
Total Cats: 0
Default

Quote:
Originally Posted by richyvrlimited View Post
Damn you work fast!

I've filed you under the legend pile with Joe Perez and Reverant now
I know right! What a weekend!
Greg G is offline   Reply With Quote
Old 10-09-2011, 08:27 AM   #399
Junior Member
iTrader: (1)

Join Date: Jun 2011
Location: Australia
Posts: 178
Total Cats: 3
Default

Quote:
Originally Posted by Greg G View Post
I know right! What a weekend!
Easy boys!
gslender is offline   Reply With Quote
Old 10-10-2011, 12:43 AM   #400
Junior Member
Thread Starter

Join Date: Jun 2007
Posts: 411
Total Cats: 0
Default

It freaking works!!!!!!
Greg G is offline   Reply With Quote
