Default DIYPNP map sensor spikes/flutter - problems

connection problem solved!

now its time for some new problems

my map-sensor is reading sometimes peakes/flutters. especially with the acceleration enrichment table (disabled it now).

~2200-3000 rpm its reading +/- 200 kpa/s while just holding throttle (no acceleration - while driving - or just in neutral).

on boost - theres flutter too +/- 150 - 200kpa.

will upload my MSQ and my log later.

Last edited by spidy; 07-01-2015 at 11:12 AM.
spidy is offline   Reply With Quote
Old 06-26-2015, 09:39 AM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,887
Total Cats: 1,792
Default

post your msq. you probably fubared a setting or possible fubared the firmware.
Braineack is online now   Reply With Quote
Old 06-26-2015, 12:00 PM   #3
Newb
Thread Starter

Join Date: Nov 2010
Location: aachen, Germany
Posts: 24
Total Cats: -2
Default

this is my latest msq - thx for help
Attached Files
File Type: msq testmap.msq (84.2 KB, 60 views)
spidy is offline   Reply With Quote
Old 06-26-2015, 08:58 PM   #4
Newb
Thread Starter

Join Date: Nov 2010
Location: aachen, Germany
Posts: 24
Total Cats: -2
Default

decided to try a reboot with the boot jumper and a new firmware tomorrow... x
spidy is offline   Reply With Quote
Old 06-28-2015, 02:37 PM   #5
Newb
Thread Starter

Join Date: Nov 2010
Location: aachen, Germany
Posts: 24
Total Cats: -2
Default

so Problem solved... new firmware (3.2.5 tested - cause canīt find the 3.1.0 :/) works again
spidy is offline   Reply With Quote
Old 07-01-2015, 06:14 PM   #6
Newb
Thread Starter

Join Date: Nov 2010
Location: aachen, Germany
Posts: 24
Total Cats: -2
Default

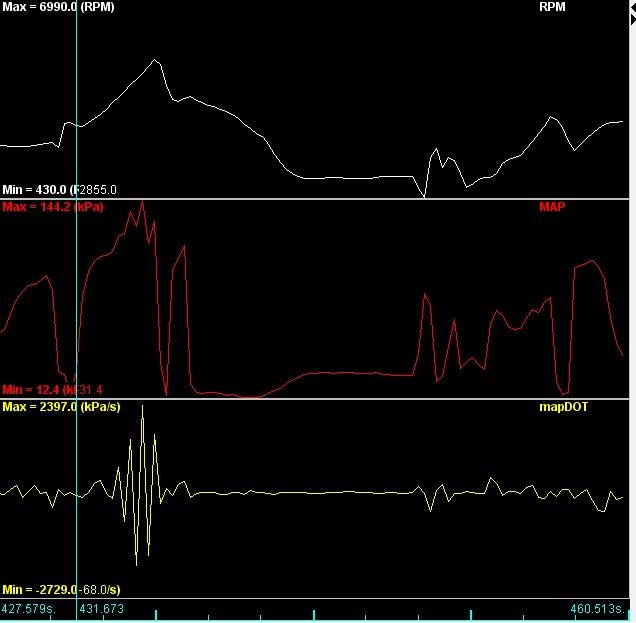

so hereīs a picture of my logfile - map spikes :/


Attached Thumbnails
DIYPNP map sensor spikes/flutter - problems-80-neue_bitmap_de339b68e00c953c8c4c8c75d4b5b5edae1dc78c.jpg
spidy is offline   Reply With Quote
Old 07-02-2015, 09:09 AM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,887
Total Cats: 1,792
Default

where's your MAP sensor plugged in?
Braineack is online now   Reply With Quote
Old 07-02-2015, 11:14 AM   #8
Newb
Thread Starter

Join Date: Nov 2010
Location: aachen, Germany
Posts: 24
Total Cats: -2
Default

at the rear port at my manifold (the one you can see near the CAS)

maybe the problem caused by my hose adapter? the DIYPNP got a 3mm hose fitted at the map sensor - the manifold got a 5mm hose. fitted with an hose-adapter
spidy is offline   Reply With Quote
Old 07-02-2015, 02:16 PM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,887
Total Cats: 1,792
Default

thats actually the absolute worst place to put it.

the TB is the second worst.



tee it off the FPR.
Braineack is online now   Reply With Quote
Old 07-02-2015, 03:56 PM   #10
Newb
Thread Starter

Join Date: Nov 2010
Location: aachen, Germany
Posts: 24
Total Cats: -2
Default

ok thx - iīll try that.

at my nissans the after TB slots works fine.

thx for help :-)
and sorry for my bad english :/
spidy is offline   Reply With Quote
Old 07-12-2015, 07:30 AM   #11
Newb
Thread Starter

Join Date: Nov 2010
Location: aachen, Germany
Posts: 24
Total Cats: -2
Default

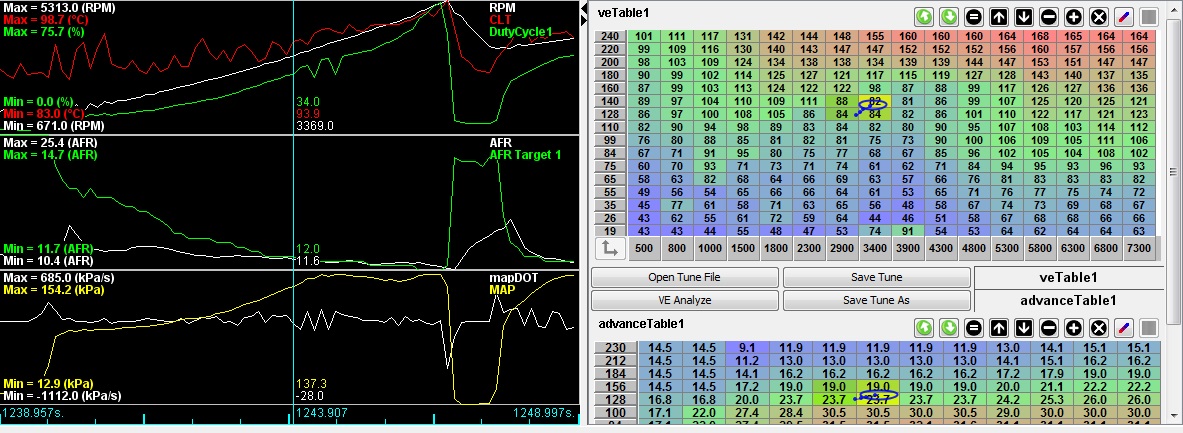

so its better - but still on WOT some points with AE and decelaration :/ sometimes with lean spikes

changed ignition cables -> new magnecore (red) and the pressure hose tee of the FPR port.

maybe other problems? VE and ignition maps crappy?


edit: turned my AE way higher - 0,8ms @ 350kp/s is the first point
Attached Thumbnails
DIYPNP map sensor spikes/flutter - problems-map-sensor-ae-problem.jpg
spidy is offline   Reply With Quote
Old 07-12-2015, 01:09 PM   #12
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

I don't see a problem, other than crappy tuning. I'd never settle for a VE map that rough, especially near low map and idle. I can't imagine why it has lean or rich spikes with adjacent cells more than 50% out from each other.
deezums is offline   Reply With Quote
Old 07-12-2015, 06:55 PM   #13
Newb
Thread Starter

Join Date: Nov 2010
Location: aachen, Germany
Posts: 24
Total Cats: -2
Default

too much autotune at low kpa-cells :/ need to smooth this cells and finetune the AE :/

Last edited by spidy; 07-12-2015 at 07:45 PM.
spidy is offline   Reply With Quote
