Old 04-09-2015, 06:02 PM   #1
Junior Member
Thread Starter

Join Date: Nov 2013
Location: New Hampshire
Posts: 60
Total Cats: 0
Default Diypnp startup map needed

1990 1.6 map needed for firmware version 3.3.3 the map from diyautotune is for and older version and loads with 45 errors. I tried the map but car won't start. Is anyone willing to help me out with a startup map for the newest forwards? Stock injectors with maf removed using gm Iat sensor. I'm hoping it's just a software issue but can't say for sure until I get a known good map.
sergmann is offline   Reply With Quote
Old 04-09-2015, 06:25 PM   #2
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

The errors always happen, it is fine. Your car won't start because it needs tuned, you can't expect it to start right away with a basemap alone.
deezums is offline   Reply With Quote
Old 04-09-2015, 09:08 PM   #3
Junior Member

Join Date: Feb 2015
Location: Texas
Posts: 53
Total Cats: -63
Default

I feel your pane sergmann ... i too have a ms2 i do not know if it is working right and cant fine where the trouble is i get my car to start but it runs like crap and i make changes to the map and it dose not change how it runs or it freeze up the program on the PC lol
MiataFox is offline   Reply With Quote
Old 04-09-2015, 09:23 PM   #4
Junior Member
Thread Starter

Join Date: Nov 2013
Location: New Hampshire
Posts: 60
Total Cats: 0
Default

i was hoping I could get a map from someone that was working in a car. I understand tuning will be needed for my application but thought there are enough people here running MS that could possibly help. If someone is willing to help great. If not I'll keep working through it.
sergmann is offline   Reply With Quote
Old 04-09-2015, 09:59 PM   #5
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

You have a map from a working car and it does not work on your car. You need to fine tune it to work with your car, getting a tune from someone else isn't going to do you any good.
deezums is offline   Reply With Quote
Old 04-10-2015, 10:56 PM   #6
Newb

Join Date: May 2014
Location: Pardeeville Wisconsin
Posts: 35
Total Cats: 2
Default

Mine took right off with the base map supplied, maybe you did something else wrong? Is your fuel pump coming on?
Tickle is offline   Reply With Quote
Old 04-11-2015, 02:10 PM   #7
Junior Member
Thread Starter

Join Date: Nov 2013
Location: New Hampshire
Posts: 60
Total Cats: 0
Default

I'm thinking now that it is not. I double checked the high side driver circuit and all is well. I did forget to pull the fuse at first but it's out now and still no dice. Any suggestions on getting the fuel pump to run?
sergmann is offline   Reply With Quote
Old 04-11-2015, 02:44 PM   #8
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

You blew up the transistor that powers the fuel pump if you ever powered the car without the fuse removed. You have to jump it manually at the AFM or replace the transistor in the MS.
deezums is offline   Reply With Quote
Old 04-11-2015, 02:48 PM   #9
Newb

Join Date: May 2014
Location: Pardeeville Wisconsin
Posts: 35
Total Cats: 2
Default

You can also manually jump at the test box in the fender well
Tickle is offline   Reply With Quote
Old 04-11-2015, 04:29 PM   #10
Junior Member
Thread Starter

Join Date: Nov 2013
Location: New Hampshire
Posts: 60
Total Cats: 0
Default

Is this q5 on the main board?
sergmann is offline   Reply With Quote
Old 04-13-2015, 09:44 PM   #11
Junior Member
Thread Starter

Join Date: Nov 2013
Location: New Hampshire
Posts: 60
Total Cats: 0
Default

Looks like I have fried something on the fuel pump circuit but there are no obvious component failure of failed traces on the board. Which transistor is used for fuel pump control?
sergmann is offline   Reply With Quote
Old 04-14-2015, 03:28 PM   #12
Junior Member

Join Date: Jul 2014
Location: Kensington, MD
Posts: 324
Total Cats: -26
Default

Wait...you're supposed to pull the fuel pump fuse before starting for the first time?
huesmann is offline   Reply With Quote
Old 04-14-2015, 07:07 PM   #13
Junior Member
iTrader: (5)

Join Date: Oct 2014
Posts: 473
Total Cats: 23
Default

MX-5 Unleashed - Mega Squirt PNP installation instruction for Eunos or miata


Did you remove this? Also, did you flash the ecu with the ignition module disconnected?
90civichhb is offline   Reply With Quote
Old 04-15-2015, 09:29 AM   #14
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

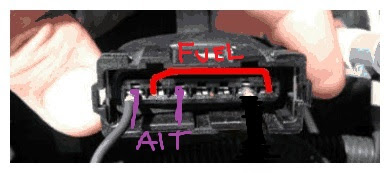

Run the Fuel pump output to 4O then just jump two pins in the AFM.




I never run the High Side Circuit--too many people fail to pull the fuse and burn up the transistor.
Attached Thumbnails
Diypnp startup map needed-afm_fuel_jump.jpg
Braineack is offline   Reply With Quote
Old 04-15-2015, 02:00 PM   #15
Junior Member
iTrader: (5)

Join Date: Oct 2014
Posts: 473
Total Cats: 23
Default

What have you found to be the better connection option for running the IAT wires? I would like a solid connection without splicing the wires if that's possible.
90civichhb is offline   Reply With Quote
Old 04-16-2015, 08:53 PM   #16
Junior Member
Thread Starter

Join Date: Nov 2013
Location: New Hampshire
Posts: 60
Total Cats: 0
Default

I replaced the 5v regulator, q17, and all is well. Now attempting to tune the idle. Let the fun begin
sergmann is offline   Reply With Quote
