Default DIYPNP Wont Start

Hi, Im helping to get my sisters boyfriends miata running on the DIYPNP that he put together. The car isn't getting spark and appears to not be getting the CAS signal. I've hooked my DIYPNP up to his car and it starts fine, so its not the coils or igniter. Were using the latest firmware and have tried both the tune that i have for my car and the base tune from DIYautotune with no luck. The only difference i could see when comparing our boards is he is wired for AC where i am not. We also removed R39 on his board per this thread: https://www.miataturbo.net/megasquir...-diypnp-69379/.

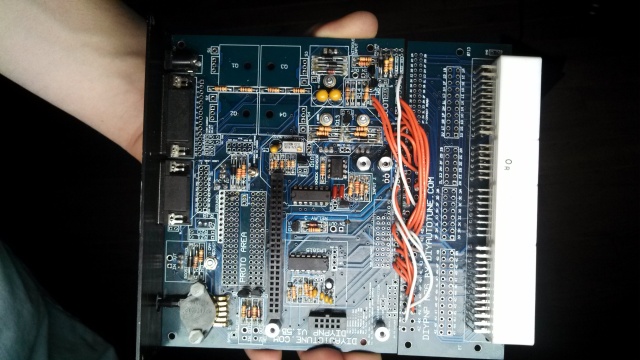

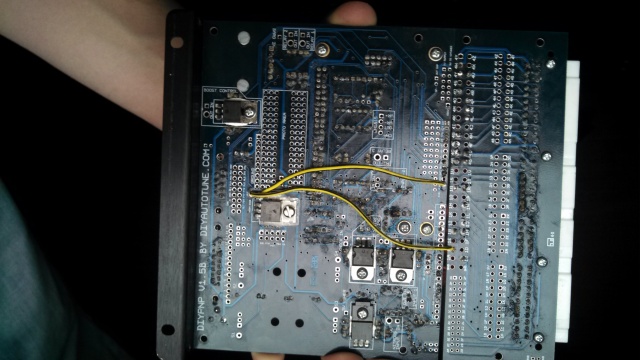

Attached are pictures of the top and underside of the board with the Microsquirt removed. Any help is appreciated!

Attached Thumbnails
DIYPNP Wont Start-e7fle9.jpg   DIYPNP Wont Start-9ify1w.jpg
MustangMike is offline   Reply With Quote
Old 03-29-2014, 04:50 PM   #2
Senior Member
iTrader: (3)

Join Date: Apr 2011
Location: Volo, IL
Posts: 1,247
Total Cats: 140
Default

Can you take a few more zoomed in pictures? It's a little hard to see the connections.
dieselmiata is offline   Reply With Quote
Old 03-30-2014, 01:25 PM   #3
Junior Member
Thread Starter
iTrader: (6)

Join Date: May 2008
Location: Goodrich, MI
Posts: 182
Total Cats: 2
Default

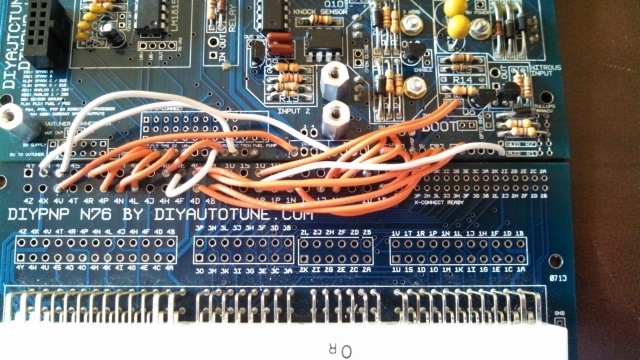

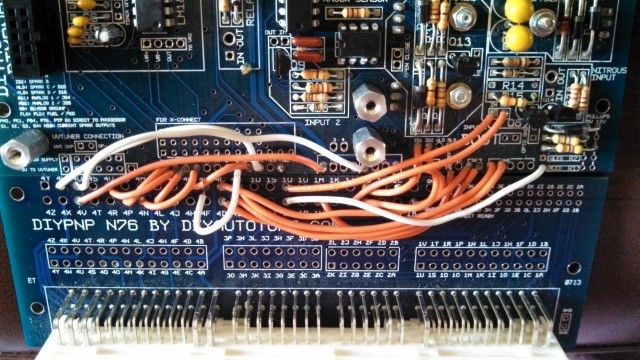

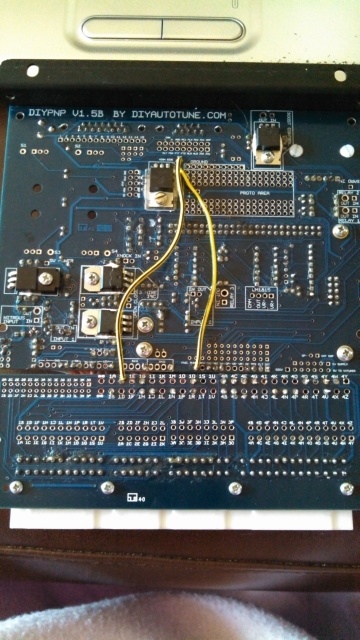

Let me know if you need better pics!
Thanks,
Mike
Attached Thumbnails
DIYPNP Wont Start-21mynsy.jpg   DIYPNP Wont Start-xcrrs7.jpg   DIYPNP Wont Start-2h2fvog.jpg
MustangMike is offline   Reply With Quote
Old 03-31-2014, 11:55 AM   #4
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,264
Total Cats: 51
Default

Can you post a composite log and a copy of your MSQ?
Matt Cramer is offline   Reply With Quote
Old 04-09-2014, 12:02 PM   #5
Junior Member
Thread Starter
iTrader: (6)

Join Date: May 2008
Location: Goodrich, MI
Posts: 182
Total Cats: 2
Default

Here is the current tune we were trying, sorry for the late reply. As for the composite log, the motor is now out of the car to replace it with a semi built motor. Until the swap is complete i wont be able to do one.
Thanks,
Mike
Attached Files
File Type: msq CurrentTune.msq (108.1 KB, 41 views)
MustangMike is offline   Reply With Quote
Old 04-26-2014, 10:55 PM   #6
Junior Member
Thread Starter
iTrader: (6)

Join Date: May 2008
Location: Goodrich, MI
Posts: 182
Total Cats: 2
Default

Ok, I was able to get the first problem figured out, there were wires jumper ed incorrectly. Now the car is only firing on two cylinders..... Any help??
Thanks,
Mike
MustangMike is offline   Reply With Quote
Old 04-26-2014, 11:40 PM   #7
Junior Member
Thread Starter
iTrader: (6)

Join Date: May 2008
Location: Goodrich, MI
Posts: 182
Total Cats: 2
Default

Never mind I got it running!
Thanks,
Mike
MustangMike is offline   Reply With Quote
