Old 05-11-2007, 12:20 PM   #141
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by FoundSoul View Post
No real story on that yet-- Bottom line is I'd like to just resell the KnockSenseMS unit and be done with it, but the designer doesn't make enough off of it to do that profitably, nor can he make them in large quantity... so that said we'll look into designing a solution that we can offer but we're not there yet so for now I'd go with the KnockSenseMS. Boris is a good guy and I'd really like to support him, everyone I know of has had good luck with his product when properly dialed in...

Oh yeah-- your MSPNP is on the middle row, third from the left--
Thanks, I'll order knocksense now then.

Is the IAT sensor the only part of the install that will require modification? I'm thinking about installing this in my hotel parking lot, but don't have a drill handy.

I was thinking about installing this weekend, but I don't really want to tune off a narrow band.
hustler is offline   Reply With Quote
Old 05-11-2007, 12:29 PM   #142
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

If you are running NA Hustler you should not have to tune at all. They should have a basemap that is close to perfect if not perfect.
shuiend is offline   Reply With Quote
Old 05-11-2007, 12:53 PM   #143
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by shuiend View Post
If you are running NA Hustler you should not have to tune at all. They should have a basemap that is close to perfect if not perfect.
yeah, my engine is totally stock. Since I'm living out of a hotel...how much can I get a timing light for? I think that's the only thing I'll need other than my "track day tool bag." How many people have installed stand alone engine management in a hotel parking lot?
hustler is offline   Reply With Quote
Old 05-11-2007, 12:55 PM   #144
Elite Member
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,198
Total Cats: 1
Default

A cheap-o timing light (that works fine) is available at HF for ~$12.99. It's worked for me on several occasions.
Atlanta93LE is offline   Reply With Quote
Old 05-11-2007, 01:54 PM   #145
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by FoundSoul View Post
Heheh... Ebay is your friend

As for Data Log Lab.... we're already working on it... shouldn't be a big deal.
I was asked by someone in the UK is I thought DLL was worth porting to work with MS

IMO MT and MLV are superior (bar the power estimation) DLL has a really clunky interface IMO.
richyvrlimited is offline   Reply With Quote
Old 05-11-2007, 02:08 PM   #146
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by hustler View Post
so which one on that table is mine...lol.
Oh, that one was Fatty's? Sorry bro, guess you'll be waiting. :gay:

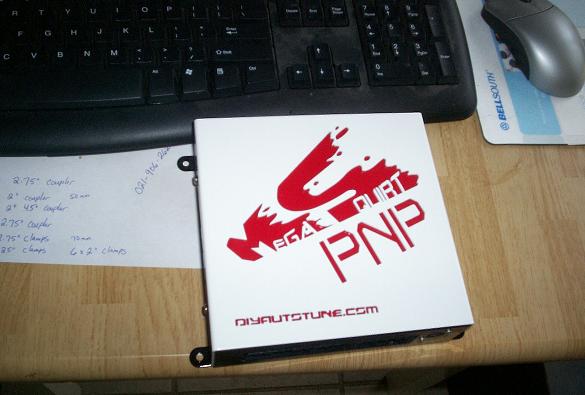

Meanwhile your MSPNP will look HOT in my car.
Attached Thumbnails
DIYs Plug and Play MEGAsquirt-pnp.jpg
Ben is offline   Reply With Quote
Old 05-11-2007, 02:20 PM   #147
Supporting Vendor
iTrader: (5)

Join Date: Jun 2006
Location: Duluth, GA 30097
Posts: 798
Total Cats: 0
Default

Quote:
Originally Posted by richyvrlimited View Post
I was asked by someone in the UK is I thought DLL was worth porting to work with MS

IMO MT and MLV are superior (bar the power estimation) DLL has a really clunky interface IMO.
I'd agree MegaLogViewer is really powerful and all you need, but this is the second time I've had someone ask about DLL, and it shouldn't be that hard...
FoundSoul is offline   Reply With Quote
Old 05-11-2007, 02:21 PM   #148
Supporting Vendor
iTrader: (5)

Join Date: Jun 2006
Location: Duluth, GA 30097
Posts: 798
Total Cats: 0
Default

Quote:
Originally Posted by Ben View Post
Oh, that one was Fatty's? Sorry bro, guess you'll be waiting. :gay:
Meanwhile your MSPNP will look HOT in my car.
Ben-- you picked that up like an hour ago-- it's not in the car YET?
FoundSoul is offline   Reply With Quote
Old 05-11-2007, 02:56 PM   #149
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

hey matt or foundsoul,
the knocksense guy wanted to know what board and software for the kit. What do I tell him? I guess "plug n play" doesn't mean anything to him.

Thank
hustler is offline   Reply With Quote
Old 05-11-2007, 03:06 PM   #150
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by FoundSoul View Post
Ben-- you picked that up like an hour ago-- it's not in the car YET?
Sorry, I stopped on the way back for lunch.
(and actually it is in the car now)

Hustler: MSNE/MSI Extra
Ben is offline   Reply With Quote
Old 05-11-2007, 03:10 PM   #151
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Ben View Post
Sorry, I stopped on the way back for lunch.

Hustler: MSNE/MSI Extra
thanks
hustler is offline   Reply With Quote
Old 05-11-2007, 03:16 PM   #152
Senior Member

Join Date: Oct 2005
Location: Knoxville
Posts: 1,168
Total Cats: 0
Default

What does DIY autotune think about putting a resistor on the LC1 analog out like the innovate guys say to? How has it been dealt with on the PnP?
Al Hounos is offline   Reply With Quote
Old 05-11-2007, 03:27 PM   #153
Supporting Vendor
iTrader: (5)

Join Date: Jun 2006
Location: Duluth, GA 30097
Posts: 798
Total Cats: 0
Default

Quote:
Originally Posted by hustler View Post
hey matt or foundsoul,
the knocksense guy wanted to know what board and software for the kit. What do I tell him? I guess "plug n play" doesn't mean anything to him.

Thank
Yep-- as Ben said-- MS1 Extra
FoundSoul is offline   Reply With Quote
Old 05-11-2007, 05:02 PM   #154
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

Quote:
Originally Posted by Al Hounos View Post
What does DIY autotune think about putting a resistor on the LC1 analog out like the innovate guys say to? How has it been dealt with on the PnP?
If you order one an LC1 along with your MSPNP, you shouldn't need a resistor - it's only the older ones in the green and white boxes that ever needed this, and even then this was to protect against bad grounding. The new ones in the "Thunderstorm" blue/black box should not need the resistor.
Matt Cramer is offline   Reply With Quote
Old 05-11-2007, 07:39 PM   #155
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

In case you didn't catch it earlier, I picked my MSPNP up from Jerry @ DIY earlier today. Along with the MS unit itself, I also received the software disk (which is self loading and well done), a tuning cable that looks like s-video on one end and a db serial cable on the other, an intake temp sensor and bung kit, a 5.5' length of vac hose (looks like it only needs 4-4.5'), and a vac T. Jerry also gave me a MAP signal filter to help clean up the signal because I elected to get the 4 bar sensor in place of the standard 2.5 bar sensor.

Installation:
pull STSIGN fuse--30 seconds
expose & remove the oem ecu--4 minutes
run vac hose through firewall--15 minutes (a 2nd person helping is nice)
install ecu plugs, vac hose, and serial tuning cable into MS--1 minute
reinstall ecu cover plate, carpet, and sill panel--4 minutes
total time: appx 25 minutes
difficulty: easy, except running the MAP signal line through the firewall. Though not technically difficult, it's frustrating. Having a second person would make it less painful (one person pushing from the engine side, the other person under the dash looking for the hose and pulling it through). I used an opened wire coathanger and very tightly taped the hose to the hanger and pushed it into the hole in the firewall. Then I used 2 flat head screwdrivers to prod the hose & hanger through. The hose comes through high up under the dash on the pass side towards the side of the car.

Jerry was super cool and offered phone and web based tech support.

Pointers:
*I had to lower the transmission speed of the serial connection to 9600 from its default 11500 to establish communication between the laptop and MS
*The supplied documentation is in word format. So you'll need word, openoffice, or equivalent.
Ben is offline   Reply With Quote
Old 05-11-2007, 08:40 PM   #156
Senior Member

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,272
Total Cats: 32
Default

Just FYI, MS1 works at 9600 and MS2 at 115200.
timk is offline   Reply With Quote
Old 05-11-2007, 10:17 PM   #157
Junior Member

Join Date: Apr 2006
Posts: 457
Total Cats: 0
Default

Quote:
Originally Posted by Ben View Post
In case you didn't catch it earlier, I picked my MSPNP up from Jerry @ DIY earlier today. Along with the MS unit itself, I also received the software disk (which is self loading and well done), a tuning cable that looks like s-video on one end and a db serial cable on the other, an intake temp sensor and bung kit, a 5.5' length of vac hose (looks like it only needs 4-4.5'), and a vac T. Jerry also gave me a MAP signal filter to help clean up the signal because I elected to get the 4 bar sensor in place of the standard 2.5 bar sensor.

Installation:
pull STSIGN fuse--30 seconds
expose & remove the oem ecu--4 minutes
run vac hose through firewall--15 minutes (a 2nd person helping is nice)
install ecu plugs, vac hose, and serial tuning cable into MS--1 minute
reinstall ecu cover plate, carpet, and sill panel--4 minutes
total time: appx 25 minutes
difficulty: easy, except running the MAP signal line through the firewall. Though not technically difficult, it's frustrating. Having a second person would make it less painful (one person pushing from the engine side, the other person under the dash looking for the hose and pulling it through). I used an opened wire coathanger and very tightly taped the hose to the hanger and pushed it into the hole in the firewall. Then I used 2 flat head screwdrivers to prod the hose & hanger through. The hose comes through high up under the dash on the pass side towards the side of the car.

Jerry was super cool and offered phone and web based tech support.

Pointers:
*I had to lower the transmission speed of the serial connection to 9600 from its default 11500 to establish communication between the laptop and MS
*The supplied documentation is in word format. So you'll need word, openoffice, or equivalent.
Inform us how the MAPDADDY works cus if it goes all sexy and whatnots I'll be getting one of those PnP with the 4bar thingy too.
LunaticDriver is offline   Reply With Quote
Old 05-11-2007, 10:29 PM   #158
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by LunaticDriver View Post
Inform us how the MAPDADDY works cus if it goes all sexy and whatnots I'll be getting one of those PnP with the 4bar thingy too.
I plan to when appropriate.

Jerry @ DIY has kindly rearranged his schedule to give it a shakedown with me on Monday.


Ben
Ben is offline   Reply With Quote
Old 05-11-2007, 10:43 PM   #159
Junior Member

Join Date: Apr 2006
Posts: 457
Total Cats: 0
Default

Quote:
Originally Posted by Ben View Post
I plan to when appropriate.

Jerry @ DIY has kindly rearranged his schedule to give it a shakedown with me on Monday.


Ben
Sweet! Well Jerry has my thanks! And I'm droolin over this hardcore.
LunaticDriver is offline   Reply With Quote
