Default Double check my ms3x build

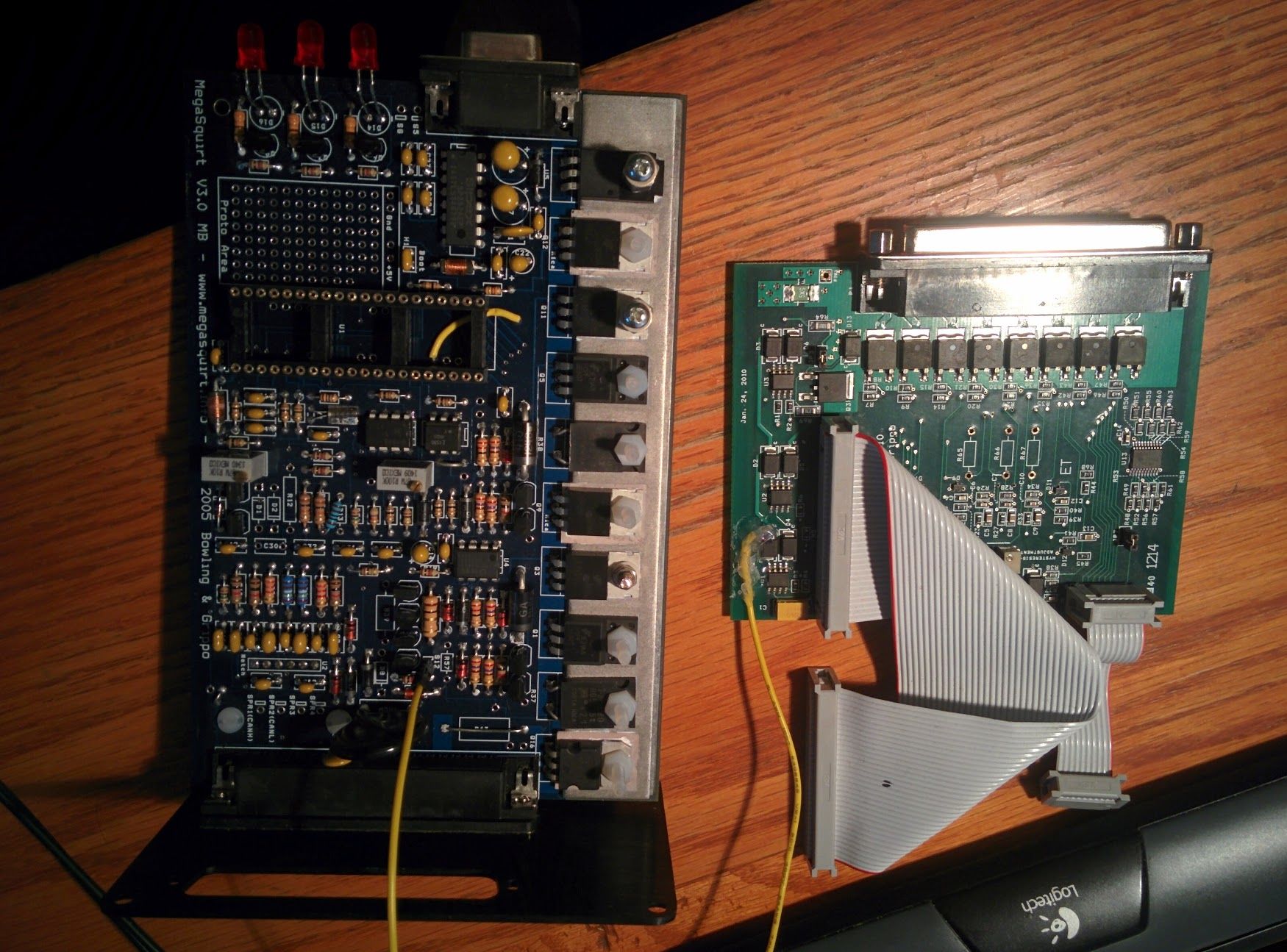

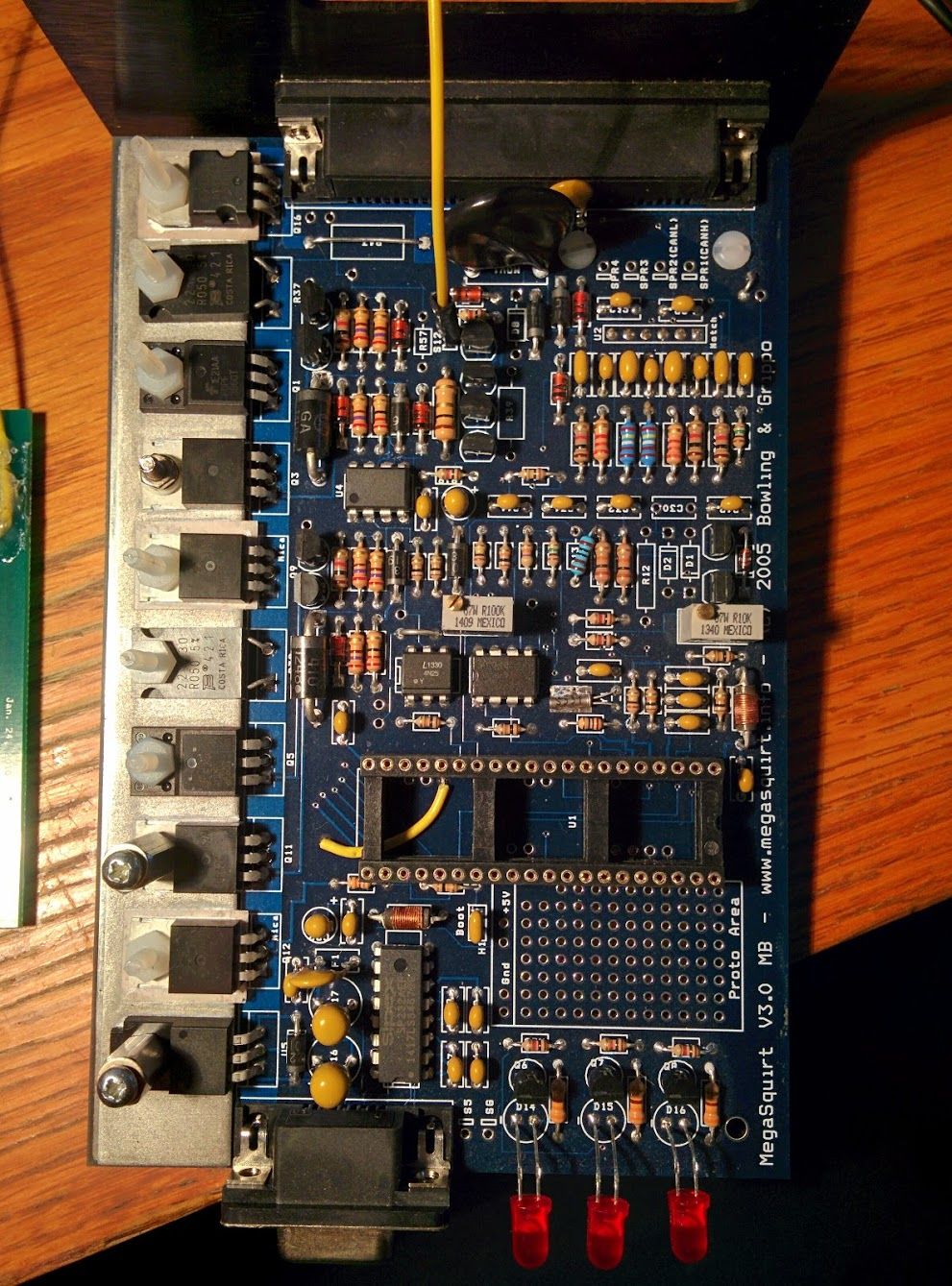

I bought a MS3x from DIYautotune last year, assembled it and then I ran out of time and did not touch it until now.

I think that I used the DIYautotune instructions to assemble and I think that everything is there but I would appreciate if someone could have a look to be sure that I did not forget anything. I intend to install it in my currently stock 2003 miata.

thanks!





Attached Thumbnails
Double check my ms3x build-80-zi14y9x_e40669123ce643dcbe5e555e652d29899af197ec.jpg   Double check my ms3x build-80-rckvb7y_f14606345c4e02e0d4294f2281cbaadaf625683c.jpg
p0staldude is offline   Reply With Quote
Old 03-28-2016, 01:35 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

looks good to go to me.
Braineack is offline   Reply With Quote
Old 03-28-2016, 03:23 PM   #3
Newb
Thread Starter

Join Date: Oct 2014
Posts: 16
Total Cats: 0
Default

Thanks Braineack!

I have one more question for you. In one of your post (that I am unable to find right now), I remember reading that a pullup resistance is needed to control the NB alternator. Is this the case? What is the best way to do that?
p0staldude is offline   Reply With Quote
Old 03-30-2016, 03:42 PM   #4
Newb
Thread Starter

Join Date: Oct 2014
Posts: 16
Total Cats: 0
Default

Should I just pick any unused PWM output and connect a 1k resistor between the DB37 pin of the output and the 5v on the proto section of the board?
p0staldude is offline   Reply With Quote
Old 03-30-2016, 03:49 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

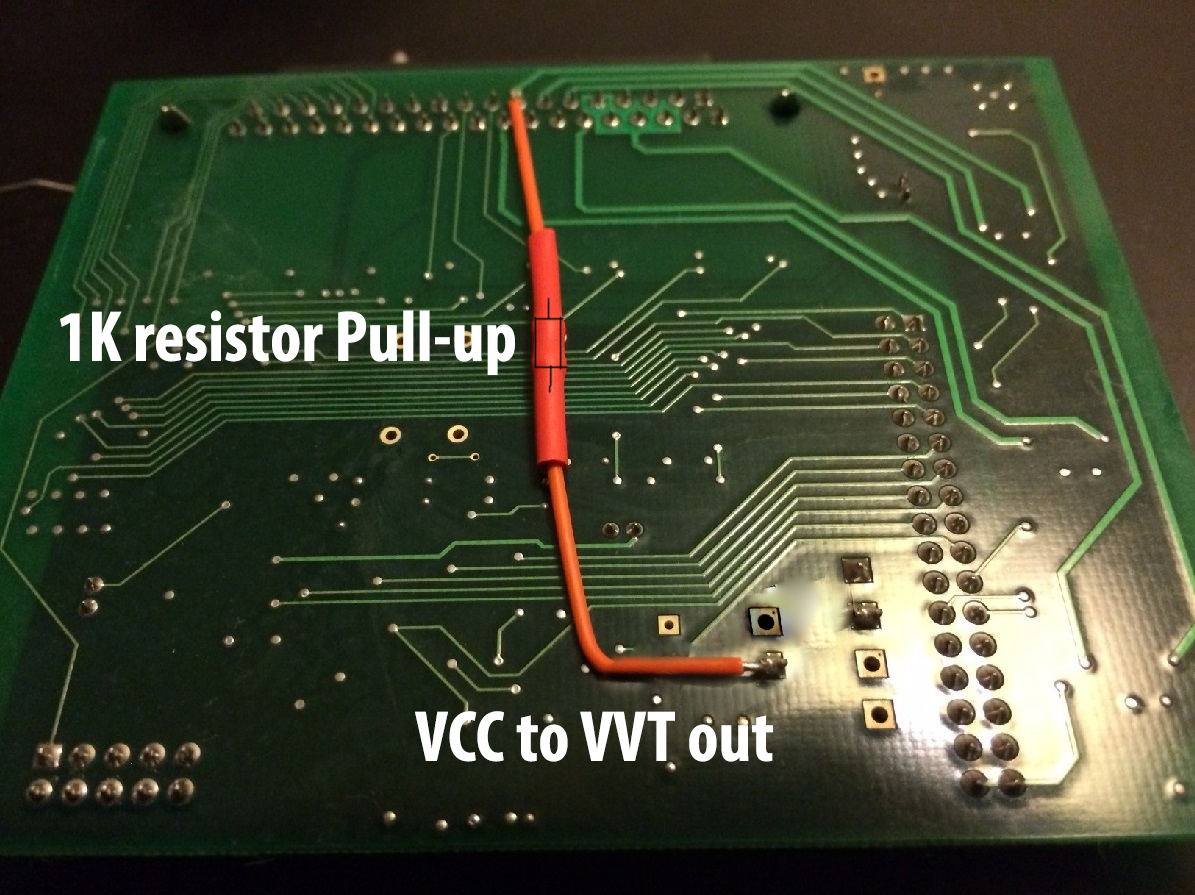

i use the VVT output and do a 1K resistor to VCC.

Attached Thumbnails
Double check my ms3x build-80-blob_a8b826438eb098c058203297fab91c9799e3ebcb.png
Braineack is offline   Reply With Quote
