Old 10-04-2014, 06:27 PM   #21
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Should be plugged into your car but with the MS3 unplugged. Like the picture below the step.
aidandj is offline   Reply With Quote
Old 10-04-2014, 06:31 PM   #22
Junior Member
Thread Starter

Join Date: Apr 2013
Location: Elgin, SC
Posts: 359
Total Cats: -4
Default

I could but I don't have any way to power it off the car.

I bought it 2nd hand from https://www.miataturbo.net/miata-par...9/#post1169300
whinin is offline   Reply With Quote
Old 10-04-2014, 06:33 PM   #23
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Quote:
Originally Posted by whinin View Post
I could but I don't have any way to power it off the car.

I bought it 2nd hand from https://www.miataturbo.net/miata-par...9/#post1169300
That test will tell you if the MS3 card is getting power or if there is a short somewhere. After that there are some tests to test the serial output.
aidandj is offline   Reply With Quote
Old 10-04-2014, 06:35 PM   #24
Junior Member
Thread Starter

Join Date: Apr 2013
Location: Elgin, SC
Posts: 359
Total Cats: -4
Default

Do I have to pull the board off or just leave it unhooked?
whinin is offline   Reply With Quote
Old 10-04-2014, 06:36 PM   #25
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

You have to disconnect the MS3 (white board) from the main board. Its a 40 pin connector. You pull it off and then test the pins listed in the guide.

Like this:
http://www.msextra.com/doc/general/pix/dip40voltages.png
aidandj is offline   Reply With Quote
Old 10-04-2014, 06:39 PM   #26
Junior Member
Thread Starter

Join Date: Apr 2013
Location: Elgin, SC
Posts: 359
Total Cats: -4
Default

10-4.

Give me a few, eating dinner atm. Will report back in about 20m.

Thanks for the help so far man.
whinin is offline   Reply With Quote
Old 10-04-2014, 06:40 PM   #27
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

No worries I had the same stuff with mine I built. Looks like braineack built it, hopefully he will pop in and help out.
aidandj is offline   Reply With Quote
Old 10-04-2014, 07:17 PM   #28
Junior Member
Thread Starter

Join Date: Apr 2013
Location: Elgin, SC
Posts: 359
Total Cats: -4
Default

12 volt power coming from the factory harness has 12.34v but at the MS3x there is nothing.
whinin is offline   Reply With Quote
Old 10-04-2014, 07:20 PM   #29
Junior Member
Thread Starter

Join Date: Apr 2013
Location: Elgin, SC
Posts: 359
Total Cats: -4
Default

Was I supposed to test those 0v and 5v ones right next to each other? It said 32 and 20 which is what I did. Also on the proto area and the u5 pin and nothing either.
whinin is offline   Reply With Quote
Old 10-04-2014, 07:21 PM   #30
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Test the voltage between the right leg of u5 and the center leg of u5.
aidandj is offline   Reply With Quote
Old 10-04-2014, 07:33 PM   #31
Junior Member
Thread Starter

Join Date: Apr 2013
Location: Elgin, SC
Posts: 359
Total Cats: -4
Default

0.00

But between the left and center there is .50 and it tapers off to 0.00 so long as I keep the leads touched there. If I take the leads off it halts at whatever voltage until I touch the leads back to the legs.

Come to think of it maybe I have the settings a click to far on the multimeter and it is 5 volts between the left and center leg.
whinin is offline   Reply With Quote
Old 10-04-2014, 07:48 PM   #32
Junior Member
Thread Starter

Join Date: Apr 2013
Location: Elgin, SC
Posts: 359
Total Cats: -4
Default

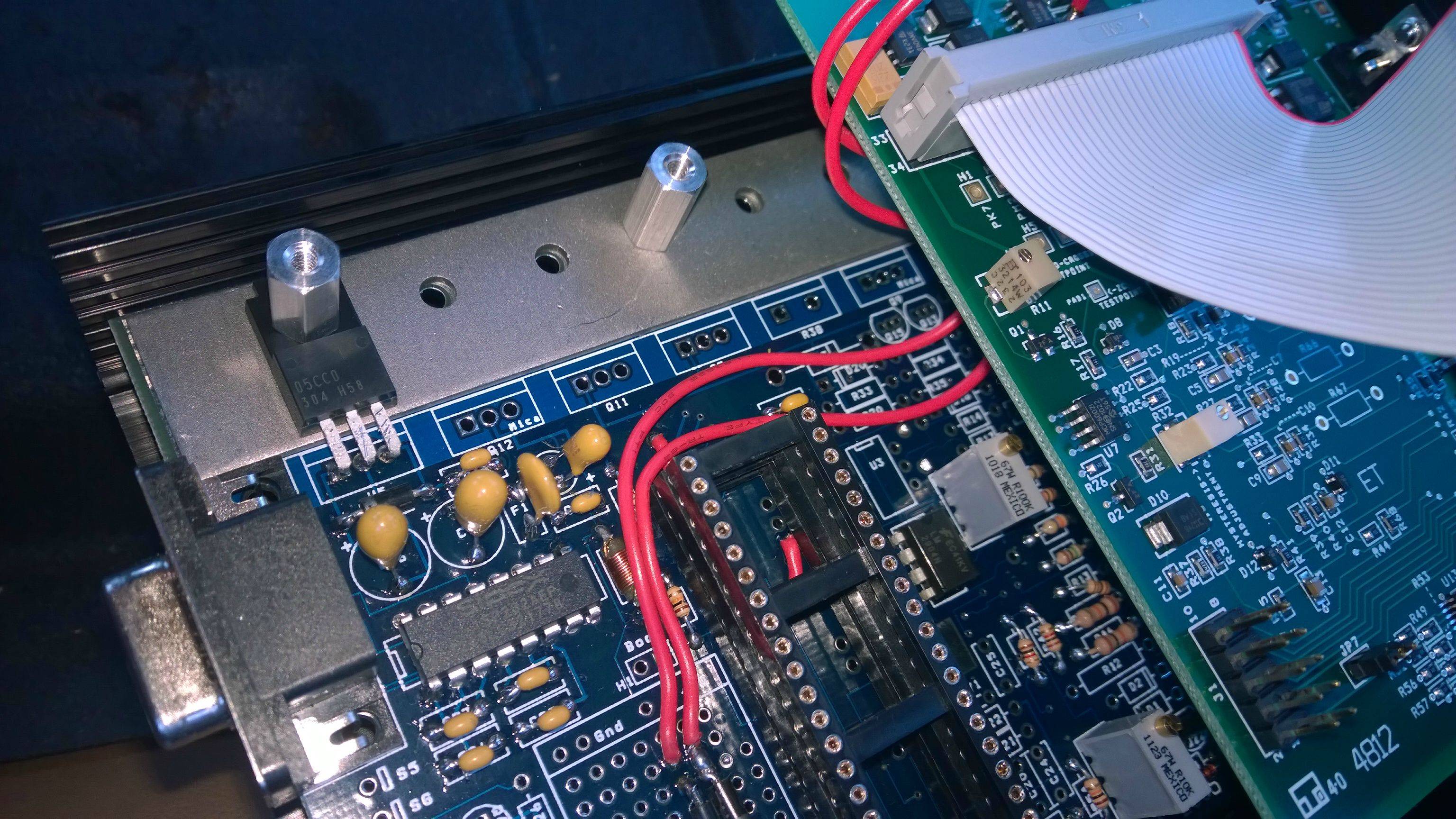

Might be a problem.



Am I supposed to have those q12 etc etc chips?
whinin is offline   Reply With Quote
Old 10-04-2014, 07:51 PM   #33
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

There should be 12 volts between right and center, 5 between left and center. Fiddle with the settings and see if you can get that. Let me know what you find.
aidandj is offline   Reply With Quote
Old 10-04-2014, 07:52 PM   #34
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Nope u5 is the only one needed.
aidandj is offline   Reply With Quote
Old 10-04-2014, 07:56 PM   #35
Junior Member
Thread Starter

Join Date: Apr 2013
Location: Elgin, SC
Posts: 359
Total Cats: -4
Default

There is not. I get no volts on right/middle and .5 on middle/left.
whinin is offline   Reply With Quote
Old 10-04-2014, 07:57 PM   #36
Junior Member
Thread Starter

Join Date: Apr 2013
Location: Elgin, SC
Posts: 359
Total Cats: -4
Default

Meter is set on 20 which is the lowest it will go before going infinite.
whinin is offline   Reply With Quote
Old 10-04-2014, 08:04 PM   #37
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Quote:
Originally Posted by whinin View Post
Meter is set on 20 which is the lowest it will go before going infinite.
What do you measure at pin 28 on the main board connector.
aidandj is offline   Reply With Quote
Old 10-04-2014, 08:23 PM   #38
Junior Member
Thread Starter

Join Date: Apr 2013
Location: Elgin, SC
Posts: 359
Total Cats: -4
Default

Hmm? Nothing said to check it. What do I check it against?
whinin is offline   Reply With Quote
Old 10-04-2014, 08:25 PM   #39
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Against ground. Either pin 2 or the proto area ground. Is your key on?
aidandj is offline   Reply With Quote
Old 10-04-2014, 08:25 PM   #40
Junior Member
Thread Starter

Join Date: Apr 2013
Location: Elgin, SC
Posts: 359
Total Cats: -4
Default

Yup, brb.
whinin is offline   Reply With Quote
